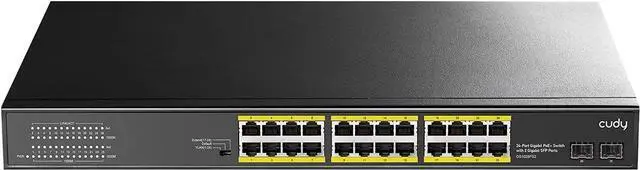

Cudy 24 Gigabit Ethernet Unmanaged PoE+ Switch, 300W, 24 * 100/1000Mbps PoE+ Ports, 2 Gigabit SFP, CCTV / VLAN Mode, 19-inch Rackmount, 802.3af/at, GS1028PS2
- 24 PORT | 24 x GbE PoE+ 300W | 2 x SFP: 24 Gigabit PoE+ ports with 300W total power budget, support up to 32w for one port. 2 Gigabit SFP Port provide flexibility in network access management

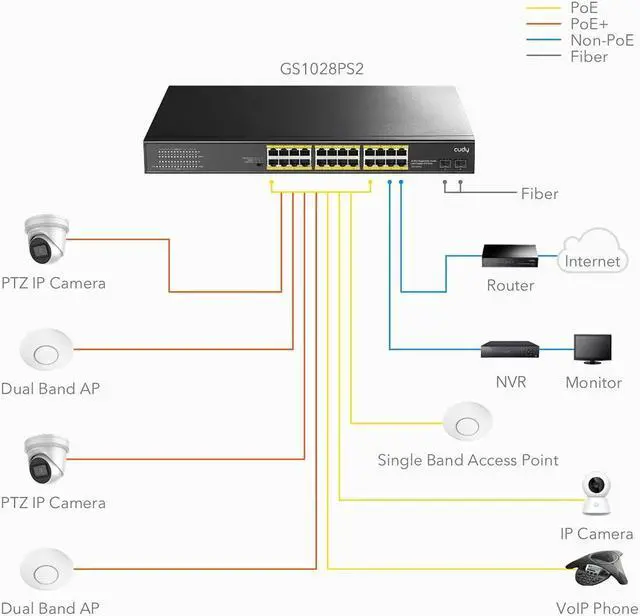

- One Key Switch for CCTV and VLAN: CCTV function support remote power and data feeding up to 250m long distance, which is easy to expand network via ethernet cable to somewhere without power supply but need fix device such as IP Cameras. VLAN mode isolate the PoE+ ports from each other, which can improve the network environment and reduces network maintenance costs.
- PD Detect and PD Alive: PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). PD Alive check function (watchdog) supports monitor connected PD (Powered Device) status. If a PD stops working and responding, this PoE switch will reactivate the PD by resuming POE port power. It also support port power supply prioritization, guarantee the continuous power supply of key nodes.
- Desktop and R
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IEEE 802.3af/802.3at compliant 10/100/1000Mbps Ethernet Ports.
300W total PoE Power supply.
Auto-sensing technology delivers up to 30W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices.

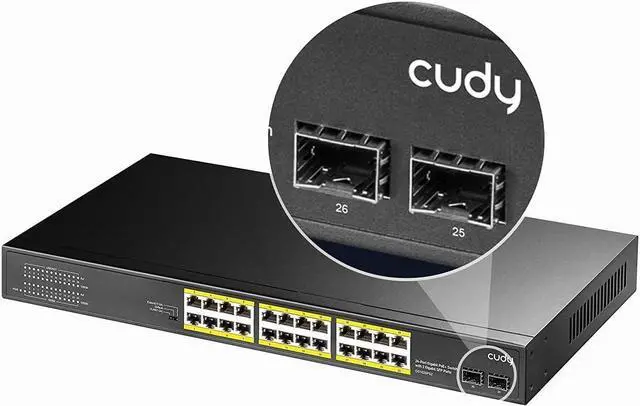

2 x 1GSFP ports
Support for the 19-inch cabinet installation
Support desktop installation
Plug and Play, Easy of use. Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
High QualityPoE chipset inside ensure High performance and stable operation of the product.
Port-Power-Prioritization technology ensure continuous power supply of key nodes.When total power consumption exceeds maximum PoE budget, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.
Electrostatic standard: contact 6KV, air 8KV
MTBF > 50000 hour
Previous page
Next page 24-Port PoE+ and 2-Port Uplink Flexibility of Uplink Ports Silent Design and Heat Dissipation High Quality PoE chipset inside Port-Power-Prioritization & Power Overload Protection Lightning protection Wi-Fi 7 Routers 4G/5G Routers Outdoor AP/4G 2.5 Gbps Ports Is it easy to set up a Cudy router? Why do I need Wi-Fi faster than my broadband speed? Where should I place my router?
300W total PoE Power supply.
Auto-sensing technology delivers up to 30W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices.
2 x 1GSFP ports
Support for the 19-inch cabinet installation
Support desktop installation
Plug and Play, Easy of use. Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
High QualityPoE chipset inside ensure High performance and stable operation of the product.
Port-Power-Prioritization technology ensure continuous power supply of key nodes.When total power consumption exceeds maximum PoE budget, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.
Electrostatic standard: contact 6KV, air 8KV
MTBF > 50000 hour
