Dual Antenna WiFi Signal Booster 1000mW 2.4 GHz 2T2R / 300Mbps WiFi Signal Amplifier Repeater Extender SH24Gi1000-D2 for Routers, IP Camera, UAV, IP Cameras, RC Equipment

Features:
2.4GHz, Max. 1000mW MIMO output power;
Aluminum-alloy case by CNC, anti-interference;
Small size, Safe & Power saving;
Full kit, easy to install;
For house, office, UAV, IP cameras, RC equipment....
[Maximum Output Power of 1000mW]
SH24Gi1000-D2 Maximum output power of 1000mW by the Booster. The input power range for this model is 0-20dBm, around 12 -15dB is the best. Too low input power, the output power of booster will be low or does not work, if too high(near to 20dBm or up), the booster just as a connection device, does not work, but will weak the signal because of signal attenuation. (Note that longer RF cable connection will cause greater signal attenuation).
[Application of 2.4GHz 1W WiFi Booster]
SH24Gi1000-D2 2.4GHz WiFi Signal Booster Repeater is compatible with various types of 2.4Ghz wireless device, enhancing transmit power/ WiFi Signal range for Drone, AP router, Bluetooth, ZigBee, security camera system.
SH24Gi1000-D2 1000mW 2.4GHz WiFi Signal Booster can extend WiFi Signal Range, enhancing WiFi Transmit/ Output power of 2.4GHz Wireless Device, enjoying better 2.4G WiFi Signal at use.
Made of Aluminum-alloy case by CNC, anti-interference, IEEE802.11b/g/n standards, compatible with variety of 2.4GHz frequency transmitter and receiver wireless network devices. Easy installation, simply plug and play, no software is required.
SH24Gi1000-D2 2.4GHz WiFi Signal Booster is 30dBm 1000mW WiFi Amplifier, offering maximum output power of 1000mW at ideal situation. Input power range is 0~20dBm,transmit gain 12db~14db can greatly improve WiFi signal range.
Specifications:

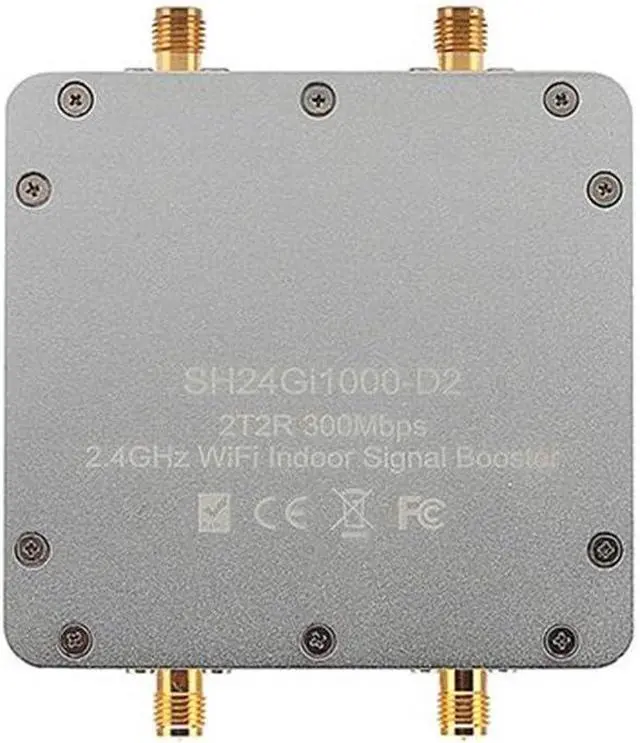

Booster Model: SH24Gi1000-D2
Operating range : 2400~2500MHz
Channel width: 20Mhz&40Mhz
Supported standards: IEEE 802.11b/g/n (802.11n Draft 2.0), 2Tx2R
Operation mode: Bi-directional, half-duplex, time division duplex, MIMO

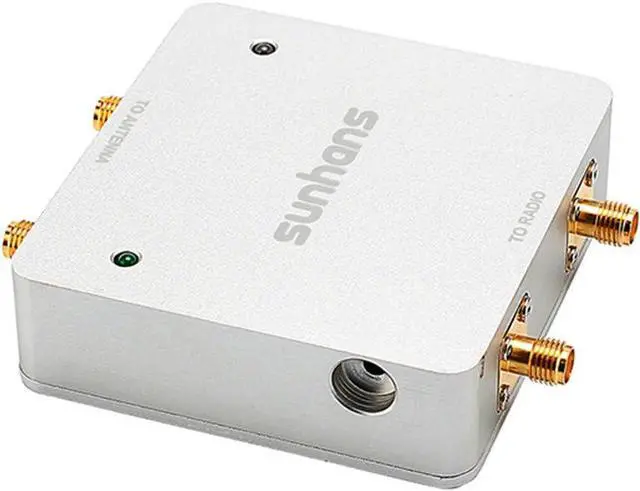

Connector type: To radio SMA female (hole inside)
To antenna RP-SMA female (pin inside)
Output power: 1000mW (30dBm)
Input power: 0 ~ 20dBm
Transmit gain: 12-14dB
Receiver gain: 9-11dB
Noise figure: 3.5dB typical
Frequency response: ±1dB over operating range
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20°C to +70°C
Operating humidity: Up to 90% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 178g
Booster size: 8.5 x 7 x 2cm
Package weight: 500g
Package size: 21.3 x 15 x 6cm
Instructions on use:
Step 01: Remove the Antenna from the Wireless Router (Access Point).
Step 02: Use this cable (RG316) to connect Amplifier 'input' port with router 'output' port: note that cable is in standard spec.
Step 03: Connect the antenna with 'output' port of Amplifier.
Step 04: Power the amplifier with the matching source adapter: DC 12V.

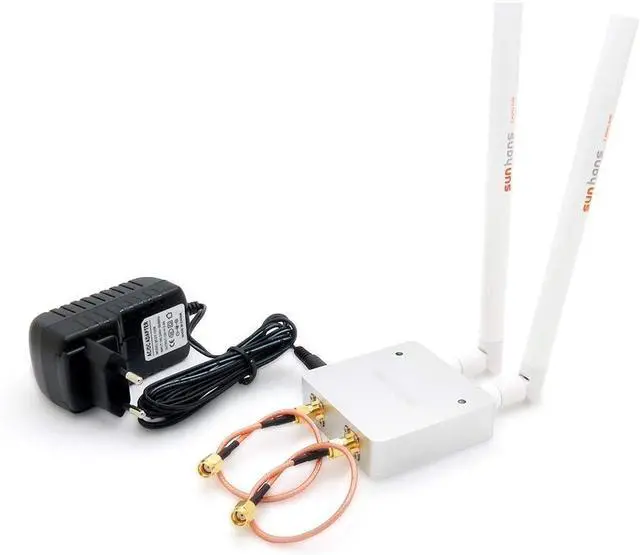

Package contents:
1 x SH24Gi1000-D2 WiFi booster
2 x RG316 cable with SMA connectors (20cm)
2 x 6dBi omni antenna
1 x power supply (12V/2A DC, 100~240V)
1 x English user manual
Attention:
The power amplifier is not suitable for use in high power devices.
1 x SH24Gi1000-D2 WiFi booster; 2 x RG316 cable with SMA connectors (20cm); 2 x 6dBi omni antenna; 1 x power supply; 1 x English user manua
