YMDK GH60 HHKB-Style Oni Hot Swappable Both Underglow Switch RGB VIA Programmable PCB Compatible with Tokyo 60

Package included

1x Type C VIA PCB (Hotswap and Switch RGB Underglow RGB presoldered)

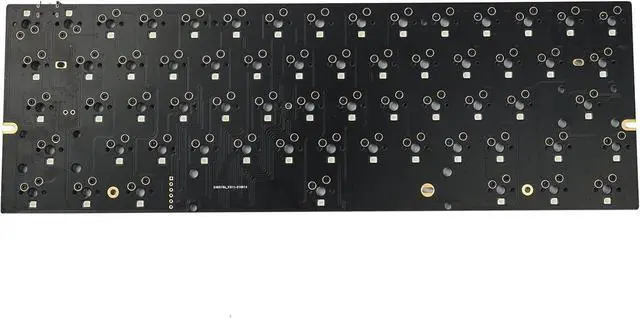

This PCB support ANSI 1.5x layout as well as HHKB layout

(If you use 1.5x ANSI layout,can just use normal GH60 aluminum case.Plastic case may stuck for the hot socket raised in the bottom. )

(If you use HHKB layout,you need to find a special HHKB layout supported 60 case,such as Tokyo or YMDK Oni case.Original Topre capactive keyboard case is not compaitble.)

If you want to use with the Tokyo case,please use some pad under the middle screw hole to avoid shortcut.You can cut any EVA or PE or even little thicker tissue is ok

Details

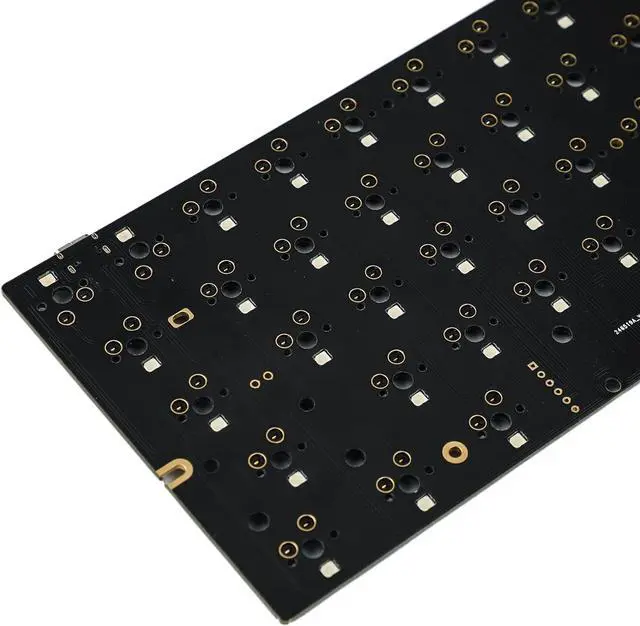

The PCB is gold pad point.The ESC F1 is reversed with other keys.Esc F1 Switch led direction is different.

When you plug switches in,please use a hand to press the PCB socket and use another hand to plug switches in to avoid damaging the socket.

The bottow row is 1u+1.5u+7u+1.5u+1u.Spacebar is 7u.

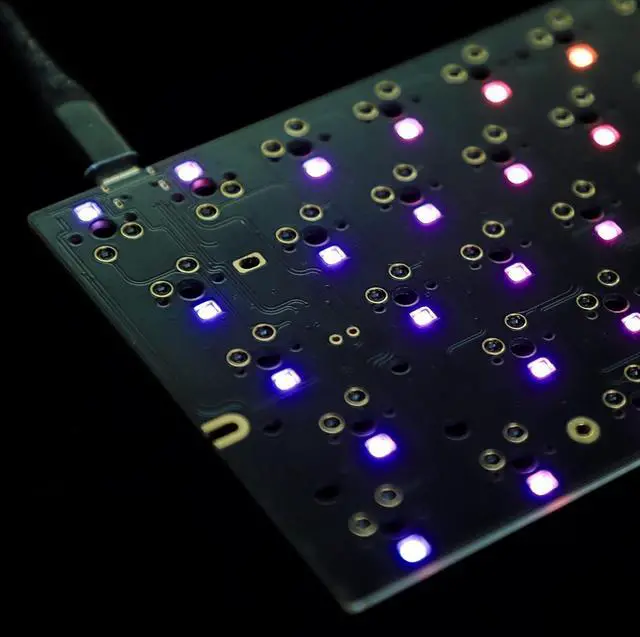

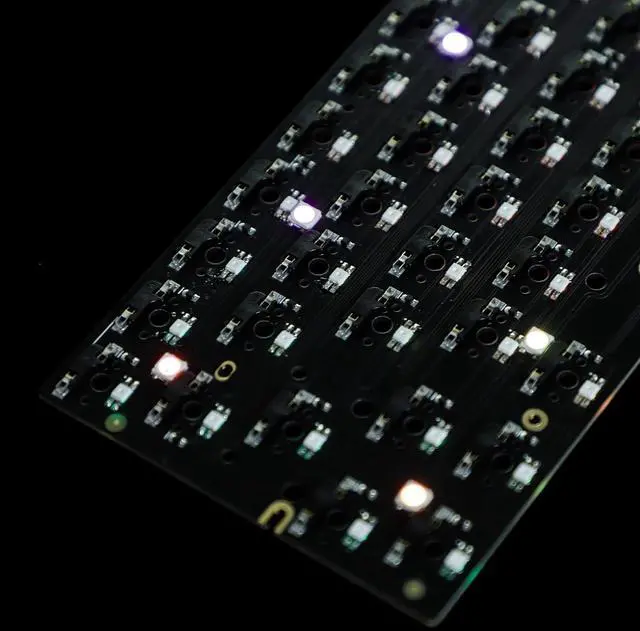

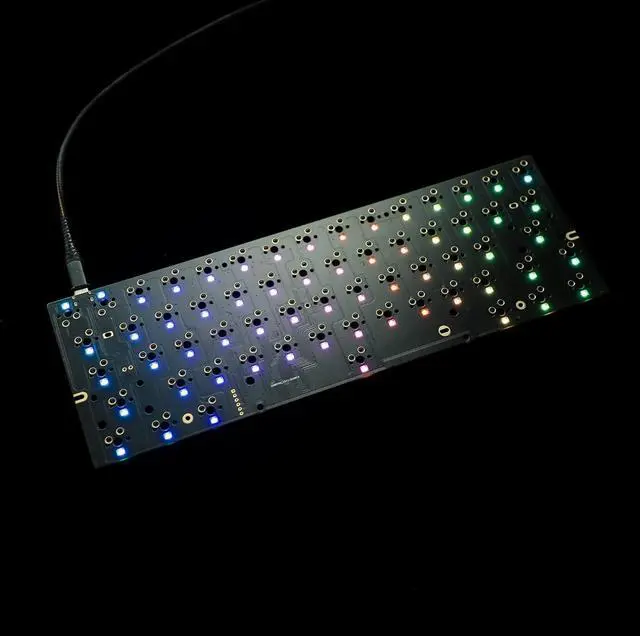

PCB has diode resistors underglow RGB and Switch RGB presoldered.

If you use ANSI 1.5x layout,you can just buy normal 60 case and universal plate from our store to use together.
