Poynting A-LPDA-0500-V1-01 Wideband 5G & Wi-Fi, Log-Periodic Dipole Array Antenna - N-Type (F)

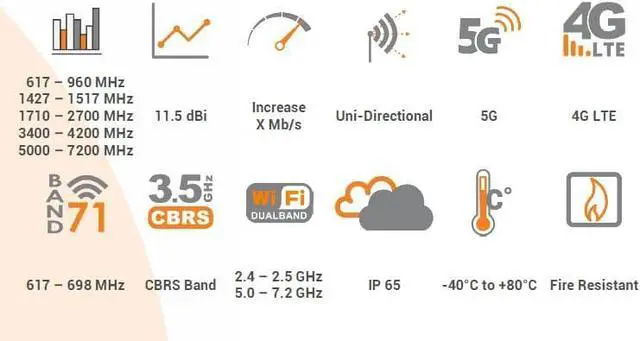

- Wideband frequency coverage for 5G/LTE: 617 to 7200 MHz
- High gain antenna with a peak of 11dBi
- Connector type: N-Type (F)
- Works on all cellular networks across the world, including Band 71 (617 to 698 MHz)
- Covers the CBRS/5G Band from 3400 to 4200 MHz & future bands up to 7200 MHz
- Covers dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz
- The antenna complies with the relevant CE, EN, CSA and RoHS standards as stated in our technical sheets.
- It is rated for temperatures from -40°C to +80°C and will survive winds of up to 160 km/h, with an impact resistance of IK08. Salt Spray: MIL-STD 810G/ASTM B117
- Product dimensions 1385 mm x 250 mm x 145 mm (54.53 x 9.84 x 5.71 inch)

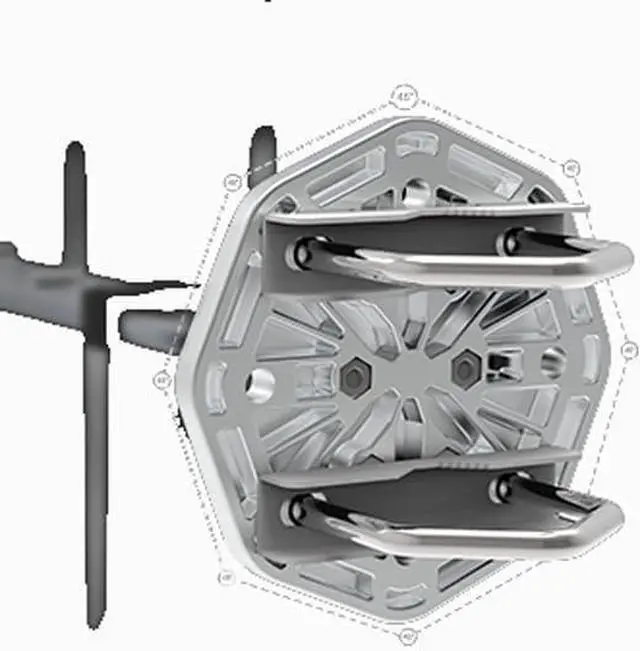

- Included in the box: Antenna: A-LPDA-0500-V1-01, Mounting bracket: Econo bracket, U-bolt and fasteners suitable for pole mounting
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wideband frequency coverage for 5G/LTE: 617 to 7200 MHz
High gain antenna with a peak of 11dBi
Connector type: N-Type (F)
Works on all cellular networks across the world, including Band 71 (617 to 698 MHz)
Covers the CBRS/5G Band from 3400 to 4200 MHz & future bands up to 7200 MHz
Covers dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz
The antenna complies with the relevant CE, EN, CSA and RoHS standards as stated in our technical sheets.
It is rated for temperatures from -40°C to +80°C and will survive winds of up to 160 km/h, with an impact resistance of IK08. Salt Spray: MIL-STD 810G/ASTM B117
Product dimensions 1385 mm x 250 mm x 145 mm (54.53 x 9.84 x 5.71 inch)
Included in the box: Antenna: A-LPDA-0500-V1-01, Mounting bracket: Econo bracket, U-bolt and fasteners suitable for pole mounting
High gain antenna with a peak of 11dBi
Connector type: N-Type (F)
Works on all cellular networks across the world, including Band 71 (617 to 698 MHz)
Covers the CBRS/5G Band from 3400 to 4200 MHz & future bands up to 7200 MHz
Covers dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz
The antenna complies with the relevant CE, EN, CSA and RoHS standards as stated in our technical sheets.
It is rated for temperatures from -40°C to +80°C and will survive winds of up to 160 km/h, with an impact resistance of IK08. Salt Spray: MIL-STD 810G/ASTM B117
Product dimensions 1385 mm x 250 mm x 145 mm (54.53 x 9.84 x 5.71 inch)
Included in the box: Antenna: A-LPDA-0500-V1-01, Mounting bracket: Econo bracket, U-bolt and fasteners suitable for pole mounting
