Gigabit Ports High-speed Network 5-Port Ethernet Switch 1000Mbps Fast Lan Hub Full/Half Duplex Plug and Play

Feature:

Gigabit Ethernet switches offer plug-and-play simplicity, reliability for your small office or home/office network. Compared with a 1000M switch, they enhance transmission speed up to 10 times, and eliminate the bottleneck of cascading bandwidth.

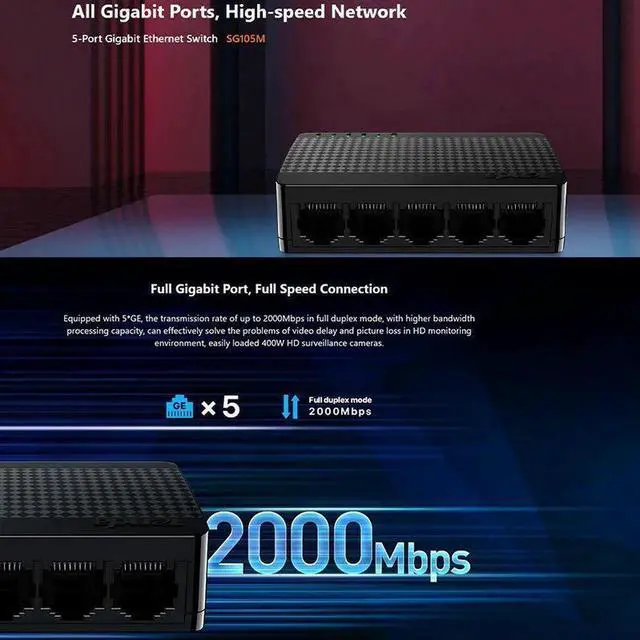

5-Port Gigabit Ethernet Switch SG105MFull Gigabit Port, Full Speed Connection, Equipped with 5*GE, the transmission rate of up to 2000Mbps in full duplex mode, with higher bandwidth processing capacity, can effectively solve the problems of video delay and picture loss in HD monitoring environment, easily loaded 400W HD surveillance cameras.

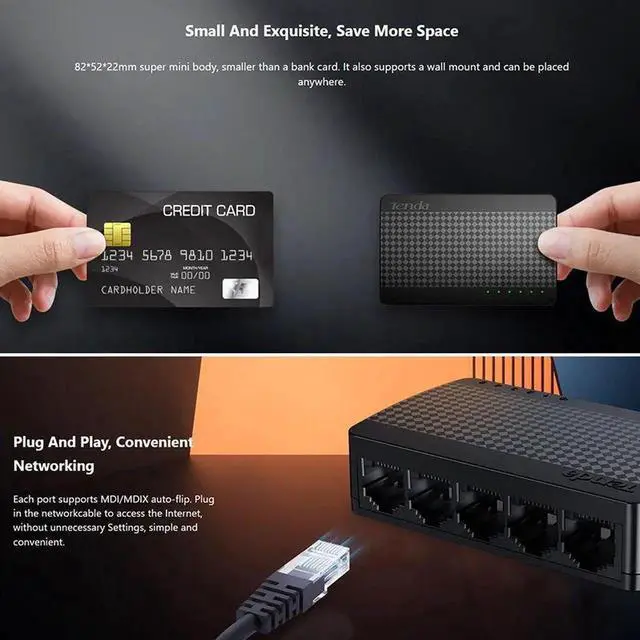

Small And Exquisite, Save More Space, 82*52*22mm super mini body, smaller than a bank card. It also supports a wall mount and can be placed anywhere.

Plug And Play, Convenient Networking, Each port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.

Wide Application: It is compatible with network devices such as surveillance cameras, computers, printers, smart TVs, and smart game consoles to better meet the networking requirements of enterprises and household environments.

Network standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab.

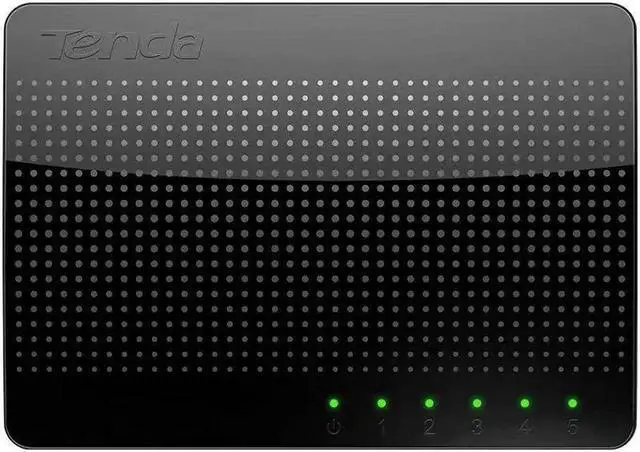

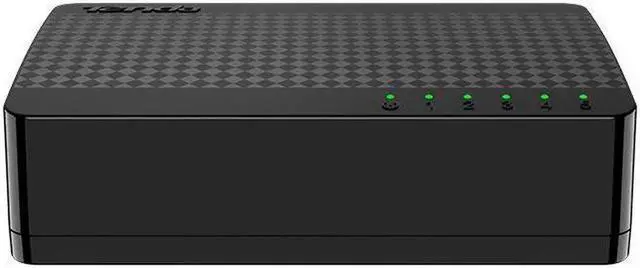

LED Indicator: One Link/Act LED indicator for each Gigabit port. One Power LED indicator for each device.

Interfaces: 5*10/100/1000Base-T Ethernet Ports.

Transmission media:

Ethernet: CAT3 UTP or better, Fast

Ethernet: CAT5 UTP or better, Gigabit

Ethernet: CAT5e UTP or better.

Dimension: 82mm*52mm*22mm (L*W*H).

Meterial: Plastic.

Forwarding mode: Store-and-forward.

Switch capacity: 10Gbps.

MAC address table: 2k.

Jpmbp frame: 15K.

Power:

Input: 100-240V AC 50/60Hz, Output: 5.0V 0.6A (External Power Adapter).

Power consumption:

Max: 1.7W.

MAC address learning: Auto-learning and Auto-Updating.

Funtions: Plug-and-Play.

Packing list:

1 x 5-Port Ethernet Switch
