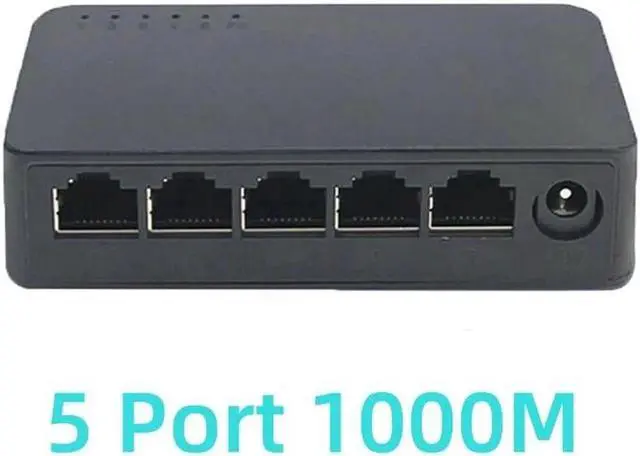

Network Switch Mini 5Ports Switch Ethernet 1000Mbps/100Mbps Gigabit High Performance Smart Switcher RJ45 Hub Internet Injector 5 Port, 100/1000M

Features:

These unmanaged switches are Fast Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 5 port 10/100Mbps or 10/100/1000Mbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 100Mbps or 1000Mbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.

5*100M or 5*1000M Ethernet port with auto-negotiation function.

Support 100M/1000M speed rate, MDI/MDIX.

Support IEEE 802.3 x Flow control and back pressure control.

Each port has the complete LED Indicator light.

Each port supports wire-speed switching, 64~1518 frame length can reach the wire speed.

Support multicast to avoid network congestion.

Support 5-16V voltage input.

Support 4K lightning protection of whole device.

Require no configuration and will instantly operate as soon as you power it up.

Use low-power consumption chips, only 2.5W in full load conditions.

Standards:

IEEE 802.3 10Base-T

IEEE 802.3 u 100Base-TX/FX

IEEE 802.3 x Flow control

Ethernet Port:

Connector: RJ45

Data Rate: 10/100M or 10/100/1000M

Distance: 100m

UTP Type: UTP-5E or higher level

Performance:

Processing Type: Store and Forward

Transmission Mode: half/full-duplex with auto-negotiation function

MAC Table Size: 1K

Buffer Space: 448K

Back bandwidth: 1G

Time Delay: <150s

Power:

Power type: external power supply

Input Voltage: AC100V~240V 50/60Hz

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 1.8W ~4W

Environment:

Storage Temperature: -40~70

Operating Temperature: -10~55

Relative Humidity: 5-90% ( no condensation)

Physical Characteristics:

Dimension: 100×52×28mm

Weight: 0.30 kg

Color: Black

Packing list:

1 x 5 Ports Switch Ethernet
