8 port industrial grade non-managed Ethernet switch 10/100Mbps auto negotiation full duplex half duplex Auto MDI/MDI-X UT-6408

Features:

UT-6408 is a 8-port 10/100Mbps unmanaged Ethernet switch. It provides AC/DC input, reverse polarity protection; at the same time, it supports DIN-Rail and wall-mounted under industrial standard, easy for installation.

Product name: 10/100M 8-Port Unmanaged Ethernet Swtich

Specification model: UT-6408

-8x10/100Base-T(X) ports

-Supports full-duplex or half-duplex

-10/100Mbps auto negotiation

-Auto MDI/MDI-X

-Built-in store-and-forward, support multiple protocols

-Fail, relay output auto alarm function

-Telecom standard, MTBF>300,000 hours

>>Standards:IEEE 802.3 10Base-T IEEE 802.3u 100Base-T(X) & 100Base-FX

>>Ports:RJ45 ports:8x10/100Base-T(X), auto detection, full/half-duplex, auto MDI/MDI-X

LED indication: PWR, 1~8 RJ-45 ports

>>Power Requirement

Voltage input:- DC9-48V, reverse polarity protection - AC9-38V

Power consumption: Max. 2.2 Watts

Terminal block: 1 pluggable 3-pin terminal block

Overload protection: Yes

Reverse polarity protection: Yes

>>Mechanical Characteristics

Case: steel

Installation: DIN-Rail/wall-mounted

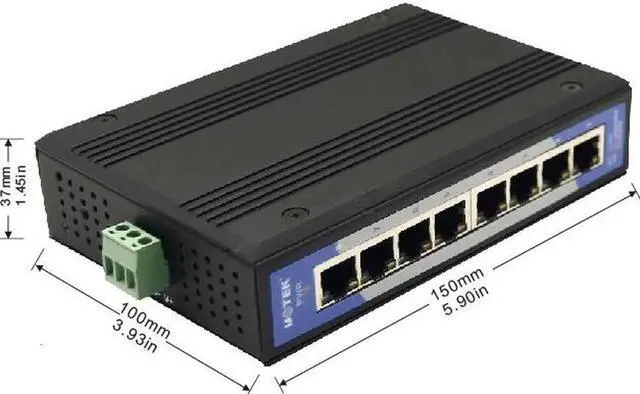

Dimension(W x H x D): 150mm×30mm×100mm

>>Environment

Operating temperature: -10?~60?

Storage temperature: -40?~85?

Relative humidity: 5~95% (non-condensing)

>>Industrial Standards

EMI: CE, FCC; EMI: FCC Part 15 Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)

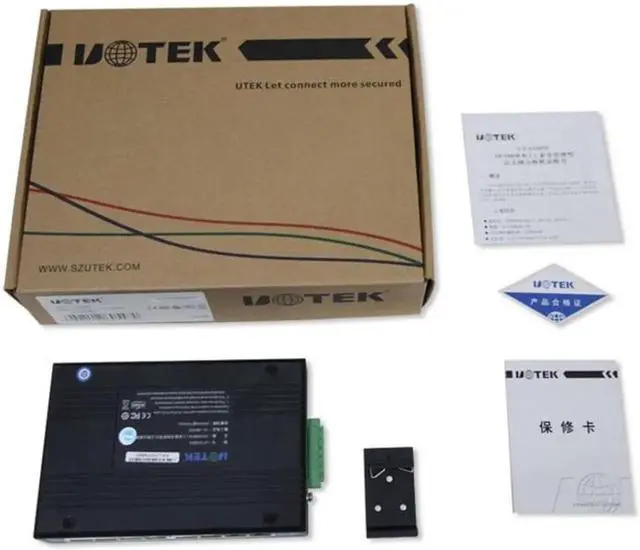

Package Included:
