8 Ports 10/100M Industrial Ethernet Enhance Switch 8 Port RJ45 VLAN Signal increased to 250 meters
- Chipset:IP178GHI.
- Port number:8 port 10/100M Auto MDI-MDIX RJ45.
- LED Indicator:10/100Mbps(Link/Act, speed),Power, enhance Indicator.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:

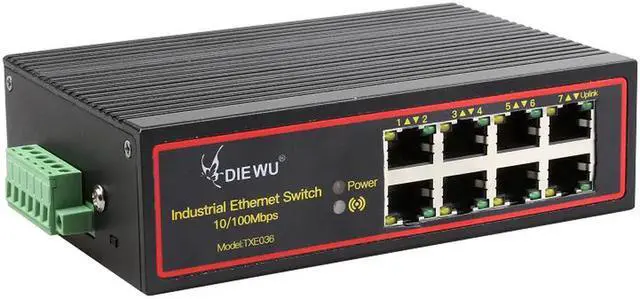

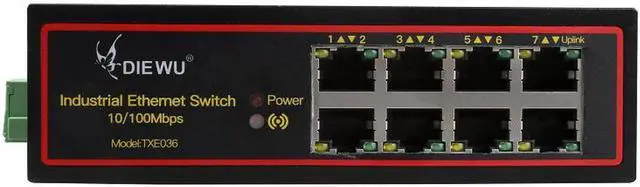

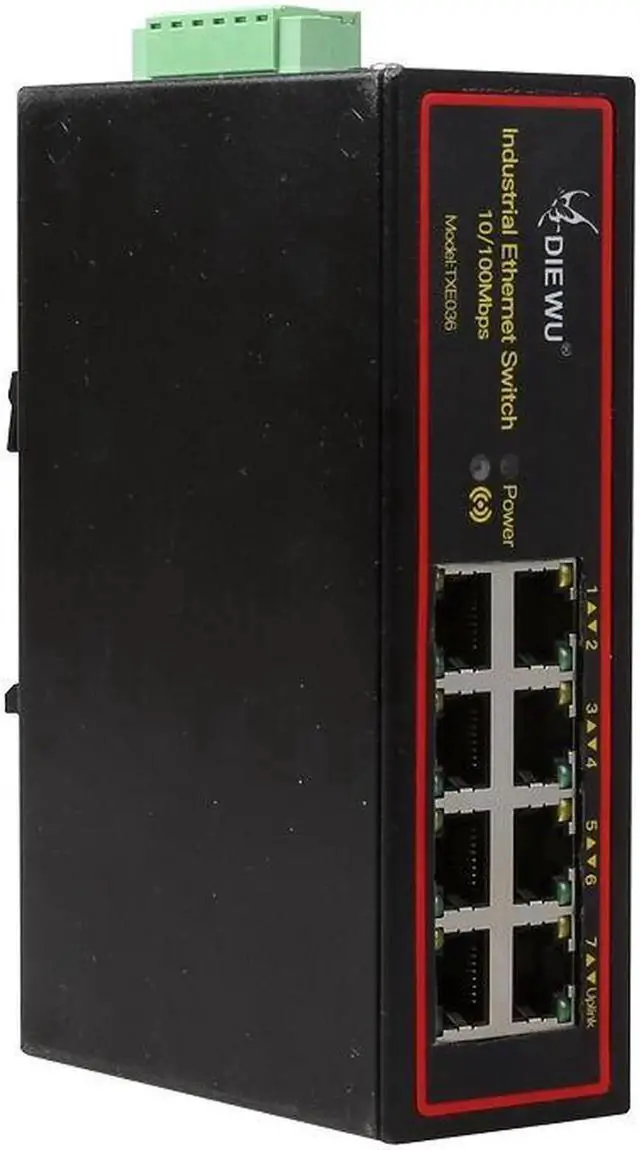

8 Ports 10/100M Industrial Ethernet Enhance Switch 8 Port RJ45 VLAN Signal increased to 250m
Model number:TXE036
Chipset:IP178GHI
Port number:8 port 10/100M Auto MDI-MDIX RJ45
Standard:IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
Network media:10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data rate:10/100M
Forwarding rate:10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator:10/100Mbps(Link/Act, speed),Power, enhance Indicator
Dimension:141*98*42mm

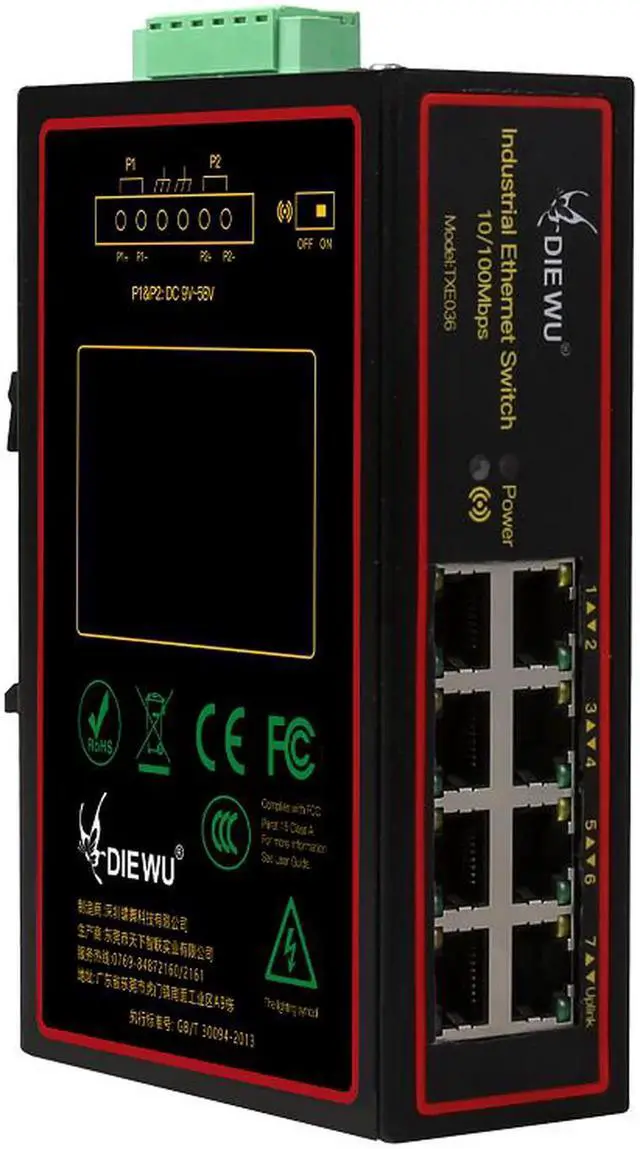

Power Input:DC9V-58V
Power Consumption:Max1.5W
Environment
Operating Temperature: -40 ?-85 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40?-85?
Relative Humidity: 5%-90%(non-condensing)

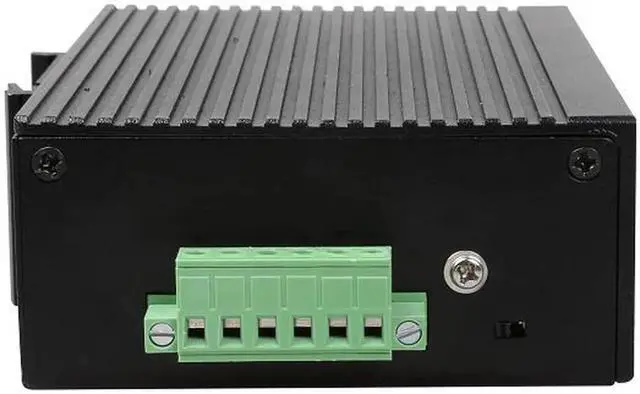

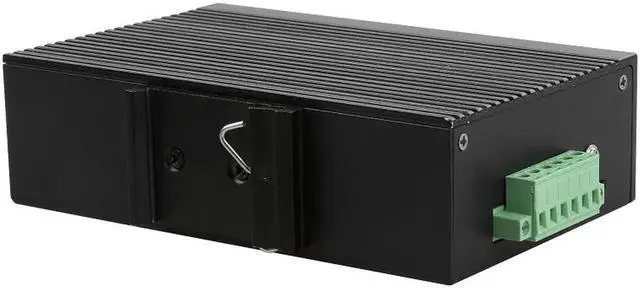

Other function:Installation: DIN rail type
Package Included:
1 x 8 Ports 10/100M Industrial Ethernet Enhance Switch
