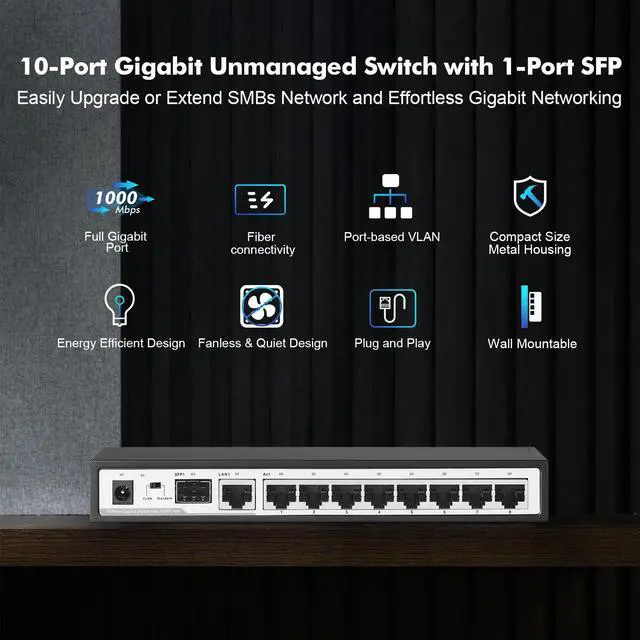

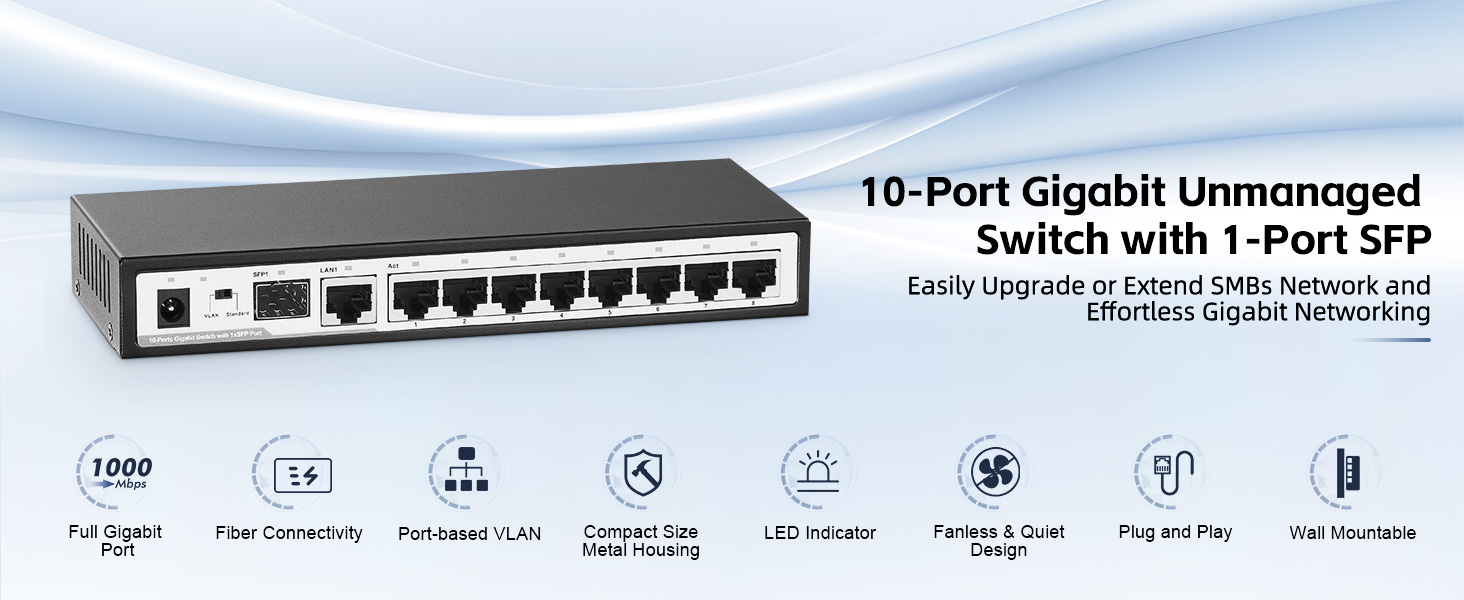

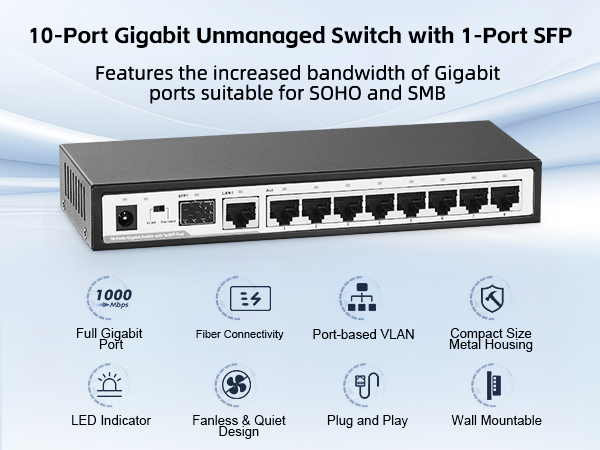

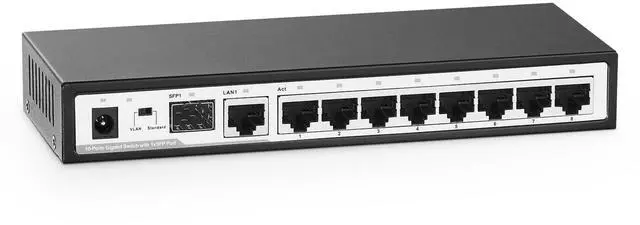

The G082S Gigabit Unmanaged Ethernet switche come with 9 gigabit copper ports and 1 gigabit SFP slot in a desktop metal case and is wall-mountable. Fanless, silent and energy-efficient operation. Support port-based VLAN, It is idel for small and medium business.
High Performance & Reliable Connection
It allows connecting 10 devices at different bandwidths, offering flexible and budget-friendly networking solutions, Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which maximizing network performance.

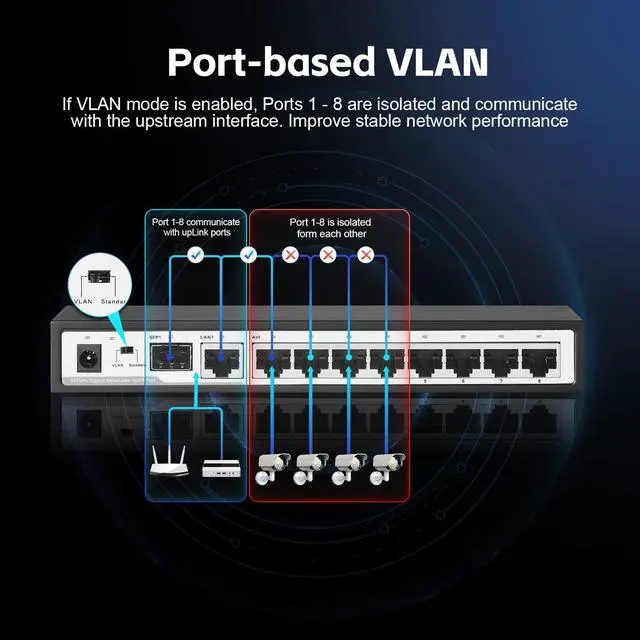

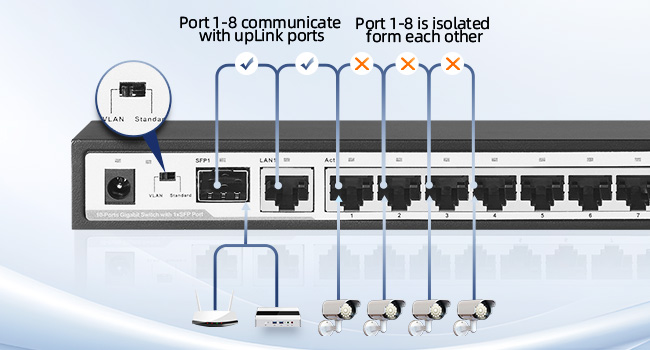

Port Isolated Mode Support
It features Port Isolate that port 1-8 can be isolated from each other via DIP switch, only communicates with port 9-10. This can help to prevent broadcast storms from affecting each other.

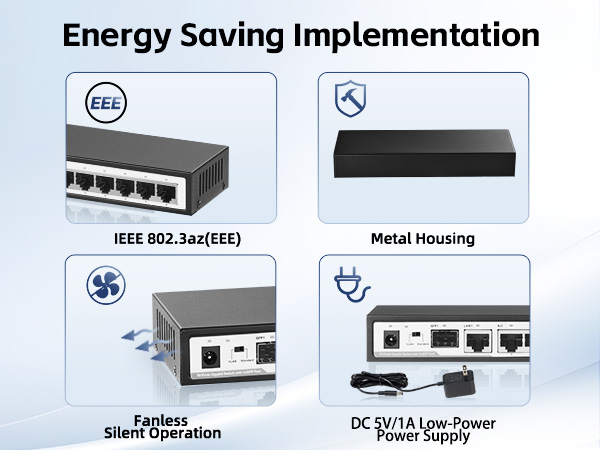

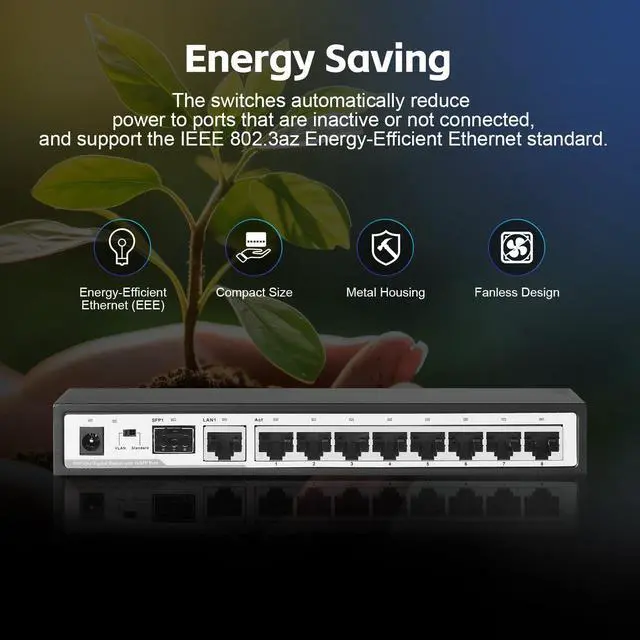

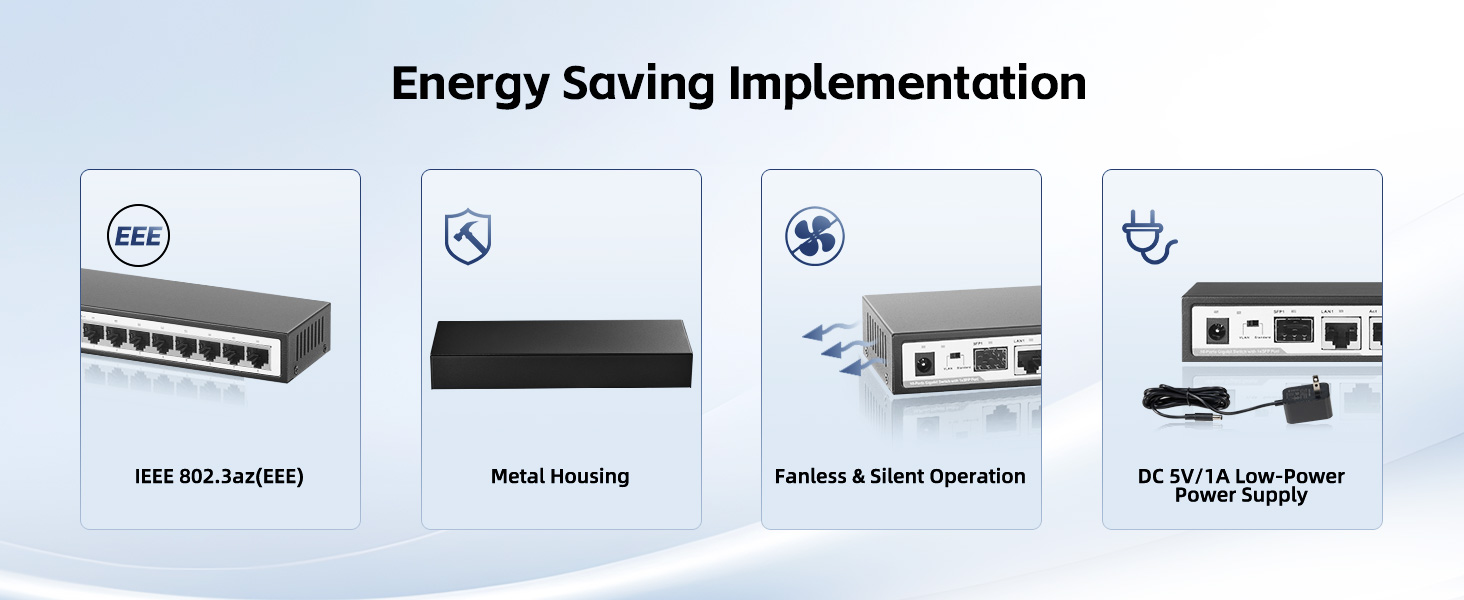

The fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Plug and Play
Automatic connectivity to your 9x 1G ethernet devices. No need for an IT expert.

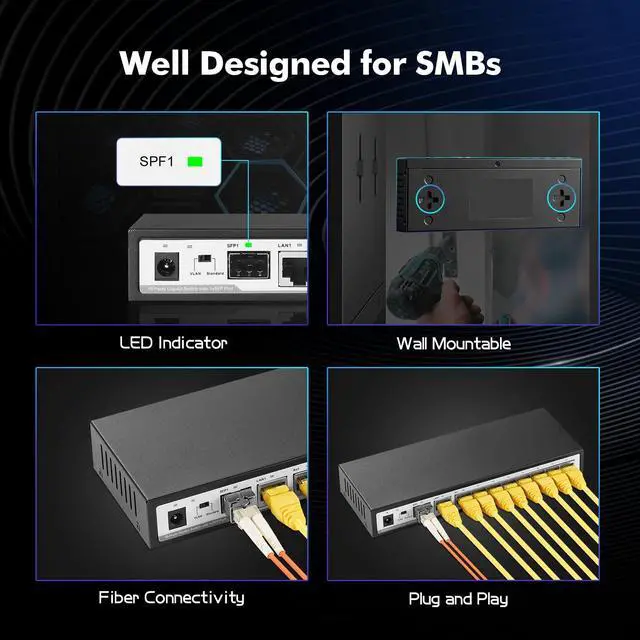

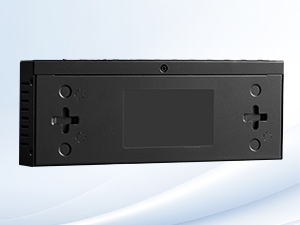

Desktop and Wall Mount
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.

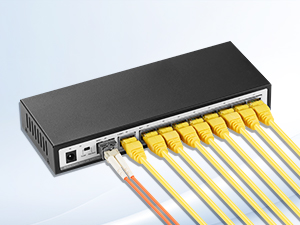

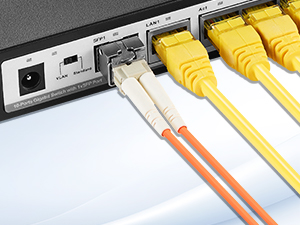

SFP Connectivity
It come with one gigabit sfp port, Allows you to connect devices over longer distances via fiber cable.
Safe Guard Your Devices
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Technical Parameter
YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
The G082S Gigabit Unmanaged Ethernet switche come with 9 gigabit copper ports and 1 gigabit SFP slot in a desktop metal case and is wall-mountable. Fanless, silent and energy-efficient operation. Support port-based VLAN, It is idel for small and medium business.
High Performance & Reliable Connection
It allows connecting 10 devices at different bandwidths, offering flexible and budget-friendly networking solutions, Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which maximizing network performance.
Port Isolated Mode Support
It features Port Isolate that port 1-8 can be isolated from each other via DIP switch, only communicates with port 9-10. This can help to prevent broadcast storms from affecting each other.
The fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Plug and Play
Automatic connectivity to your 9x 1G ethernet devices. No need for an IT expert.
Desktop and Wall Mount
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.
SFP Connectivity
It come with one gigabit sfp port, Allows you to connect devices over longer distances via fiber cable.
Safe Guard Your Devices
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Technical Parameter
| Model | G082S |
|---|---|

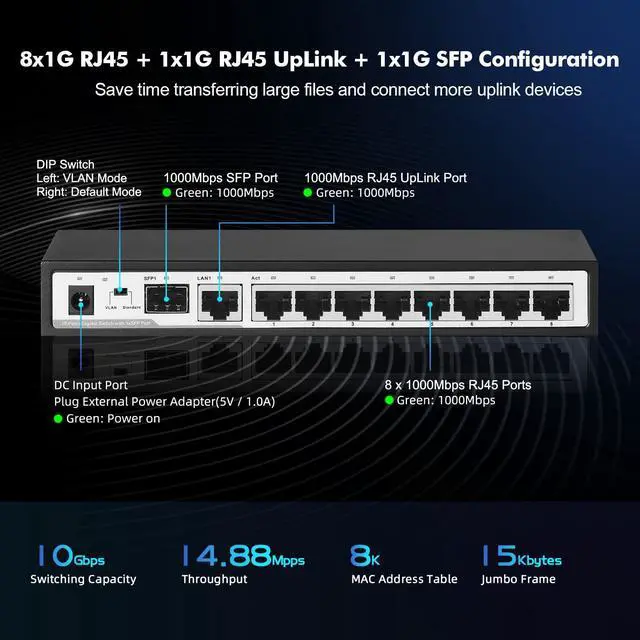

| Ethernet | 9*10/100/1000Mbps RJ45 Ports + 1*1000M SFP Slot |
| Backplane bandwidth | 20Gbps |
| Pack Forwarding Rate | 14.88Mpps |
| Transfer Mode | Storage & Forwarding |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(=100m) 100Base-TX: Cat5 or above UTP(=100m) 1000Base-TX: Cat5 or aboveUTP(=100m), Multimode fiber : 50/125, 62.5/125, 100/140µm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125µm |
| Working Environment | Working Temperature:-0~40°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Power Voltage | Power adapter input voltage: AC 100-240V 50/60Hz Power adapter output voltage: 5V 1A, Maximum 3.8W |
| Port light | On: Link connect normal Off: Link off Flash: Data transmission |
| Structure size | Product Size: 190*93*29.3mm Package Size: 224*129*64mm Product Net-Weight: 0.39Kg Product Gross-Weight: 0.54Kg |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc |
