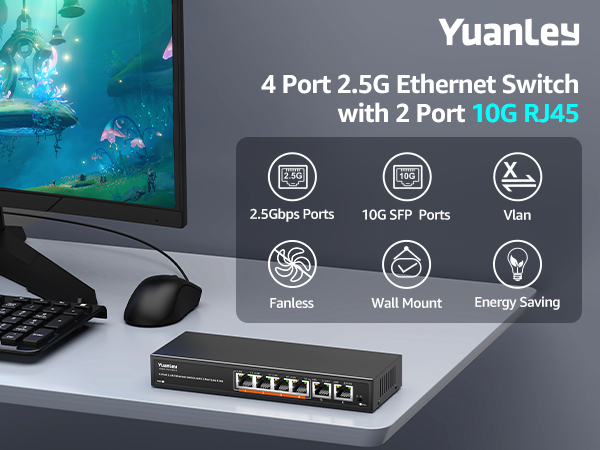

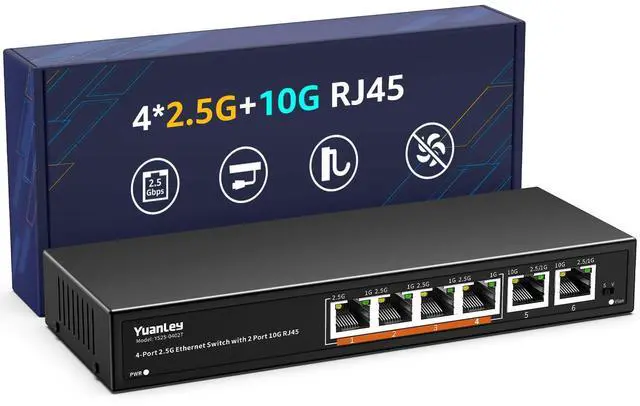

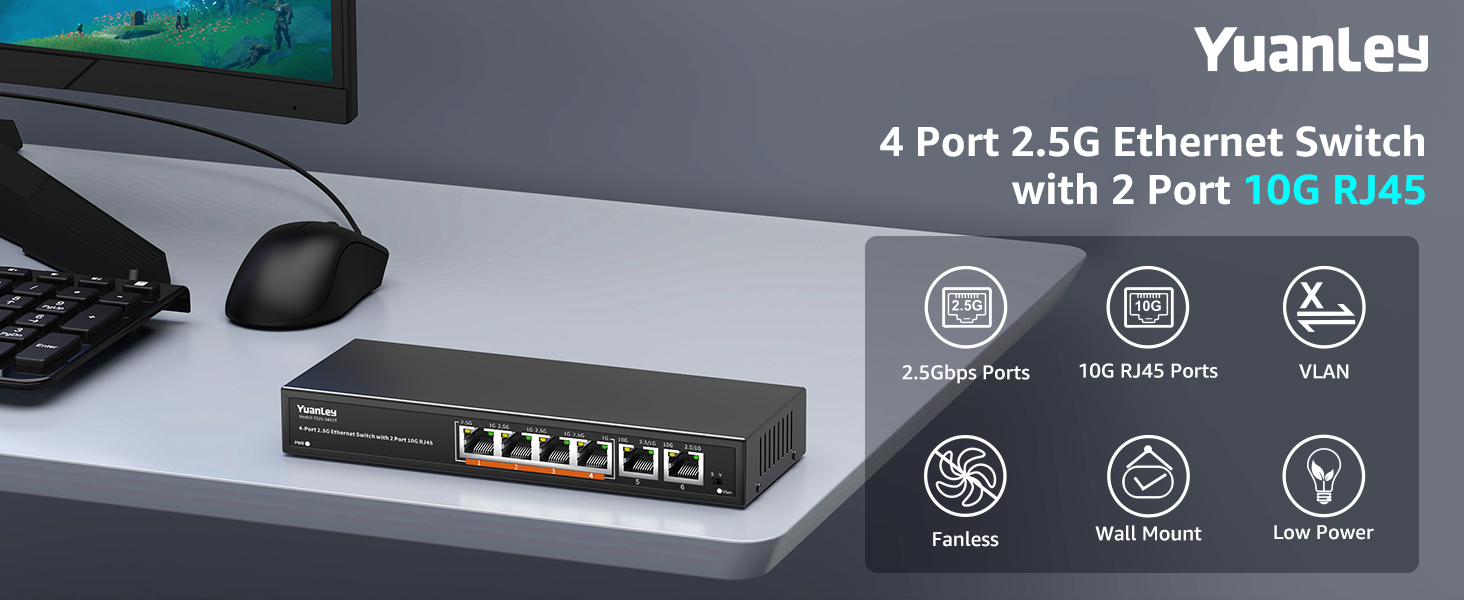

10Gb Ethernet Switch Unmanaged with 2 x 10Gbe RJ45 Ports, 4 x 2.5G Base-T Ports, Plug and Play, VLAN, Wall Mount, YuanLey 6-Port 10 Gigabit Network Switch with Metal Case Fanless

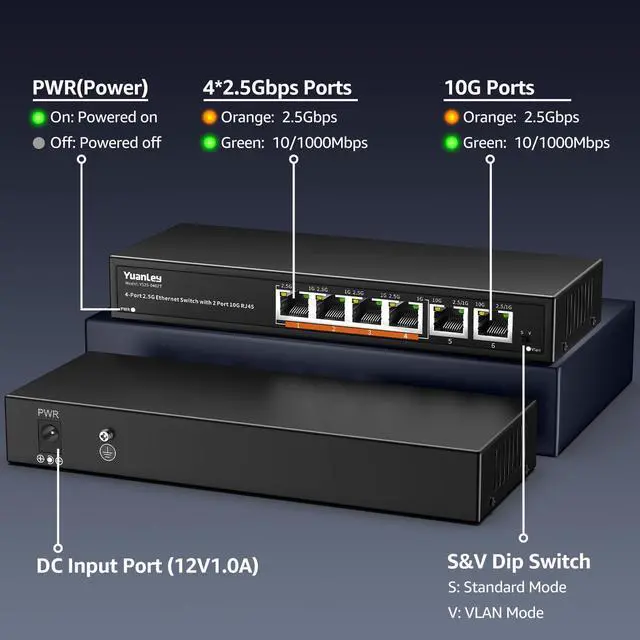

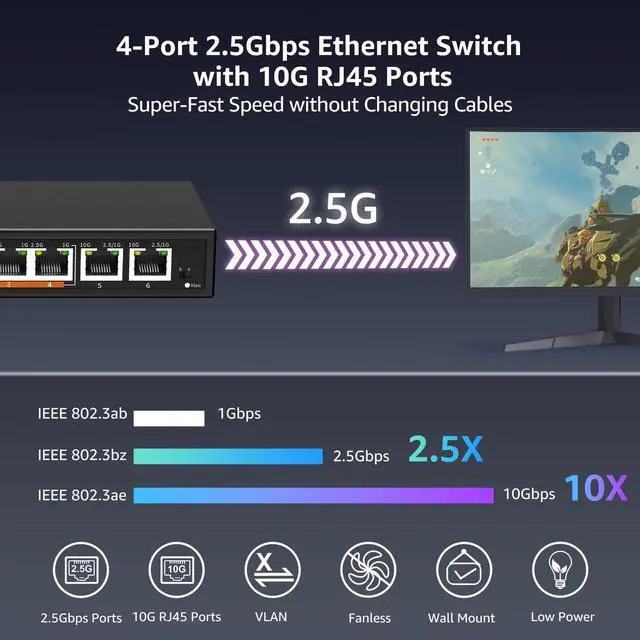

High-Performance 6-Port 10GbE Unmanaged Network SwitchThis 6 port unmanaged 10Gbe Ethernet switch is equipped with 4 x 2.5GbE RJ45 ports and 2 x 10Gbps RJ45 ports, offering flexible high-speed connectivity. Ports 1-4 support 10/100/1000Mbps and 2.5Gbps auto-negotiation, fully compliant with IEEE802.3bz standards, making it ideal for building a high-bandwidth 2.5G Ethernet or 10G home or office network.

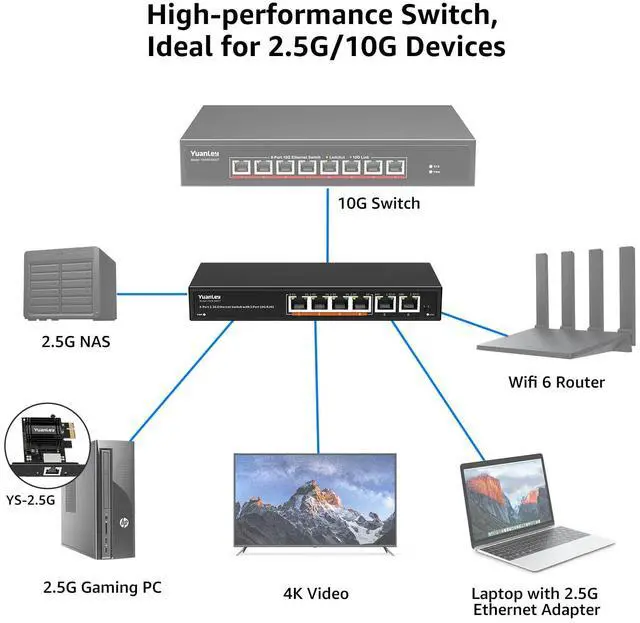

Blazing-Fast 10Gbps & 2.5Gbps Data ThroughputExperience ultra-fast transmission with this 2.5Gbps/10GbE network switch. With a non-blocking switching capacity of up to 60Gbps, this 10G Ethernet switch ensures maximum performance for 4K/8K streaming, large file transfers, and low-latency gaming. Perfect for maximizing the speed of your 2.5Gbps NAS, 10Gbps servers, and 2.5G PCIe adapters.

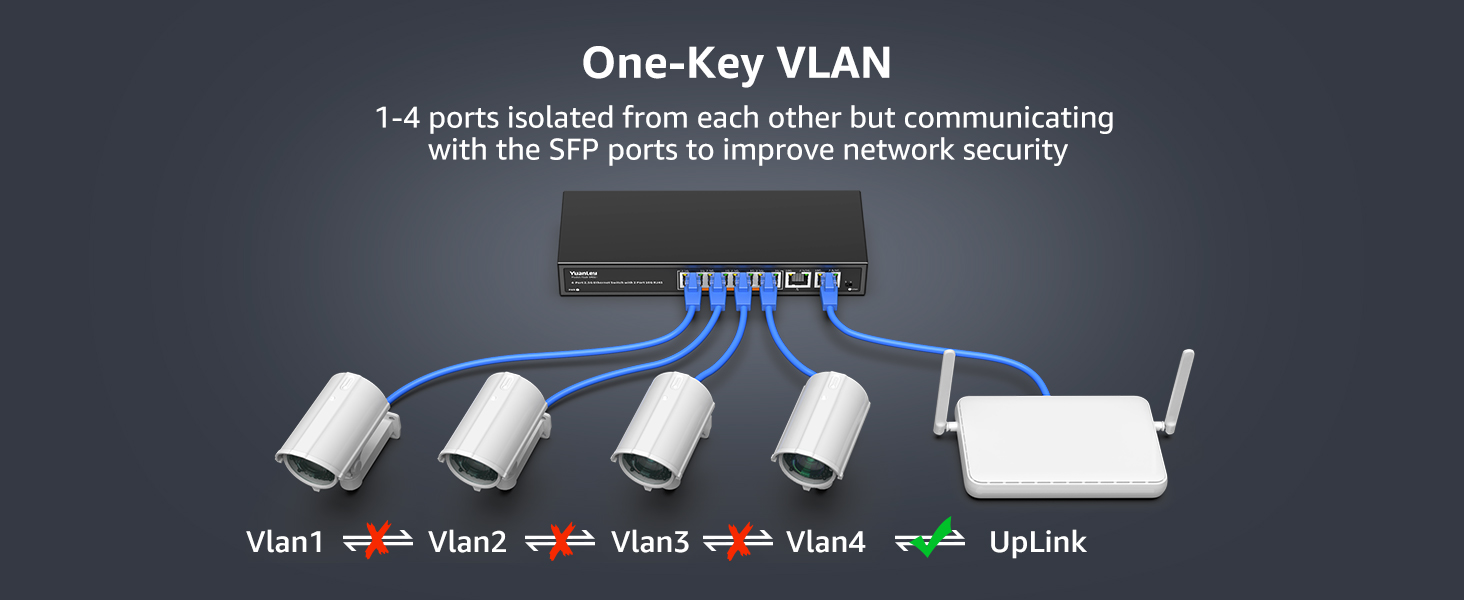

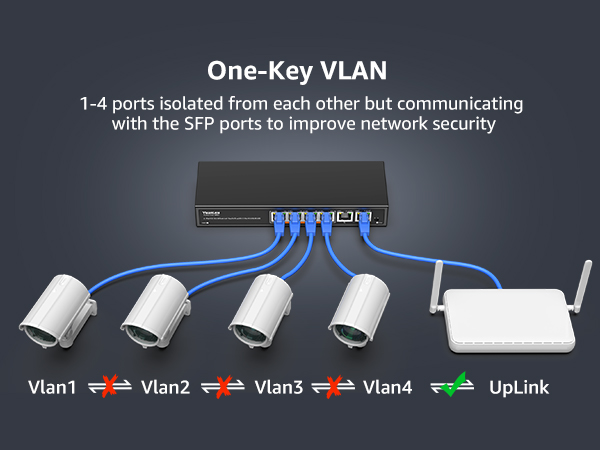

One-Key VLAN for Network Segmentation & SecurityThis unmanaged 2.5G network switch features a simple one-key VLAN mode. When enabled, the 4 x 2.5GbE ports are isolated from each other while still communicating with the 10G uplink ports. This greatly improves network efficiency, enhances security, and minimizes broadcast stormsideal for managing 2.5Gbps APs or IP camera systems with ease.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Specifications
Model
YS25-0402T
Product Name
6 port 10G ethernet switch
Ports
4*100M/1G/2.5Gbps RJ45 ports, 2*10G RJ45 ports
Switching Capacity
60Gbps
Packet Forwarding Rate
44.64Mpps
Jumbo Frame
12KB
MAC Address
4K
Network protocol
IEEE 802.3u, IEEE 802.3bz, IEEE 802.3x
Working Environment
Working Temperature: -10~55°C; Working Humidity: 5%~90%,non-condensing
Transmission Distance
10BASE-T: Cat3,4,5 UTP(=250m) 100BASE-T: Cat5 ór later UTP(150m) 1000BASE-T: Cat6 or later UTP(150m) 2500BASE-T: Cat6 or later UTP(150m)
Working Temperature: -10~55°C; Working Humidity: 5%~90%,non-condensing
Transmission Distance
10BASE-T: Cat3,4,5 UTP(=250m) 100BASE-T: Cat5 ór later UTP(150m) 1000BASE-T: Cat6 or later UTP(150m) 2500BASE-T: Cat6 or later UTP(150m)

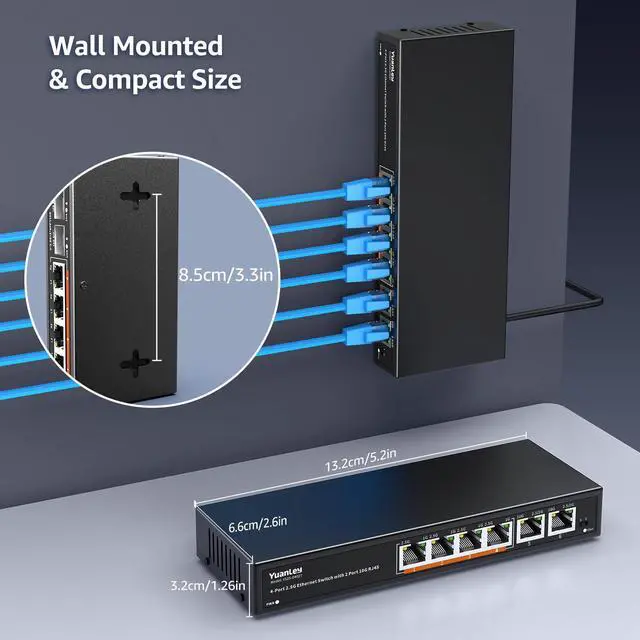

Product Dimension (L*W*H)
132*66*32mm
Product Weight
0.45kg
Power Input
External power supply AC: 100~240V 50-60Hz
Lightning Protection
6KV
VLAN
Support
2.5G Switch with 10G SFP
YuanLey 10G 2.5G Switch
YuanLey PoE Switch
YuanLey Outdoor PoE
10Gb Ethernet Switch Unmanaged with 2 x 10Gbe RJ45 Ports, 4 x 2.5G Base-T Ports, Plug and Play, VLAN, Wall Mount, YuanLey 6-Port 10 Gigabit Network Switch with Metal Case Fanless
Learn more about the Detailed Specifications
Model
Brand
NETGEAR
Series
ProSafe
Part Number
YS25-0402T-EU
Format & Standards
Standards
Passive PoE
Network Media
RJ45
Network Management Type
Unmanaged
Ports & Interface
Uplink Interface
RJ45
Uplink Speed
10/100 Mbps
Uplink Speed/Type
RJ45
Primary Port Count
6
Primary Ports
16 x SFP + 8 x RJ45
Primary Port Speed
10/100Mbps + 1000Mbps
Primary Port Type
RJ45
Data Transmission
Management Interface
RJ45
Management Feature
User Manual, YuanLey 6-Port 2.5G Network Switch, Power Cable
Packet Forwarding Rate
60 gigabits_per_second
Details
SNMP
No
Layer
1
Layer 2 Features
RJ45, 60 gigabits_per_second, 6
Layer 3 Features
4x2.5G +2x10G RJ45
Cabling
RJ45
Dimensions & Weight
Weight
0.63 kilograms
Environmental
Certification
not_applicable
Features
Features
6, RJ45, User Manual, YuanLey 6-Port 2.5G Network Switch, Power Cable, 60 gigabits_per_second, black
Packaging
Package Contents
User Manual, YuanLey 6-Port 2.5G Network Switch, Power Cable
