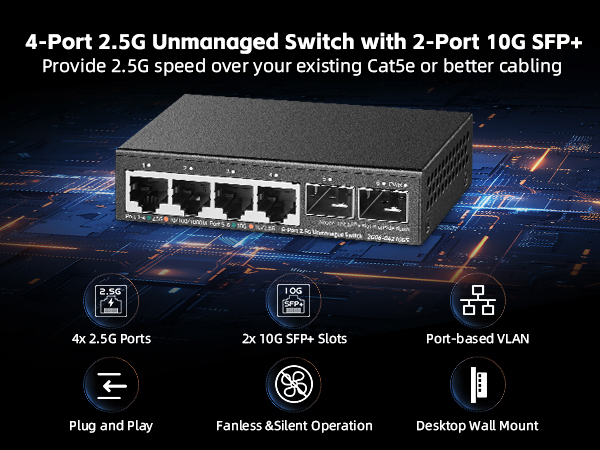

The 2G06-04210GS is a desktop unmanaged switch with 4x 2.5GbE RJ45 ports and 2x 10GbE SFP+ uplink ports, It can connecting 1G/2.5G/10G devices with different interfaces at an affordable price. Suitable for SMB and SOHO users.

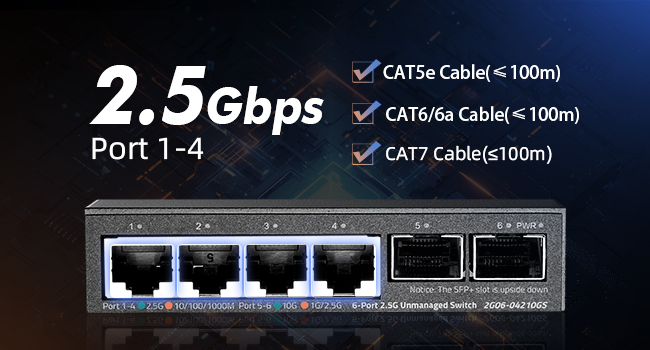

4x2.5GE Connectivity for wifi7/6 and NAS
The switch includes 4x 2.5GbE RJ45 ports (backward compatible with 2.5G/1G/100Mbps) for high-speed networks, such as wifi7/6 AP, servers.

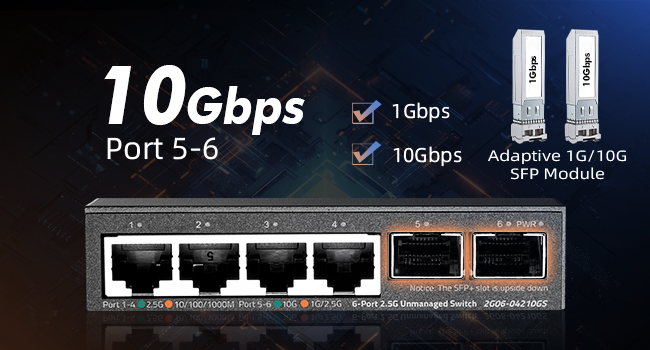

2x 10G Uplink Slots for Servers and Core Switches
2× 10Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to servers and core switches.

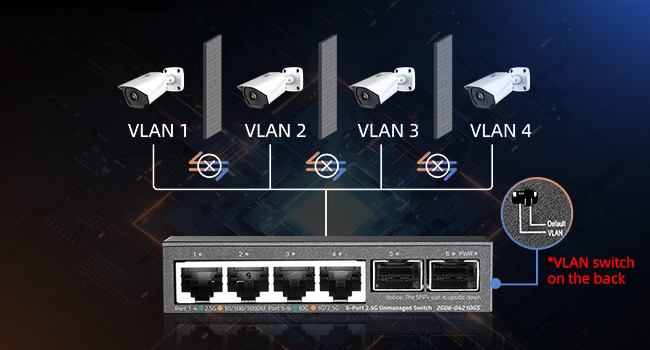

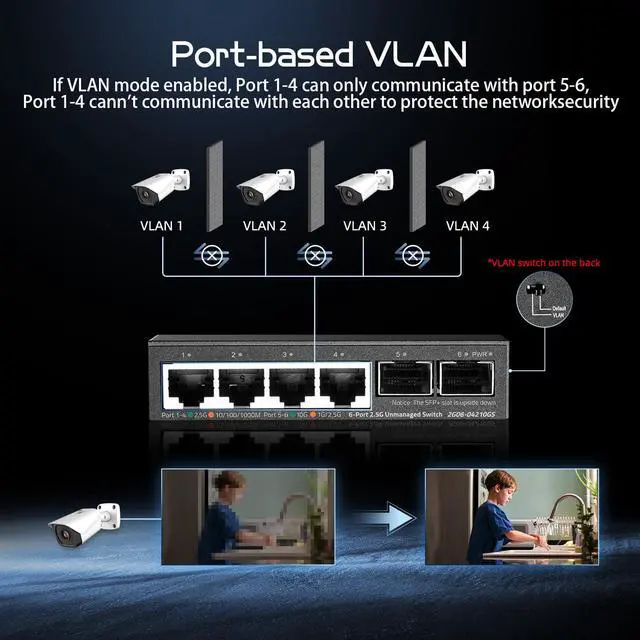

Port-based VLAN Support
The switch supports enhances IP surveillance network systems with VLAN feature. If VLAN mode enabled, Port 1-4 can only communicate with port 5-6, Port 1-4 cann't communicate with each other to protect the network security
Mounting flexibility
Flexible mount options for desktop or wall-mount in your office and home, meet various network environment requirement.

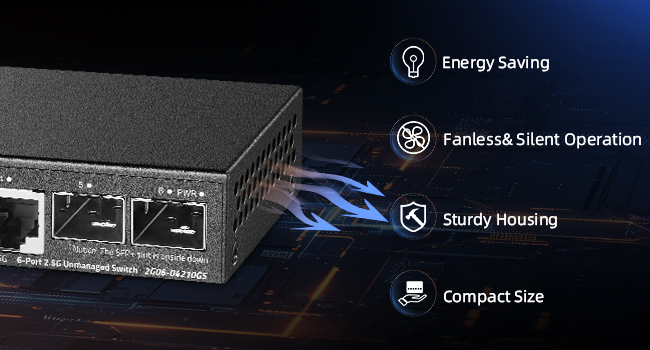

Energy Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere., It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length.
Plug and Play / Unmanaged
Unmanaged 2.5gigabit switch, no configuration required. Simply plug a device into the network. It automation begins.
Technical Specifications
Binardat engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
Binardat is your trusted supplier of modern networking products, solutions and supplies meant to help you stay connected with the world around you!
Choose More 2.5G/10G Switch
Choose More Industrial Switch
Choose More PoE Extender
Choose More Network card
Choose More Network card

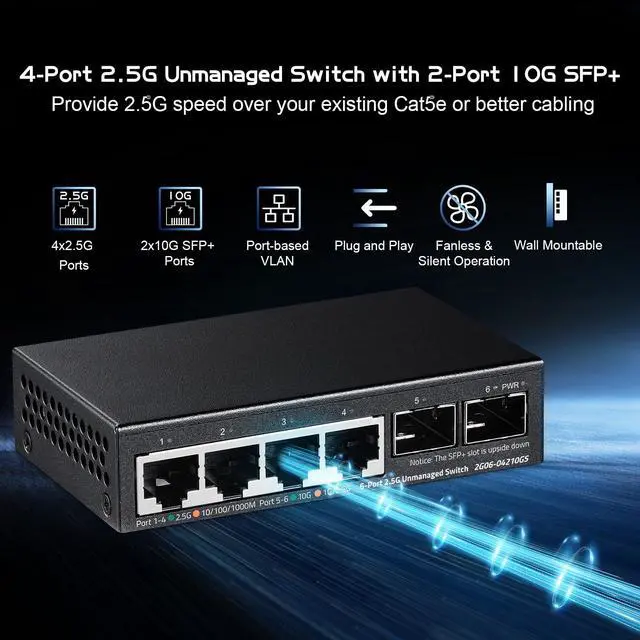

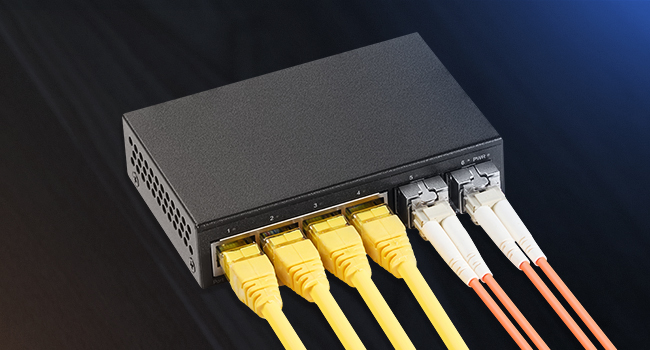

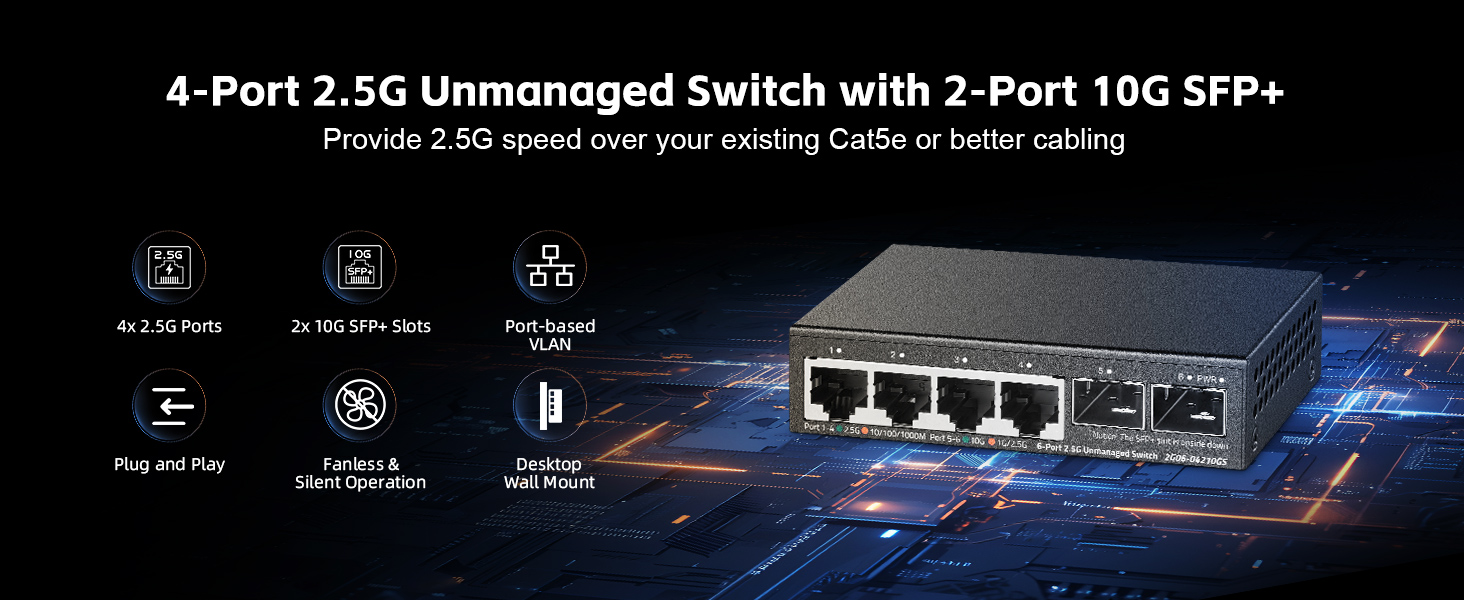

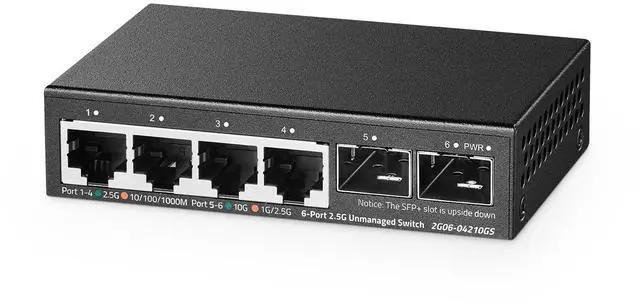

The 2G06-04210GS is a desktop unmanaged switch with 4x 2.5GbE RJ45 ports and 2x 10GbE SFP+ uplink ports, It can connecting 1G/2.5G/10G devices with different interfaces at an affordable price. Suitable for SMB and SOHO users.

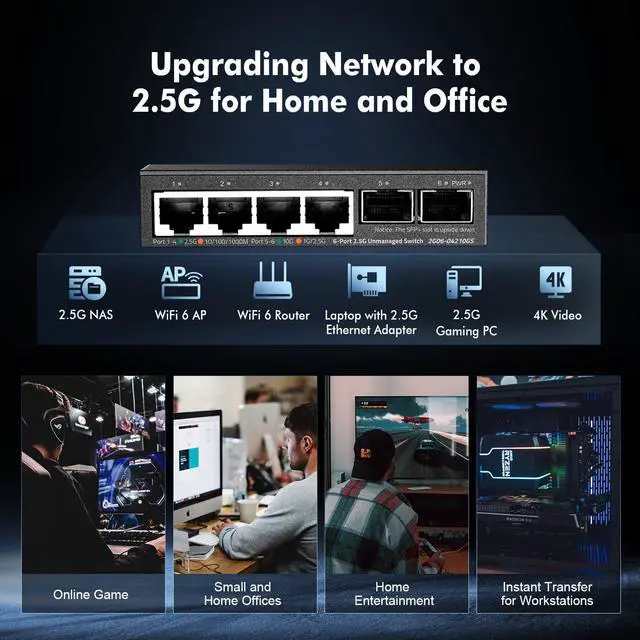

4x2.5GE Connectivity for wifi7/6 and NAS

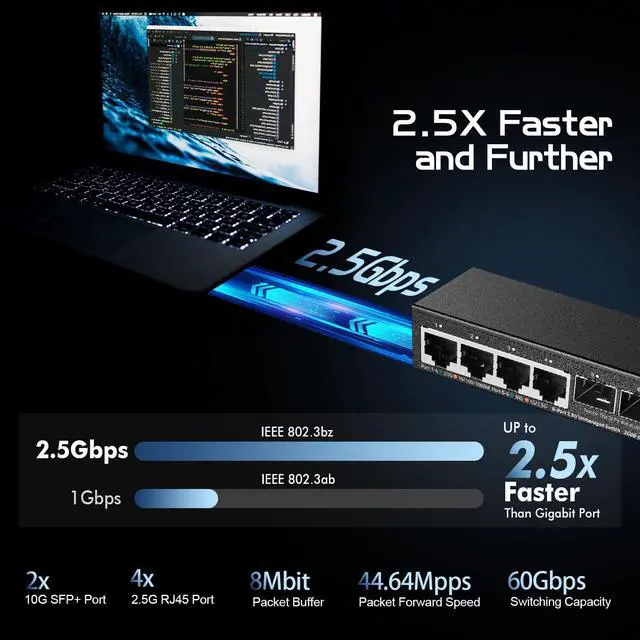

The switch includes 4x 2.5GbE RJ45 ports (backward compatible with 2.5G/1G/100Mbps) for high-speed networks, such as wifi7/6 AP, servers.
2x 10G Uplink Slots for Servers and Core Switches
2× 10Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to servers and core switches.

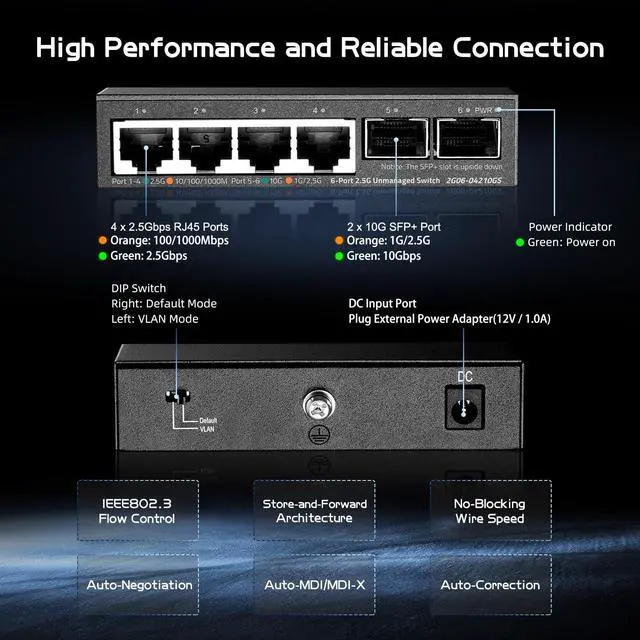

Port-based VLAN Support
The switch supports enhances IP surveillance network systems with VLAN feature. If VLAN mode enabled, Port 1-4 can only communicate with port 5-6, Port 1-4 cann't communicate with each other to protect the network security

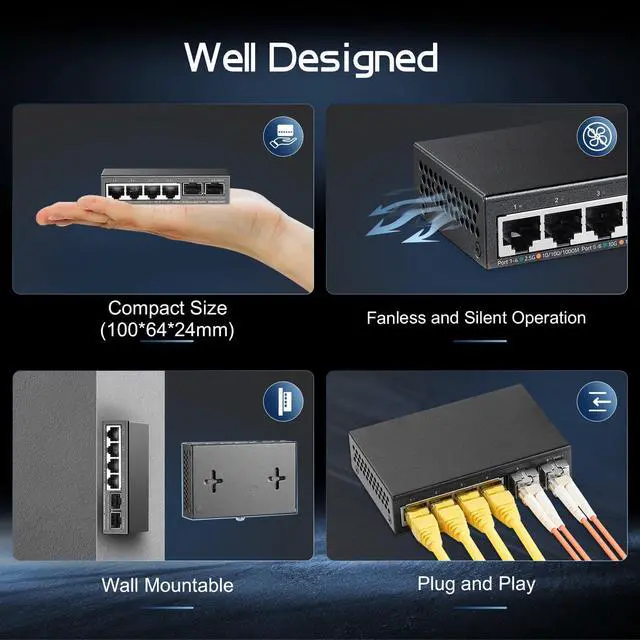

Mounting flexibility
Flexible mount options for desktop or wall-mount in your office and home, meet various network environment requirement.
Energy Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere., It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length.
Plug and Play / Unmanaged
Unmanaged 2.5gigabit switch, no configuration required. Simply plug a device into the network. It automation begins.
Technical Specifications
| Model | 2G06-04210GS |
|---|---|
| Interface | 4x100M/1000M/2.5Gbps RJ45 Ports + 2x1G/10Gbps SFP+ Slots |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3ad, IEEE802.3bz, IEEE802.3ae |
| Network Media | 100BASE-X:UTP category 5,5e cable (=100m), 1000BASE-X:UTP category 5e,6 cable (=100m), 2.5GBASE-X:UTP category 6,6a cable (=100m), 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF, 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m-300m), 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m-10000m) |
| LED Indicator | PWR(Green), Link/Act (Green/Orange) |
| MAC Address Table | 4K |
| Jumbo Frame | 12KByte |
| Packet Buffer | 12Mbit |
| Buffer | 8.1 Mbit |
| Switching Capacity | 60Gbps |
| Packer Forward Speed | 44.64Mpps |
| Lightning Protection level | Differential mode ±2KV, Common mode ±4KV |
| Input Power Supply | AC: 100-200V, 50/60Hz, 0.5A Max |
| Structure Information | Product Dimensions: 100mm*63.7mm*24mm, Packaging Dimensions: 149mm*95mm*50mm, Product Net Weight: 0.54KG, Product Gross Weight:0.85KG |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |
