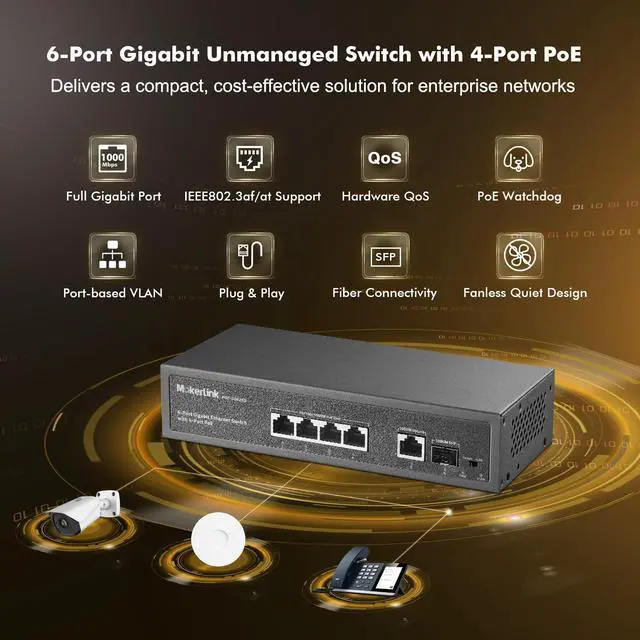

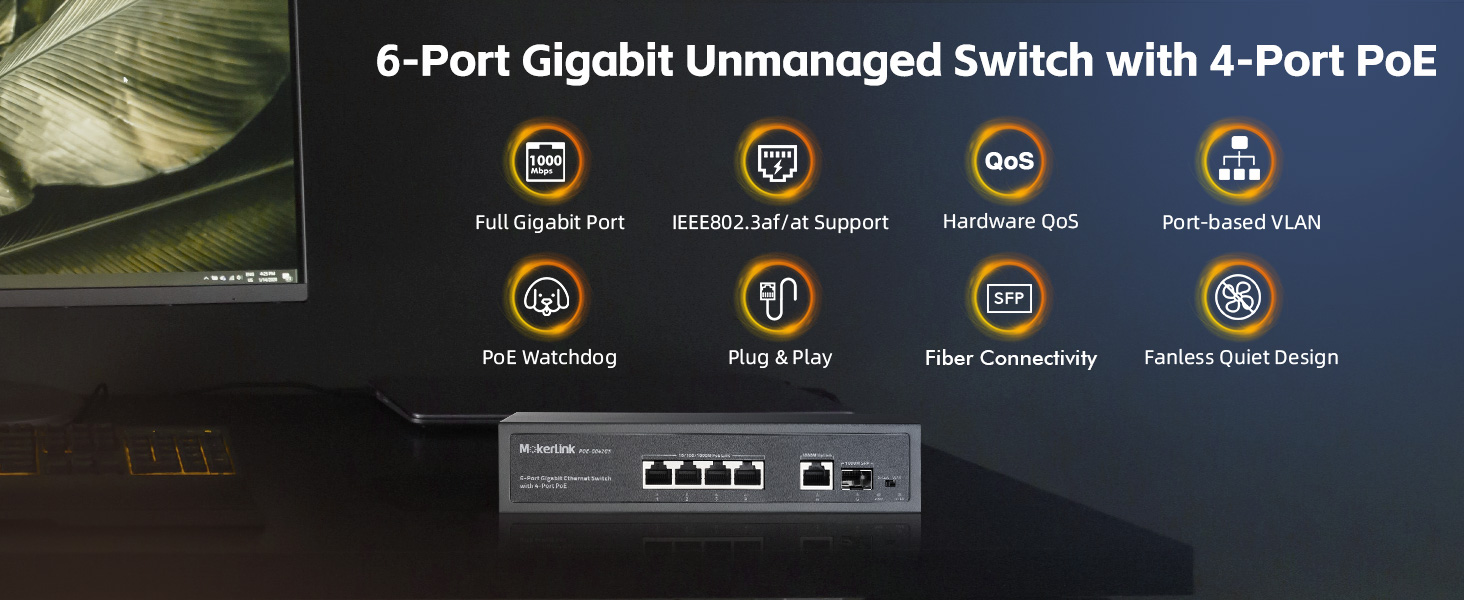

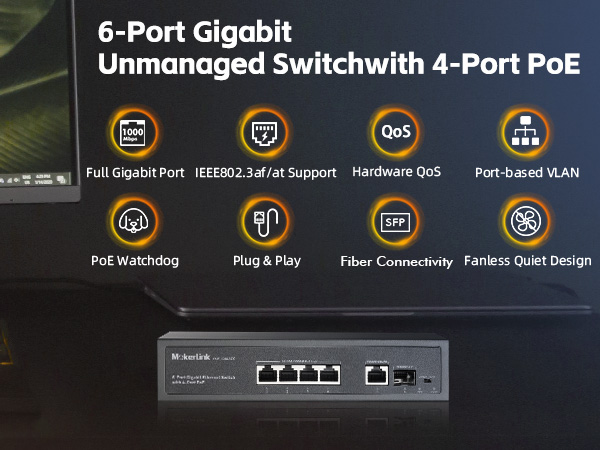

POE-G042GS is an unmanaged desktop PoE Switch. It provides 4×10/100/1000Mbps PoE ports, 1x1000M RJ45 Uplink Port, 1×1000M SFP slot. The product is equipped with two types of transmission modes (Default Mode/VLAN Mode). The maximum power consumption is 75W. Suitable for small-scale scenes.

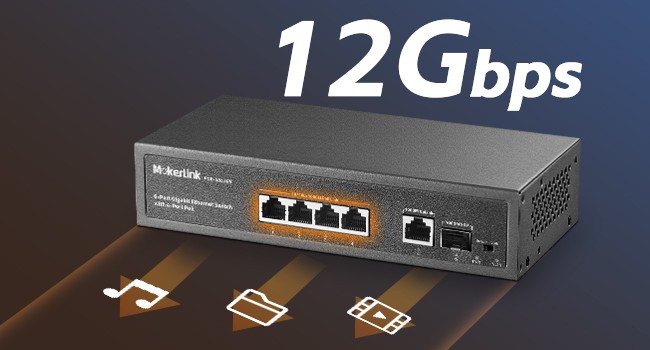

Full Gigabit Port at Line Rate
This model is available with 6x Gigabit Ethernet ports. It offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

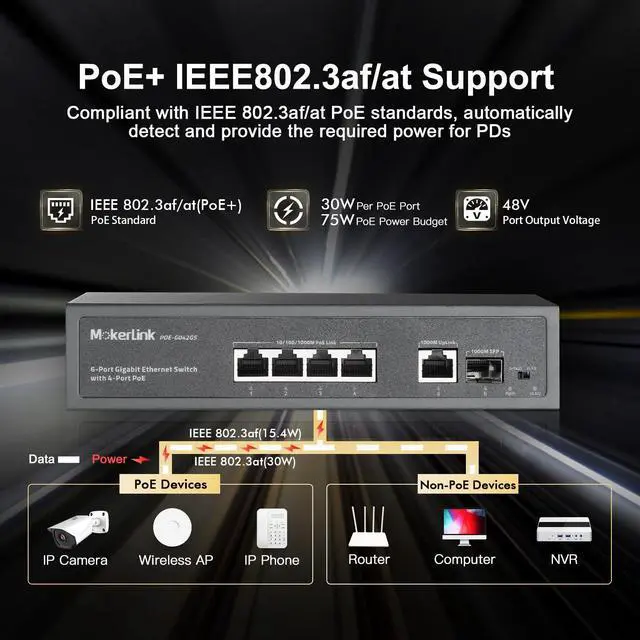

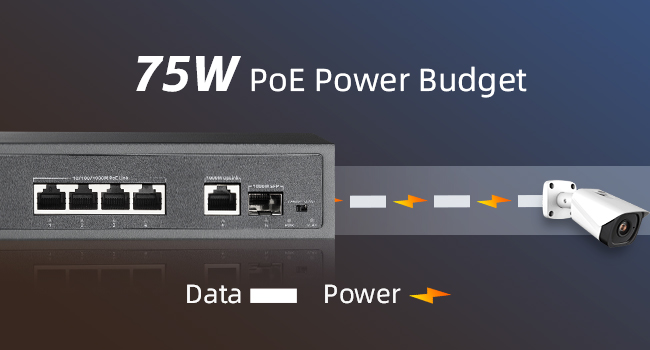

Intelligent PoE
The PoE ports support IEEE802.3af and IEEE802.3at standards, with a maximum output power consumption of 30W per port. The total power consumption is 75W, Suitable for powering high-power devices.

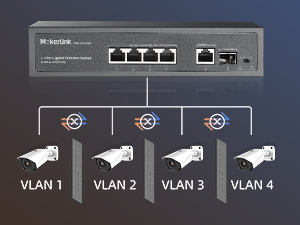

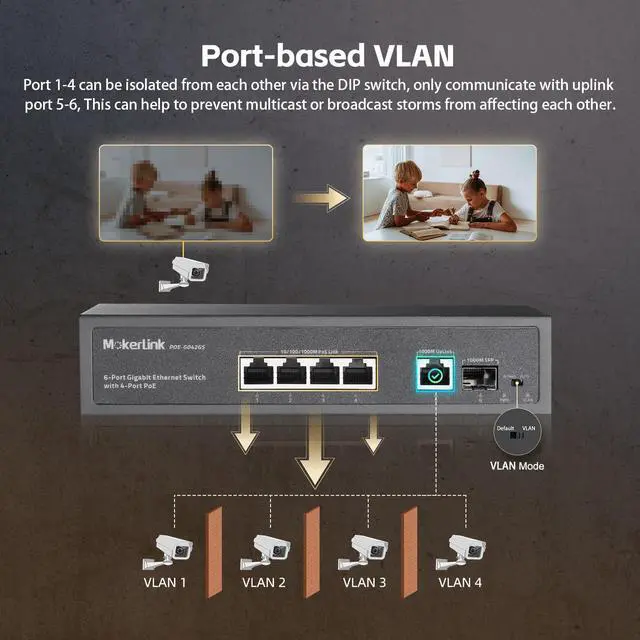

Port-based VLAN
Port 1-4 can be isolated from each other via the DIP switch. This can help to prevent devices multicast or broadcast storms from affecting each other.

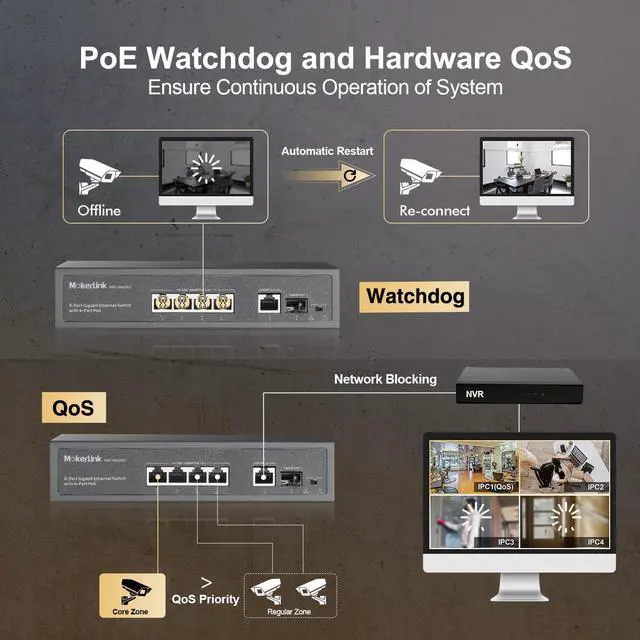

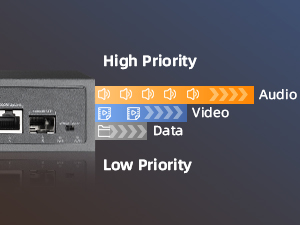

Hardware QoS
Port 1 supports QoS. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
PoE Watchdog
Adopts the innovative PoE Watchdog. It enables the switch to automatically detect port status and restart the failed ports to recover connection.

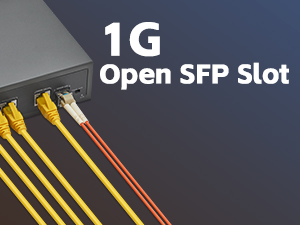

Fiber Connectivity
The switch provides fiber connectivity options for easy expansion of your networks. It includes one Open SFP
port for uplinks of up to 1 Gbps.

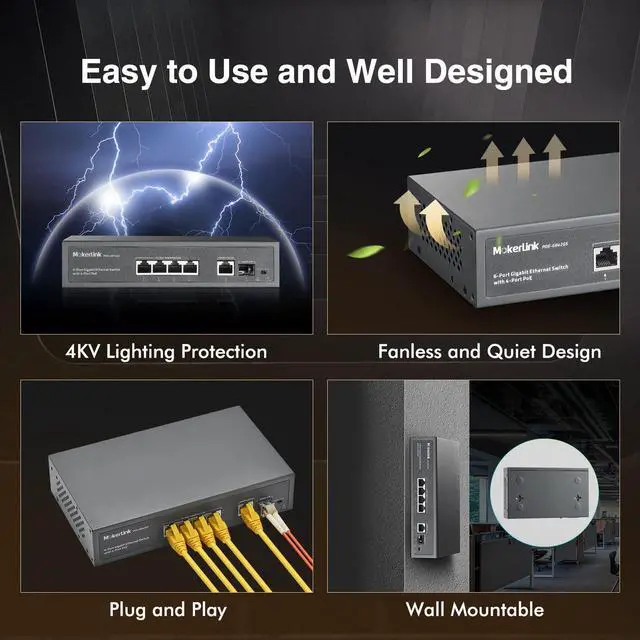

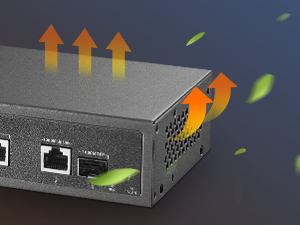

Fanless & Quiet Design
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently.

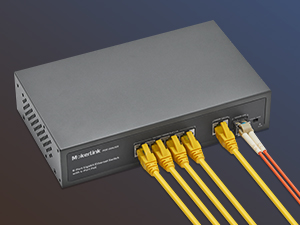

Plug-and-play
Automatic connectivity to your PCs or PoE devices. No need for an IT expert.

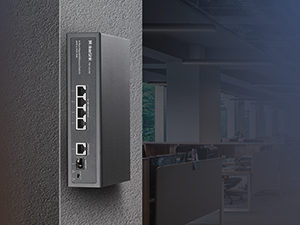

Mounting flexibility
Flexible deployment options for desktop or wall-mount in your office and home, meet the network environment requirement.

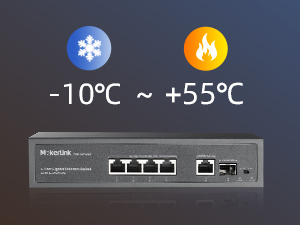

Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +55 °C, adapted to harsh environments.
Technical Parameter
POE-G042GS is an unmanaged desktop PoE Switch. It provides 4×10/100/1000Mbps PoE ports, 1x1000M RJ45 Uplink Port, 1×1000M SFP slot. The product is equipped with two types of transmission modes (Default Mode/VLAN Mode). The maximum power consumption is 75W. Suitable for small-scale scenes.
Full Gigabit Port at Line Rate
This model is available with 6x Gigabit Ethernet ports. It offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Intelligent PoE
The PoE ports support IEEE802.3af and IEEE802.3at standards, with a maximum output power consumption of 30W per port. The total power consumption is 75W, Suitable for powering high-power devices.
Port-based VLAN
Port 1-4 can be isolated from each other via the DIP switch. This can help to prevent devices multicast or broadcast storms from affecting each other.
Hardware QoS
Port 1 supports QoS. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
PoE Watchdog
Adopts the innovative PoE Watchdog. It enables the switch to automatically detect port status and restart the failed ports to recover connection.
Fiber Connectivity
The switch provides fiber connectivity options for easy expansion of your networks. It includes one Open SFP
port for uplinks of up to 1 Gbps.
Fanless & Quiet Design
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently.
Plug-and-play
Automatic connectivity to your PCs or PoE devices. No need for an IT expert.
Mounting flexibility
Flexible deployment options for desktop or wall-mount in your office and home, meet the network environment requirement.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +55 °C, adapted to harsh environments.
Technical Parameter

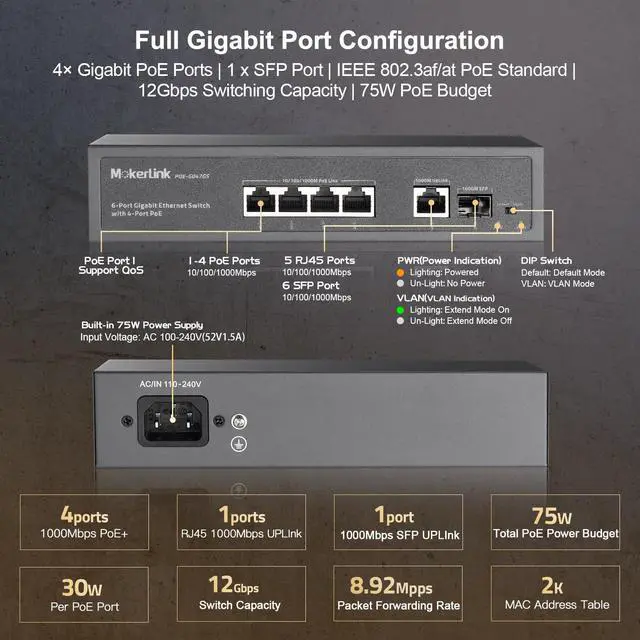

| Ports | 4 x 10/100/1000M PoE Ports + 1x 10/100/1000M RJ45 Uplink Port + 1x 1000M SFP Slot |
|---|---|
| Switching Capacity / Backplane | 12Gbps |
| Forwarding Rates | 8.92Mpps |
| MAC Address Table | 2K |
| PoE Standard | IEEE 802.3at (PoE+), IEEE 802.3af (PoE), Up to 30W per Port |
| Pin Assignment | Alternative A (Pin 1,2/3,6) |
| LED Indicators | PWR: System Power Status(Red), 1-6 port Link/Act, on: Connected, Off: No connection. VLAN(VLAN Indictor): on: VLAN mode on. off: defult mode |
| Power Input | 100-240V AC, 50-60 Hz, Internal Power Supply, 52V/1.25A, Max. 75W |
| Mounting | Desktop / Wall-mount, Metal Housing |
| Structure Information | Product Dimensions :200*118*44mm, Packaging Dimensions : 230*190*70mm, Product Net Weight: 0.65KG, Product Gross Weight:0.9KG |
| Environment | Operating Temperature: -10~55°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |
| Extend Function | Port-Based VLAN, Hardware QoS, PoE Watchdog |
