Does this switch support PoE+ power delivery?

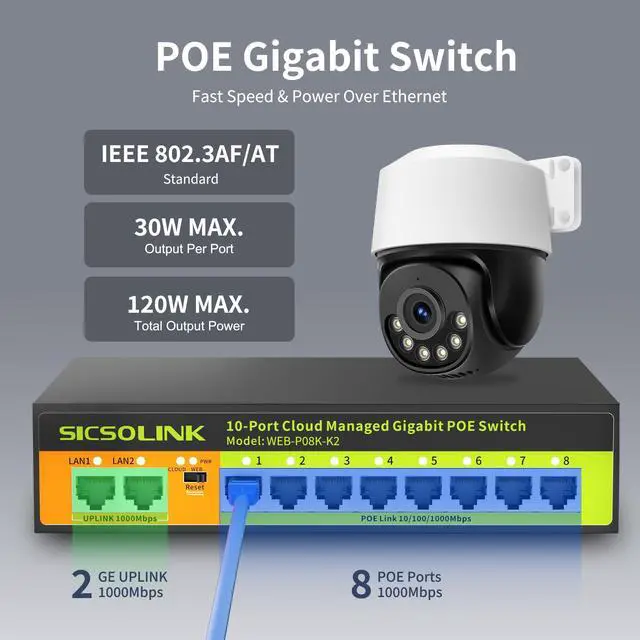

This is an IEEE 802.3af/at compliant PoE+ switch, 30W max per port (120W total). Usually 15.4W, it can intelligently negotiate up to 30W with PDs in Power Supply Adaptive Mode.
How to enable the Power Supply Adaptive mode?

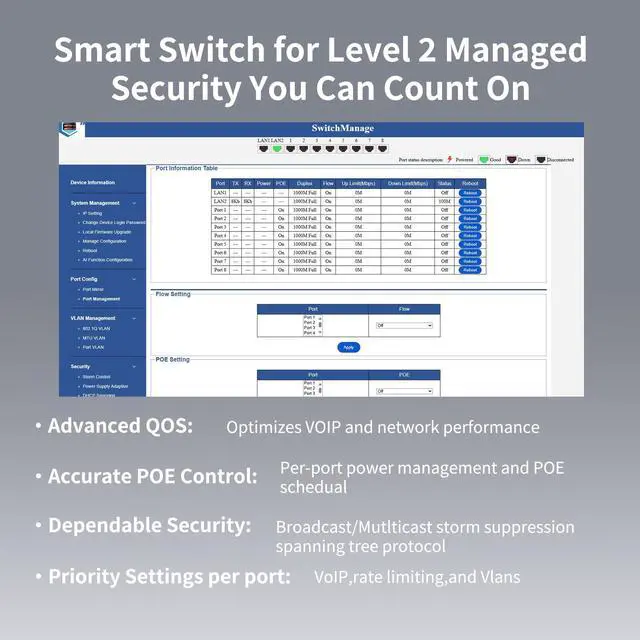

Log in: Access the management interface.
Find Security: Locate and open the “Security” section.
Power Matching: Find “Power supply Adaptive” and click the “Off” button.
Turn On: Select “On” to activate the feature.
Save: Click “Save” to confirm.
Is a converter needed when used in the US?
No, a voltage converter is not required. This switch is designed with a wide-range voltage input of 100-240V, which is fully compatible with the standard 120V electrical system in the United States. You can plug it in directly.
Product Spectifications
Does this switch support PoE+ power delivery?
This is an IEEE 802.3af/at compliant PoE+ switch, 30W max per port (120W total). Usually 15.4W, it can intelligently negotiate up to 30W with PDs in Power Supply Adaptive Mode.
How to enable the Power Supply Adaptive mode?
Log in: Access the management interface.
Find Security: Locate and open the “Security” section.
Power Matching: Find “Power supply Adaptive” and click the “Off” button.
Turn On: Select “On” to activate the feature.
Save: Click “Save” to confirm.
Is a converter needed when used in the US?
No, a voltage converter is not required. This switch is designed with a wide-range voltage input of 100-240V, which is fully compatible with the standard 120V electrical system in the United States. You can plug it in directly.
Product Spectifications

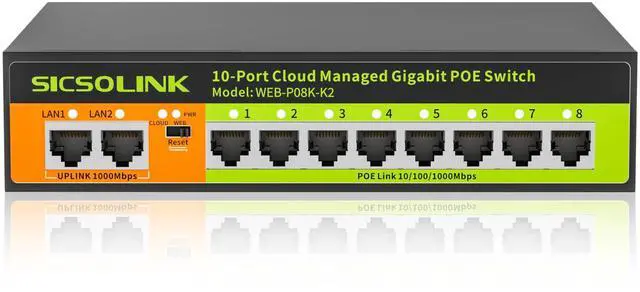

| Model | WEB-P08K-K2 |
|---|---|

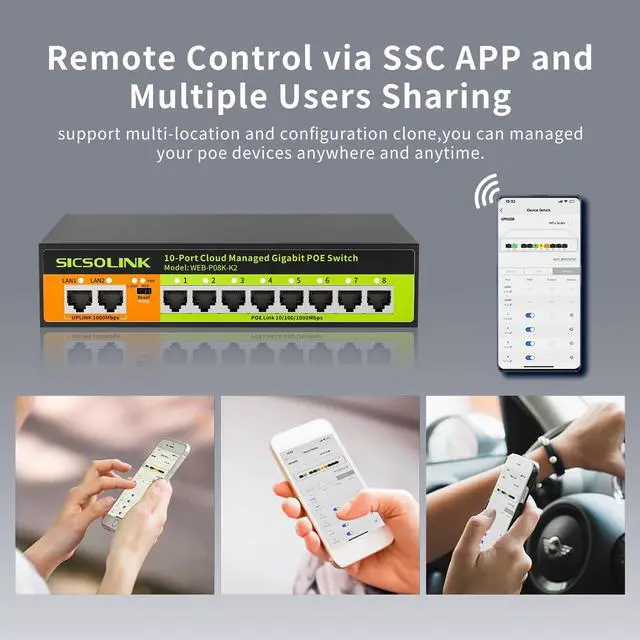

| Product Name | 10 Port Gigabit POE Cloud Managed switch |

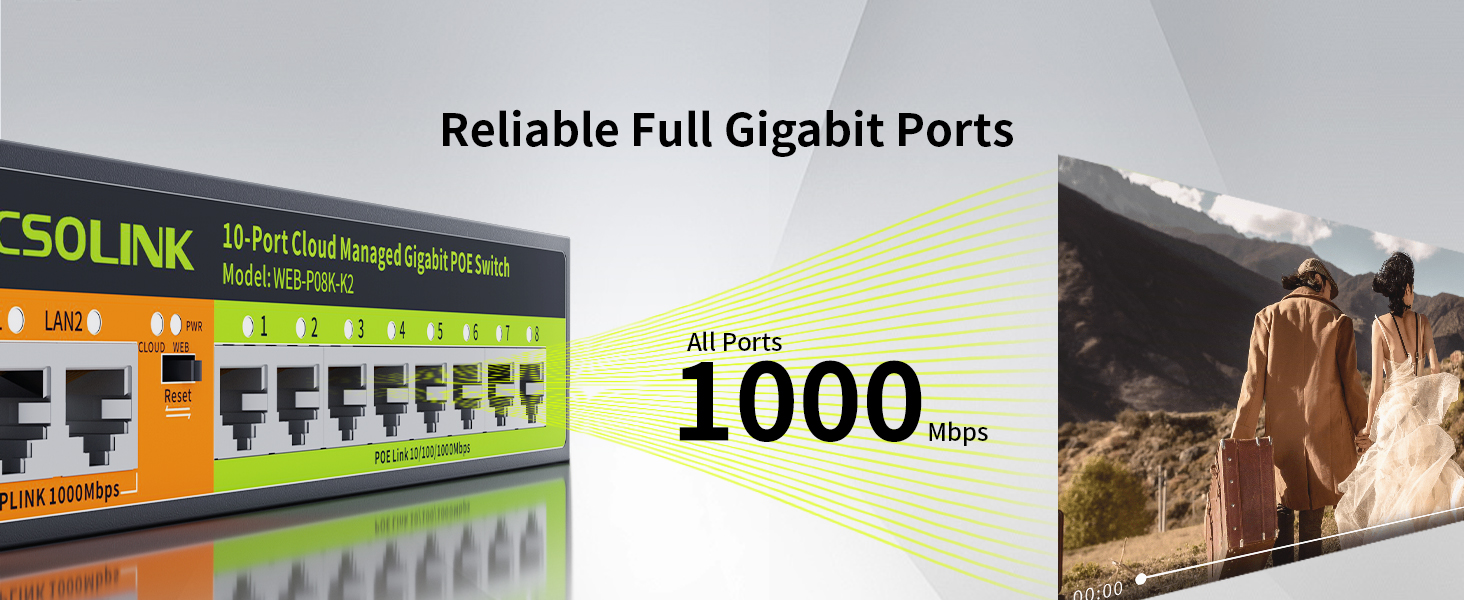

| POE Ports | RJ45 Ports 1-8 (10/100/1000Mbps) |
| Ethernet Ports | RJ45 Ports 9-10 (10/100/1000Mbps) |
| Input Voltage | AC 100-240V |
| Power Supply | DC 48-55V 120W |

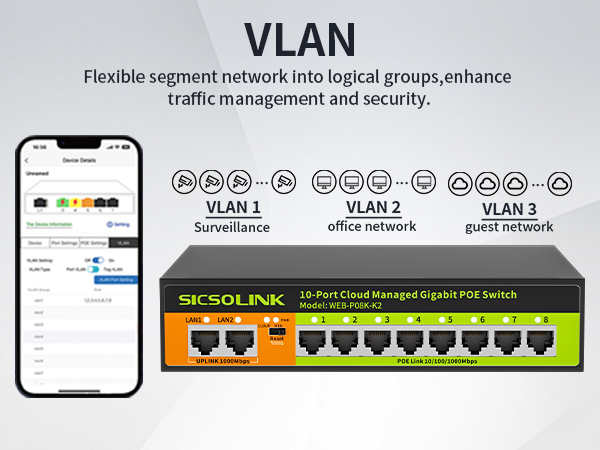

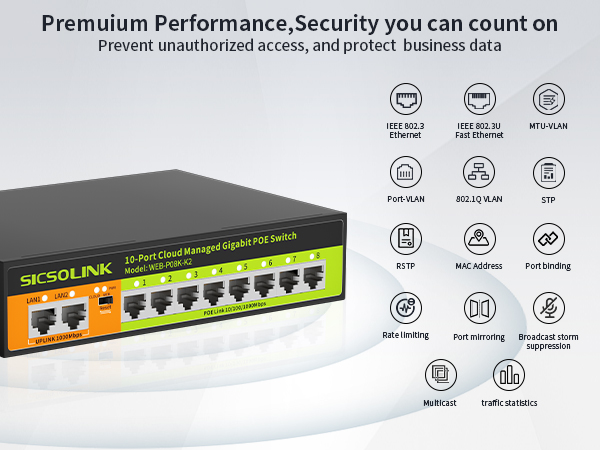

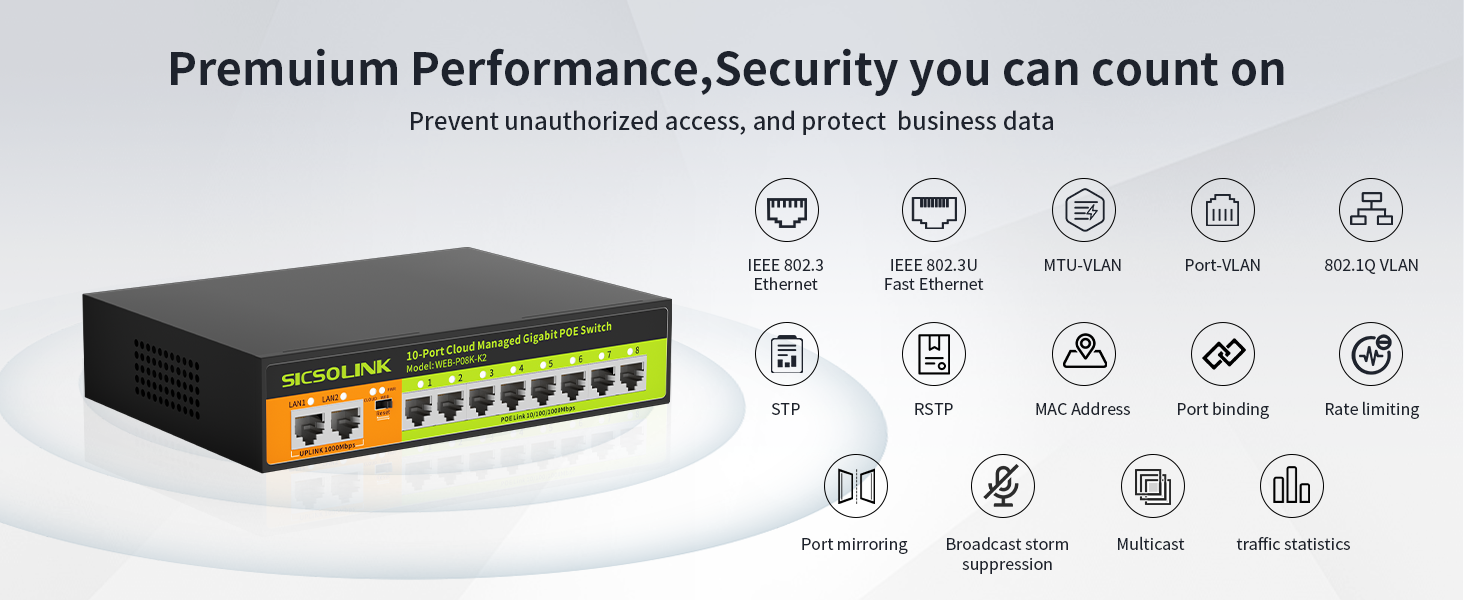

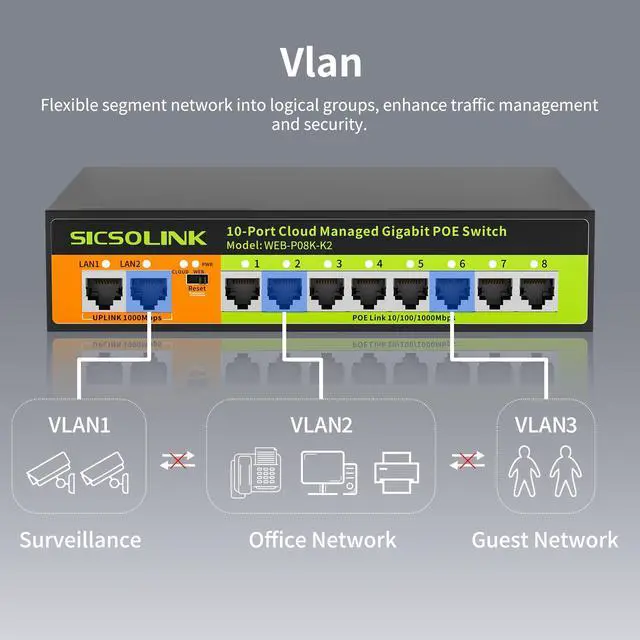

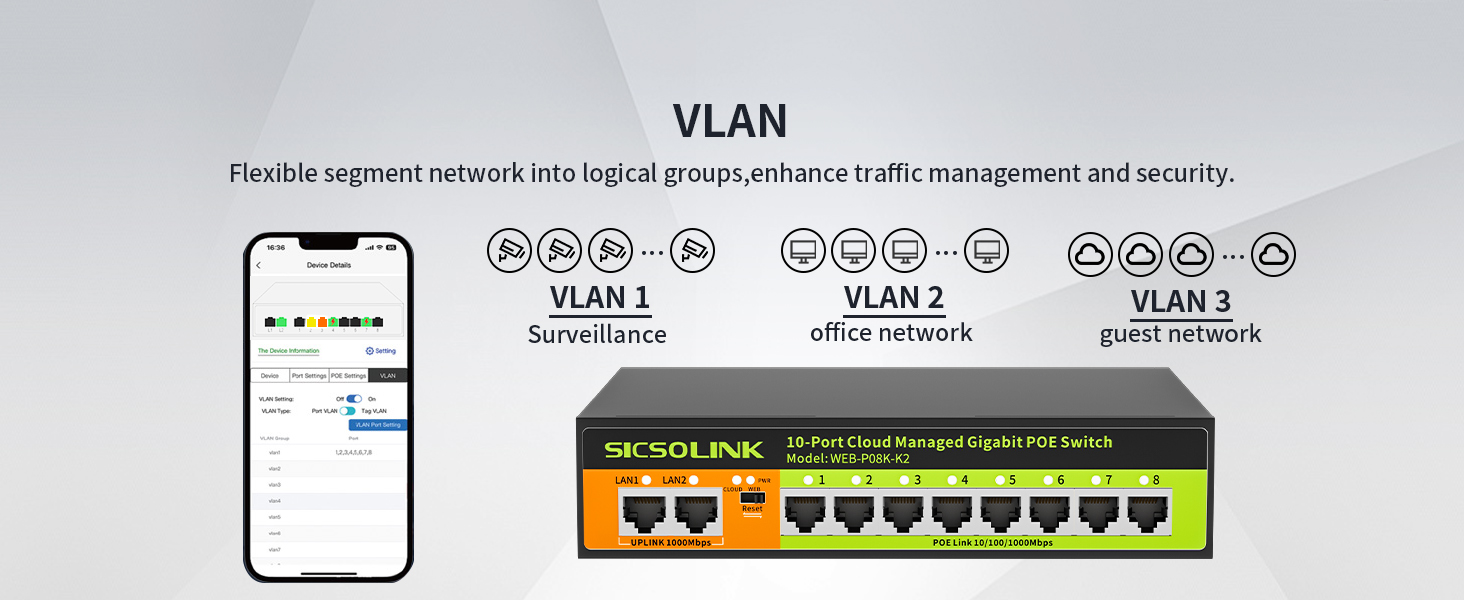

| VLAN | Support 802.1Q VLAN?MTU-VLAN?Port VLAN |
| MAC Address | 2K |
| Switching Capacity | 20Gbps |
| Network Protocol | IEEE 802.3u(100Base-TX) IEEE802.3x(Flow control) IEEE802.3ab(1000Base-TX)IEEE802.3bz(2.5GBASE-T) |
| POE Protocol | IEEE 802.3AF(15.4w)IEEE 802.3AT(30w) |
| Network Medium | 1000Base-T:Cat5e or above UTP/STP(=100m) 100Base-TX:Cat 5 or above UTP/STP(=100m) 10Base-TX:Cat5e or above UTP/STP(=250m) |
| Product Dimension | 190mm*140mm*43mm / 7.48in*5.51in*1.69in |

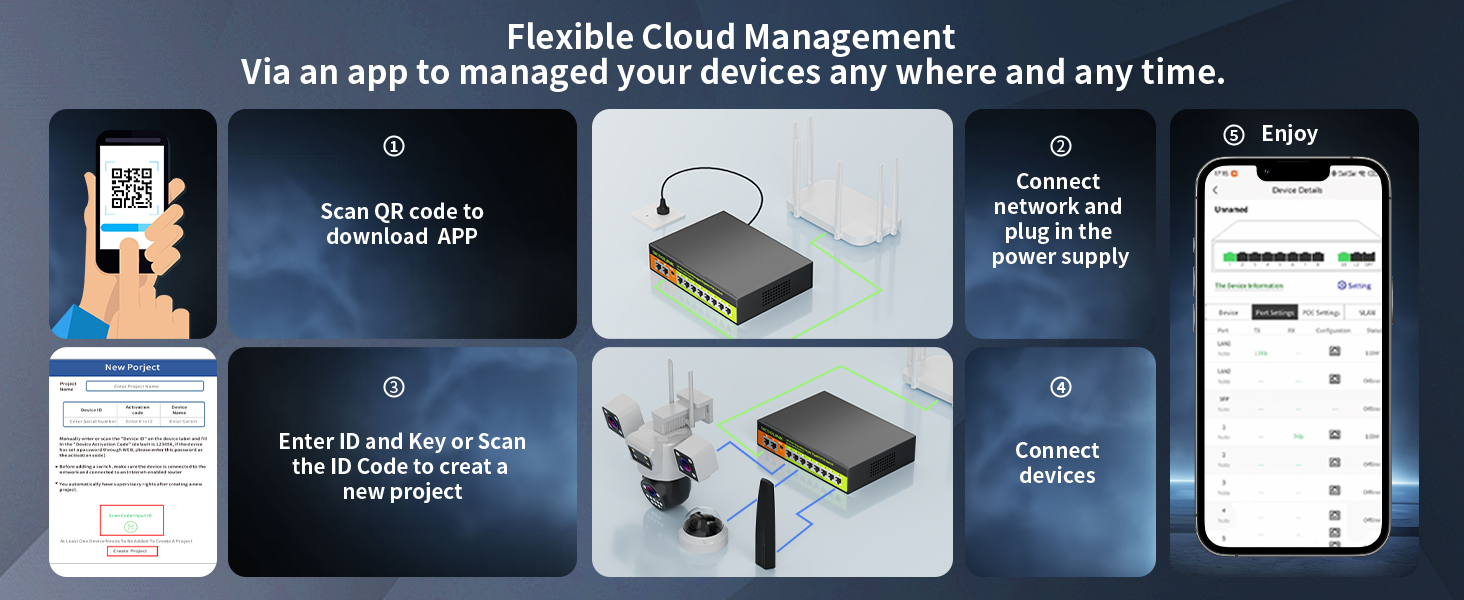

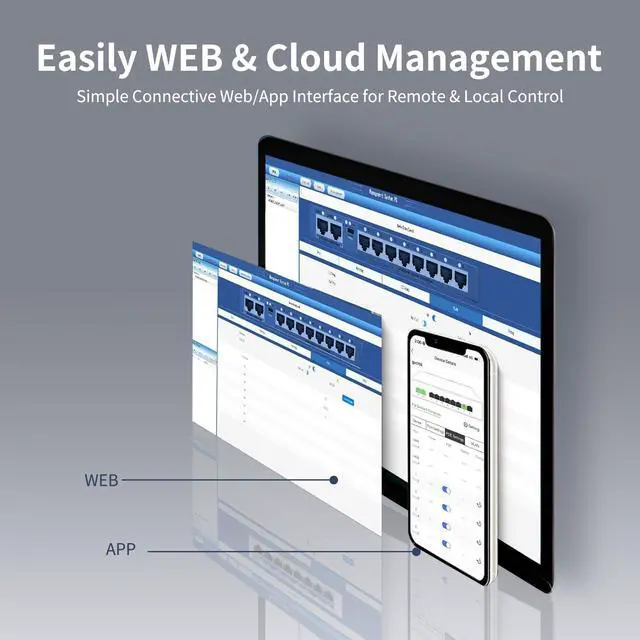

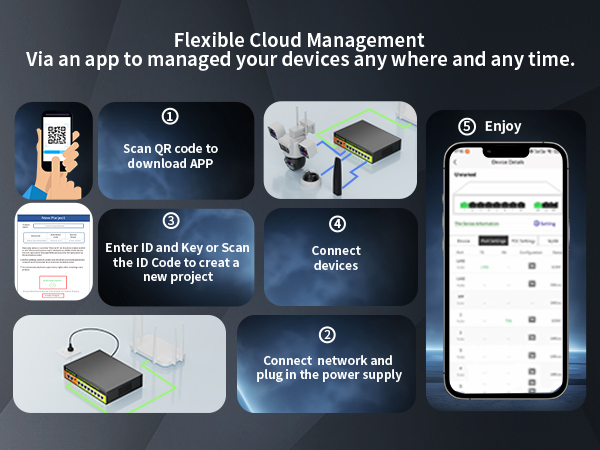

| DIP Switch (Cloud) | Remote management mode, enable local WEB management and APP remote management functions. |
| DIP Switch (WEB) | Local management mode, only enable local WEB management.(Desktop client or WEB version) |
| DIP Switch (RESET) | Move the switch to CLOUD and then back to WEB within 1 second to reboot and reset the device to factory settings. |
