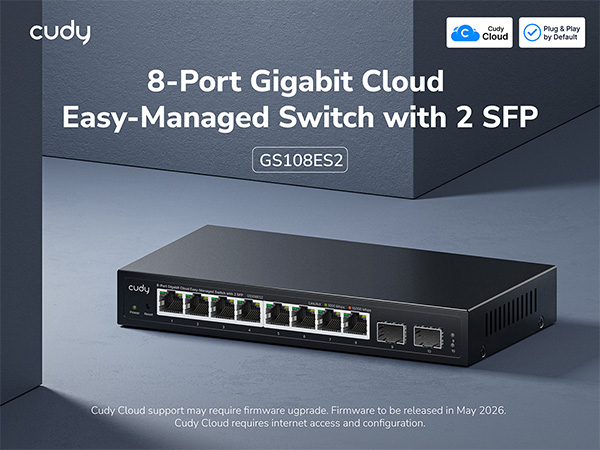

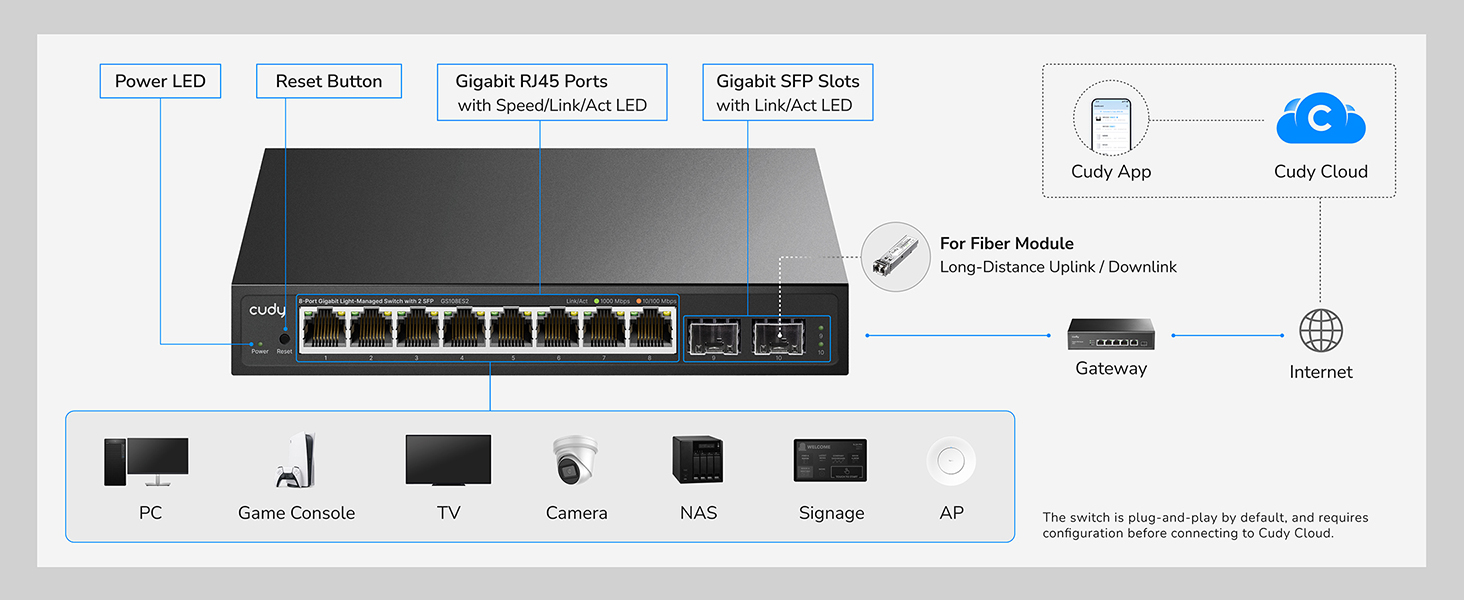

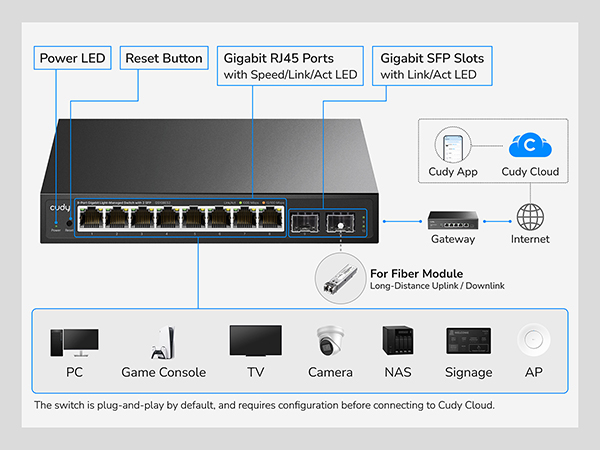

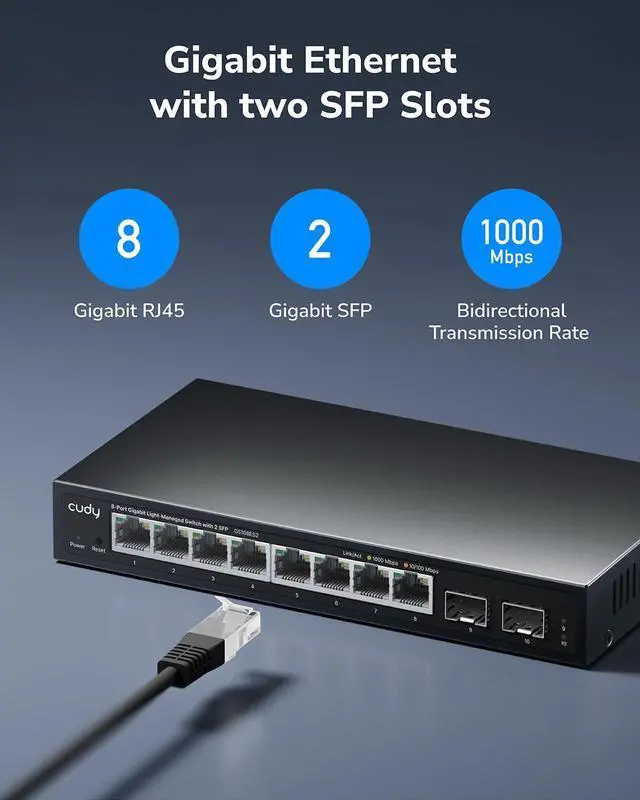

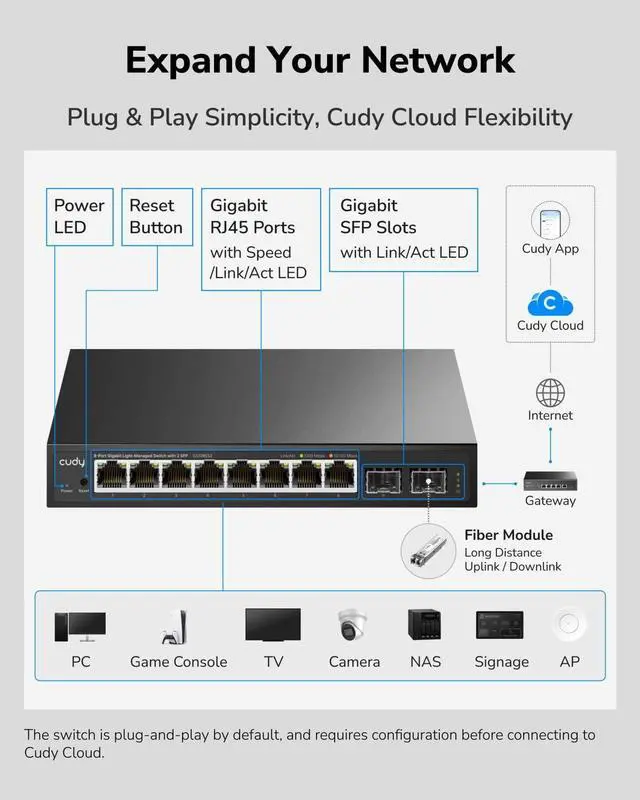

Super-Fast Gigabit
Eight 10/100/1000 Mbps Ethernet ports enable instant transferring of data. Two SFP allows long-distance connections.

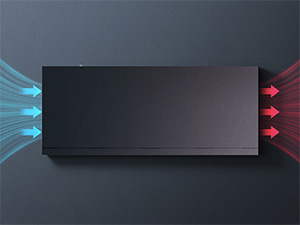

Quiet Fanless Cooling
Metal casing enables effcient cooling, delivering stable performance.

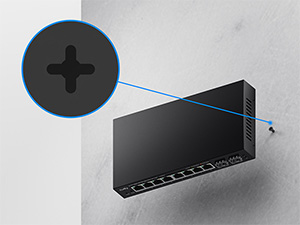

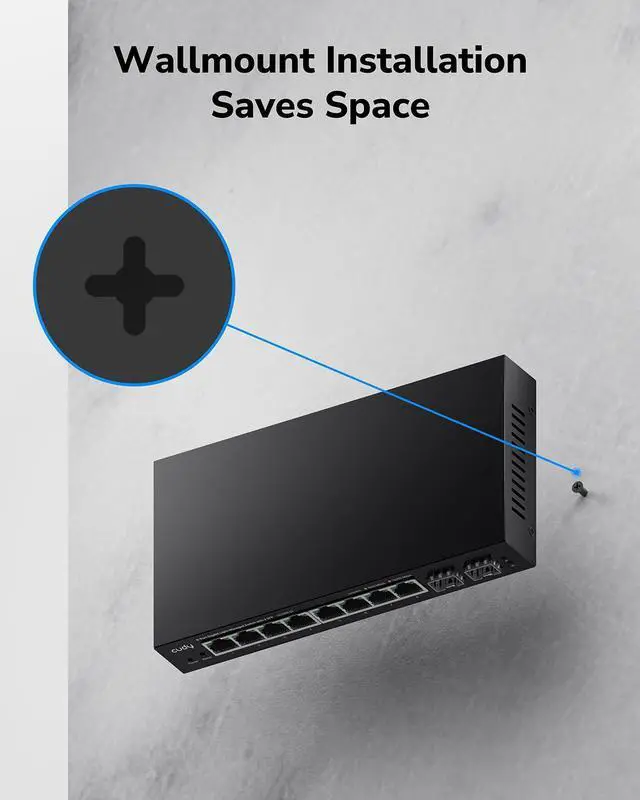

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement demand.
Extra Electrical Protection
Improves connection reliability with built-in lightning surge and ESD protection.
Cudy Cloud for Remote Management

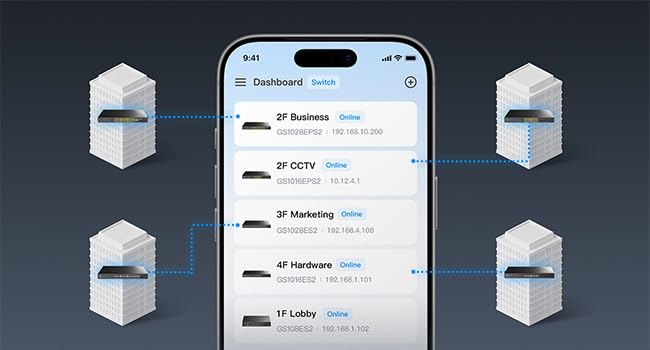

Centralized Management*
Monitor all your Cudy easy-managed cloud switches from a single, unified dashboard within the Cudy App, accessible from anywhere. (*via future firmware upgrade)
Monitor and Fix Issues Remotely*
Tweak settings on your phone via Cudy Cloud. No need to go to the site anymore for a small task. (*via future firmware upgrade)
Secure and High-Performance Switching

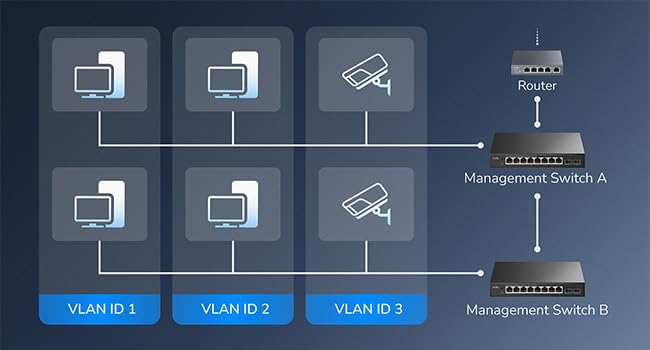

802.1Q/MTU/Port-Based VLAN
802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

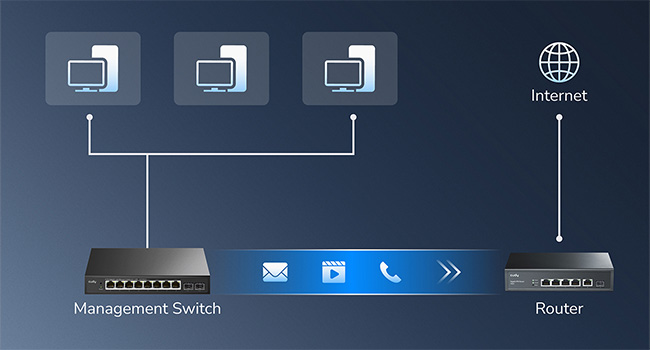

DSCP/802.1p/Port-Based QoS
DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

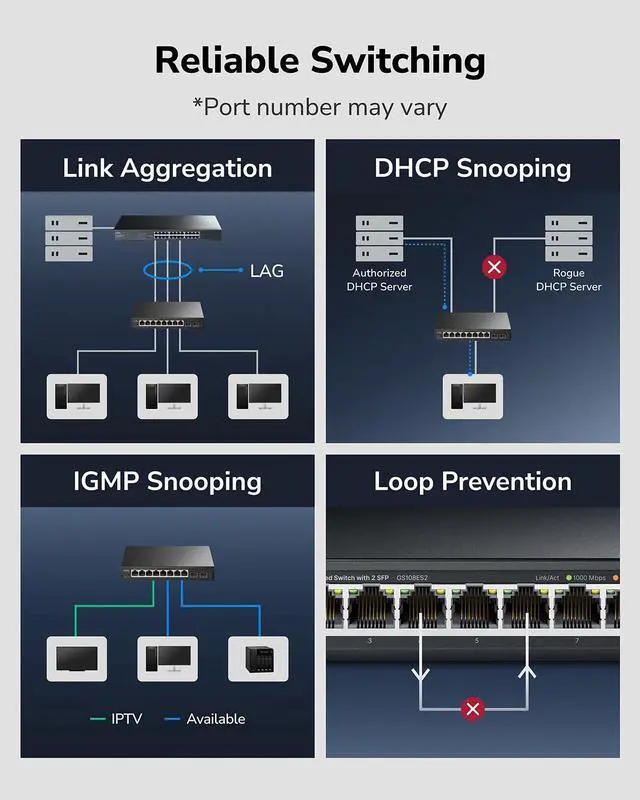

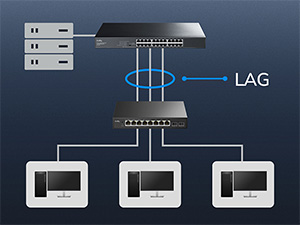

Link Aggregation
Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

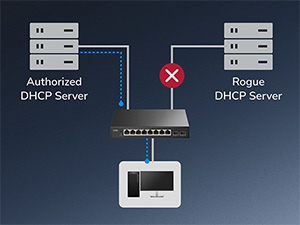

DHCP Snooping
Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

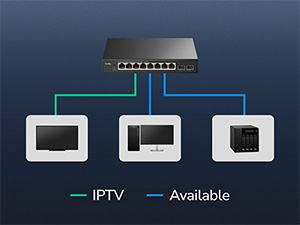

Traffic Optimization
Identifies the multicast groups with IGMP Snooping and sends data to the exact ports instead of broadcasting them.

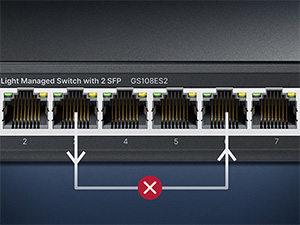

Loop Detection/Prevention
Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.
Compare Easy-Managed Switches
 GS108ES2 |  GS1016E |  HS105 |  GS1016E |  HS105 |  HS105U | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
RJ45 Ports | 8× GbE RJ45 | 8× GbE RJ45 | 5× GbE RJ45 | 16× GbE RJ45 | 5× 2.5G RJ45 | 5× 2.5G RJ45 |
SFP Slots | 2× GbE SFP | - | 1× GbE SFP | - | - | - |
MAC Address | 4096 | 8192 | 2048 | 8192 | 4096 | 4096 |
Max Forwarding Rate | 14.88 Mpps | 11.904 Mpps | 8.929 Mpps | 23.808 Mpps | 18.6 Mpps | 18.6 Mpps |
Jumbo Frame | 15 KB | 15 KB | 15 KB | 15 KB | 9 KB | 9 KB |
Port Mirror Sessions | 2 | 4 | 2 | 4 | 1 | 1 |
Port Trunk Groups | 2 | 4 | 2 | 4 | 2 | 2 |
802.1p/Port VLAN | ? | ? | ? | ? | ? | ? |
802.1Q/DSCP/Port QoS | ? | ? | ? | ? | ? | ? |
Wall-mount | ? | ? | ? | ? | ? | ? |
Super-Fast Gigabit
Eight 10/100/1000 Mbps Ethernet ports enable instant transferring of data. Two SFP allows long-distance connections.
Quiet Fanless Cooling
Metal casing enables effcient cooling, delivering stable performance.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement demand.
Extra Electrical Protection
Improves connection reliability with built-in lightning surge and ESD protection.
Cudy Cloud for Remote Management
Centralized Management*
Monitor all your Cudy easy-managed cloud switches from a single, unified dashboard within the Cudy App, accessible from anywhere. (*via future firmware upgrade)
Monitor and Fix Issues Remotely*
Tweak settings on your phone via Cudy Cloud. No need to go to the site anymore for a small task. (*via future firmware upgrade)
Secure and High-Performance Switching
802.1Q/MTU/Port-Based VLAN
802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.
DSCP/802.1p/Port-Based QoS
DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.
Link Aggregation
Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.
DHCP Snooping
Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.
Traffic Optimization
Identifies the multicast groups with IGMP Snooping and sends data to the exact ports instead of broadcasting them.
Loop Detection/Prevention
Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.
Compare Easy-Managed Switches
GS108ES2 | GS1016E | HS105 | GS1016E | HS105 | HS105U |
|---|---|---|---|---|---|
| Customer Reviews | |||||
| — | — | — | — | — | — |
| Price | |||||
| — | — | — | — | — | — |
| RJ45 Ports | |||||
| 8× GbE RJ45 | 8× GbE RJ45 | 5× GbE RJ45 | 16× GbE RJ45 | 5× 2.5G RJ45 | 5× 2.5G RJ45 |
| SFP Slots | |||||
| 2× GbE SFP | - | 1× GbE SFP | - | - | - |
| MAC Address | |||||
| 4096 | 8192 | 2048 | 8192 | 4096 | 4096 |
| Max Forwarding Rate | |||||
| 14.88 Mpps | 11.904 Mpps | 8.929 Mpps | 23.808 Mpps | 18.6 Mpps | 18.6 Mpps |
| Jumbo Frame | |||||
| 15 KB | 15 KB | 15 KB | 15 KB | 9 KB | 9 KB |
| Port Mirror Sessions | |||||
| 2 | 4 | 2 | 4 | 1 | 1 |
| Port Trunk Groups | |||||
| 2 | 4 | 2 | 4 | 2 | 2 |
| 802.1p/Port VLAN | |||||
| ? | ? | ? | ? | ? | ? |
| 802.1Q/DSCP/Port QoS | |||||
| ? | ? | ? | ? | ? | ? |
| Wall-mount | |||||
| ? | ? | ? | ? | ? | ? |
