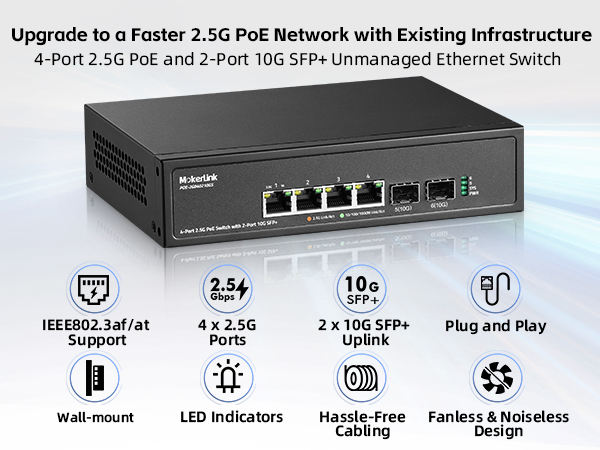

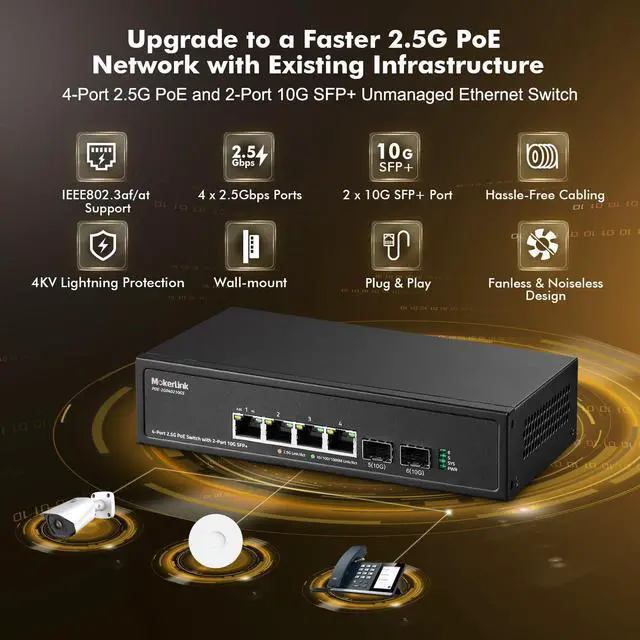

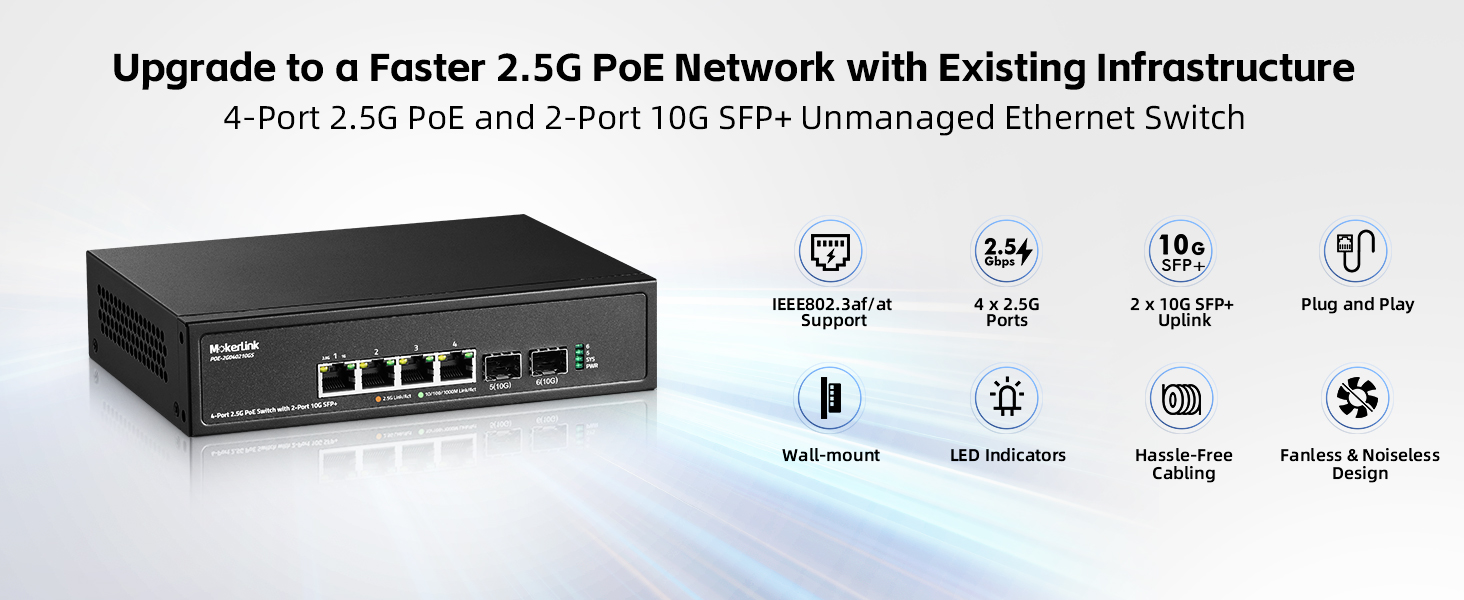

The POE-2G040210GS is a unmanaged PoE switch with 4x2.5GbE PoE+ RJ45 and 2x10GbE SFP+ port. Each PoE+ port can supply up to 30W power to PDs with up to total 72W power budget. Unmanaged, Plug and play, It provides a cost-effective and reliable solution.

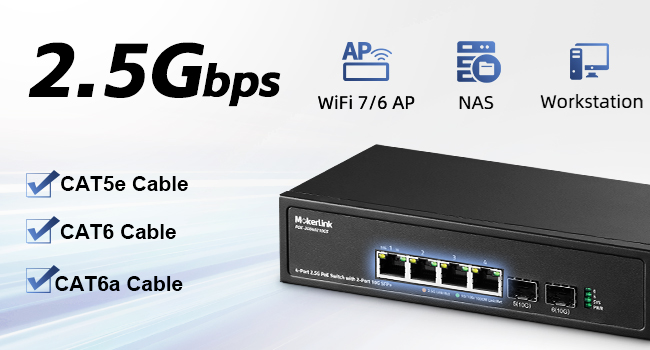

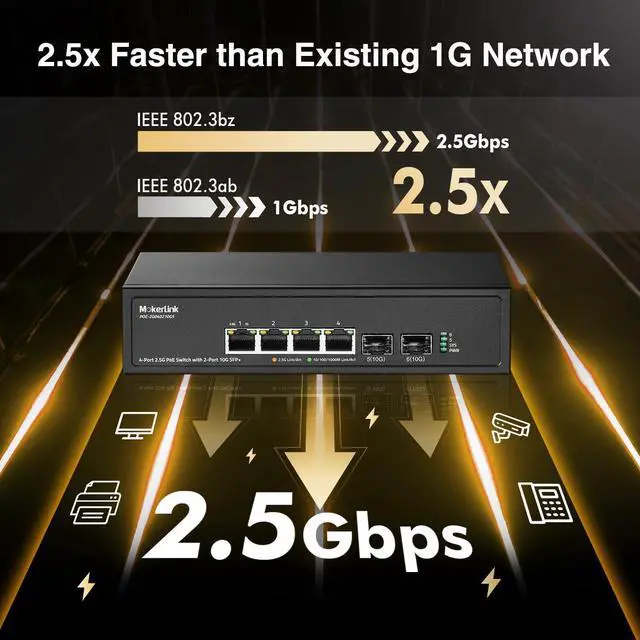

4x 2.5G Ports for WiFi 7/6 or NAS
4× 2.5Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. Supports cat5e and above cables, 2.5x faster network bandwidth

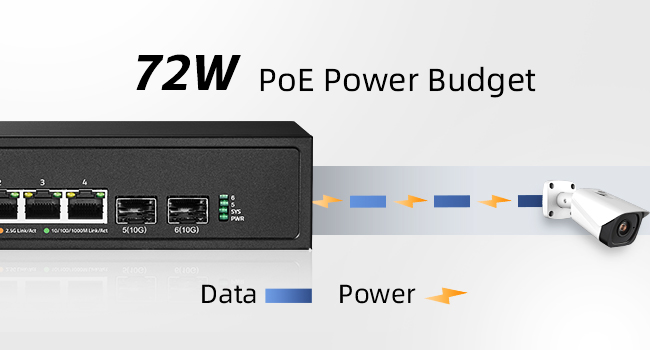

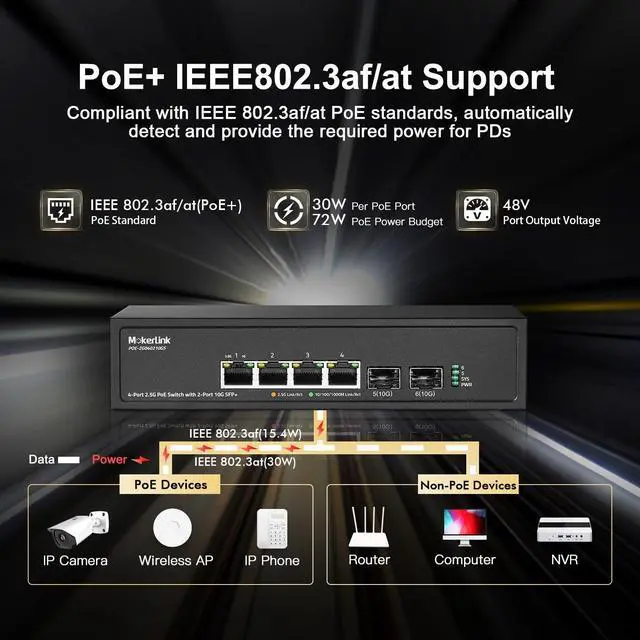

PoE+ Solution with PoE Auto-detection
The switch auto detects powered devices (PD) and power consumption levels, up to 30W per port. Connected to any IEEE 802.3af/at end-nodes such as speed dome IP cameras, APs, also support non-PoE devices such as NAS server, PCs.

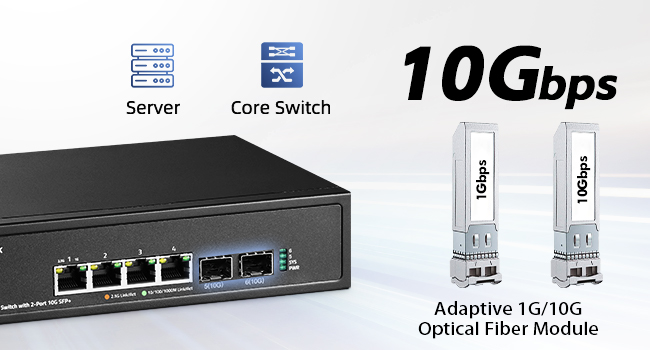

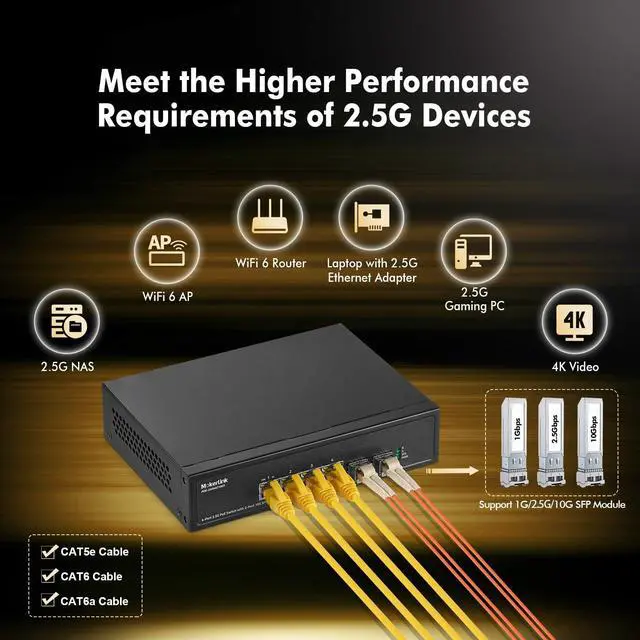

2x 10G SFP+ Slots for Servers or Core Switches
2× 10Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 2.5G, 10G sfp modules that can connect to core servers and switches

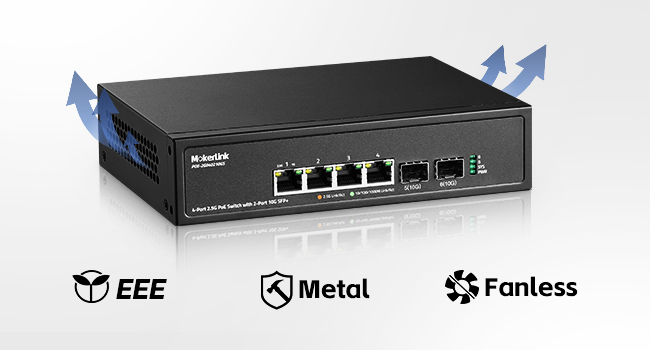

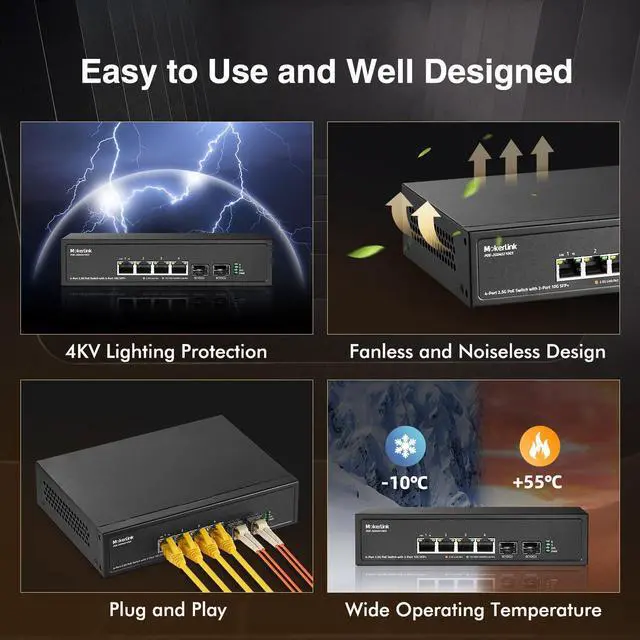

Power Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length

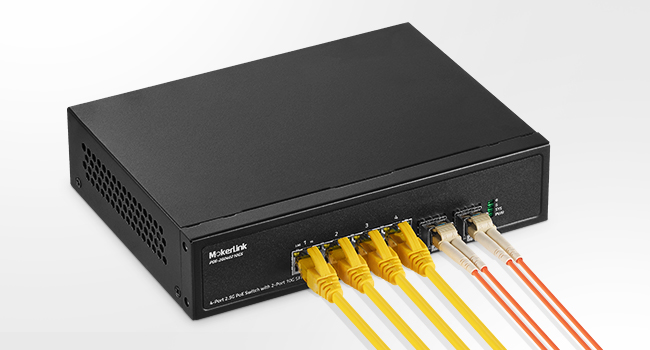

Plug and Play / Unmanged
Plug and play, unmanaged switch, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.

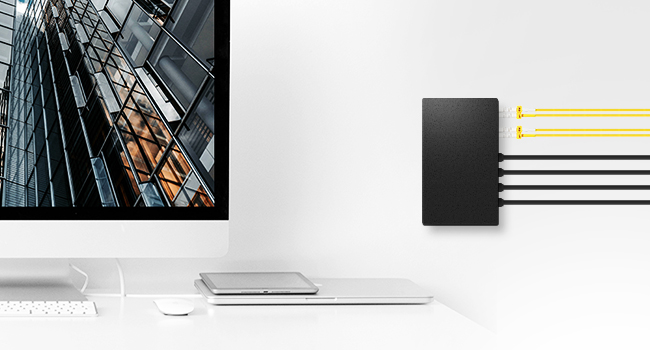

Mounting flexibility
Flexible deployment options for desktop or wall mount in your office and home, meet the network environment requirement.
Technical Parameter
4/8 Ports 2.5G Series Switches
 4x2.5G PoE Unmanaged SW |  4x2.5G Unmanaged Switch |  4x2.5G Managed Switch |  4x2.5G PoE Managed Switch |  8x2.5G Unmanaged Switch | 8x2.5G Managed Switch |  8x2.5G PoE Managed Switch | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Model | POE-2G040210GS | 2G040210GS | 2G040210GSM | POE-2G040210GSM | 2G080110GS | 2G080110GSM | POE-2G080110GSM |
Ethernet Port | 4x2.5G PoE + 2x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G PoE + 2x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ |
Managed Support | ? | ? | ? | ? | ? | ? | ? |
PoE Support | ? | ? | ? | ? | ? | ? | ? |
Switching Capacity | 45Gbps | 45Gbps | 45Gbps | 45Gbps | 60Gbps | 60Gbps | 60Gbps |
Forwarding Rates | 33.48Mpps | 33.48Mpps | 33.48Mpps | 33.48Mpps | 44.64Mpps | 44.64Mpps | 44.64Mpps |
PoE Budget | 72W | / | / | 72W | / | / | 135W |
The POE-2G040210GS is a unmanaged PoE switch with 4x2.5GbE PoE+ RJ45 and 2x10GbE SFP+ port. Each PoE+ port can supply up to 30W power to PDs with up to total 72W power budget. Unmanaged, Plug and play, It provides a cost-effective and reliable solution.
4x 2.5G Ports for WiFi 7/6 or NAS
4× 2.5Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. Supports cat5e and above cables, 2.5x faster network bandwidth
PoE+ Solution with PoE Auto-detection
The switch auto detects powered devices (PD) and power consumption levels, up to 30W per port. Connected to any IEEE 802.3af/at end-nodes such as speed dome IP cameras, APs, also support non-PoE devices such as NAS server, PCs.
2x 10G SFP+ Slots for Servers or Core Switches
2× 10Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 2.5G, 10G sfp modules that can connect to core servers and switches
Power Saving
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Plug and Play / Unmanged
Plug and play, unmanaged switch, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.
Mounting flexibility
Flexible deployment options for desktop or wall mount in your office and home, meet the network environment requirement.
Technical Parameter
| Ports | 4 x RJ45 2.5Base-T 2.5 Gigabit PoE+ Ports + 2 x SFP+ 10GBase-X 10 Gigabit Uplink Port |
|---|---|
| Switching Capacity / Backplane | 45Gbps |
| Forwarding Rates | Max. 33.48Mpps (64-byte package size) |
| MAC Address Table | 4K |
| Jumbo Frames | 12KB |
| PoE Standard | IEEE 802.3at (PoE+), IEEE 802.3af (PoE), Up to 30W per Port |
| Pin Assignment | Alternative A (Pin 1,2/3,6) |
| LED Indicators | PWR: System Power Status, 1-4 port Yellow Light On:2.5G Link normal, Green Light On:10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting, 5-6 SPF+ port Yellow Light On:10G Link normal, Green Light On:1G Link normal, Off: Link blocked, Flashing: Data transmitting |
| Power Input | 100-240V AC, 50-60 Hz, Internal Power Supply, Max 72W |
| Mounting | Desktop / Wall-mount, Metal Housing |
| Structure Information | Product Dimensions :175*73*28mm(LxWxH), Product Weight: 0.5KG |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |
4/8 Ports 2.5G Series Switches
4x2.5G PoE Unmanaged SW | 4x2.5G Unmanaged Switch | 4x2.5G Managed Switch | 4x2.5G PoE Managed Switch | 8x2.5G Unmanaged Switch | 8x2.5G Managed Switch | 8x2.5G PoE Managed Switch |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Model | ||||||
| POE-2G040210GS | 2G040210GS | 2G040210GSM | POE-2G040210GSM | 2G080110GS | 2G080110GSM | POE-2G080110GSM |
| Ethernet Port | ||||||
| 4x2.5G PoE + 2x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G RJ45 + 2x10G SFP+ | 4x2.5G PoE + 2x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G RJ45 + 1x10G SFP+ | 8x2.5G PoE + 1x10G SFP+ |
| Managed Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| PoE Support | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Switching Capacity | ||||||
| 45Gbps | 45Gbps | 45Gbps | 45Gbps | 60Gbps | 60Gbps | 60Gbps |
| Forwarding Rates | ||||||
| 33.48Mpps | 33.48Mpps | 33.48Mpps | 33.48Mpps | 44.64Mpps | 44.64Mpps | 44.64Mpps |
| PoE Budget | ||||||
| 72W | / | / | 72W | / | / | 135W |
