WIWAV - Enabling Solid Connections with DIN rail mounting and IP30 protection
WDH series up to Multi-Port ethernet devices through a rugged, energy-efficient, industrial grade ethernet switches for critical applications in hazardous environments, such as smart traffic, factory automation, and outdoor access connection for video surveillance / FTTx and Wi-Fi coverage.

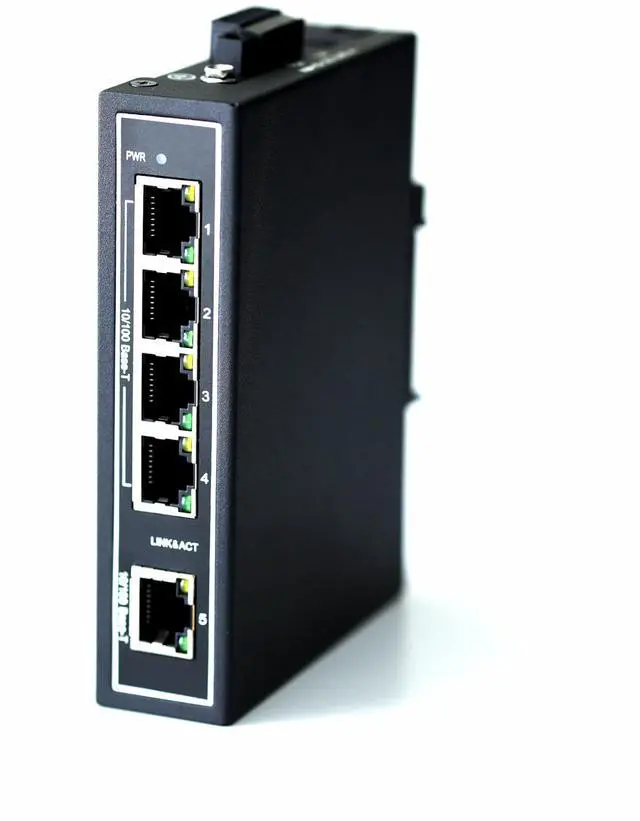

- COMPACT DESIGN - Industrial grade Multi-Port ethernet switch with automatic MDI/MDI-X crossover for plug-and-play.
- LOW POWER CONSUMPTION - Energy-Efficient Ethernet, Wide range 12/24/36/48V DC terminal block input.
- FAST DATA TRANSMISSION - Each port supports high speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x standard.
- ROBUST AND RELIABLE - Can be used in extreme industrial environments, supports a wide range of operating temperatures -30°C ~ +75°C (-22F ~ 167F). Easy to use and DIN rail mountable with built-in bracket, Robust IP30-rated housing.
- SAFETY & ENVIRONMENTAL CERTIFICATION - Passed UL, cUL, CE, FCC, PSE, REACH (SVHC) and RoHS certifications. Safe and quality-reliable, No worries about damaging functional devices.
Features and Benefits:
WIWAV industrial ethernet switches give you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. Reduce your energy costs with Energy-Efficient Ethernet With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
Conquer the tough demands of industrial environments Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. Get up and running in no time - This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Industry-Specific Deployments, Benefits of WIWAV Solutions for Manufacturing, Transportation, Utilities, Materials and Mining etc.
Use the WIWAV industrial ethernet switches to connect business systems with automation and control. Leverage our tested, validated designs to optimize industrial network performance.
WIWAV's solution can enable lean, efficient, collaborative, safe, and highly secure operations, resulting in a fully connected and converged different kind of industrial network. And it helps you keep your costs down and your profits up.
With WIWAV, you can:
- Boost performance and efficiency in every operation to reduce downtime.
- Better manage and schedule your fleet and assets.
- Increase security to control access to restricted areas and your assets.
- Better ensure the safety of both your employees and the environment.
EASY-TO-USE,Very robust and durable
WIWAV industrial ethernet switch provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

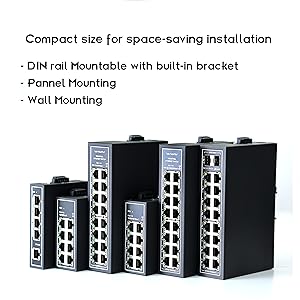

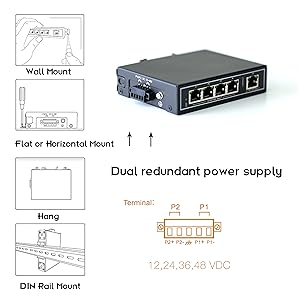

The industrial Ethernet switch is easy to install, with an attached "L" shaped metal bracket for DIN rail or other ways mounting on equipment racks and cabinets.
The Ideal Industrial Ethernet network portfolio from WIWAV
Lowered OpEx costs
WIWAV's integrated network solutions help IT gain valuable insights into continuous monitoring of network activity.
Rapid deployments and easy management help reduce operational expenses.
High-availability production network
Without high-performance and robust network infrastructure, modern production no longer works. The redundancy and high availability of WIWAV industrial grade devices protect your system against costly failures.
Flexible Configuration Modes for Different Applications
WIWAV offers you more real time, more security, and more reliability. Industrial Ethernet from WIWAV can be easily integrated into your automation infrastructure.
Reduced downtime
Highly productive and efficient production requires well structured, high-performance, and secure network infrastructure. The WIWAV's right components protect your system against automation system failures and costly downtimes.
 5 Port |  8 Port |  10 Port PoE |  8 Port Gigabit |  16 Port |  18 Port | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Interface | 5 x RJ45 | 8 x RJ45 | 9 x RJ45 + 1 x SFP | 8 x RJ45 | 16 x RJ45 | 18 x RJ45 |
| Transmission Speed | 10/100Mbps | 10/100Mbps | 10/100/1000Mbps | 10/100/1000Mbps | 10/100Mbps | 10/100Mbps |
| MAC Table | 1K | 1K | 8K | 8K | 8K | 8K |
| Packet Buffer | 448K | 448K | 2M | 2M | 1.75M | 1.75M |
| Packet Forwarding Rate | 0.74Mpps | 1.1904Mpps | 14.88Mpps | 11.904Mpps | 2.38Mpps | 5.36Mpps |
| Power Consumption | < 1W | < 2W | < 6W | < 4W | < 3W | < 5W |
| Extended Operating Temperature | ? | ? | ? | ? | ? | ? |
| Dimensions | 28x118x89mm | 41x101x87mm | 41x157x102mm | 41x101x87mm | 45x178x120mm | 45x178x120mm |
| Weight | 0.35kg | 0.4kg | 0.55kg | 0.4kg | 0.8kg | 0.8kg |
