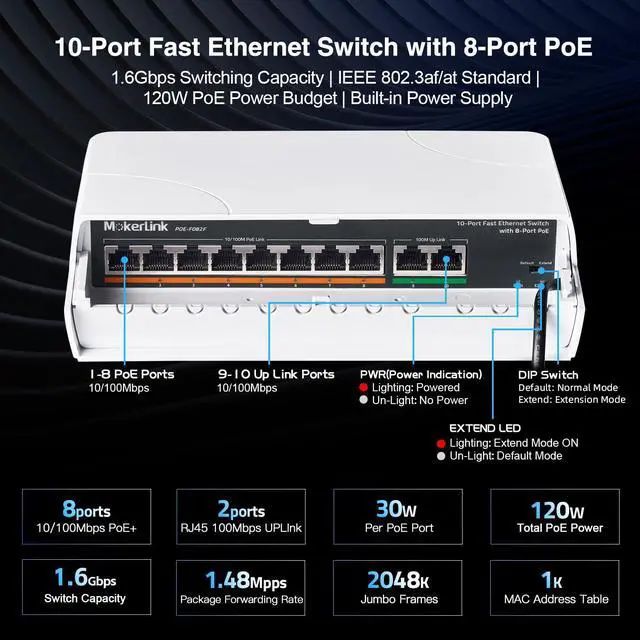

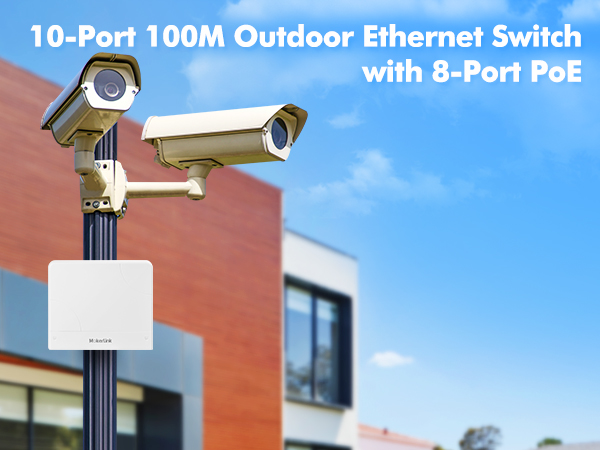

The POE-F082FO is a 10-Port 100M Outdoor Ethernet Switch with 8 PoE ports. It supports port isolation and long-distance power supply, boasting a compact sealed chassis with IP66 waterproof, as well as industry standards for vibration resistance, temperature tolerance, and surge protection.

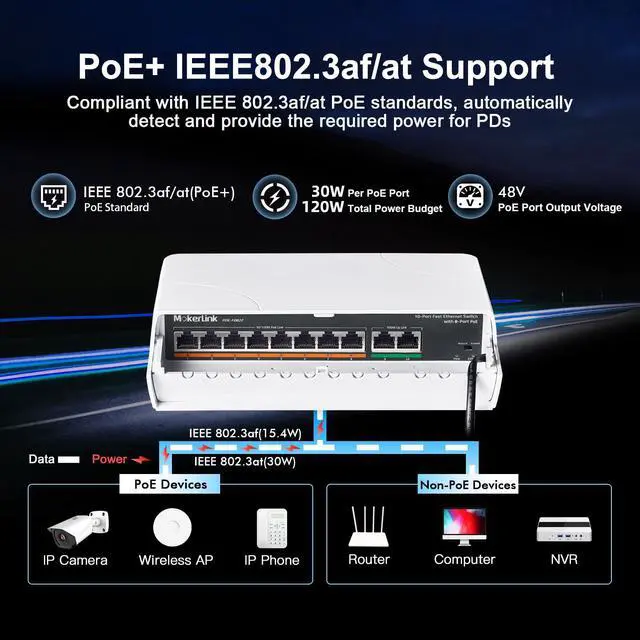

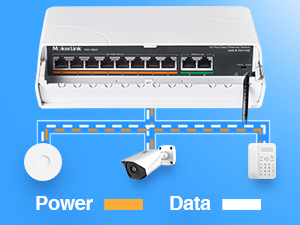

Smart PoE Function
The PoE ports (1-8) comply with IEEE 802.3af/at standards, delivering precise power tailored to your devices' exact requirements.

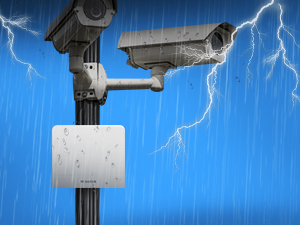

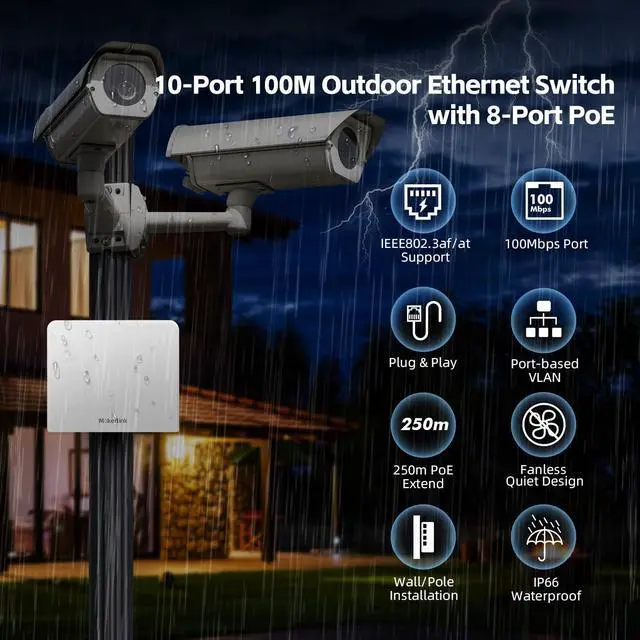

IP66 Waterproof
This PoE switch adopts an ABS+PC housing, holds an IP66 waterproof rating, and is specifically designed for outdoor surveillance scenarios.

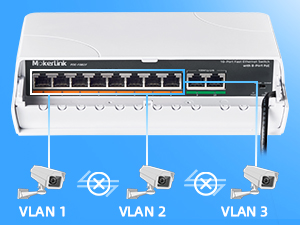

Port Isolation

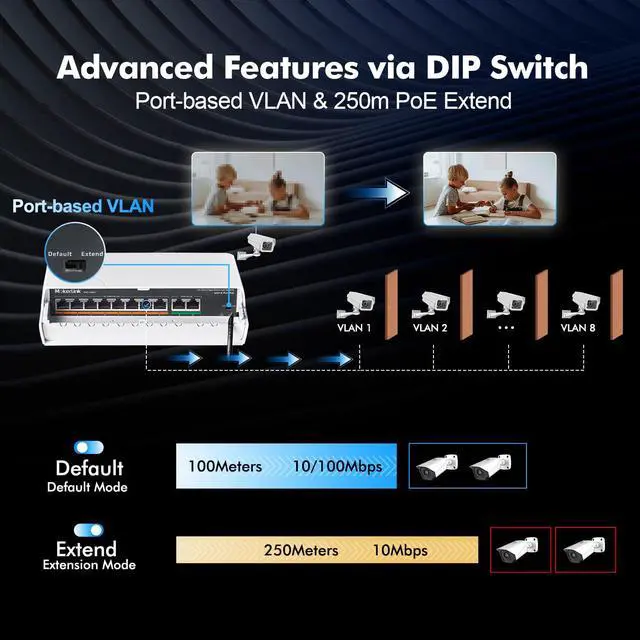

Ports 1–8 support mutual isolation via the extension switch toggle. It prevents broadcast storms, ensuring a secure and user-friendly network.

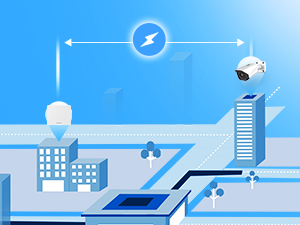

Long Distance PoE Transmission
Toggle the extension switch to activate long-range transmission. PoE ports achieve a maximum transmission distance of 250m.

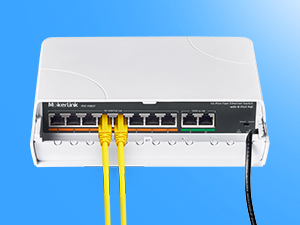

Plug and Play
No configuration required. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables.

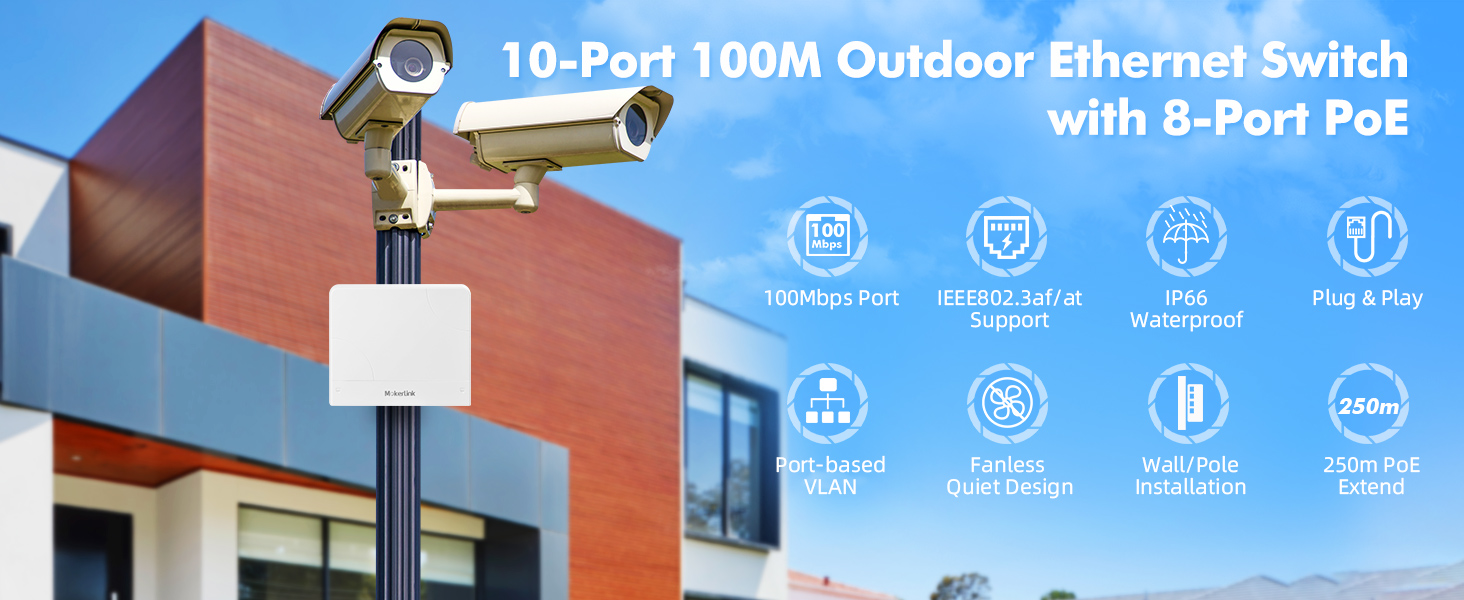

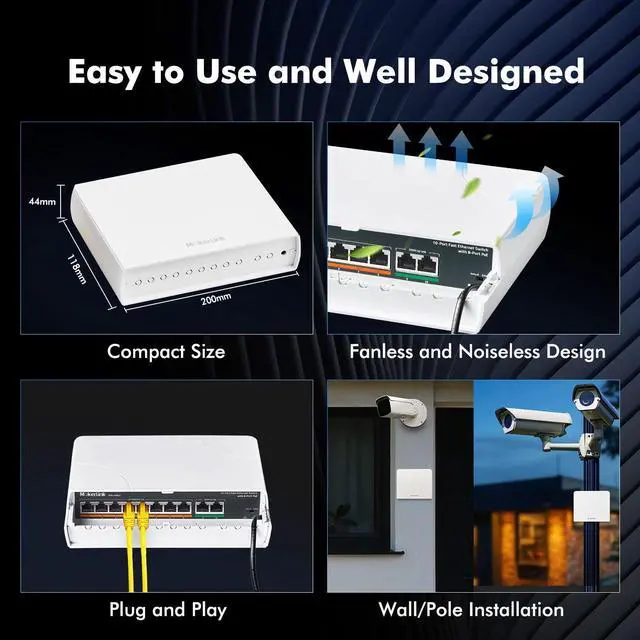

Flexible Installation
The outdoor PoE switch is easy to install with included tools, supporting pole-mount and wall-mount installation.

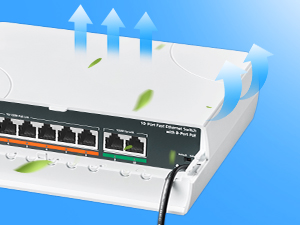

Fanless & Silent Operation
The outdoor PoE switch adopts a plastic housing and fanless design, ensuring noiseless operation and long-term reliability.

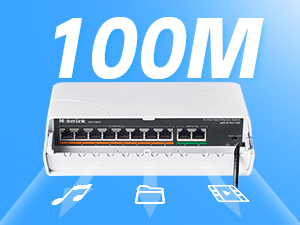

Full 100M Port
Equipped with 10 100Mbps RJ45 ports, all supporting auto MDI/MDI-X crossover. With a maximum switching capacity of 1.6Gbps.
Product Specifications
The POE-F082FO is a 10-Port 100M Outdoor Ethernet Switch with 8 PoE ports. It supports port isolation and long-distance power supply, boasting a compact sealed chassis with IP66 waterproof, as well as industry standards for vibration resistance, temperature tolerance, and surge protection.
Smart PoE Function
The PoE ports (1-8) comply with IEEE 802.3af/at standards, delivering precise power tailored to your devices' exact requirements.
IP66 Waterproof
This PoE switch adopts an ABS+PC housing, holds an IP66 waterproof rating, and is specifically designed for outdoor surveillance scenarios.
Port Isolation
Ports 1–8 support mutual isolation via the extension switch toggle. It prevents broadcast storms, ensuring a secure and user-friendly network.
Long Distance PoE Transmission
Toggle the extension switch to activate long-range transmission. PoE ports achieve a maximum transmission distance of 250m.
Plug and Play
No configuration required. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables.
Flexible Installation
The outdoor PoE switch is easy to install with included tools, supporting pole-mount and wall-mount installation.
Fanless & Silent Operation
The outdoor PoE switch adopts a plastic housing and fanless design, ensuring noiseless operation and long-term reliability.
Full 100M Port
Equipped with 10 100Mbps RJ45 ports, all supporting auto MDI/MDI-X crossover. With a maximum switching capacity of 1.6Gbps.
Product Specifications
| Model | POE-F082FO |
|---|---|
| Ethernet | 8 x 10/100Mbps PoE Ports + 2 x 10/100Mbps Uplink Ports |
| Bandwidth | 1.6Gbps |
| Pack forward rate | 3.125Mpps |
| MAC address | 1k |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af(15.4W), IEEE802.3at(30W) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(=100m), 100Base-TX : Cat5 or above UTP(=100m |
| Working Environment | Working Temperature: -10~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing, Storage Temperature: 5%~90%, non-condensing |
| Indicator | PWR (Power), 1-10 Green Light (Link&Data), PWR On: Powered on, Off: Powered off. |
| Casing | ABS plastic |
| Structure Size | Product Dimension (L*W*H): 206*172*44mm, Package Dimension (L*W*H): 230*190*70mm, Product N.W: 0.85kg, Product G.W: 1.05kg |
| Power Voltage | Input voltage :AC100-240V, Power supply: 52V/2.3A, =120W |
| Packing List | Switch 1 PC, Power cord 1 PC, User manual 1 PC |
