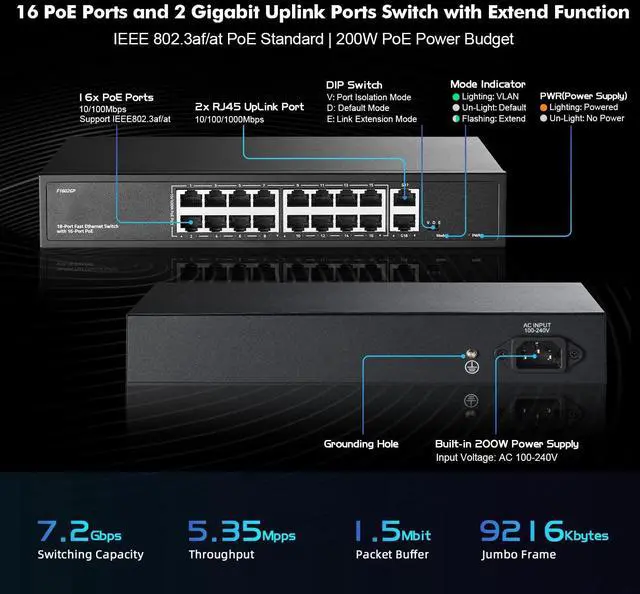

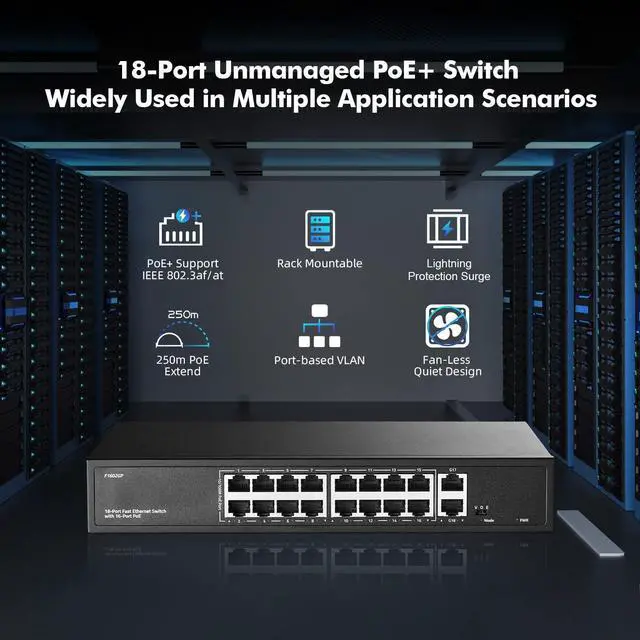

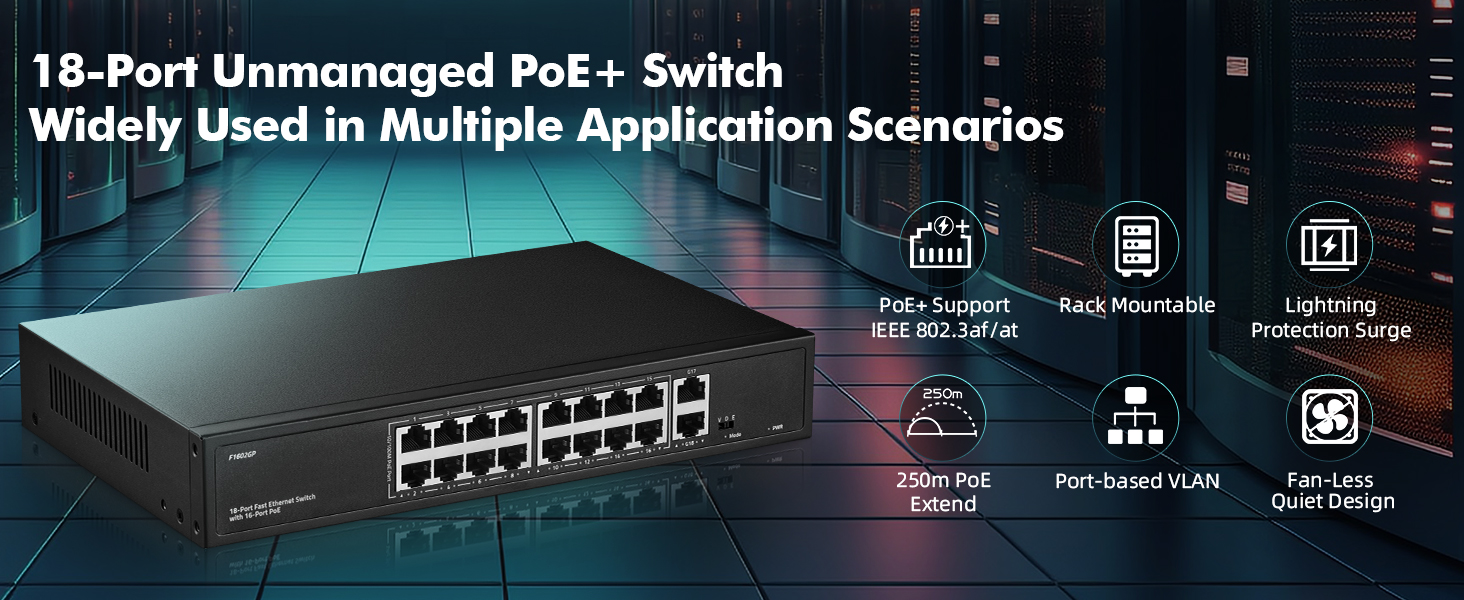

16-Port PoE+ Switch with 2 uplink ports is a flexible ethernet switch to transmit adequate power and safe reliable network for HD IP surveillance or WiFi system. the PoE port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard.

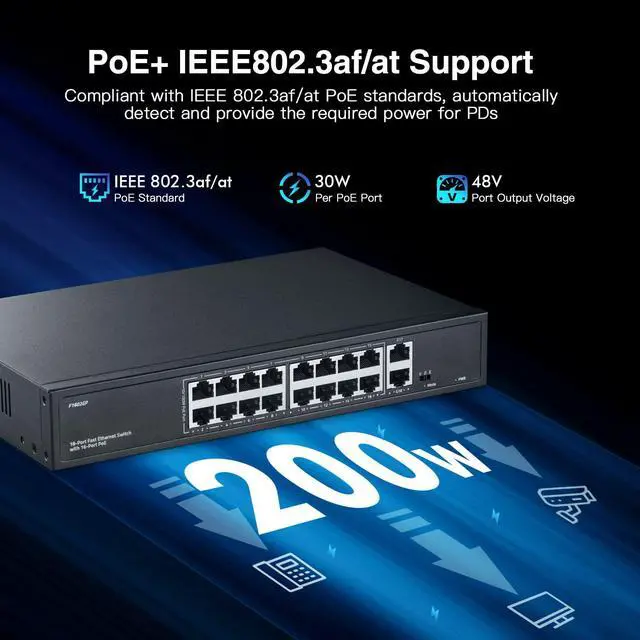

Automatic PoE detection
Compatible with IEEE802.3af/at standard, 30W Max. output power for one PoE port, automatic PoE detection on connected PoE devices.

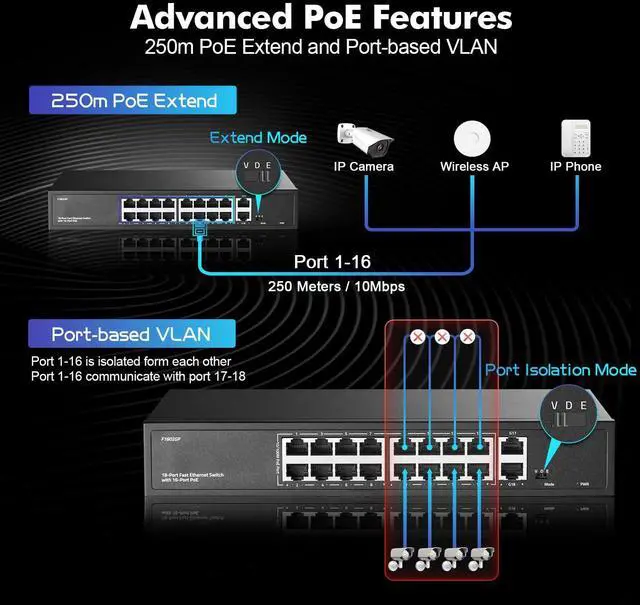

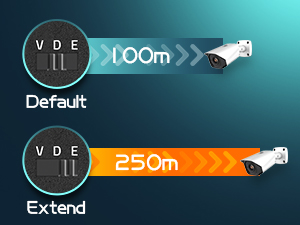

250m PoE Extend
PoE supply up to 250m with the DIP switch on 'Extend' mode(E), the PoE port speed downgrade to 10Mbps.

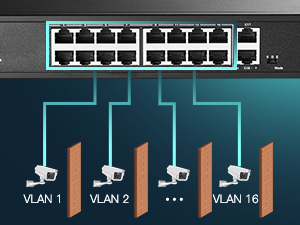

Port-based VLAN
With port isolation mode(V) easily divides traffic for ports 1-16 to prevent IP camera's muliticast or broadcast storm from affecting each other.

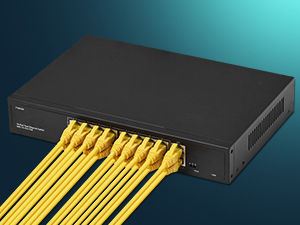

Easy Installation
Plug and Play, unmanaged PoE switch built in power supply, no additional AC outlet required near the connected PDs.

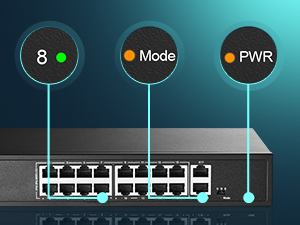

LED Indicators
Display the live status of the PoE switch with LED indicators, and give convenience to quick diagnose.

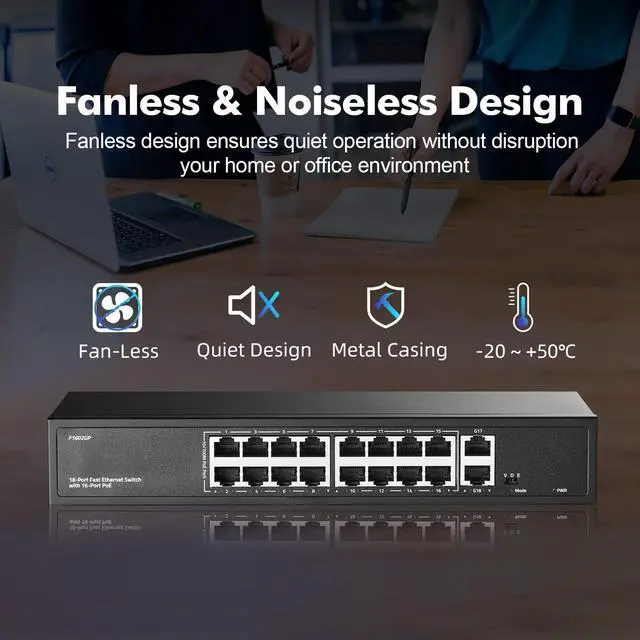

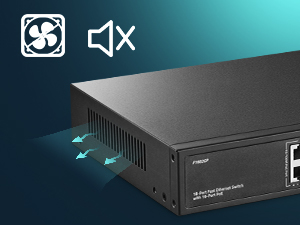

Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliablity over time with fewer parts to fail.
Lighting Protection
Fetures with 4KV surge protection, the switch can adapt to harsh indoor or outdoor environment.

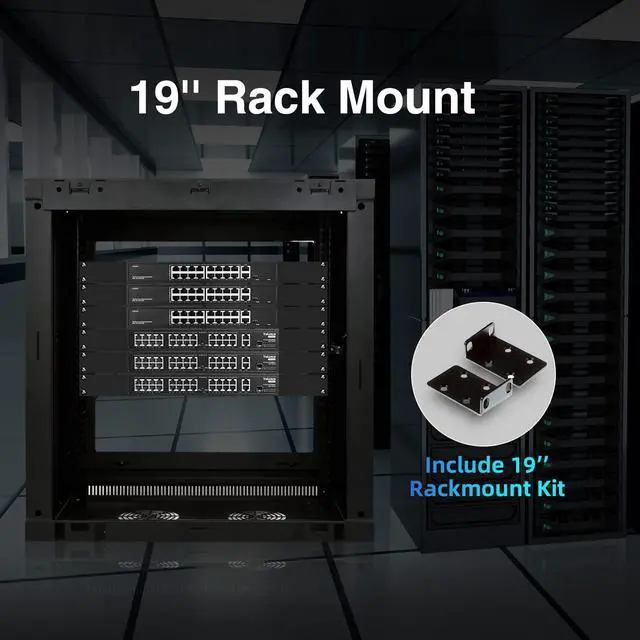

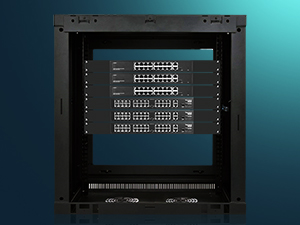

19'' Rack-mount
The poe switch capable of being mounted in a 19 inch rack.Save your space and easy to manage.
Product Specifications
YuLinca comes from Universal + Link + Card, standing for universal network links and reliable hardware cards.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
16-Port PoE+ Switch with 2 uplink ports is a flexible ethernet switch to transmit adequate power and safe reliable network for HD IP surveillance or WiFi system. the PoE port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard.
Automatic PoE detection
Compatible with IEEE802.3af/at standard, 30W Max. output power for one PoE port, automatic PoE detection on connected PoE devices.
250m PoE Extend
PoE supply up to 250m with the DIP switch on 'Extend' mode(E), the PoE port speed downgrade to 10Mbps.
Port-based VLAN
With port isolation mode(V) easily divides traffic for ports 1-16 to prevent IP camera's muliticast or broadcast storm from affecting each other.
Easy Installation
Plug and Play, unmanaged PoE switch built in power supply, no additional AC outlet required near the connected PDs.
LED Indicators
Display the live status of the PoE switch with LED indicators, and give convenience to quick diagnose.
Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliablity over time with fewer parts to fail.
Lighting Protection
Fetures with 4KV surge protection, the switch can adapt to harsh indoor or outdoor environment.
19'' Rack-mount
The poe switch capable of being mounted in a 19 inch rack.Save your space and easy to manage.
Product Specifications
| Model | F1602GP |
|---|---|
| Ethernet | 16*10/100M PoE Port + 2*Gigabit uplink RJ45 Port |
| Bandwidth | 7.2 Gbps |
| Packet Forwarding Rate | 5.35Mpps |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| PoE Standard | IEEE802.3af (15.4 W), IEEE802.3at (30 W) |
| Optical Medium | 10BASE-T: Cat 3?4?5 UTP(=100 meter), 100BASE-TX: Cat5 or more UTP (=100 meter), 1000Base-TX : Cat5 or more UTP/STP(=100 meter) |
| Working Environment | Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing |
| Indicator | PWR(POWER), Mode(DIP), 1-18 Green Light(Link&Data), PWR Lighting: Powered, Un-Light: No Power, Mode: Lighting: V(Port Isolation) Un-Light: D(Default mode) Flash: E(Extend), 1-18 Green: Lighting: Connecting, Un-Light: Disconnect, Flashing: Data Transmit |
| DIP | V(VLAN): Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port. D(Default) OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive. E(Extend Extend): Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Structure Size | Product Dimensions: 268*181*44mm Package Dimensions:312*262*84mm Product N.W:1.29KG Product G.W:1.77KG |
| Power | AC 100~240V 50/60Hz 200W |
| Package List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Brackets 1 pair |
