Key Features

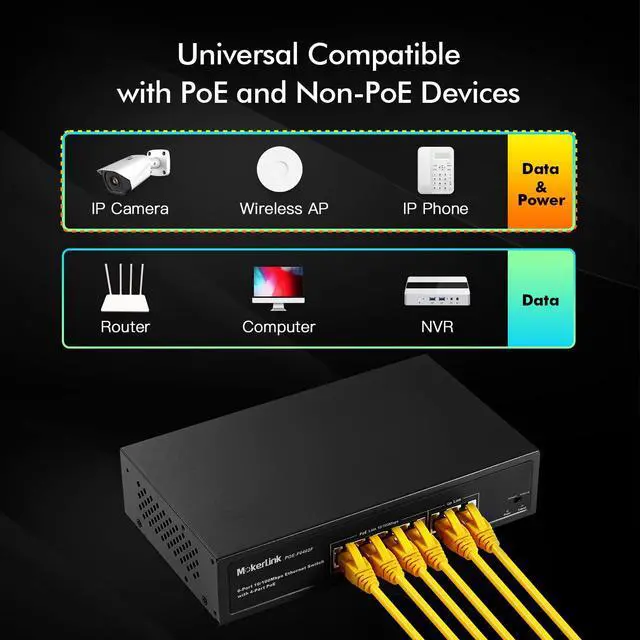

6 port 10/100Mbps PoE switch using high-quality high-speed network IC and the most stable PoE chip, PoE Port support IEEE802.3af and IEEE802.3at standard both. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af/at standards. The non-PoE device intelligently detects no power and only transmits data.

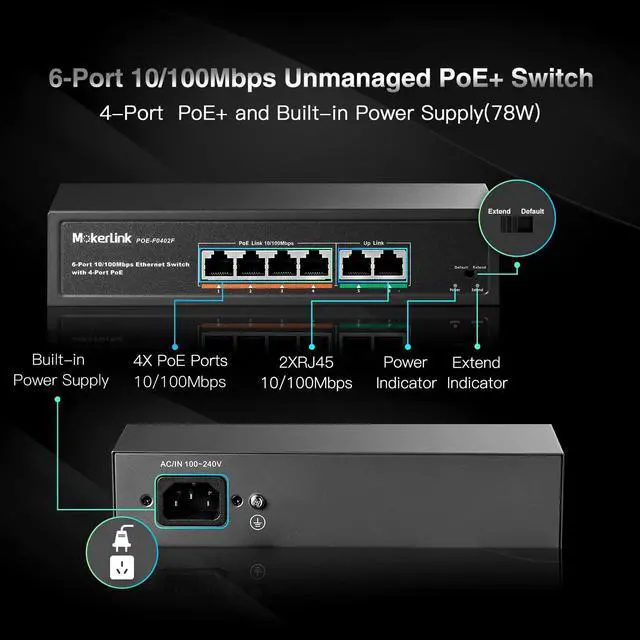

- 4*10/100Mbps POE ports + 2* 10/100Mbps Ethernet Uplink ports.
- Comply with IEEE 802.3, IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z IEEE802.3af/at standards.
- Ethernet port supports 10/100Mbps adaptive and POE functions.
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure.
- Support port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support port isolation mode.

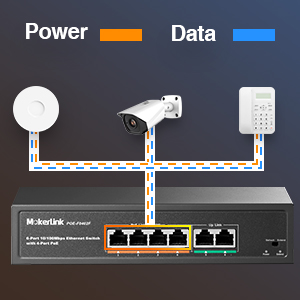

Auto Detects Power Devices

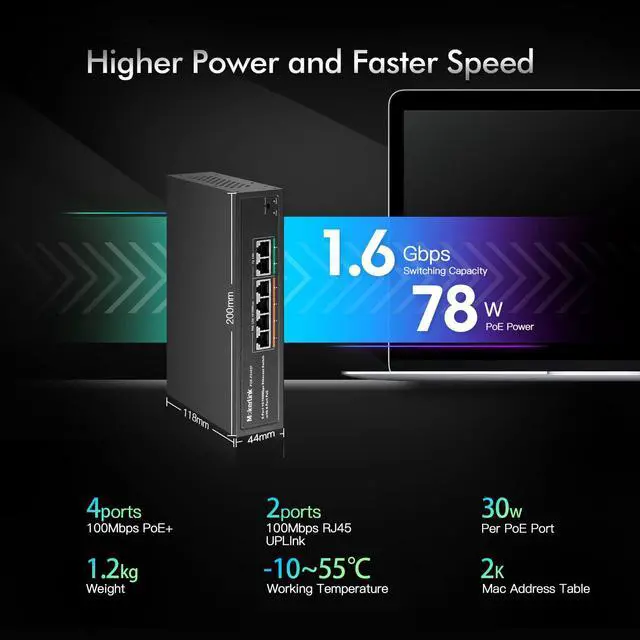

Compatible with IEEE802.3af/at protocol, PoE switch determines and delivers the exact power supply to your devices with up to 78W power output.

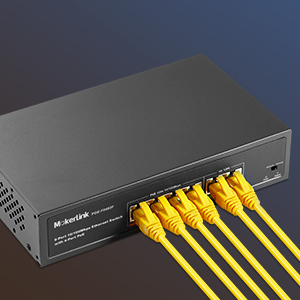

Plug and Play
Unmanaged , Play & Play PoE switch. You just need to connect power cable and the poe devices

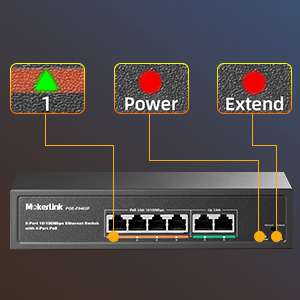

Unique LED Indicator Design
You can quickly check working status and troubleshoot ports with Power/PoE/Extend indicator.

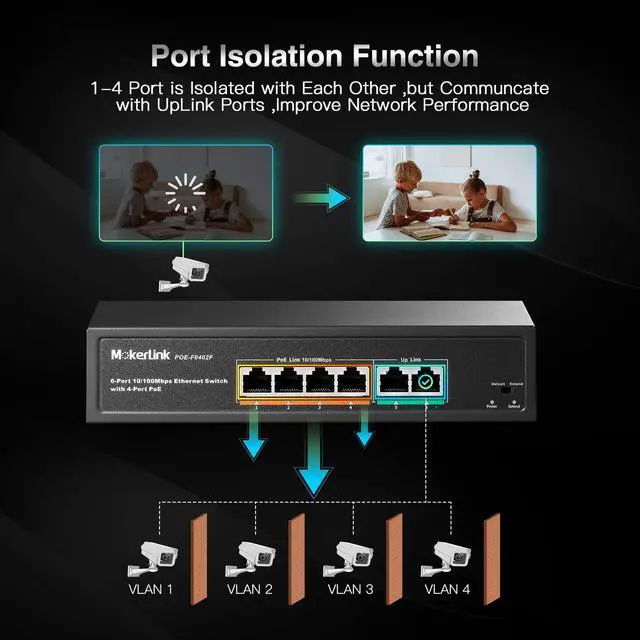

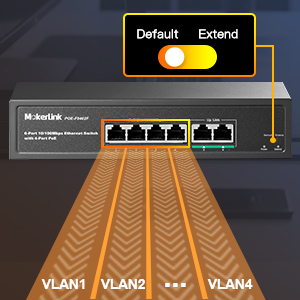

Port-based VLAN
When you enable the extend mode with DIP switch(chiange to Extend), switch divides traffic for ports 1-4 to prevent PoE devices muliticast or broadcast storm from affecting each other.

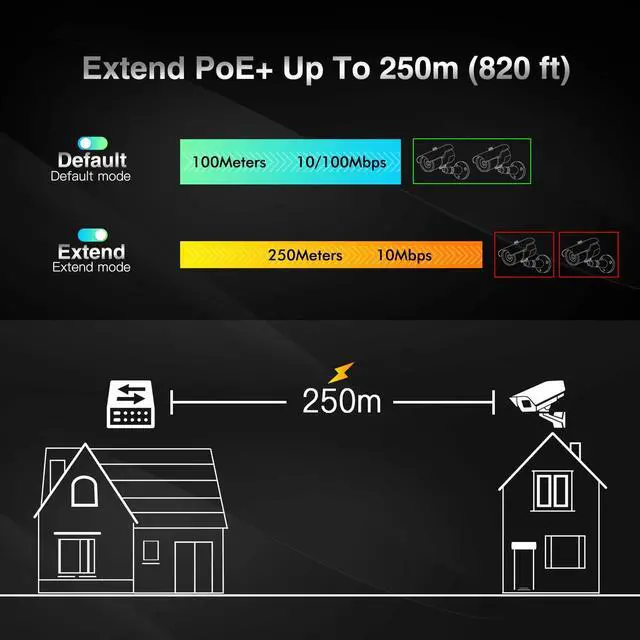

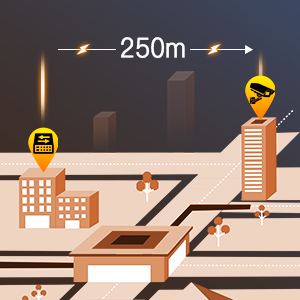

Link Extention to 250m
PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When extend mode enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.

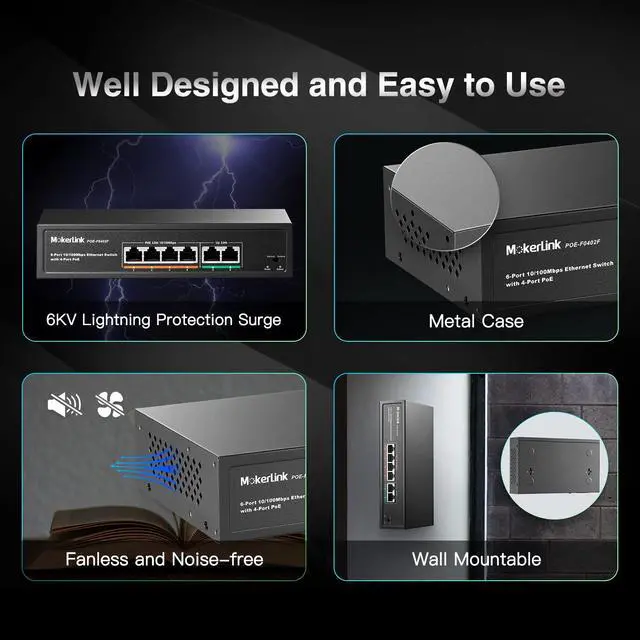

Fanless & Silent Operation
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

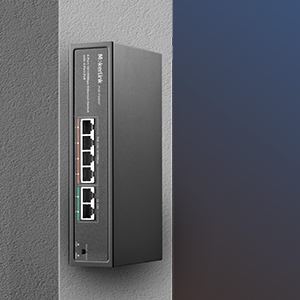

Support Wall Mount
You can mount the switch on the wall or desktop,perfect solution for a variety of environments.
Lighting Protection
The PoE switch fetures with 4KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Operation Over Wide Temperature Ranges
Unique design make sure PoE switch long-term stable operation over temperature spans of -10 and +55°C.
 6-Port 100Mbps PoE Switch |  8-Port 100Mbps PoE Switch |  5-Port Gigabit PoE Switch |  10-Port 100Mbps PoE Switch |  10-Port 100Mbps PoE Switch |  11-Port 100Mbps PoE Switch | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — | — |
| PoE Port | 4x10/100Mbps | 6x10/100Mbps | 4x100/1000Mbps | 8x10/100Mbps | 8x10/100Mbps | 9x10/100Mbps |
| UpLink Port | 2x10/100Mbps | 2x10/100Mbps | 1x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps | 2x10/100Mbps |
| POE Power Output | 78W | 78W | 78W | 120W | 120W | 120W |
| Switch Capacity | 1.6Gbps | 1.4Gbps | 12Gbps | 10Gbps | 10Gbps | 1.4Gbps |
| Dimensions (L x W x H) | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 |
| Weight (lbs) | 2.15 | 2.15 | 2.15 | 2.31 | 2.31 | 2.31 |
| Extend Function | ? | ? | ? | ? | ? | ? |
 8-Port Gigabit PoE Switch |  11-Port Gigabit PoE Switch |  18-Port 100Mbps PoE Switch |  18-Port Gigabit PoE Switch |  26-Port 100Mbps PoE Switch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| PoE Port | 8x100/1000Mbps | 8x100/1000Mbps | 16x10/100Mbps | 16x100/1000Mbps | 24x10/100Mbps |
| UpLink Port | None | 3x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps |
| POE Power Output | 120W | 120W | 250W | 250W | 400W |
| Switch Capacity | 12Gbps | 12Gbps | 12Gbps | 12Gbps | 12Gbps |
| Dimensions (L x W x H) | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 10.6 x 7.1 x 1.7 | 10.6 x 7.1 x 1.7 | 10.6 x 7.1 x 1.7 |
| Weight (lbs) | 2.31 | 2.31 | 2.31 | 3.82 | 4.62 |
| Extend Function | None | ? | ? | ? | ? |
