Outdoor Gigabit PoE Passthrough Switch 1 PoE Input 3 PoE Output Ethernet Extender IEEE 802.3af/at Powered 10/100/1000Mbps 30W Input 24W Output Waterproof Wall Mount VLAN Mode Plug and Play

Product Description:

Outdoor Gigabit PoE passthrough switch designed to receive power through a PoE network connection and provide power and data to connected devices through three PoE output ports. It supports 10/100/1000Mbps Ethernet and is suitable for outdoor installations and complex indoor environments.

Core Selling Points:

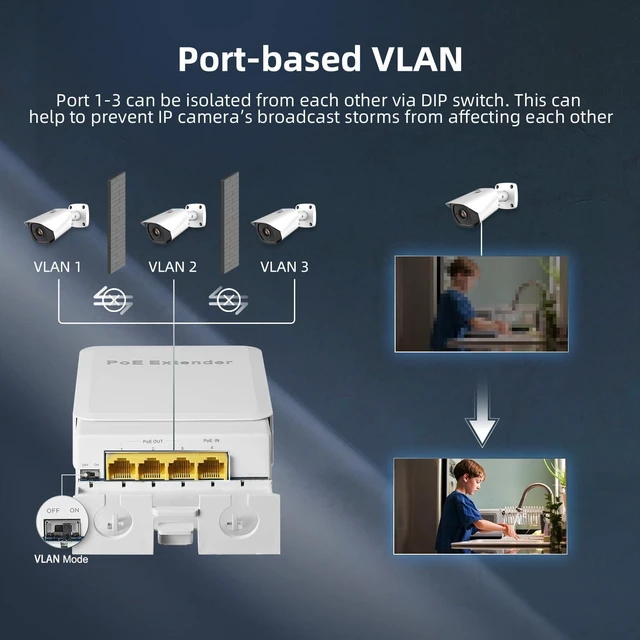

Provides one PoE input and three PoE output ports for convenient network power passthrough. The industrial-grade ABS polymer shell protects the cable interfaces and supports waterproof, dustproof, and snowproof performance. Plug-and-play operation automatically detects connected devices, while LED indicators display port status. VLAN mode is supported and controlled by a dipswitch.

Technical Specifications:

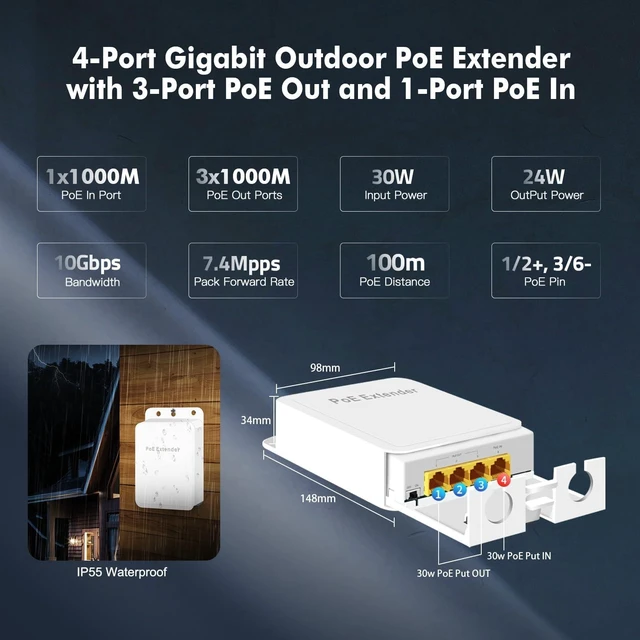

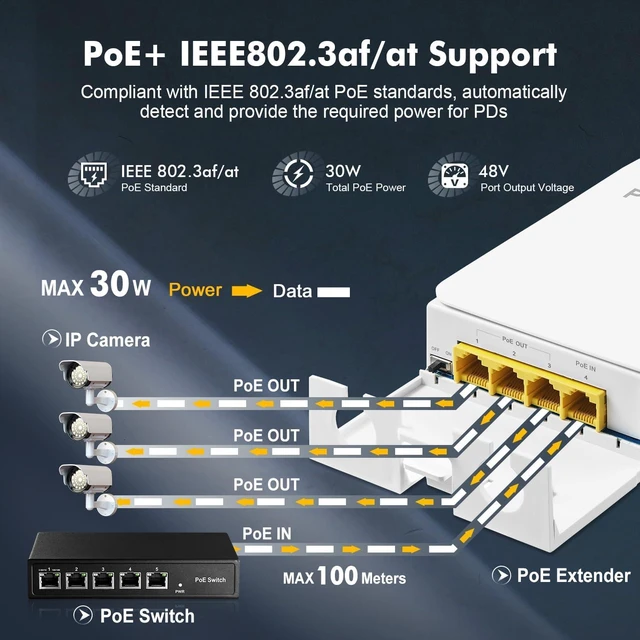

PoE ports: 1 input and 3 outputs. Ethernet rate: 10/100/1000Mbps. PoE standard: IEEE 802.3af/at. Input maximum: 30W. Output maximum: 24W. Average output: 8W per port. PoE voltage: 44-57 Vdc. Power method: PoE network powered; no AC power supply required. Input PoE pinout: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-). Output PoE pinout: 1/2 (+), 3/6 (-). Housing material: industrial-grade ABS polymer. Features wall mounting, LED port status display, automatic power detection, plug-and-play operation, and VLAN mode controlled by dipswitch.

Before Purchase:

Confirm that the connected power source supports IEEE 802.3af/at PoE with 44-57 Vdc output. This product does not support 24V passive PoE. An AC power supply is not required because the unit is powered through the PoE network connection.
