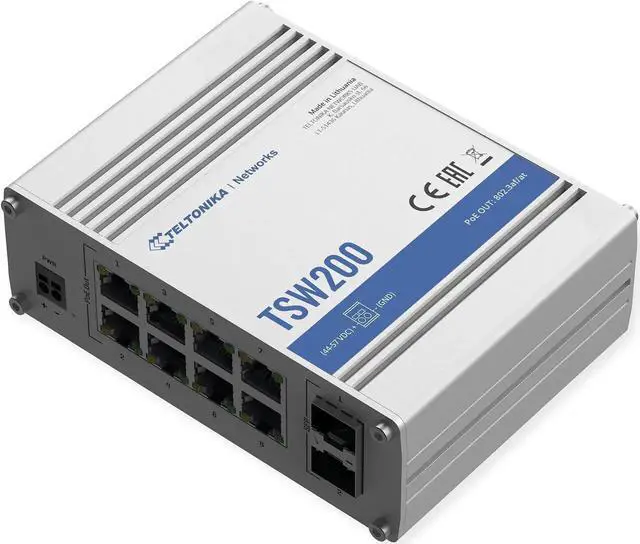

Teltonika TSW200000010 Model TSW200 Industrial Unmanaged POE+ Switch, 8X PoE Ports, 8 x Ethernet Ports, Rugged Aluminum Housing, 2 SFP Ports for Long-Range Fiber-Optic, 20 Gbps Bandwidth Non-Blocking

Teltonika TSW200000010 Model TSW200 Industrial Unmanaged POE+ Switch, 8x PoE Ports, 8 x Ethernet Ports, Rugged Aluminum Housing, 2 SFP Ports For Long-Range Fiber-Optic, 20 Gbps Bandwidth Non-blocking

TSW200 is industrial unmanaged switch from Teltonika Networks. TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Ethernet ports which support IEEE 802.3 af and IEE 802.3 at Power-over-Ethernet standards

Key Features:

- 8 x LAN ports, 2 x SFP ports

- Rugged aluminum housing

- IP30 ingress protection rating

- Up to 20 Gbps (non-blocking)

- Package includes: TSW200, QSG (Quick Start Guide) (NO POWER SUPPLY INCLUDED)

Specifications

:

Ethernet:

- LAN: 8 x LAN ports, 10/100/1000 Mbps

- Fiber: 2 x SFP ports

PoE:

- PoE ports: 1 - 8

- PoE Max Power per Port (at PSE): 30 W

- Total PoE Power Budget (at PSE): 240W

Performance

Specifications

:

- Bandwidth (Non-blocking): 20 Gbps

- Packet buer: 128 KB

- MAC address table size: 2k entries

Power:

- Connector: 2 pin industrial DC power socket

- Input voltage range: 7-57 VDC

- Input voltage range for PoE: 44-57 VDC

- Power consumption (idle/max no PoE/max): <2.2 W/<19 W/106 W

Physical Interfaces (Ports,

LEDs):

- Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps

- Fiber: 2 x SFP ports

- Status LEDs: 1 x Power LED, 16 x LAN status LEDs 2 x SFP status LEDs

- Power: 1 x 2 pin industrial DC power socket

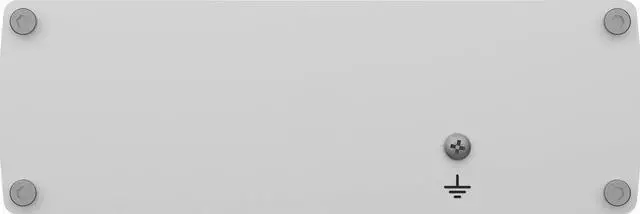

- Ground: 1 x Grounding screw

Physical Specification:

- Casing material: Full aluminum housing

- Dimensions (W x H x D): 5.19 x 1.74 x 3.74 inches

- Weight: 1.1 pounds
