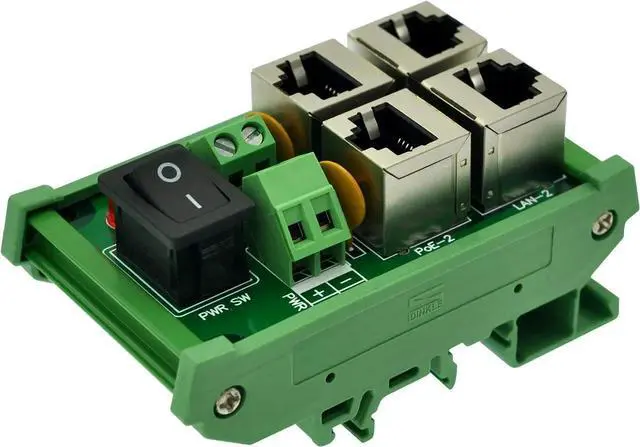

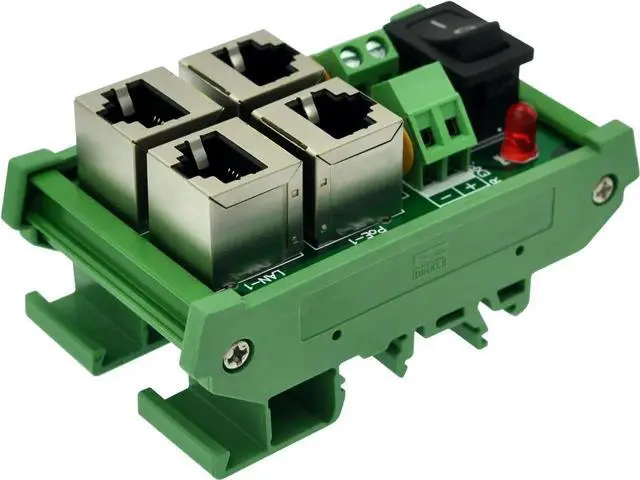

CZH-LABS DIN Rail Mount 2 Ports Passive RJ45 PoE Power Injection Board, Power Over Ethernet Injector Module.

1, Simple Power up 2 Passive 10/100Mbps PoE devices by one power source Application use for Access Points, IP cameras, IP phones, etc.

2, Power Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1A mp / 72V). Power Expansion Output terminal block can connect power supply to next device.

3, Switch On/Off to save electricity while not use, LED indication for switch On/Off status.

4,

Specifications

: Terminal

Block Power Input: 12VDC - 60VDC, maximum current 10Amp;

Termianl Block Expansion Output: maximum current 10Amp;

LIN-X Input: RJ45 1 / 2 / 3 / 6 pins (data), 4 / 5 / 7 / 8 pins not connected;

PoE-X Output: RJ45 1 / 2 / 3 / 6 pins (data). 4 / 5 pins power +, 7 / 8 pins power -;

Data Rate: 10 / 100Mbps; PoE Power Output Maximum Current (per channel): 720mA.

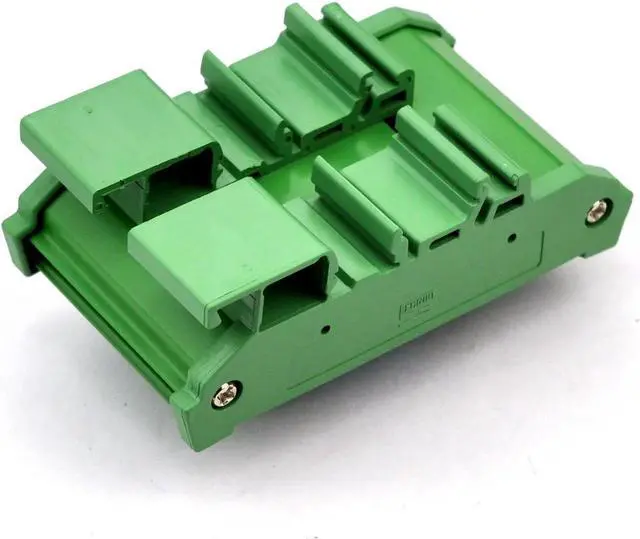

5, High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.

Specifications

:

Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp.

Termianl Block Expansion Output: maximum current 10Amp.

LIN-X Input: RJ45 1 / 2 / 3 / 6 pins (data), 4 / 5 / 7 / 8 pins not connected.

PoE-X Output: RJ45 1 / 2 / 3 / 6 pins (data). 4 / 5 pins power +, 7 / 8 pins power -.

Data Rate: 10 / 100Mbps.

PoE Power Output Maximum Current (per channel): 720mA.

Terminal blocks: Pitch 5.0 mm/ 0.197", Wire range 28AWG ~ 12AWG / 2.5 mm square, Strip length 7mm. Screws - M 2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass.
