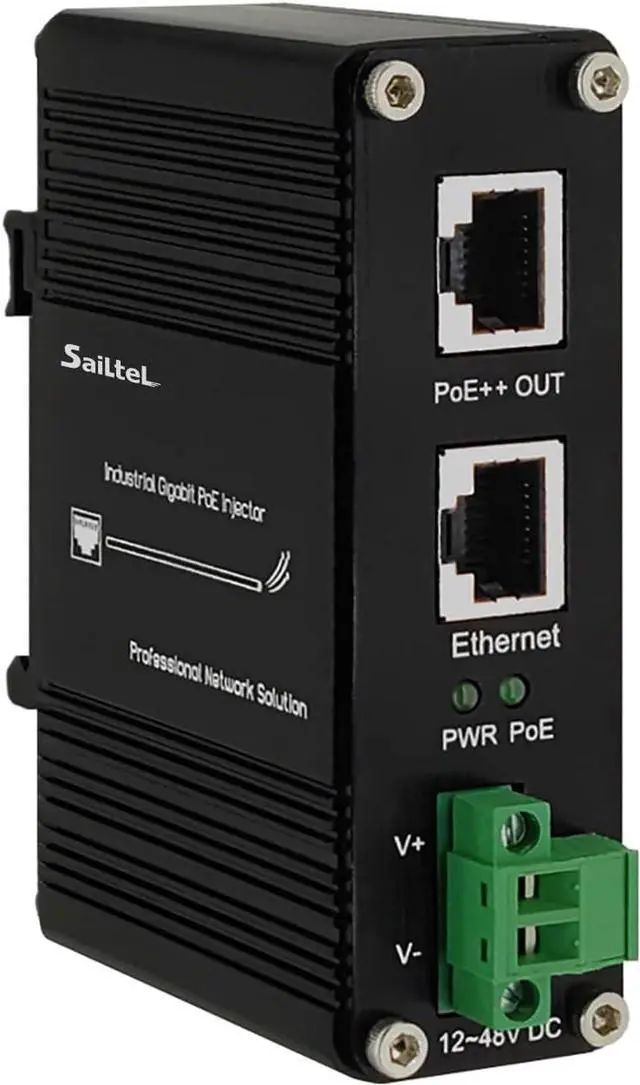

PoE Injector - SaiLteL 95W Industrial Gigabit PoE++ Injector, IEEE 802.3at/802.3af Compliant, ,POE Adapter with 12-48V DC Input,Hardened High Power PoE Injector IP40, DIN Rail, Wall Mount
- 12~48V DC Input- The 2 ports PoE injector supports 12~48V DC input and boost to 48V PoE output. It will solve the problem that you only have 12V or 24V centralized power supply.
- Max 95W PoE Output-Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-TX and are compliant with IEEE 802.3ab.
- It can offer power supply for POE products such as Wireless Access Point, PTZ camera, Cash register etc
- Converts a non-PoE Gigabit port to a PoE+ Gigabit port and Network a PoE device located up to 100 meters (328 ft.) away.
- Environmentally Hardened -40°C to 80°C Support DIN-Rail & Wall-mount installation
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SaiLteL's Hardened 30W/95W Gigabit PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
-- 12~48VDC Power Input;
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet
Output Port(Data + Power);
-- Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment;
-- Support 10/100/1000Base-TX;
-- Power Pin Assignment: 4/5(+), 7/8(-);

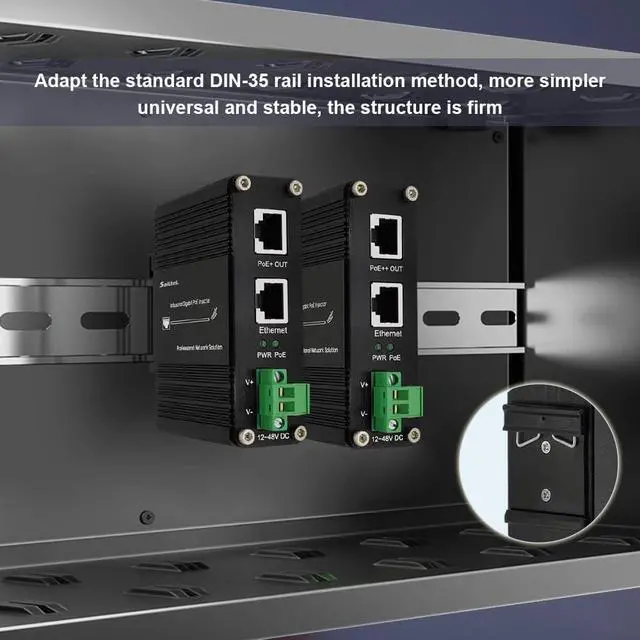

-- Support DIN-Rail & Wall-Mount installation;
-- Extensive LED indicators for PoE diagnostics;

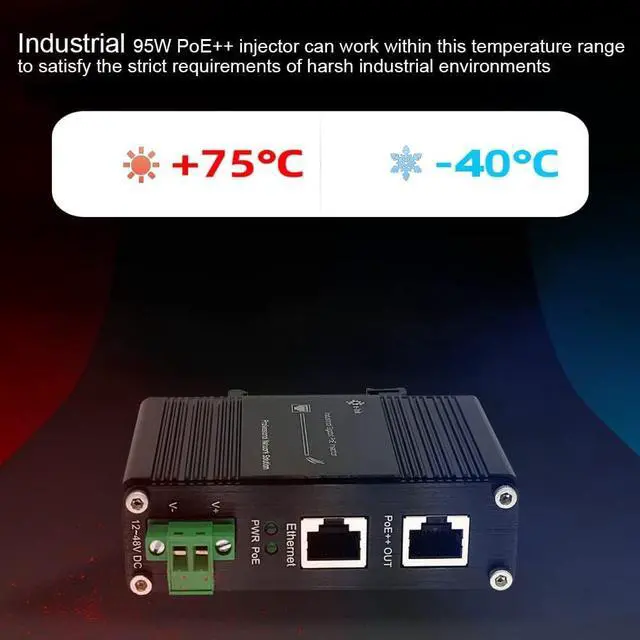

-- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature;
--Max. Power per Port: 30W Max per port (Alternative B Mode)
--Maximum Distance: Cat5 UTP up to 100m

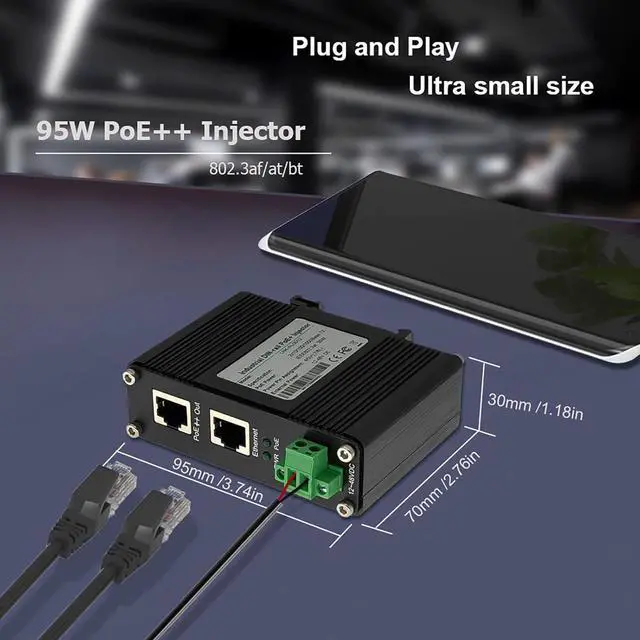

-- Dimensions (WxDxH): 95*70*30 mm (3.74*2.76*1.18 inches);
-- Weight: 0.25Kg (0.55Ib);
-- Casing: Aluminum Case;

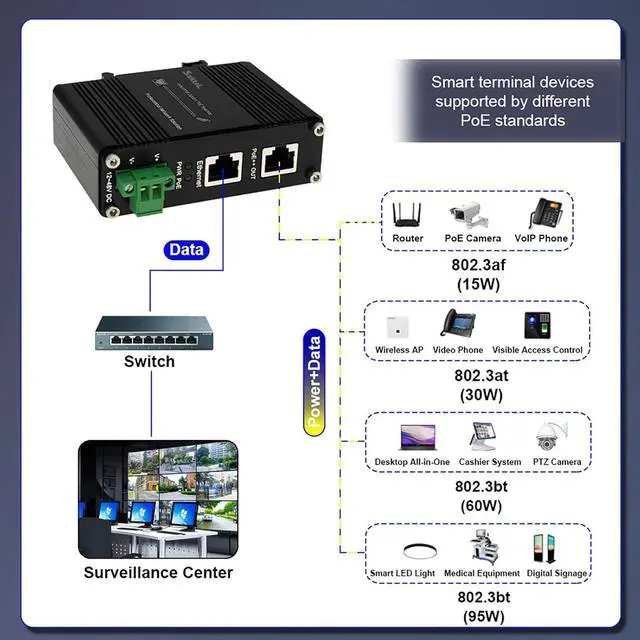

Support 4K/8K camera transmission. Its widely used in wireless AP / CCTV security transmission / VoIP IP phone system/ Robust fiber ring network etc
a) Connect the Ethernet port of the injector to a LAN switch with a network cable.
b) Connect the PoE Out port to the PoE device.
c) After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
d) After all cables are correctly connected, the indicators will be lit as per port status LEDs.
Package Content:
1 * SaiLteL 95W PoE Injector
1 * Quick Start Guide
1 * L-Shaped Wall Mount Bracket
SaiLteL's Hardened Industrial Gigabit PoE Injector 95W Gigabit PoE ++ Injector Features: Plug & Play SaiLteL's 95W POE adapter provides an integrated power solution with 12~48VDC wide range voltage input. Application How To Set Up:
-- 12~48VDC Power Input;
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet
Output Port(Data + Power);
-- Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment;
-- Support 10/100/1000Base-TX;
-- Power Pin Assignment: 4/5(+), 7/8(-);
-- Support DIN-Rail & Wall-Mount installation;
-- Extensive LED indicators for PoE diagnostics;
-- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature;
--Max. Power per Port: 30W Max per port (Alternative B Mode)
--Maximum Distance: Cat5 UTP up to 100m
-- Dimensions (WxDxH): 95*70*30 mm (3.74*2.76*1.18 inches);
-- Weight: 0.25Kg (0.55Ib);
-- Casing: Aluminum Case;
Support 4K/8K camera transmission. Its widely used in wireless AP / CCTV security transmission / VoIP IP phone system/ Robust fiber ring network etc
a) Connect the Ethernet port of the injector to a LAN switch with a network cable.
b) Connect the PoE Out port to the PoE device.
c) After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
d) After all cables are correctly connected, the indicators will be lit as per port status LEDs.
Package Content:
1 * SaiLteL 95W PoE Injector
1 * Quick Start Guide
1 * L-Shaped Wall Mount Bracket
SaiLteL's Hardened Industrial Gigabit PoE Injector 95W Gigabit PoE ++ Injector Features: Plug & Play SaiLteL's 95W POE adapter provides an integrated power solution with 12~48VDC wide range voltage input. Application How To Set Up:
