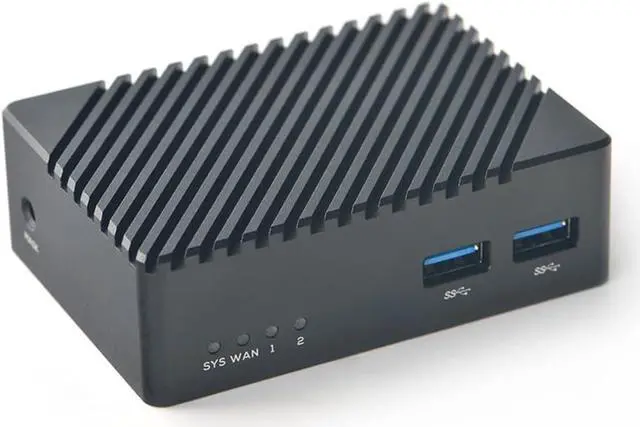

FriendlyElec Nanopi R5S Mini Router OpenWRT with Three Gbps Ethernet Ports LPDDR4X 4GB RAM Based in RK3568 Soc for IOT NAS Smart Home Gateway Support Linux Ubuntu (with CNC Metal Case)
- [WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R5S Mini Router can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
- [Open Source and Programmable] NanoPi R5S OpenWRT Router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more
- [DUAL GBPS ETHERNET PORTS] The NanoPi R5S Mini Router has three 2.5Gbps Ethernet ports: one directly extended from the SoC and the other two converted from a PCIe.gets around 934Mbits/second download and upload
- [LARGER STORAGE & EXTENSIBILITY] 4GB RAM LPDDR4X, 32GB eMMC 5.1 Flash, up to 128GB MicroSD slot/UHS-I; USB3.0 Host x2: USB Type A; 2.54mm 4pin-header;support USB-C, PD x1: Power Input supply, one Native Gigabit Ethernet and Dual Gigabit Ethernet ports (1 WAN and 2 LAN)
- [OS SUPPORT] NanoPi R5S Wi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The NanoPi R5S (as R5S) is an open-sourced mini IoT gateway device with two 2.5G and one Gbps Ethernet ports.It is integrated with a Rockchip RK3568B2 CPU, 4GB LPDDR4x RAM and 32GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.
The NanoPi R5S has rich hardware resources with a compact size of 90 x 62 x 20 mm. WayPonDEV has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.
The NanoPi R5S has one M.2 NVME port, two USB 3.2 Gen 1 ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.
All in all, the NanoPi R5S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
CPU: Rockchip RK3568B2
Number of Cores: Quad-core ARM Cortex-A55, Frequency:4 x Cortex-A55 up to 2.0GHz
GPU:Mali-G52 1-Core-2EE
Supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile
VPU:4KP60 H.265/H.264/VP9 video decoder,1080P60 H.264/H.265 video encoder
NPU: 0.8T
Memory: 4GB LPDDR4X RAM
Storage: 32GB eMMC 5.1 Flash, MicroSD Slot: MicroSD x1, support UHS-I, for external storage up to 128GB
PCIe: M.2 M-Key, PCIe2.0 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module
Video Output:
support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support up to 1080p@120Hz and 4096x2304@60Hz
support 3-D video formats

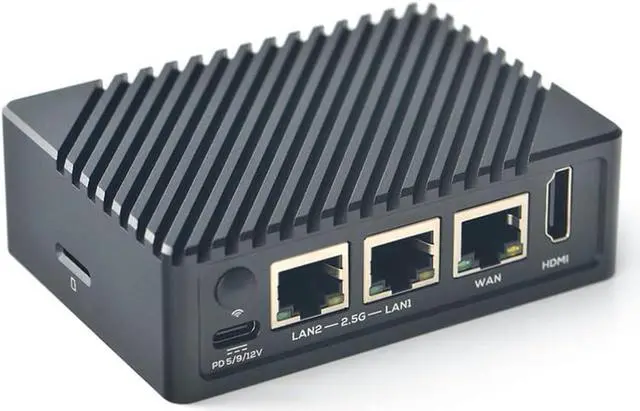

Ethernet:
Native Gigabit Ethernet x1, with RTL8211F-CG chip
PCIe 2.5G Ethernet Ethernet x2, with RTL8125BG chip
PCIe: M.2 M-Key, PCIe2.0 x1, support PCIe WiFi etc
-----941 Mbps TX and RXRate Gbps Ethernet
The Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
Both of the two PCle converted Ethernet ports have a TX rate of 2.10 Gbps and a RX rate of 2.30 Gbps.
Friendlywrt (OpenWrt 19.07.5)
----Support Plug and Play :
5G USB WIFI RTL8821CU/RTL8811CU
5G USB WIFI RTL8812BU
5G USB WiFi RTL8812AU
5G USB WIFI MediaTek MT7662
Ubuntu Core (Ubuntu 20.04 64-bit)
As shown in the picture, except that 5G USB WIFI MediaTek MT7662 is not available, WiFi modules under other protocols can support it.
OS Support
FriendlyWrt 21.02
FriendlyWrt 22.03
Android 12 Tablet
Android 12 TV
FriendlyCore Lite 20.04
Debian 10 Desktop
Debian 11 Desktop Buildroot
Kernel Version:
Linux-5.10-LTS
U-boot-2017.09
Having been doing R&D in embedded systems and electronic hardware for more than 10 years. WayPonDEV Team is an experienced robotics and open-source IOT hardware provider and designer, catering to hardware engineers, DIY enthusiasts and interactive designers.
Nanopi R5S Mini Wifi Router with High Performance Rockchip RK3568B2 SoC High Performance Nanopi R5S OpenWRT Mini Router wtith Dual Gbps Ethernet Ports Connectivity Who we are
The NanoPi R5S has rich hardware resources with a compact size of 90 x 62 x 20 mm. WayPonDEV has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.
The NanoPi R5S has one M.2 NVME port, two USB 3.2 Gen 1 ports, and supports USB type-C power delivery. It is an ideal portable drive for saving images and videos.
All in all, the NanoPi R5S is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.
CPU: Rockchip RK3568B2
Number of Cores: Quad-core ARM Cortex-A55, Frequency:4 x Cortex-A55 up to 2.0GHz
GPU:Mali-G52 1-Core-2EE
Supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile
VPU:4KP60 H.265/H.264/VP9 video decoder,1080P60 H.264/H.265 video encoder
NPU: 0.8T
Memory: 4GB LPDDR4X RAM
Storage: 32GB eMMC 5.1 Flash, MicroSD Slot: MicroSD x1, support UHS-I, for external storage up to 128GB
PCIe: M.2 M-Key, PCIe2.0 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module
Video Output:
support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support up to 1080p@120Hz and 4096x2304@60Hz
support 3-D video formats
Ethernet:
Native Gigabit Ethernet x1, with RTL8211F-CG chip
PCIe 2.5G Ethernet Ethernet x2, with RTL8125BG chip
PCIe: M.2 M-Key, PCIe2.0 x1, support PCIe WiFi etc
-----941 Mbps TX and RXRate Gbps Ethernet
The Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
Both of the two PCle converted Ethernet ports have a TX rate of 2.10 Gbps and a RX rate of 2.30 Gbps.
Friendlywrt (OpenWrt 19.07.5)
----Support Plug and Play :
5G USB WIFI RTL8821CU/RTL8811CU
5G USB WIFI RTL8812BU
5G USB WiFi RTL8812AU
5G USB WIFI MediaTek MT7662
Ubuntu Core (Ubuntu 20.04 64-bit)
As shown in the picture, except that 5G USB WIFI MediaTek MT7662 is not available, WiFi modules under other protocols can support it.
OS Support
FriendlyWrt 21.02
FriendlyWrt 22.03
Android 12 Tablet
Android 12 TV
FriendlyCore Lite 20.04
Debian 10 Desktop
Debian 11 Desktop Buildroot
Kernel Version:
Linux-5.10-LTS
U-boot-2017.09
Having been doing R&D in embedded systems and electronic hardware for more than 10 years. WayPonDEV Team is an experienced robotics and open-source IOT hardware provider and designer, catering to hardware engineers, DIY enthusiasts and interactive designers.
Nanopi R5S Mini Wifi Router with High Performance Rockchip RK3568B2 SoC High Performance Nanopi R5S OpenWRT Mini Router wtith Dual Gbps Ethernet Ports Connectivity Who we are
