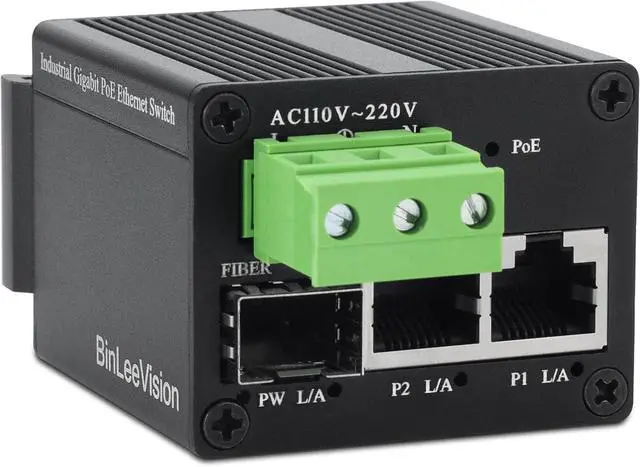

Mini Industrial 3 Ports Ethernet Switch, 2 Ports Gigabit PoE Media Conveter with 1 SFP, IEEE802.3af/802.3at 40W Single PoE Output, Wall/Din Rail Mount RJ45 Switch (40W)
- Gigabit 40W PoE and 1000M SFP: The poe switch supports 2-port 10/100/1000BASE-T 40W PoE Port with auto MDI / MDI-X function and 1 port 100M/1000MBase-X SFP slot
- Wide-range AC power supply design: With 85~250V AC input, the media converter don't need extra power adaptert
- IP40 aluminum alloy housing: It is equipped with a built-in 6KV lightning protection design and can adapt to temperatures ranging from -40°C to 75°C (-40°F to 167°F).
- Portable and compact in size:The ethernet switch measures 52 x 40 x 58mm, which is half the size of a mouse.and weight is only 0.15 kg.
- Adaptive 100/1000M: 155M/1.25G sfp port.the sfp port supports 1 or 2 core Single-mode or Multi-mode fiber
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

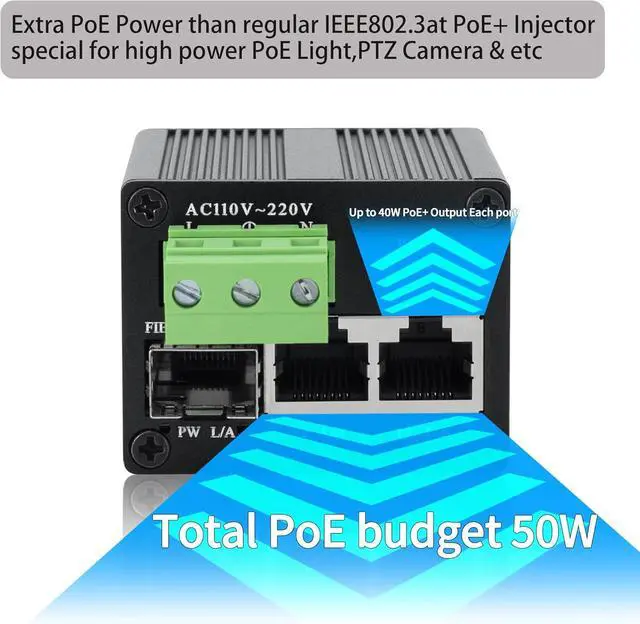

IEEE802.3af/at:When two poe ports are used separately,one single-port poe output is 40W. When two ports are used together,the two ports have a total oe output of 50W

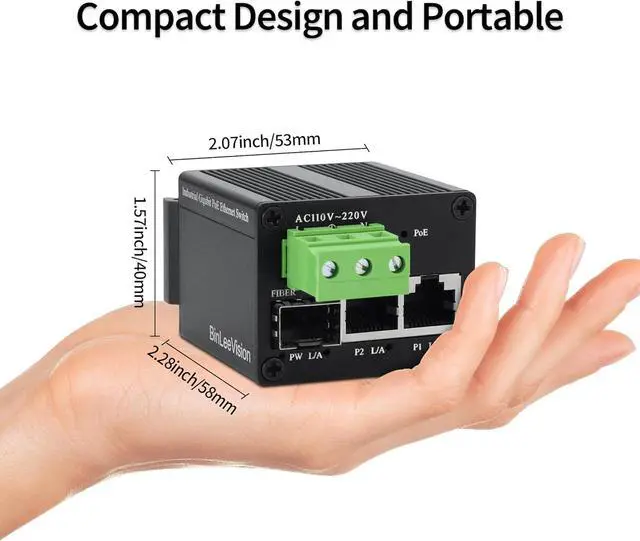

Unique Ultra Mini Size 2.07" x1.57" x 2.28",it is Space-saving for Limited Space such as Most Camera Function Box

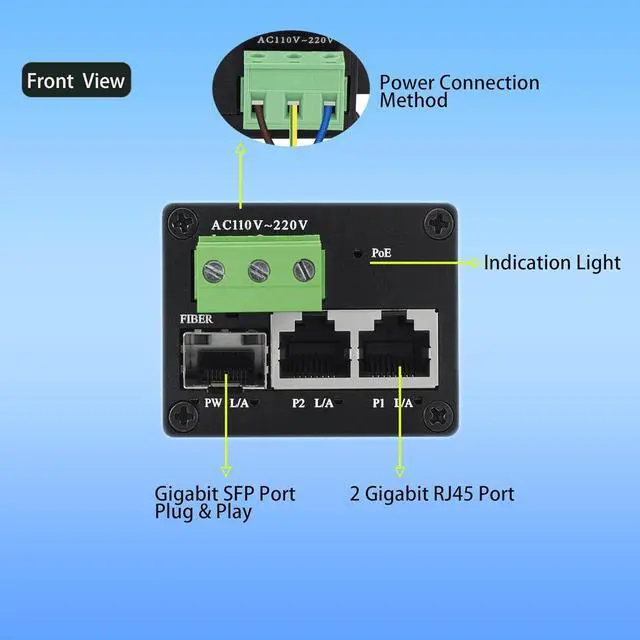

2 Gigabit PoE+Port RJ4510/100/1000Mbp,Connect 2 Devices in Limited Space Simultaneously
1 Gigabit SFP Port(Modules not included)Compliant with SMF or MMF Modules

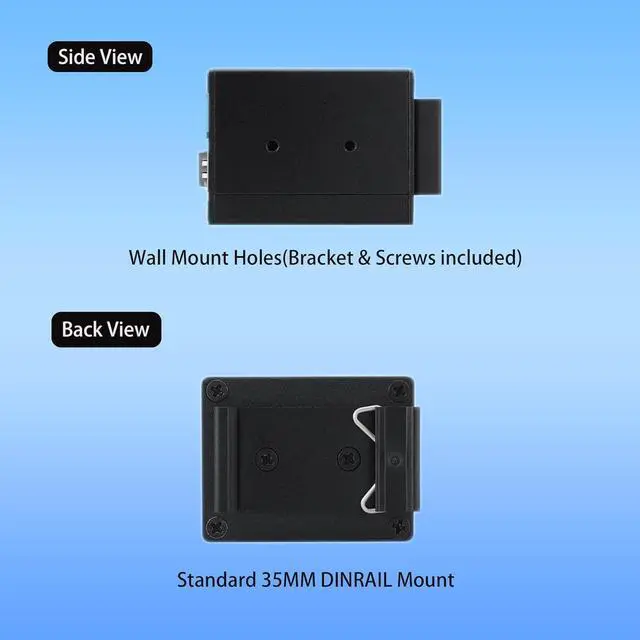

DinRail Mount,Wall Mount and Desktop
Expressway Surveillance,Parking Lot Monitor,Home Security
Package Contents:
1* BinLeeVision Switch
1* L-shaped wall mount bracket
1* User Manual
Protocol Standard IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3af, IEEE802.3atInterface PortRJ45(10/100/1000BASE-T),SFP Slot(10/100/1000BASE-X)HosingIP40 Aluminium AlloyOperating Temperature-40 to 176(-40°C to 75°C)Storage Temperature-40 to 176(-40°C to 75°C)Surge Protection±6KV; Executive Standard: IEC61000-4-5Jumbo Frames9K BytesPower SupplyAC 85~250V Terminal BlockPower Input OverloadAutomatic ResettableMTBF>200,000 hoursCompact Size 2.07 x 1.57 x 2.28 Inch(52.5 x 40 x 58 MM)Weight0.33LB(0.15KG)PoE OutputEach Port 40W(Total Budget 50W) -40°C to 75°C (-40°F to 167°F) operating temperature 85~250V AC power BinLeeVision Ultra Mini 3 Port Gigabit Ethernet Switch: 2 Port 40W PoE Output+ 2 Port 100M/1000M SFP Adaptive
Unique Ultra Mini Size 2.07" x1.57" x 2.28",it is Space-saving for Limited Space such as Most Camera Function Box
2 Gigabit PoE+Port RJ4510/100/1000Mbp,Connect 2 Devices in Limited Space Simultaneously
1 Gigabit SFP Port(Modules not included)Compliant with SMF or MMF Modules
DinRail Mount,Wall Mount and Desktop
Expressway Surveillance,Parking Lot Monitor,Home Security
Package Contents:
1* BinLeeVision Switch
1* L-shaped wall mount bracket
1* User Manual
Protocol Standard IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3af, IEEE802.3atInterface PortRJ45(10/100/1000BASE-T),SFP Slot(10/100/1000BASE-X)HosingIP40 Aluminium AlloyOperating Temperature-40 to 176(-40°C to 75°C)Storage Temperature-40 to 176(-40°C to 75°C)Surge Protection±6KV; Executive Standard: IEC61000-4-5Jumbo Frames9K BytesPower SupplyAC 85~250V Terminal BlockPower Input OverloadAutomatic ResettableMTBF>200,000 hoursCompact Size 2.07 x 1.57 x 2.28 Inch(52.5 x 40 x 58 MM)Weight0.33LB(0.15KG)PoE OutputEach Port 40W(Total Budget 50W) -40°C to 75°C (-40°F to 167°F) operating temperature 85~250V AC power BinLeeVision Ultra Mini 3 Port Gigabit Ethernet Switch: 2 Port 40W PoE Output+ 2 Port 100M/1000M SFP Adaptive
