10G PoE++ Injector, 1G/2.5G/5G/10Gbps, 802.3af/at/bt, Delivers 15.4W/30W/60W PoE Ethernet Power, Up to 100 M (328 ft), for Ultra-High-Speed and High-Power Devices

ThePoEstore 10G PoE++ Injector: The 10G PoE++ injector supplies a PoE device with PoE (15.4W)802.3af, PoE+ (30W) 802.3at, or PoE++ (60W)802.3bt power.
Installation Flexibility: Wall-mounted and desktop design: High-quality, heat-resistant and oxidation-resistant white plastic shell accommodates most installations scenarios.
10G Speeds: Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6a or better cabling.
Product Overview

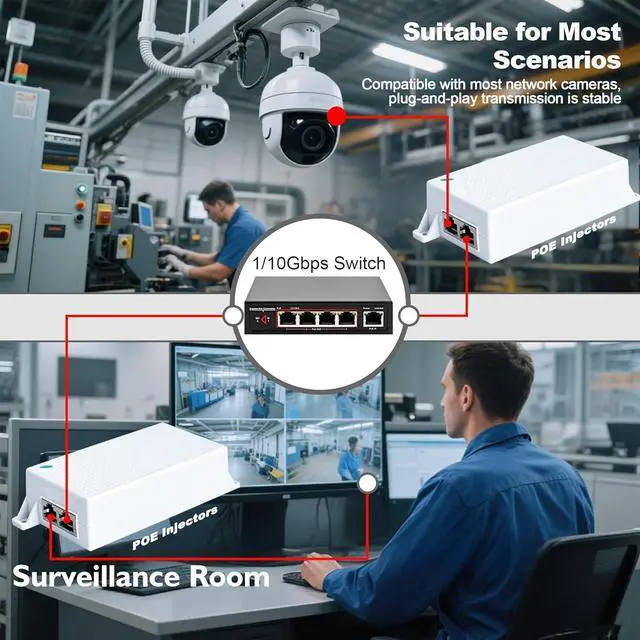

ThePoEstore 10G PoE++ Injector, model PoE-M921-10GW, combines electrical power with a 10GBASE-Tnetwork connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over Cat6A or better cabling. Network PoE devices such as wireless access points, IPcameras, IPTV decoders, VoIPphone systems, access controls, and more.

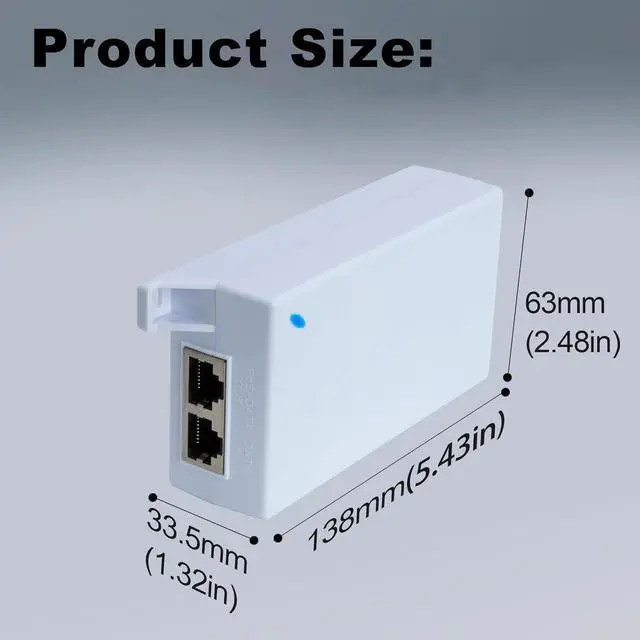

OriginChinaBrandThePoEstoreModelPoE-M921-10GWNumber of ports1 CH, Data IN PoE OutData Rate10/100/1000Mbps/2.5G/5G/10G Base-TPower InputAC100~240V 50/60HZ - PoE OutputOutput Power Voltage48 - 54VPoE Output Power60W MAX / Support IEEE 802.3af/at/btPin Assignment1/2(-)3/6(+), 4/5(+)7/8(-)Operating Temperature0to 40 Operating HumidityMax.80%, non-condensingStorage Temperature-10 to 50 Storage HumidityMax.90%, non-condensingProtectionOver current protection / Over load protectionProtectionOver voltage protection / Anti-interference protectionProduct Size138×63×33.5mm What is the output voltage and power of this PoE injector? My device is 48V 55W. Is it compatible?
Yes, this PoE++ injector has a standard output voltage of 48V and 60W and complies with IEEE 802.3af/at/bt, the standard handshake protocol.

Can I use a PoE injector with my PoE wifi router?
Yes, it can work for all PoE devices below 60W.

I noticed the indicator light on the product. Is it the same color when it's receiving power and data?

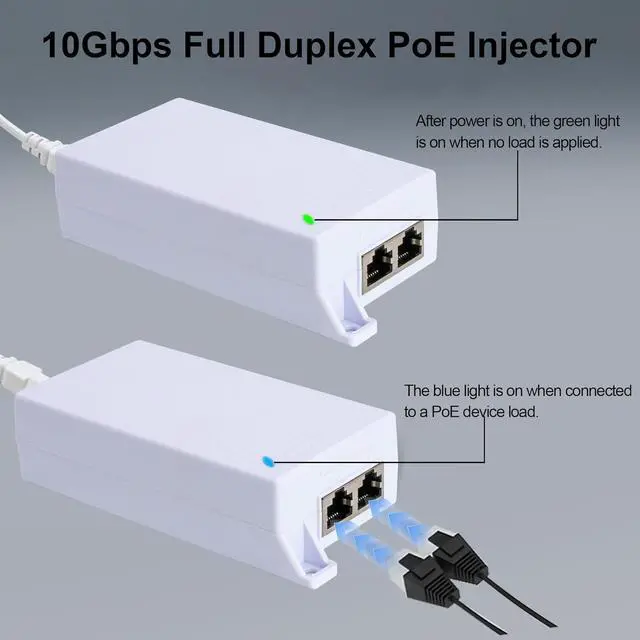

The PoE indicator light is green when it's receiving power and blue when it's receiving data.

Will this power the unifi u6 lite wifi access point, which requires the newer Search term:u-poe-af, an active 48vdc
Yes. The u in that model number is just their part number for what they want to sell you. This adapter is Poe-af and poe-at. Or poe+. I have enterprise watchguard waps that also require this much power and they work great.
