youyeetoo BPI-R3 WiFi 6 Router Development Board with MediaTek MT7986 Chip 2GB DDR RAM, 8GB eMMC Flash, Dual GbE LAN for IoT Router Projects, M.2 Key-E PCIe Interface (Banana pi R3 Router Board Kits)

Having been doing R&D in embedded systems and electronic hardware for more than 10 years. WayPonDEV Team is an experienced robotics and open-source IOT hardware provider and designer, catering to hardware engineers, DIY enthusiasts and interactive designers.

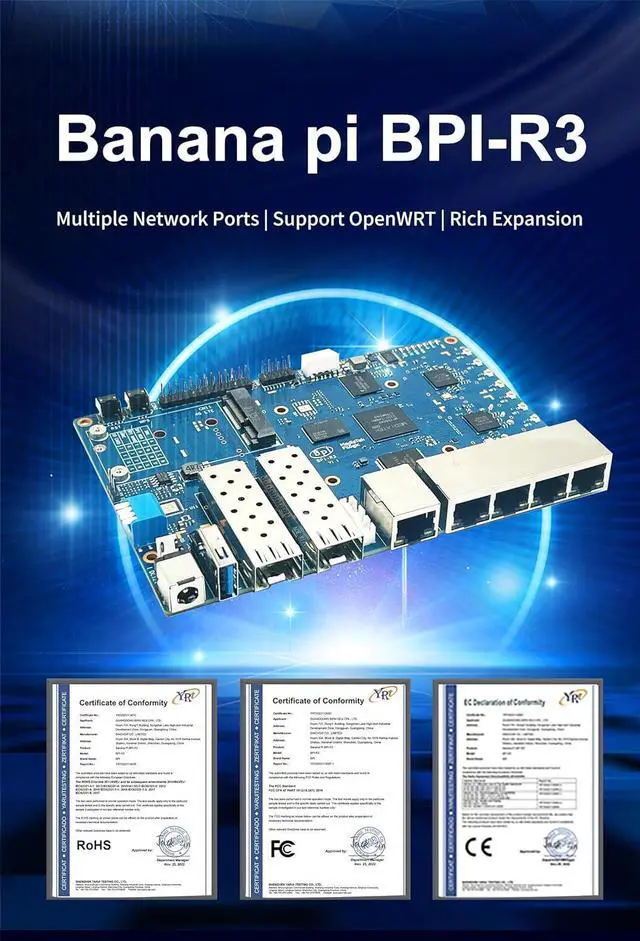

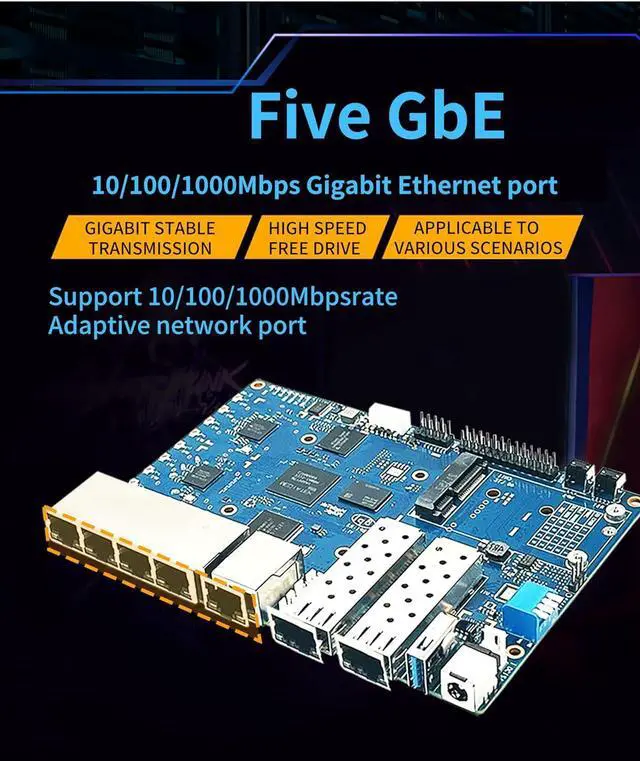

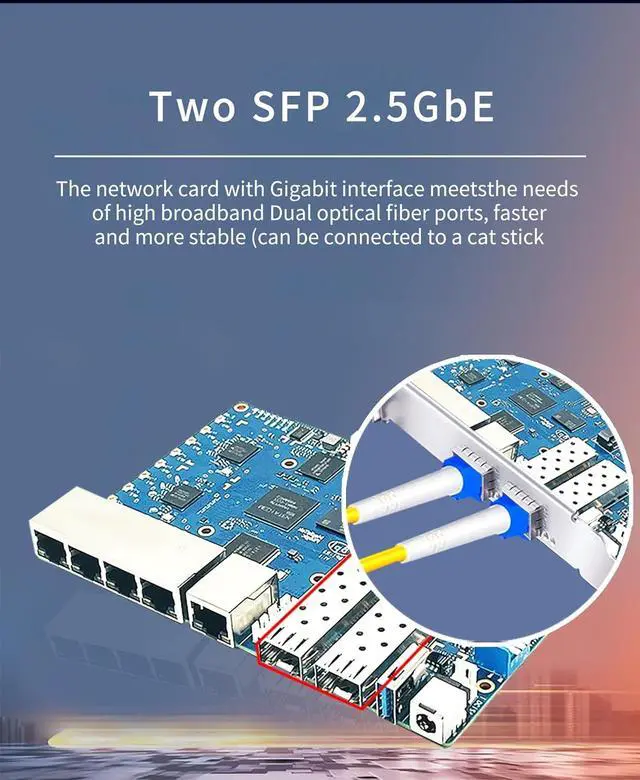

BPI-R3 Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 + MT7531A chip design ,2G DDR RAM ,8G eMMC flash onboard,It is a very high performance open source router development board,support Wi-Fi 6 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 SFP 2.5GbEport, and 5 GbE network port.
Tips:

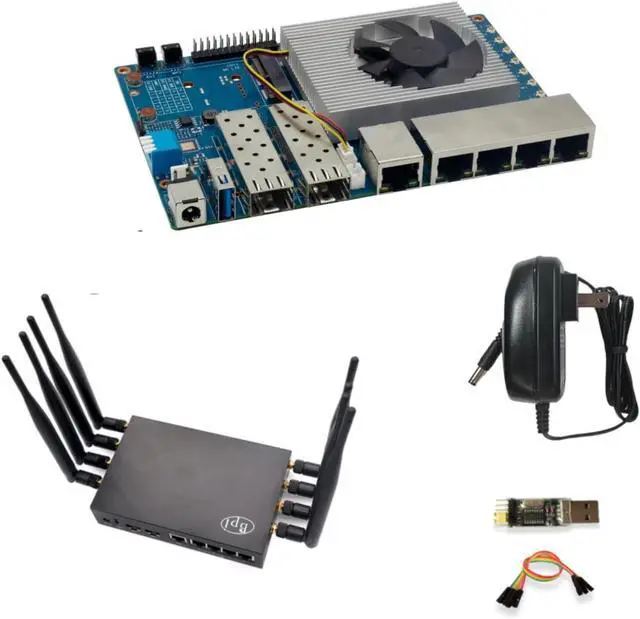

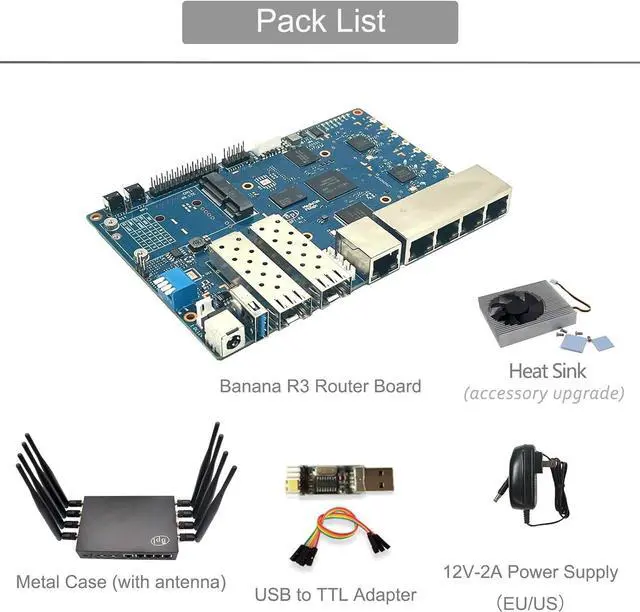

In subsequent packages, we will replace the heatsink with a cooling fan
You can get stronger cooling performance
How to install openWRT?
Banana pi R3 currently has official mainline support, please refer to the wiki.
CPUMediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip designSDRAM2 GB DDR4On board StorageMicroSD (TF) card,8GB eMMC onboardGPIO26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.On board Network5 Port 10/100/1000Mbps EthernetSFP2 SFP 2.5GbEWifiWifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)mini PCIEMini PCIe via USBM.2 interfaceM.2 KEY-E PCIe inerfaceUSB1 USB 3.0 host ,2 USB interface with slot.ButtonsReset button,WPS botton, boot switchLedsPower status Led and RJ45 LedDC Power12V/2A with DC inSizes100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2Weight200g (without case) Who we are BPI-R3 Router Development Board About BPI-R3 BPI-R3 hardware interface: HardWare Specification of BPI-R3
