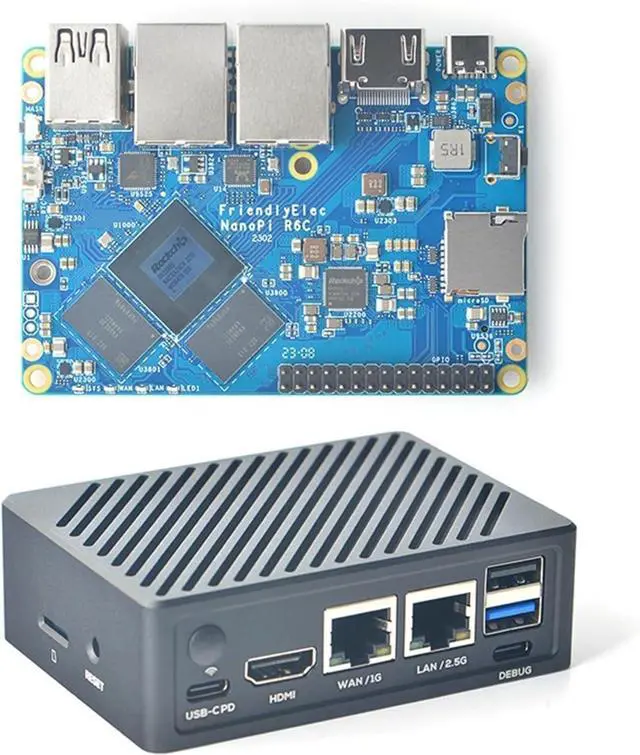

youyeetoo NanoPi R6C Mini Router with Metal Case, 2.5G+1 Gbps Ethernet Ports/HDMI 2.0, Support OpenWRT/Docker for VPN NAS IOT Smart Home Gateway (8GB LPDDR4X 32GB eMMC,RK3588S)
- [Rockchip RK3588S SoC] The NanoPi R6C is an open-sourced mini IoT gateway device with one 2.5G and one Gbps Ethernet ports. CPU: Rockchip RK3588S Chip with 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz. GPU: Mali-G610 MP4; NPU: 6TOPs.RAM: 64-bit 8GB LPDDR4X at 2133MHz.Storage: 32GB eMMC,at HS400 mode. PCIe: M.2 M-Key, PCIe2.1 x1, support NVME, PCIe WiFi etc.
- [Rich Hardware Resources] The NanoPi R6C wifi router has rich hardware resources. A 30-pin header is provided to hardware resources for secondary development, including interfaces such as GPIO, I2C, I2S, PWM, SPI. With 1x HDMI port, 1x M.2 NVME port, 1x USB type-C power delivery port, 2x USB ports, support external USB Wifi Adapter. It is an ideal portable drive for saving images and videos.
- [OS/Software] Nanopi R6C mini router supports booting with TF cards and works with operating systems such as FriendlyWrt, Android, Debian, Ubuntu etc and works with headless systems as well.
- [8K Video Decoders and Encoders]
+
+
Overview
Specs
Reviews
Specification
SoC: Rockchip RK3588S
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 8GB LPDDR4X at 2133MHz
Flash: 32GB eMMC, at HS400 mode
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
Ethernet: one Native Gigabit Ethernet, and one PCIe 2.5G Ethernet
USB: one USB 3.0 Type-A and one USB 2.0 Type-A
PCIe: one M.2 Key M connector with PCIe 2.1 x1
HDMI:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support up to 7680x4320@60Hz
Support RGB/YUV(up to 10bit) format
microSD: support up to SDR104 mode
GPIO:
30-pin 2.54mm header connector
up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs
Debug: UART via 3-Pin 2.54mm header, or on-board USB-C to UART
LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, LED1)
Others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
MASK button for eMMC update
one user button
Power supply: USB-C, support PD, 5V/9V/12V/20V input
PCB: 8 Layer, 62x90x1.6mm
Ambient Operating Temperature: 0 to 70
OS Support
FriendlyWrt 21.02, FriendlyWrt 22.03
FriendlyCore Lite 20.04
Android 12 Tablet, Android 12 TV
Debian 10 Desktop, Debian 11 Desktop
Ubuntu 22.04 Desktop
Kernel VersionLinux-5.10-LTS, U-boot-2017.09
Technical Support
E-M:am2 @ youyeetoo DOT com
Please click "youyeetoo" and ask any question.
Please leave the message in our forum by "forum.youyeetoo.com/".
SoC: Rockchip RK3588S
CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit 8GB LPDDR4X at 2133MHz
Flash: 32GB eMMC, at HS400 mode
VPU:
8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
Ethernet: one Native Gigabit Ethernet, and one PCIe 2.5G Ethernet
USB: one USB 3.0 Type-A and one USB 2.0 Type-A
PCIe: one M.2 Key M connector with PCIe 2.1 x1
HDMI:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support up to 7680x4320@60Hz
Support RGB/YUV(up to 10bit) format
microSD: support up to SDR104 mode
GPIO:
30-pin 2.54mm header connector
up to 1x SPI, 3x UARTs, 3x I2Cs, 2x SPDIFs, 1x I2Ss, 3x PWMs, 20x GPIOs
Debug: UART via 3-Pin 2.54mm header, or on-board USB-C to UART
LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, LED1)
Others:
2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
MASK button for eMMC update
one user button
Power supply: USB-C, support PD, 5V/9V/12V/20V input
PCB: 8 Layer, 62x90x1.6mm
Ambient Operating Temperature: 0 to 70
OS Support
FriendlyWrt 21.02, FriendlyWrt 22.03
FriendlyCore Lite 20.04
Android 12 Tablet, Android 12 TV
Debian 10 Desktop, Debian 11 Desktop
Ubuntu 22.04 Desktop
Kernel VersionLinux-5.10-LTS, U-boot-2017.09
Technical Support
E-M:am2 @ youyeetoo DOT com
Please click "youyeetoo" and ask any question.
Please leave the message in our forum by "forum.youyeetoo.com/".
