Ethernet Range Extender Repeater Kit, Ethernet LAN Range Extension Distance 6560FT 2000m Over Cat5e/6/6e RJ45 Network Cable - 3280FT 1000m Over Twisted Pair Cable UTP IP Extender Adapter

Product ApplicationIt is a ethernet network extender, a perfect product solution for video and network transmission systems, such as security monitoring systems, elevator video network coverage, multimedia network systems, industrial automation control systems, real-time advertising playback systems, etc. Made with high-performance intelligent chips can effectively handle signal transmission in complex environments, ensuring stable signal transmission and strong anti-interference capability.

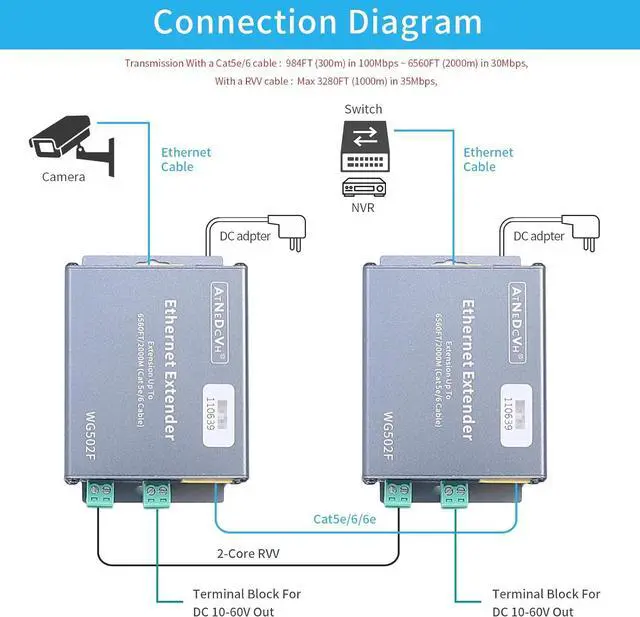

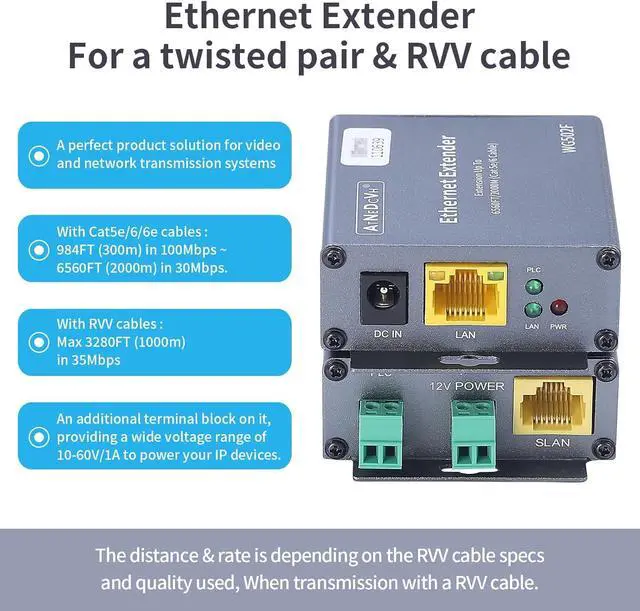

Transmission DistanceThe extension distance will be Max 6560FT(2000m) When transmission for using a Cat5e Cat6 Cat6e network cable. The extension distance will be Max 3280FT(1000m) when transmission with a RVV cable.
10-60V Powering Network DevicesEach unit is with an additional terminal block for powering, providing a wide voltage range of 10-60V/1A to power your devices, avoiding no more jacks to power at the location where the Network devices are installed. The voltage provided by the terminal block depends on the input voltage of the DC power adapter. For example, if using the default 12V power adapter equipped with this product, the voltage provided by the terminal block will be 12V. If your devices are requiring different power supplies, you will need to prepare power adapters of the corresponding specs for it.

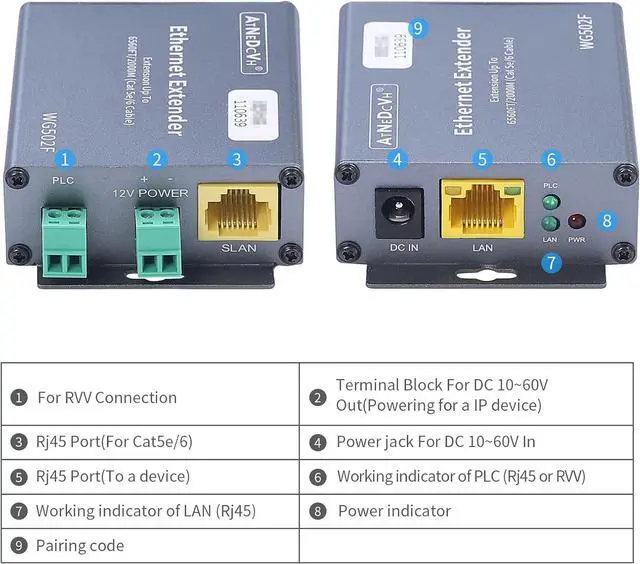

Interfaces A SLAN(RJ45/100M) port and A LAN(RJ45/100M) port, a DC 12V power jack (10-60V wide voltage input supported), a PLC terminal block,a power supply terminal block (10-60V wide voltage to power network devices supported, powering voltage=the DC power adapter input voltage). Indicator lights: PLC indicator light, LAN indicator light, PWR indicator light.

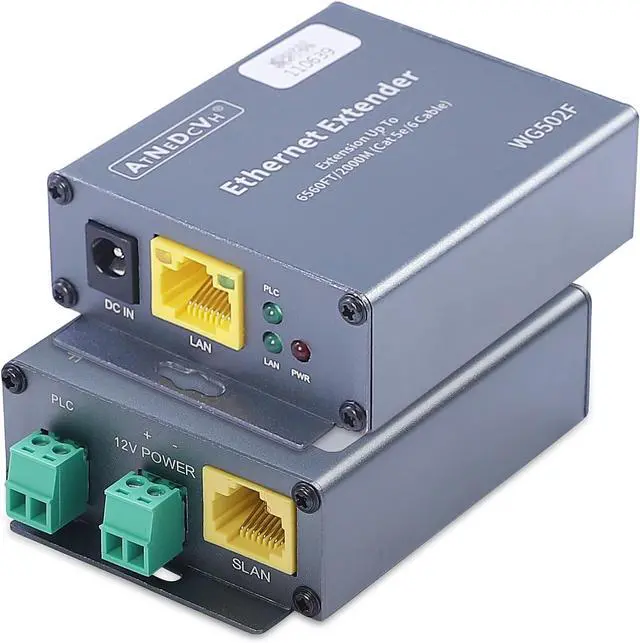

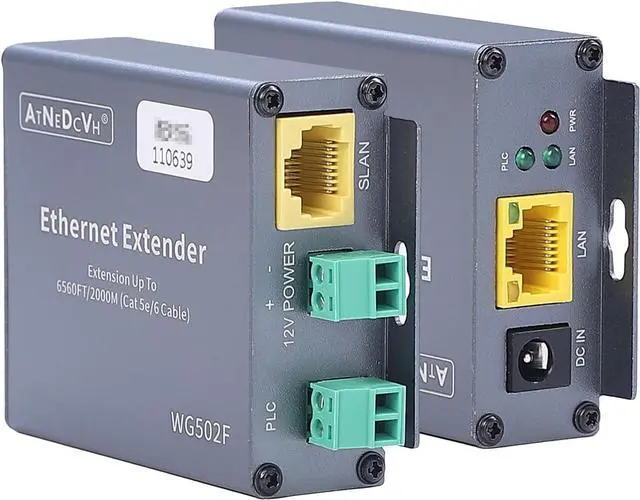

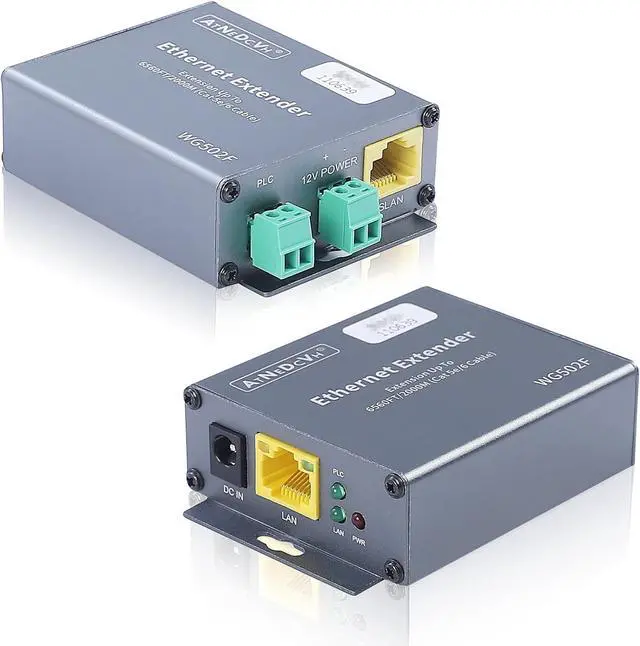

Exquisite and compact, easy to install and run. Dimensions: L 84 * W 59 * H 23mm. The all metal shell design, fast and efficient heat dissipation, ensuring the normal and stable working of the devices.
Non PoE: The product does not support PoE function, and both the transmitting and receiving ends of it need a dc power adapter for power supply.
Whats in the box: WG502F Ethernet Extender * 1 pair (transmitter&receiver), DC 12V power adapter * 2pcs, User guide * 1pcs
