Maswell 4X4 MIMO Antenna 5G, Up to 6dBi, 600-8000MHz Omni External Antenna for 4G LTE 5G Routers & Gateways for T-Mobile Verizon AT&T, WiFi 7 Ready, Homes and RVs (Full Kit)

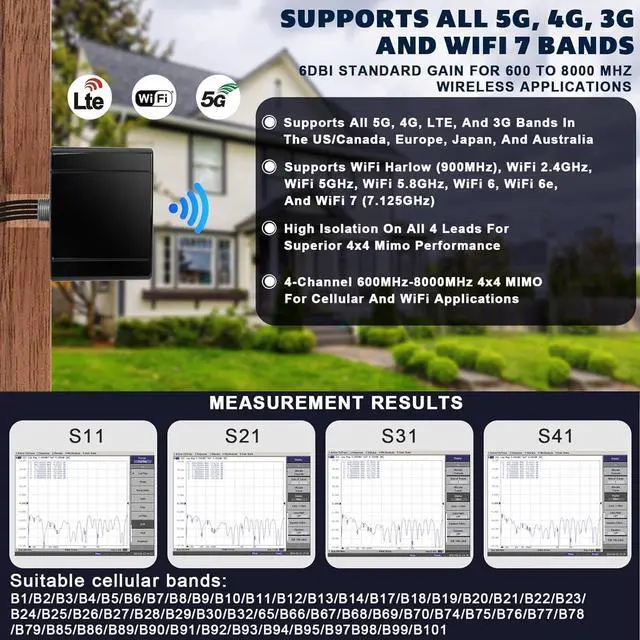

- Full Band: Cubic-4C is a 5G/4G cross-polarized omnidirectional dipole antenna with gain up to 6dBi (tested on 20cm cable). 600-8000MHz ultra-wide bandwidth supports all WiFi and cellular frequency bands around the world. Patented MIMO technology significantly improves throughput and signal quality, suitable for both outdoor and RV camping use. 2 meter professional cable equipped with 4x SMA-Male and TS9 Adapters
- Usage Notes: After connecting, enable the external antenna mode on your router and restart it. Avoid using inferior cables like RG58/RG174; we recommend LMR240-equivalent or higher (total length not exceeding 5m). For professional-grade cables and guidance, get from Maswell
- Wide range of applications: Cubic-4C achieves a good balance between radiation omnidirectionality and power, and supports future-oriented WiFi 6E and WiFi 7 technologies. Ideal for various network equipment for urban, camping and rural 5G, industrial and commercial uses. Compatible with all routers, m
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

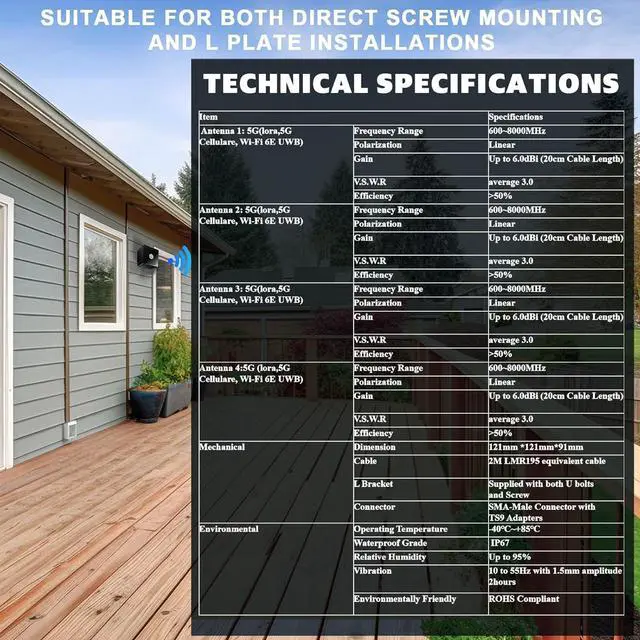

Item ID:AN_Master_Cubic_4C-LP
Antenna 1: 5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 2:5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 3: 5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 4: 5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%

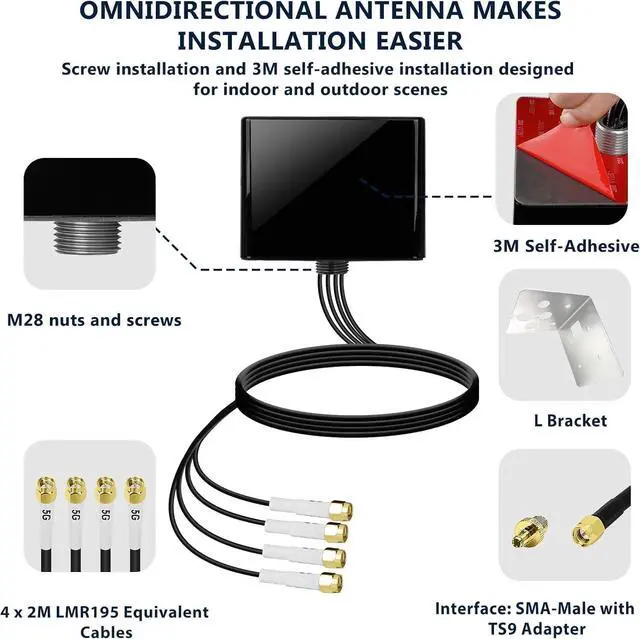

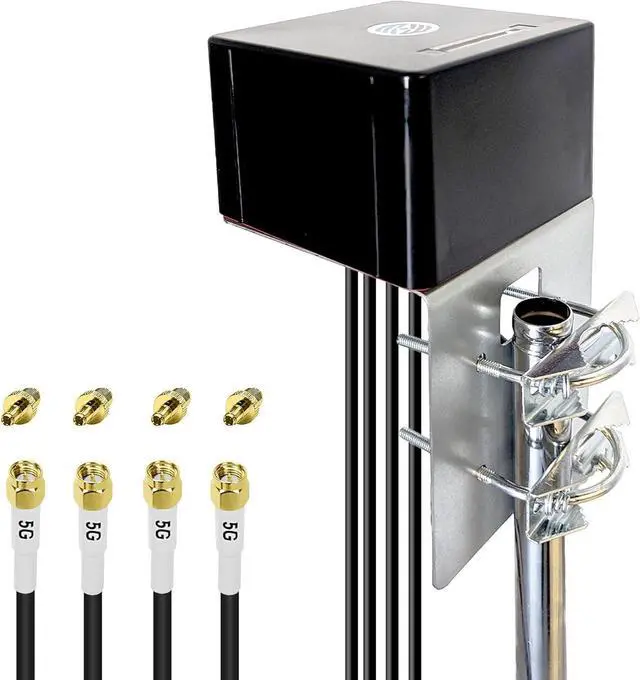

Mechanical
Dimension:121mm *121mm*91mm
Cable:LMR195 1m or Customised
Connector:SMA male
Environmental
Operating Temperature:-40~+85
Waterproof Grade:IP67
Relative Humidity:Up to 95%
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
Antenna 1: 5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 2:5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 3: 5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Antenna 4: 5G/4G LTE/WiFi6E/UWB
Frequency Range:600MHz~8.0GHz
Polarization:Linear
Gain:Up to 6.0 dBi (20cm Cable Length)
V.S.W.R:average 3.0
Efficiency:>50%
Mechanical
Dimension:121mm *121mm*91mm
Cable:LMR195 1m or Customised
Connector:SMA male
Environmental
Operating Temperature:-40~+85
Waterproof Grade:IP67
Relative Humidity:Up to 95%
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
