GCAN-208 Fiber CAN Converter, Connection Between Fiber Bus and CAN-Bus, Extend The Distance of CAN-Bus (GCAN-208-1 can Relay Two CAN Buses Edit)
- GCAN-208 series modules are industrial-grade CAN-to-fiber converters that integrate standard optical fiber interfaces (single-mode, multi-mode, SC, ST optional) and standard CAN bus interfaces. It can also prevent the bus from electromagnetic interference,ground loop interference and lightning strike.
- GCAN-208 series modules can convert CAN bus data into optical signals for transmission through optical fibers. By using GCAN-208 modules in pairs, users can easily extend the CAN bus communication distance, effectively eliminate long-distance communication interference, and prevent the bus from being damaged by electromagnetic interference, ground ring interference, lightning strikes and other damage to the bus and equipment.
- GCAN-208 series modules can convert CAN bus data transparently and losslessly into optical signals, and then parse the optical signals into CAN bus data transparently and losslessly. GCAN-208 series can support any CAN bus communication protocol such as CANopen, S
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

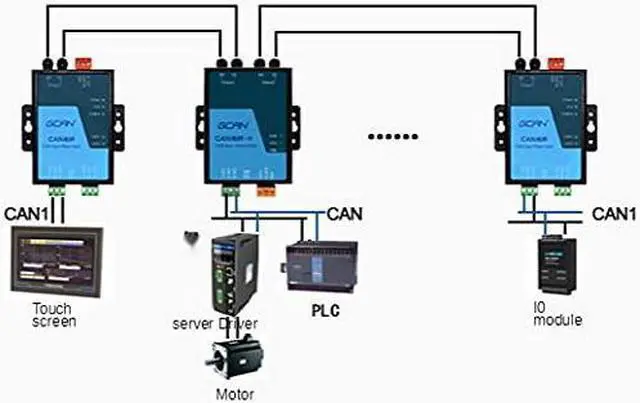

The GCAN-208-1/-2 converter has integrated two/one standard CAN-Bus interface, one/two fiber interface (Single mode or multi mode or SC or ST). GCAN-208 series converter can build a connection between Fiber Bus and CAN-Bus. With this converter in pairs, users can easily extend the distance of CAN-Bus and eliminate the interference effectively. It can also prevent the bus from electromagnetic interference, ground loop interference and lightning strike.
Properties at a glance
? Power supply: 9~30V(50mA, 24V DC)
? Surge immunity level: ±1KV
? Working temperature range from -40 to 85°C
? Operating humidity range: 5% to 95% RH no condensation
? Integrated one or two CAN-Bus interface with terminal (Depending on the model)
? CAN-Bus signals include: CAN_H, CAN_L, CAN_GND
? CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS 11898 standards
? CAN-Bus baud rates range from 5Kbps to 1Mbps, configured by DIP switch
? CAN-Bus isolation converter insulation voltage: DC 1500V
? Fiber interface: SC, ST optional
? Fiber transmission mode: single mode, multi mode optional
? Size: (L)121mm * (W)93mm * (H)22mm
Package Includes
1 x GCAN-208
1 x User Manual
The GCAN-208-1/-2 converter has integrated two/one standard CAN-Bus interface, one/two fiber interface (Single mode or multi mode or SC or ST). GCAN-208 series converter can build a connection between Fiber Bus and CAN-Bus. With this converter in pairs, users can easily extend the distance of CAN-Bus and eliminate the interference effectively. It can also prevent the bus from electromagnetic interference, ground loop interference and lightning strike.
Properties at a glance
? Power supply: 9~30V(50mA, 24V DC)
? Surge immunity level: ±1KV
? Working temperature range from -40 to 85°C
? Operating humidity range: 5% to 95% RH no condensation
? Integrated one or two CAN-Bus interface with terminal (Depending on the model)
? CAN-Bus signals include: CAN_H, CAN_L, CAN_GND
? CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS 11898 standards
? CAN-Bus baud rates range from 5Kbps to 1Mbps, configured by DIP switch
? CAN-Bus isolation converter insulation voltage: DC 1500V
? Fiber interface: SC, ST optional
? Fiber transmission mode: single mode, multi mode optional
? Size: (L)121mm * (W)93mm * (H)22mm
Package Includes
1 x GCAN-208
1 x User Manual
