2~3Km Long Range USB Wireless Data Transmitter and Receiver RF Repeater Modules SV653-MESH x 2 Sets
- SV653-MESH is highly integrated radio data transceiver module.
- It adopts high performance Si4432 RF chip.Si4432 has low reception sensitivity and 100mW output power to ensure longer RF range and high link quality.
- SV653-MESH supports multiple channels and Net ID to enhance the anti-interfere ability.Users can configure the parameters through PC or in circuit.
- The features of small packet, long distance, wide working voltage and setting in circuit make SV653-MESH is wildly deployed in many fields and applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

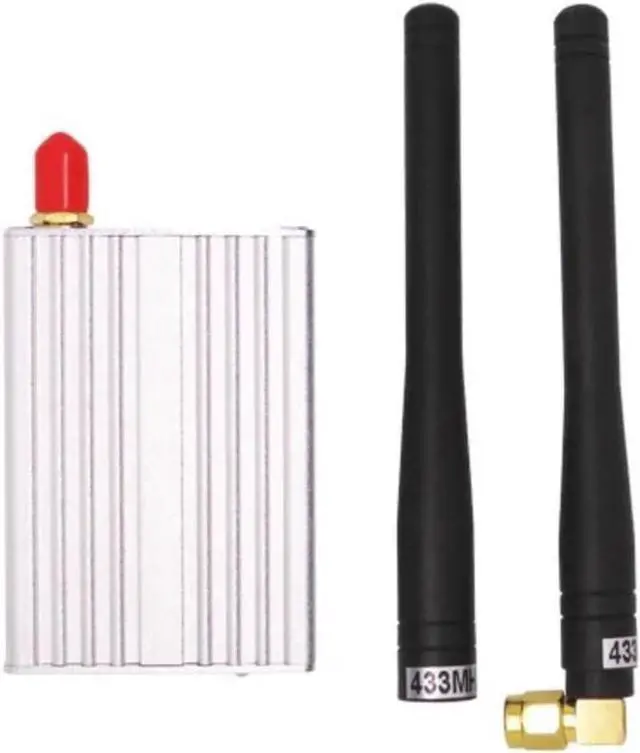

Package: 2 Sets x SV653
Features:
*2~3Km RF line-in-sight distance @ 1.2kbps
*Frequency options:433/470/868/915 MHz
*40 channels
*4 bytes network ID
*2 bytes node ID
*Multiple data transfer rate
*RSSI output field strength
*GFSK modulation mode
*Support Serial port parameter setting
*Sensitivity up to -121 dBm
*Maximum output power: 500 mW
*Operating Voltage 2.8 ~ 6.0 V
*Automatically antenna matching and bi-directional switch control
Application:
*Remote telemetry
*Auto meter reading
*Security Systems
*Data logger
*Home automation telemetry
*Personal data records
*Wireless data communications
*Building automation and security
*Healthy Monitoring
*Wireless PC peripherals
*Access Control System
*Robot control
Features:
*2~3Km RF line-in-sight distance @ 1.2kbps
*Frequency options:433/470/868/915 MHz
*40 channels
*4 bytes network ID
*2 bytes node ID
*Multiple data transfer rate
*RSSI output field strength
*GFSK modulation mode
*Support Serial port parameter setting
*Sensitivity up to -121 dBm
*Maximum output power: 500 mW
*Operating Voltage 2.8 ~ 6.0 V
*Automatically antenna matching and bi-directional switch control
Application:
*Remote telemetry
*Auto meter reading
*Security Systems
*Data logger
*Home automation telemetry
*Personal data records
*Wireless data communications
*Building automation and security
*Healthy Monitoring
*Wireless PC peripherals
*Access Control System
*Robot control
