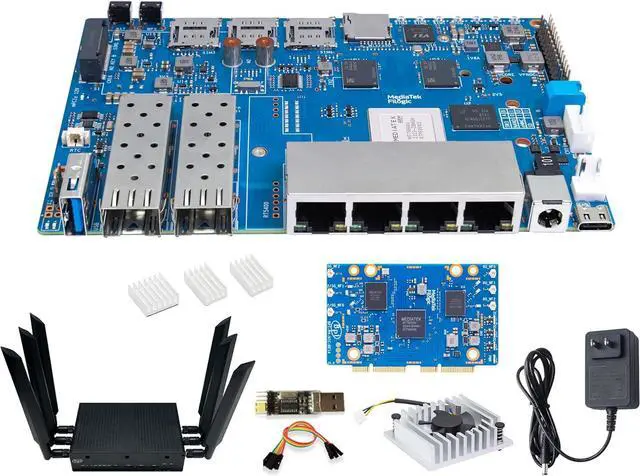

Banana Pi BPI-R4 WiFi 7 OpenWRT Wireless Dual-Band WiFi Router Board, MediaTek MT7988A (Filogic 880) SoC, 4G/5G Internet Router, 4X GbE and 2X 10GbE SFP for NAS Smart Home Gateway (8GB RAM Bundle3)

[Note] BPI-R4 8G/8P/8E router board three versions has pre-burned image in nand, if customers want to burn image by themselves, please use the image of 8G RAM version which is labeled on our website.If you want to use OpenWrt mainline image, we don't maintain it, so if you want to use it, please remember to pay attention to the replacement of bl2, or you can discuss with other developers on Banana PI Forum or OpenWrt Forum.
[MediaTek MT7988A SoC] Banana Pi BPI-R4 Router Board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 CPU design, 8GB DDR4 RAM 8GB eMMC and 128MB SPI-NAND flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board.
[High Performance Chips] The MediaTek MT7988A SoC is the world's leading network processing platform that delivers a high-performance and reliable network experience for wired and wireless applications. At the same time, the MT7988A is equipped with MediaTek's Tunnel Offload Processor System (TOPS), which easily handles a wide range of tunneling protocols.
[Support 2x 10Gbe SFP/4x Gbe] Banana Pi BPI-R4 wireless wifi router board support 2x 10Gbe SFP and 4x Gbe ethernet with 4 Port 10/100/1000Mbps Gigabit Ethernet port, also with USB3.2 port and M.2 interface, support 4G/5G module (EM05/RM500Q-GL/RM520N-GL) signal reception and NVME SSD.Providing the fastest and most reliable network connection.
[Support WiFi7 iPA NIC Module] Banana Pi BPI-R4 wireless tri-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC module (Network Interface Card), it also support WIFI 6/ WIFI 6E module. MediaTek MT7988A enables seamless Wi-Fi 7 tri-band / dual-band, 2.4GHz, 5GHz and 6GHz connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC.
[Rich Peripheral interfaces] Banana Pi BPI-R4 Router Board wireless router board onboard 2x 10Gbe SFP Optical ports, 4x Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 4G/5G Module, 1x M.2 KEY-M connector for 2280 SSD, mPCle Slot for Wi-Fi 6/6E/7 NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO, supports UART, I2C, SPI, PWM, I2S.
[Application Scenarios] Banana Pi BPI-R4 Router Board can be applied to Internet service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home security Gateway, Home Automation, Nas device, Network and communication applications. 36Gbps Wi-Fi 7 Access Point/Router/Gateway
[Wiki] SDK Document: "wiki.banana-pi.org/Banana_Pi_BPI-R4"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#-@,&-.)".
