LINOVISION Industrial 5 Ports Gigabit 12V PoE Switch, Solar Powered Switch Support DC 954V Input to 48V PoE Output, 4 x IEEE 802.3af/at Ports 30W @120W, IP40 for Solar Power/RV Truck/VoIP Systems
- DC9V-54V POE SWITCH: Support DC9V-54V input and standard IEEE802.3af/at POE output with built-in voltage booster. (Noted: Only Mode B POE output is supported, if your POE Device is Mode A, pls buy POE-Switch0504GDF: ASIN: B0DSN1B4TY)
- 5-PORT FULL GIGABIT POE SWITCH: Provide 4 IEEE802.3af/at 30W POE ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 120W (DC24V/DC48V input) or 60W (DC12V input).
- INDUSTRIAL DESIGN: Compact IP40 rugged metal enclosure; Wide working temperature (-40 to 176 ); Support DIN-Rail & Wall Mount
- NON-STOP POE SUPPLY WITH DUAL POWER INPUT: Support 2 channel DC12V-48V redundant power inputs and auto failover, ensure high reliability networking system. Compatible with Mode B POE outputs only.
- APPLICATIONS: Standard POE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
All ports 10/100/1000Mbps self-adaptive full duplex
Total POE budget 120W (DC24V/48V) or 60W (DC12V)
PoE port supports PoE automatic detection.
When connecting to a non-POE device, provide data transmission only, will not output power to prevent damage

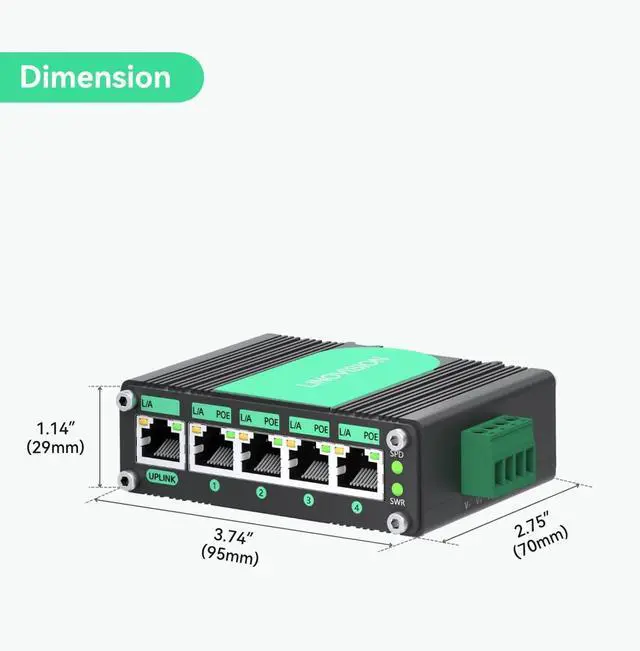

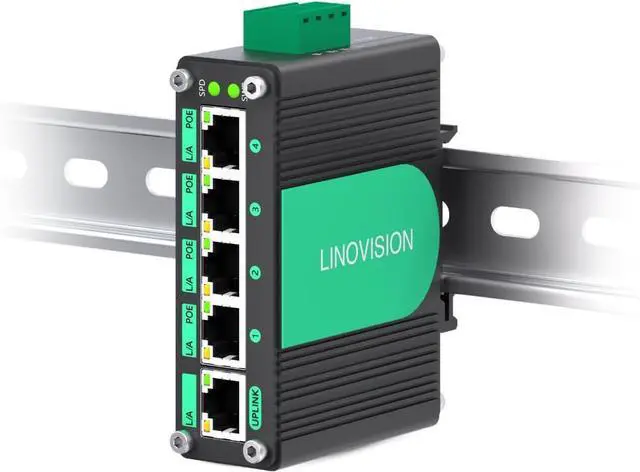

Compact design, DIN rail or Wall mounting easily fit into small cabinets or machines.

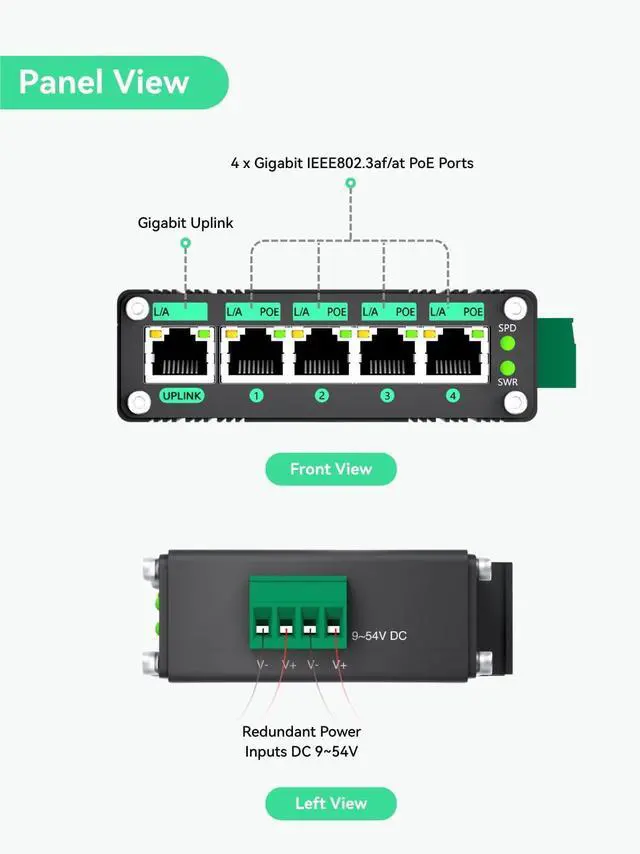

Support 2 channel DC9V-54V redundant power inputs and auto failover, ensure high reliability networking system.

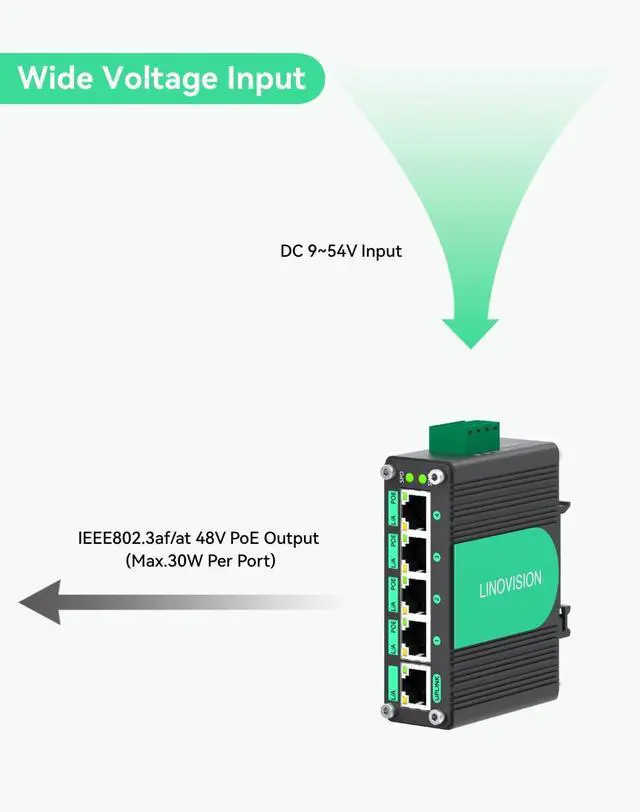

Support wide voltage input range (DC9-54V)
Up to 30W per POE port, and total 120W POE budget ( DC24V / DC48V input ), or 60W ( DC12V input )

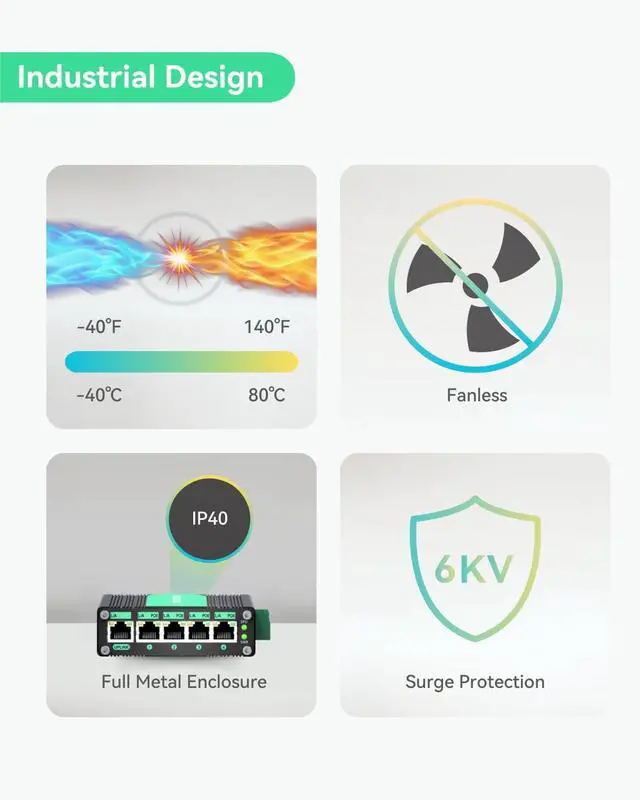

Fanless design and wide working temperature (-40 ~ 80 or -40 ~176 )
6KV surge protection
1DC12V-Solar Power Systems2DC12V-Vehicle POE Supply3DC24V Input4Harsh Environment5Compatibility and Safety DC 12V PoE switch Outstanding Features Full Gigabit PoE Switch PD Detection Mini POE Switch Redundant Power Wide Voltage Input Industrial Design Installation & FAQ
Total POE budget 120W (DC24V/48V) or 60W (DC12V)
PoE port supports PoE automatic detection.
When connecting to a non-POE device, provide data transmission only, will not output power to prevent damage
Compact design, DIN rail or Wall mounting easily fit into small cabinets or machines.
Support 2 channel DC9V-54V redundant power inputs and auto failover, ensure high reliability networking system.
Support wide voltage input range (DC9-54V)
Up to 30W per POE port, and total 120W POE budget ( DC24V / DC48V input ), or 60W ( DC12V input )
Fanless design and wide working temperature (-40 ~ 80 or -40 ~176 )
6KV surge protection
1DC12V-Solar Power Systems2DC12V-Vehicle POE Supply3DC24V Input4Harsh Environment5Compatibility and Safety DC 12V PoE switch Outstanding Features Full Gigabit PoE Switch PD Detection Mini POE Switch Redundant Power Wide Voltage Input Industrial Design Installation & FAQ
