Proxicast Indoor/Outdoor 2x2 MIMO Omnidirectional WiFi Antenna - Tri-Band 2.4/5.8/6 GHz - 3-5 dBi Gain - Vandal Resistant Low Profile Fixed Through-Hole Mount - 10 ft Coax Lead w/RP-SMA (ANT-131-M22)
- MIMO Omni Directional Indoor / Outdoor WiFi Antenna - 3 inches Tall with 3-5 dBi Gain - Permanent Mount - Weatherproof
- Works on all WiFi Networks Worldwide including 2400 MHz, 5800 MHz and 6000 MHz. Supports all WiFi Versions including WiFi-6 and WiFi-7
- 2 Reverse Polarity SMA Male Connectors on 10 ft Low-Loss Coax Lead - Rugged Vandal Proof Materials & Design
- Compatible WiFi Outdoor Antenna for WLAN Devices such as Access Points, Hotspots and Routers from Airlink, ASUS, CalAmp, Cisco, Cradlepoint, Digi, D-Link, Linksys, MoFi, Netgear, Novatel, Pepwave, TP-Link, Sierra Wireless and many others
- Ideal for industrial, commercial and IOT applications such as Retail Hot Spots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs), NEMA Control Panels & Enclosures, Mobile & Vehicles (buses, trucks, cars, vans, motorhomes), SCADA, Telemetry, PLCs, RTUs, Digital Signage and more
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

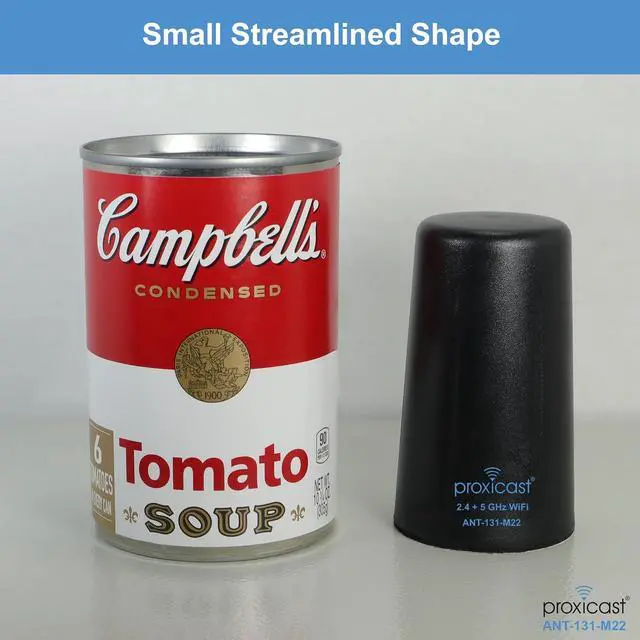

Inconspicuous - 3.2 inches Tall
Simple Geometric Shape
Omnidirectional Coverage
Paintable to Blend into Surroundings
For outdoor/indoor applications. Excellent for Wi-Fi hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing Wi-Fi routers, access points or other Wi-Fi enabled devices which have 2 reverse polarity SMA external antenna connectors.

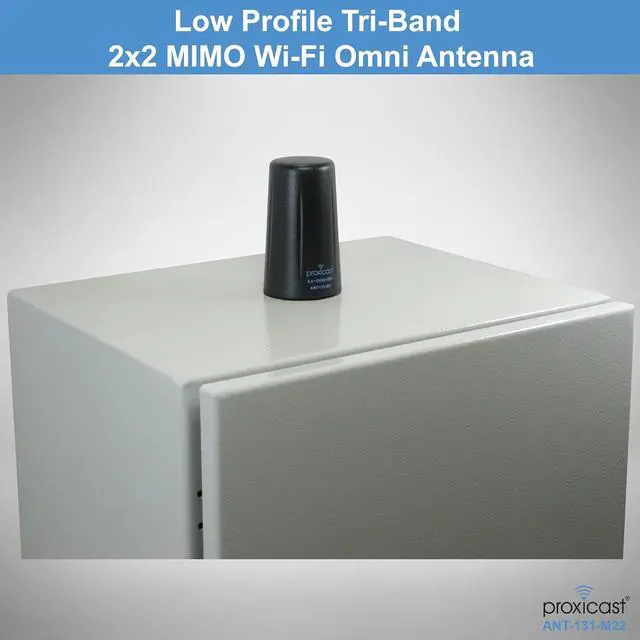

This low profile (~ 3 inches tall) fixed mount omni-directional 2x2 MIMO antenna provides 3 to 5 dBi of gain and supports the 802.11 b/g/n 2.4 GHz, 802.11 a/ac/ax 5.8 GHz and 802.11 be 6 GHz (Wi-Fi 7) frequency bands.

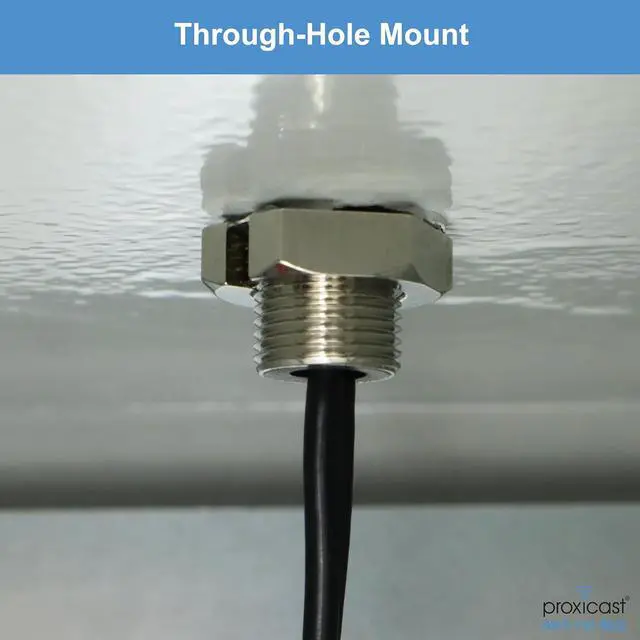

Permanently mounts via a 1/2 in. (13 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick threaded screw mounting post. Includes 10 ft of low-loss RG174 paired coax fed through center mounting post. Includes "L" bracket for optional wall mounting.

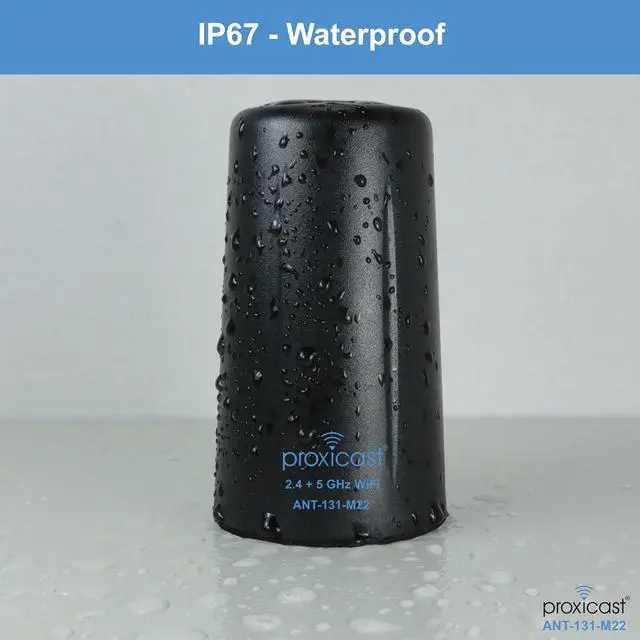

Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67) when installed with post extending into a water-tight enclosure. Not waterproof when used exclusively with wall bracket.

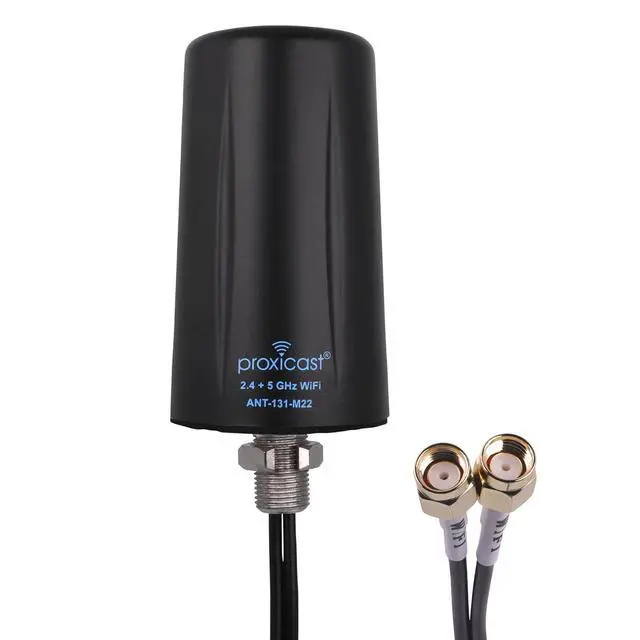

Integrated RPSMA male plug connectors mate with female jacks found on most Wi-Fi access points and routers.
* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.
Frequency Range2.4, 5.8 & 6 GHz WiFi Frequency BandsPeak Gain5 dBiImpedance50 OhmVSWR< 2:1PolarizationVerticalConnectors2x Reverse Polarity SMA Male Plugs (RP-SMA)Coax Length10 ft (3 m) Low-Loss RG174 Paired CoaxMountingScrew Mounted via a 1/2 in. (13 mm) Hole with Locking Internal NutGround Plane8" diameter min recommendedDimensionsHeight 3.2 in. (82mm); Diameter 1.9 in. (48 mm)Weight4.2 oz (119 g)MaterialsABS Plastic (black) + Nickel-Plated Brass + Foam Adhesive PadOperating Temperature-40°C to +70°CFull Specification SheetDownload PDF under the Product Guides and Documents section of this listingSupportFree US-based SupportModel NumberANT-131-M22 Inventory Levels
Machine Status
Advertising Updates
Price Changes
Key Features Low Profile Works with Any WiFi System Technical Specifications Application Examples Vending Machines
Simple Geometric Shape
Omnidirectional Coverage
Paintable to Blend into Surroundings
For outdoor/indoor applications. Excellent for Wi-Fi hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing Wi-Fi routers, access points or other Wi-Fi enabled devices which have 2 reverse polarity SMA external antenna connectors.
This low profile (~ 3 inches tall) fixed mount omni-directional 2x2 MIMO antenna provides 3 to 5 dBi of gain and supports the 802.11 b/g/n 2.4 GHz, 802.11 a/ac/ax 5.8 GHz and 802.11 be 6 GHz (Wi-Fi 7) frequency bands.
Permanently mounts via a 1/2 in. (13 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick threaded screw mounting post. Includes 10 ft of low-loss RG174 paired coax fed through center mounting post. Includes "L" bracket for optional wall mounting.
Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67) when installed with post extending into a water-tight enclosure. Not waterproof when used exclusively with wall bracket.
Integrated RPSMA male plug connectors mate with female jacks found on most Wi-Fi access points and routers.
* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.
Frequency Range2.4, 5.8 & 6 GHz WiFi Frequency BandsPeak Gain5 dBiImpedance50 OhmVSWR< 2:1PolarizationVerticalConnectors2x Reverse Polarity SMA Male Plugs (RP-SMA)Coax Length10 ft (3 m) Low-Loss RG174 Paired CoaxMountingScrew Mounted via a 1/2 in. (13 mm) Hole with Locking Internal NutGround Plane8" diameter min recommendedDimensionsHeight 3.2 in. (82mm); Diameter 1.9 in. (48 mm)Weight4.2 oz (119 g)MaterialsABS Plastic (black) + Nickel-Plated Brass + Foam Adhesive PadOperating Temperature-40°C to +70°CFull Specification SheetDownload PDF under the Product Guides and Documents section of this listingSupportFree US-based SupportModel NumberANT-131-M22 Inventory Levels
Machine Status
Advertising Updates
Price Changes
Key Features Low Profile Works with Any WiFi System Technical Specifications Application Examples Vending Machines
