MokerLink 11 Port Outdoor PoE Switch - 9 PoE+, 2 Ethernet UpLink, 10/100Mbps, 120W 802.3af/at, Weatherproof Fanless Plug & Play Network Switch
- 11 Ports: Includes 9 POE ports and 2 UpLink ports, 10/100Mbps rate. The 2 uplink ports can be connected to different networks or devices, such as routers, NVRs, etc.
- High POE Power: Maximum support 120W high output power, built-in power supply makes installation easier. Support IEEE 802.3af/at, each port max power supply reached 30W. *Please note: not support passive 24V PoE.*
- Unmanaged Plug & Play: Support Power Detection function, automatically detect devices, can be compatible with non-POE devices to provide data connectivity. Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, can be used without configuration.
- Outdoor Weatherproof: Industrial grade ABS polymer material shell, power and cable interface are all protected in the shell, which has better waterproof, dustproof, and snowproof effects, and is more suitable for outdoor use; also for complex indoor environments, such as warehouses, computer rooms, garages, attics, etc
- Wide
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

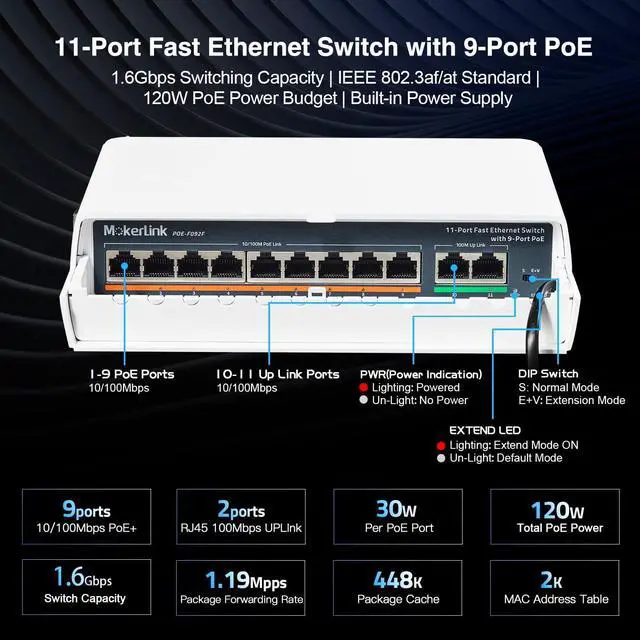

POE-F092FO is a 11-port 100Mbps unmanged switch with 9-port PoE. It support port isolation, connecting to long distance power supplies, The enclosure is made ofABS+PC , It was designed and tested to meet an IP-66 rating as well as vibration, temperature, drop, fog, and electrical surge standards.

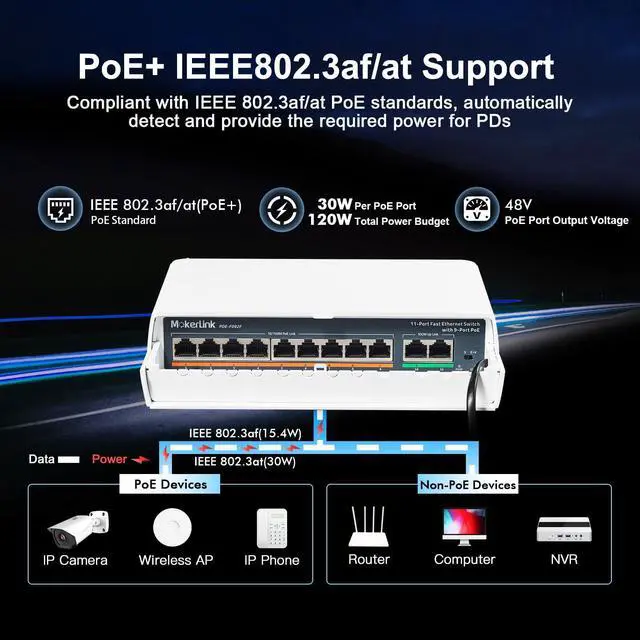

The PoE port meets the IEEE 802.3af/at standard,It determines and delivers the exact power supply to your devices.
The PoE switch uses ABS+PC housing and supports IP66 waterproof, It designed for outdoor surveillance scenarios.

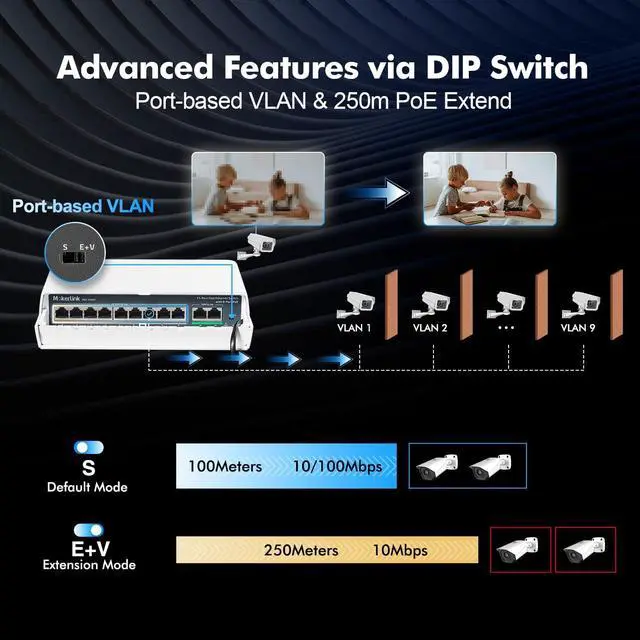

Port 1-9 can be isolated with each other by dialing extend switch. prevent broadcast storms, making the network safe and easy to use.
By dialing extend switch to enable long-range transmission, the transmission distance of a PoE port can be up to 250m (bandwidth reduced to 10 Mbps).
No configuring is required. Auto MDI/MDI-X crossover on all portseliminate the need for crossover cables.

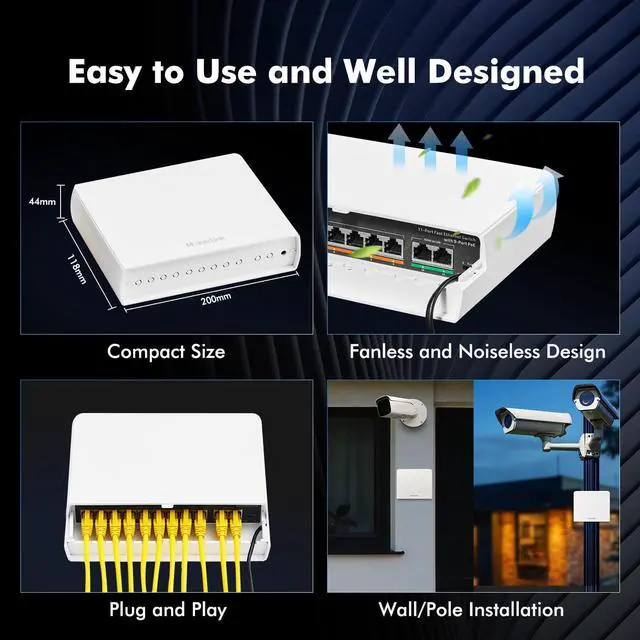

The outdoor PoE switch is easy to install using included tools. Support holding pole installation and wall installation.
The outdoor PoE switch features with ABS+PC case and fanless designthat ensures noiseless operation and greater reliability over time.
Supports working at ambient temperatures of 10 °C to +50 °C, allowing the device to adapt to harsh environments.
ModelPOE-F092FOEthernet9 x 10/100Mbps PoE Ports + 2 x 10/100Mbps Uplink Ports Bandwidth2.2Gbps Pack forward rate1.19Mpps MAC address2k Network ProtocolIEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow control)PoE ProtocolIEEE802.3af(15.4W), IEEE802.3at(30W) Network Medium10Base-T : Cat3, 4, 5 or above UTP(100m), 100Base-TX : Cat5 or above UTP(100mWorking EnvironmentWorking Temperature: -10~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing, Storage Temperature: 5%~90%, non-condensing IndicatorPWR (Power), 1-11 Green Light (Link&Data), PWR On: Powered on, Off: Powered off.CasingABS plastic Structure SizeProduct Dimensions: 200*118*44mm, Package Dimensions: 230*190*70mm, Product N.W: 0.7kg, Product G.W: 0.95kg Power VoltageInput voltage :AC100-240V, Power supply: 52V / 2.3A (120W) Packing ListSwitch 1 PC, Power cord 1 PC, User manual 1 PC Smart PoE IP66 Waterproof Port Isolation Long Distance PoE Plug and Play Easy installation Fanless & Silent Operation Wide Operating Temperature Product Specifications
The PoE port meets the IEEE 802.3af/at standard,It determines and delivers the exact power supply to your devices.
The PoE switch uses ABS+PC housing and supports IP66 waterproof, It designed for outdoor surveillance scenarios.
Port 1-9 can be isolated with each other by dialing extend switch. prevent broadcast storms, making the network safe and easy to use.
By dialing extend switch to enable long-range transmission, the transmission distance of a PoE port can be up to 250m (bandwidth reduced to 10 Mbps).
No configuring is required. Auto MDI/MDI-X crossover on all portseliminate the need for crossover cables.
The outdoor PoE switch is easy to install using included tools. Support holding pole installation and wall installation.
The outdoor PoE switch features with ABS+PC case and fanless designthat ensures noiseless operation and greater reliability over time.
Supports working at ambient temperatures of 10 °C to +50 °C, allowing the device to adapt to harsh environments.
ModelPOE-F092FOEthernet9 x 10/100Mbps PoE Ports + 2 x 10/100Mbps Uplink Ports Bandwidth2.2Gbps Pack forward rate1.19Mpps MAC address2k Network ProtocolIEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow control)PoE ProtocolIEEE802.3af(15.4W), IEEE802.3at(30W) Network Medium10Base-T : Cat3, 4, 5 or above UTP(100m), 100Base-TX : Cat5 or above UTP(100mWorking EnvironmentWorking Temperature: -10~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing, Storage Temperature: 5%~90%, non-condensing IndicatorPWR (Power), 1-11 Green Light (Link&Data), PWR On: Powered on, Off: Powered off.CasingABS plastic Structure SizeProduct Dimensions: 200*118*44mm, Package Dimensions: 230*190*70mm, Product N.W: 0.7kg, Product G.W: 0.95kg Power VoltageInput voltage :AC100-240V, Power supply: 52V / 2.3A (120W) Packing ListSwitch 1 PC, Power cord 1 PC, User manual 1 PC Smart PoE IP66 Waterproof Port Isolation Long Distance PoE Plug and Play Easy installation Fanless & Silent Operation Wide Operating Temperature Product Specifications
