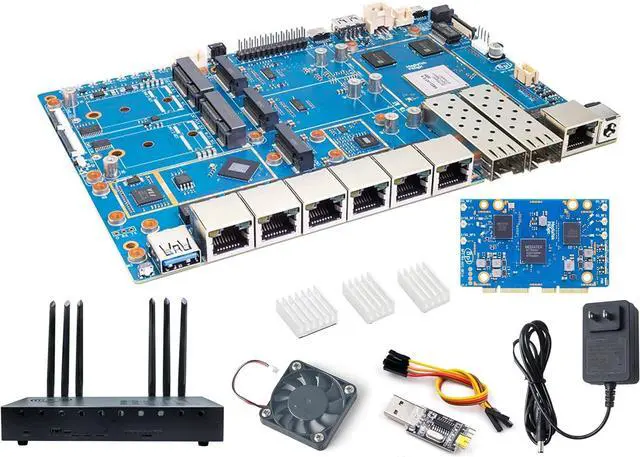

Banana Pi BPI-R4 Pro 8X/4E WiFi 7 Wireless Dual-Band WiFi Router Board OpenWRT, MediaTek MT7988A (Filogic 880) 30K DMIPS SoC - 2X 10GbE SFP&RJ45, 4X 2.5GbE LAN for NAS Smart Home Gateway (Bundle3, 8X)
- [MediaTek MT7988A (Filogic 880) SoC] Banana Pi BPI-R4 Pro 8X/4E Wiifi 7 OpenWRT Router Board with MediaTek MT7988A (Filogic 880) SoC (Quad-core ARM Corex-A73 CPU design), onboard 4GB/8GB DDR4 RAM, 8GB eMMC and 128MB SPI-NAND flash, works as 36Gbps Wi-Fi 7 access point/router/smart gateway. It is also a very high performance open source router development boards. It is an upgraded version of the BPI-R4 router board.
- [Highly Efficient & Reliable Network] The MediaTek MT7988A SoC is the world's leading network processing platform that delivers a high-performance and reliable network experience for wired and wireless applications. At the same time, the MT7988A is equipped with MediaTek's Tunnel Offload Processor System (TOPS), which easily handles a wide range of tunneling protocols, delivering premium-level offloading capabilities.
- [2x 10Gbe SFP & RJ45/4x 2.5Gbe RJ45 LAN] Banana Pi BPI-R4 Pro wireless dual-band wifi router board support 1x 10G RJ45 WAN/LAN Port, 2x 10Gbe SFP and 4x 2.5
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-
CPU: MediaTek MT7988A (Filogic 880) Quad-Core Arm Corex-A73,1.8GHz Processor
SDRAM memory: 4G/8GB DDR4 memory
Onboard Storage: 8GB eMMC, 256MB SPI-NAND Flash, support MicroSD (TF) card holder
GPIO: 26 Pin GPIO - 2x13 PIN Header for expanding application, supports UART, I2C, SPI, PWM, I2S.
Network Interface: 4 Port 10/100/1000Mbps 2.5G RJ45 LAN Gigabit Ethernet Port
1x 10G SFP WAN
1x 10G RJ45 WAN(combo with 10G SFP WAN)
1x 10G SFP LAN
1x 10G RJ45 LAN(combo with 10G SFP LAN)
4x 2.5G RJ45 LAN
1x 1G RJ45 LAN
1x 1G LAN(FPC Connector)SFP Optical Ports: 2x10G SFP optical ports or 1x10G SFP optical port plus 1x 2.5GbE port
mini PCIE: 2x miniPCIe PCIe3.0 2lane interfaces supporting Wi-Fi 7 NIC (Network Interface Card)
M.2 interface:
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe signal can switch to M.2 B-KEY slot)
3x M.2 B-KEY slots with USB3.2 for 5G Module, supports 3Way 5G modules via USB 3.2 interface
BPI-R4 supports M.2 USB Interface Quectel 4G LTE EM25, RM500U-CN & RM520N-GL 5G Modules.
USB:
1x USB3.2 slot
1x USB2.0 slot
1x USB TypeC Debug ConsoleButtons: Reset button, WPS button, boot switch button
Leds: Power status Led and RJ45 Led
DC Power: 12V/5.2A or 19V 3.2A
Dimension: 100.5x148x20mm
Weight: 250g

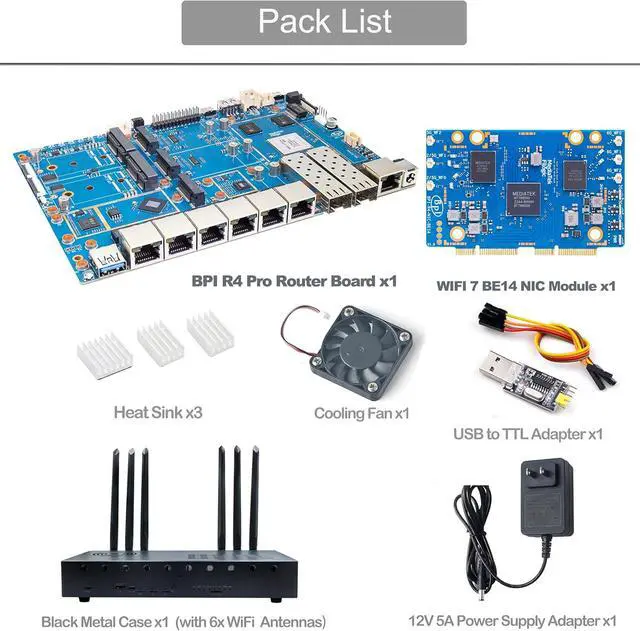

-Package Content-
Banana Pi R4 Pro 8X/4E Router Board x1
-Technical Support-
Wiki: "docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro"
BPI R4 Pro Getting Start: "docs.banana-pi.org/en/BPI-R4_Pro/GettingStarted_BPI-R4_Pro"
Wifi7 Module Getting Start :"docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_wi_fi7_nic".
4G/5G Module: "docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_4g_5g_module"
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@,&-.)".
CPU: MediaTek MT7988A (Filogic 880) Quad-Core Arm Corex-A73,1.8GHz Processor
SDRAM memory: 4G/8GB DDR4 memory
Onboard Storage: 8GB eMMC, 256MB SPI-NAND Flash, support MicroSD (TF) card holder
GPIO: 26 Pin GPIO - 2x13 PIN Header for expanding application, supports UART, I2C, SPI, PWM, I2S.
Network Interface: 4 Port 10/100/1000Mbps 2.5G RJ45 LAN Gigabit Ethernet Port
1x 10G SFP WAN
1x 10G RJ45 WAN(combo with 10G SFP WAN)
1x 10G SFP LAN
1x 10G RJ45 LAN(combo with 10G SFP LAN)
4x 2.5G RJ45 LAN
1x 1G RJ45 LAN
1x 1G LAN(FPC Connector)SFP Optical Ports: 2x10G SFP optical ports or 1x10G SFP optical port plus 1x 2.5GbE port
mini PCIE: 2x miniPCIe PCIe3.0 2lane interfaces supporting Wi-Fi 7 NIC (Network Interface Card)
M.2 interface:
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe signal can switch to M.2 B-KEY slot)
3x M.2 B-KEY slots with USB3.2 for 5G Module, supports 3Way 5G modules via USB 3.2 interface
BPI-R4 supports M.2 USB Interface Quectel 4G LTE EM25, RM500U-CN & RM520N-GL 5G Modules.
USB:
1x USB3.2 slot
1x USB2.0 slot
1x USB TypeC Debug ConsoleButtons: Reset button, WPS button, boot switch button
Leds: Power status Led and RJ45 Led
DC Power: 12V/5.2A or 19V 3.2A
Dimension: 100.5x148x20mm
Weight: 250g
-Package Content-
Banana Pi R4 Pro 8X/4E Router Board x1
-Technical Support-
Wiki: "docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro"
BPI R4 Pro Getting Start: "docs.banana-pi.org/en/BPI-R4_Pro/GettingStarted_BPI-R4_Pro"
Wifi7 Module Getting Start :"docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_wi_fi7_nic".
4G/5G Module: "docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_4g_5g_module"
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@,&-.)".
