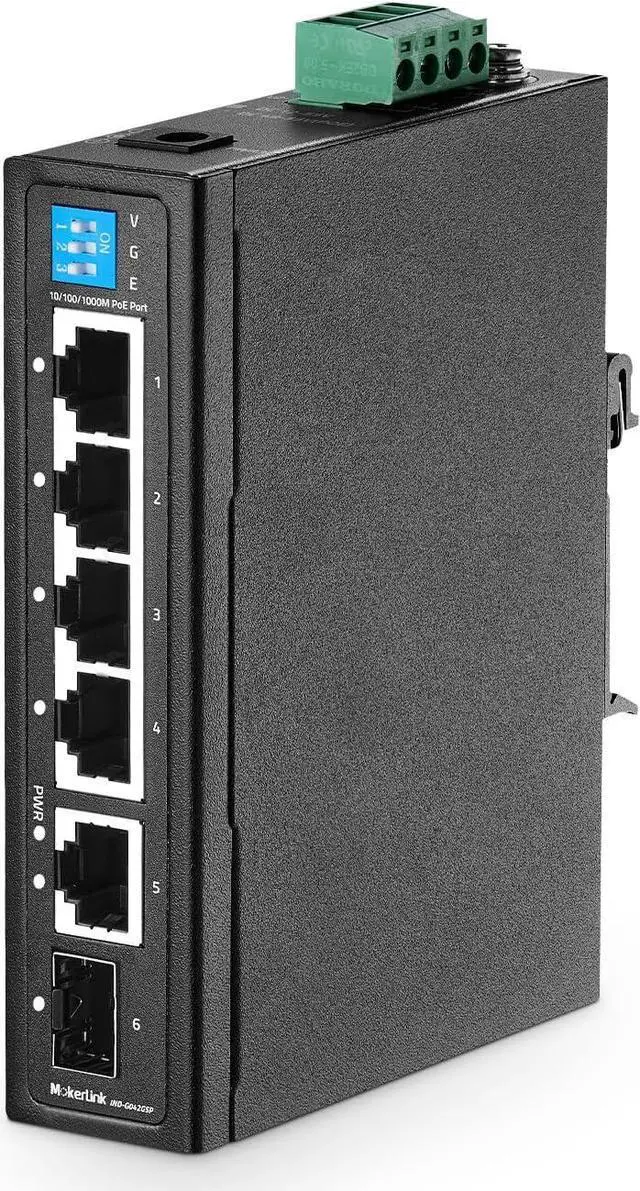

MokerLink 6 Port Industrial Din Rail Gigabit PoE Switch, 4 x 100/1000Mbps PoE Ports,IEEE802.3af/at PoE+, 1 Gigabit Uplink, 1 Gigabit SFP, Metal DIN-Rail & Wall Mount Ethernet Switch
- This network switch include 4 gigabit PoE port, 1 gigabit uplink port, 1 gigabit SFP, support 10/100/1000Mbps adaptive, compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x ethernet standards
- The poe port 1-4 support IEEE802.3af/at standard, max 30W per port, can connect multiple poe devices, such as POE camera, poe ap, etc. Please note that passive 24v poe is not supported. His POE input DC voltage is 48-55V, so please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE
- The shell is made of industrial-grade aluminum alloy, which is more sturdy, compact design and small size, integrated DIN-rail and wall mount kit, installation and disassembly are very simple
- IP30 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments
- 1 DC Power and 2 Industrial power(4 pin terminal), total of 3-way power supply is more flexible. Automatic fault switching,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

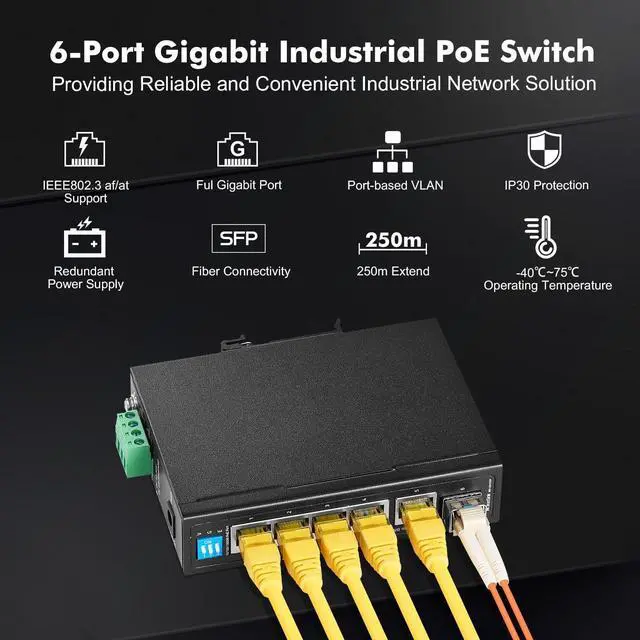

This network switch include 4 gigabit PoE port, 1 gigabit uplink port, 1 gigabit SFP, support 10/100/1000Mbps adaptive, compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x ethernet standards
The poe port 1-4 support IEEE802.3af/at standard, max 30W per port, can connect multiple poe devices, such as POE camera, poe ap, etc. Please note that passive 24v poe is not supported. His POE input DC voltage is 48-55V, so please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE

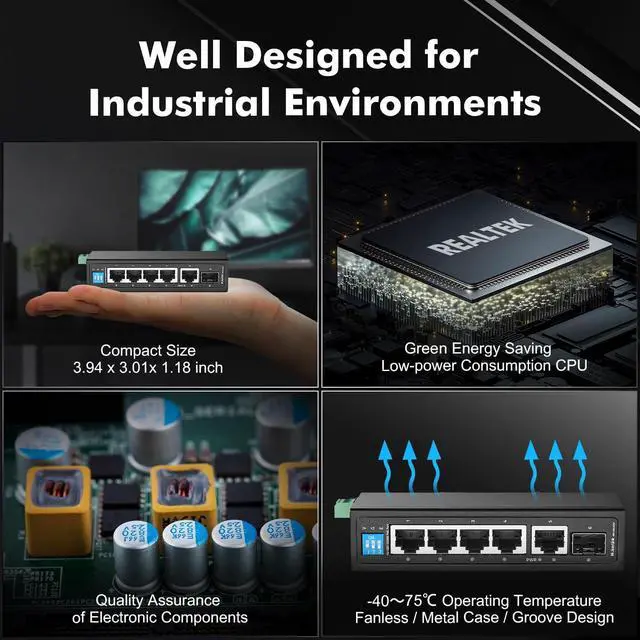

The shell is made of industrial-grade aluminum alloy, which is more sturdy, compact design and small size, integrated DIN-rail and wall mount kit, installation and disassembly are very simple

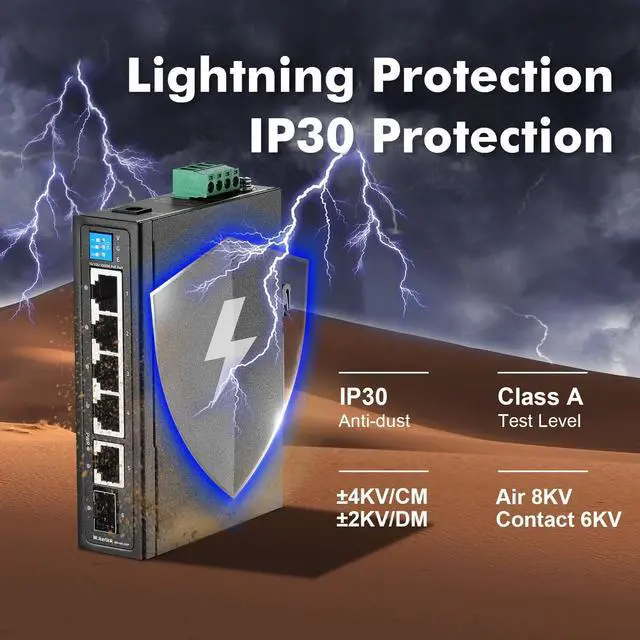

IP30 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments

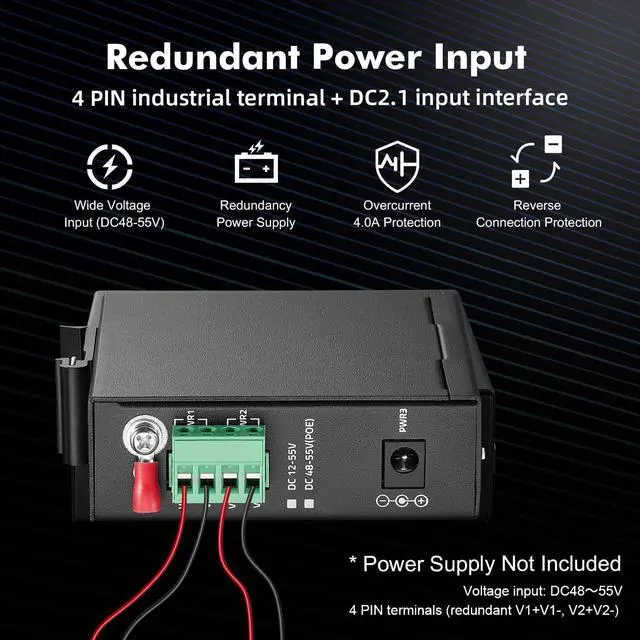

1 DC Power and 2 Industrial power(4 pin terminal), total of 3-way power supply is more flexible. Automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability. ***Please note that the power adapter is not included***
The poe port 1-4 support IEEE802.3af/at standard, max 30W per port, can connect multiple poe devices, such as POE camera, poe ap, etc. Please note that passive 24v poe is not supported. His POE input DC voltage is 48-55V, so please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE
The shell is made of industrial-grade aluminum alloy, which is more sturdy, compact design and small size, integrated DIN-rail and wall mount kit, installation and disassembly are very simple
IP30 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments
1 DC Power and 2 Industrial power(4 pin terminal), total of 3-way power supply is more flexible. Automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability. ***Please note that the power adapter is not included***
