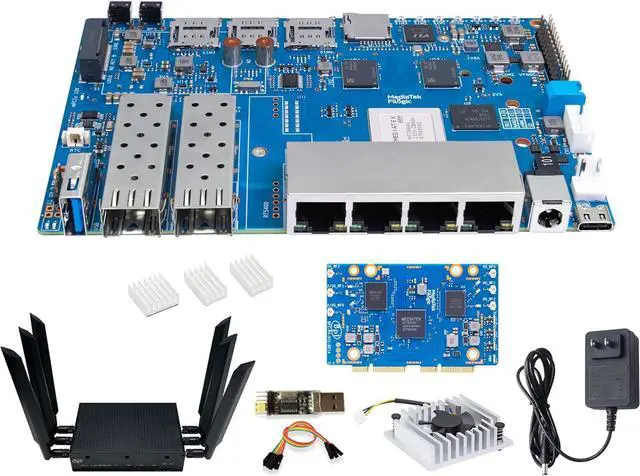

Banana Pi BPI-R4 WiFi 7 OpenWRT Wireless Dual-Band WiFi Router Board, MediaTek MT7988A (Filogic 880) SoC, 4G/5G Internet Router, 4X GbE and 2X 10GbE SFP for NAS Smart Home Gateway (8GB RAM Bundle3)

SoCMediaTek MT7988A (Filogic 880) Quad-core ARM Corex-A73 1.8GHz processor CPU SDRAM8GB DDR4 RAMStorage8GB eMMC and 128MB SPI-NAND flash, Micro SD Slot x1Network4 Port 10/100/1000Mbps Gigabit Ethernet PortSFP Optical Port2x 10Gbe SFP/4x GbeWiFiSupport Wifi6/Wifi6E/Wifi7 Module, via miniPCIe slots mini PCIE2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)M.2 interface1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSDUSB1xUSB 3.2 slotDC Power Supply12V/5.2A or 19V 3.2ALEDSPower status Led and RJ45 LedPOEIf you want to use POE function, you can customize it. You need to replace the 10G SFP LAN with 2.5Gbps RJ45 and solder the RT5400B module.Sizes100.5x148x20 mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2Weights250gUser Guige"docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4"Getting Start"docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4" Banana Pi BPI-R4 router board using MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 program design, on-board 4GB/8GB DDR4 RAM, 8GB eMMC storage, 128MB SPI-NAND flash memory, but also has two 10Gbe SFP photoelectric ports, M.2 interface support 4G/5G/NVME SSD.2x miniPCIe slot with PCIe3.0 2lane interface, supports Wi-Fi 7 network interface card (Network interface Card). It is a very high performance open source router development board.
The MediaTek MT7988A is a world-Leading network processing platform for high-performance and reliable networking experiences,both in wired and wireless applications. The MT7988A comprises a rich connection interface sets include 4 Gigabit Ethernet ports. 2x UNXGMII interfaces. 4x PCIe Interfaces,and 2x USB 3.2 Ports
The MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz, 5GHz and 6GHz,connectivity,with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAM ,MLO,MRU,and AFC. Mediatek Filogic 880 chip support the 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience
To answer the need of fast-evolving tunneling applications,the MT7988A comes with MediaTek Tunnel offload processor System(TOPS),which facilitates the processing of a wide range of tunneling protocols.The MT7988A optimizes networking performance with exquistitely tuned ISA of MediaTek TOPS,and is dedicated to lifting networking offloading performance to premium level.

Application Scenarios:
Internet Service Router
Wifi 7 Tri-band Wireless Router
4G/5G Wireless Router
Home Security Gateway
Smart Home Control Gateway
Nas Gateway
Network Communication Applications
Wireless/Wired Relay Communication Gateway

CPU: MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
SDRAM: 4GB/8GB DDR4
On board Storage: MicroSD (TF) card,8GB eMMC onboard
GPIO: 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
On board Network: 4 Port 10/100/1000Mbps Ethernet
SFP: 2x10G SFP or 1x10G SFP and 1x 2.5GbE
(option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)
Wifi: support Wifi6/Wifi6E/Wifi 7
mini PCIE: 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC module (Network Interface Card), or Wifi6/Wifi6E module
M.2 interface: 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
USB: 1xUSB 3.2 slot
Buttons: Reset button,WPS botton, boot switch
Leds: Power status Led and RJ45 Led
DC Power:12V/5.2A or 19V 3.2A
Sizes:100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2, Weight: 250g
