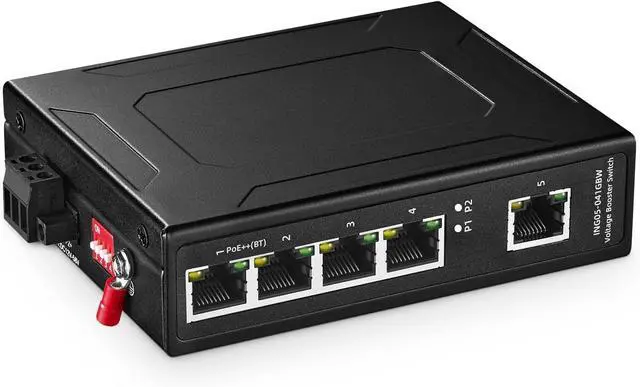

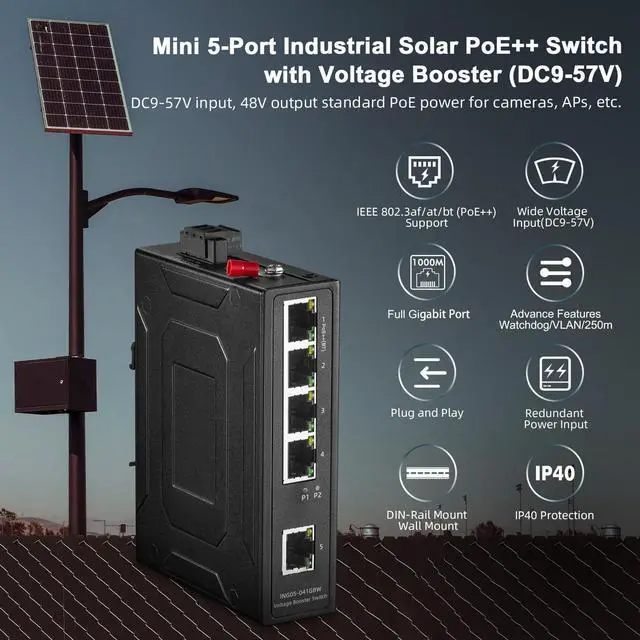

Industrial 5 Port Gigabit Solar POE Switch, 1 BT 60W PoE Port, Input DC 9V-57V to DC 48V Voltage Booster, IEEE802.3af/at/bt, Din Rail Wallmount Unmanaged Fanless IP40 Switch

5 GE PortsThis mini din rail switch include 5 gigabit ethernet ports, all support 10/100/1000Mbps adaptive. 10Gbps switching capacity with better performance. Plug and play, directly connected to the peer device, no need to configure the port

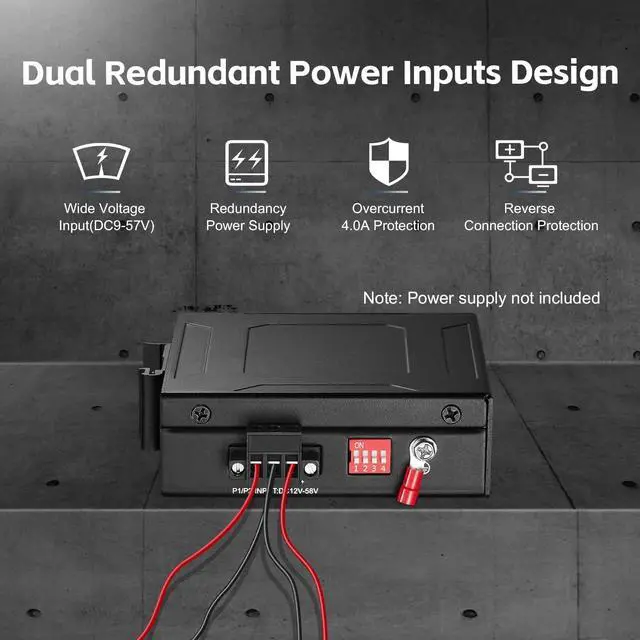

DC9V~57V POE Voltage BoosterSupport DC voltage 9V-57V, 2 power inputs P1 and P2 redundant, automatic fault switching, include phoenix terminal, can be connected to a solar power supply or 12V battery. Output IEEE802.3af/at/bt POE 48V with built-in voltage booster. Total POE budget 120W (DC48V input),120W(DC24V input) or 60W (DC12V input).
IEEE802.3af/at/bt PoEThe poe ports 1 support IEEE802.3af/at/bt, max power 60W, PoE pin: 1/2 (+),4/5 (+), 3/6 (-),7/8 (-). poe ports 2-4 support IEEE802.3af/at, max power 30W, PoE pin: 1/2 (+),3/6 (-).Please note that passive 24v poe is not supported. **Default without power supply**

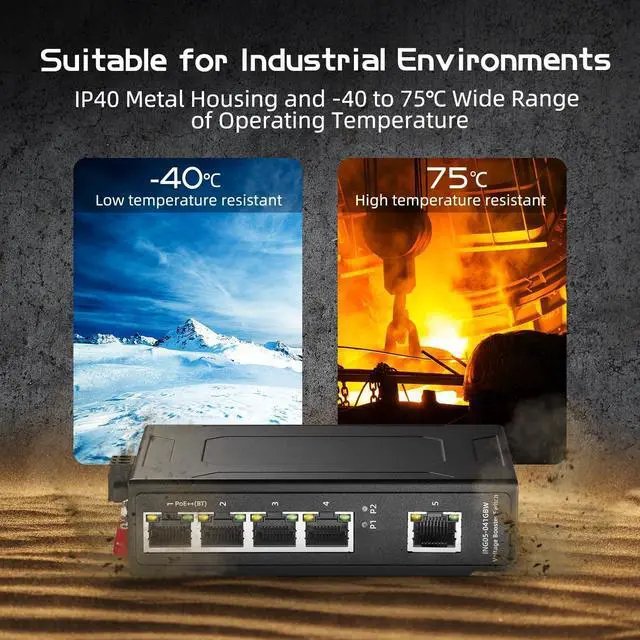

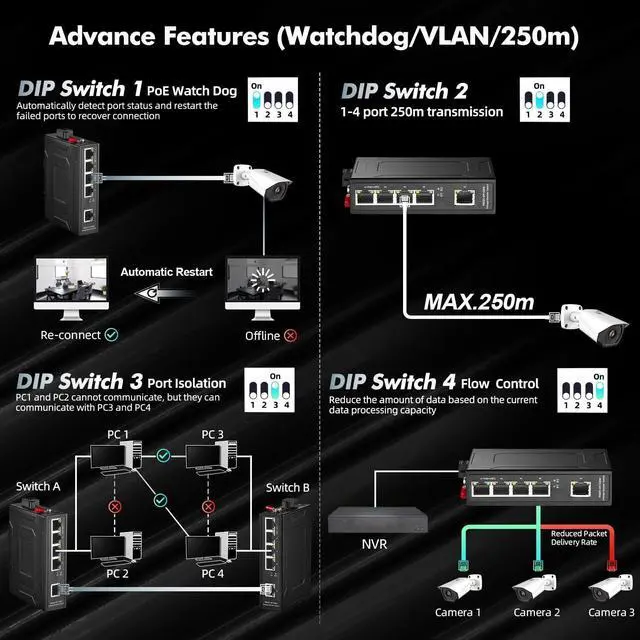

Industrial IP40Using sturdy aluminum alloy case and industrial grade electronic components, working temperature -40~80°C(-40~176°F), anti-lightning, anti-static and anti-overload protection. Both the power supply and the port have LED indicators, which can clearly observe the running status. Fanless design, heat sink for heat dissipation, quieter and energy saving during operation. Supports PoE Watch Dog, 250m transmission, Port Isolation, Flow Control via dip switches.

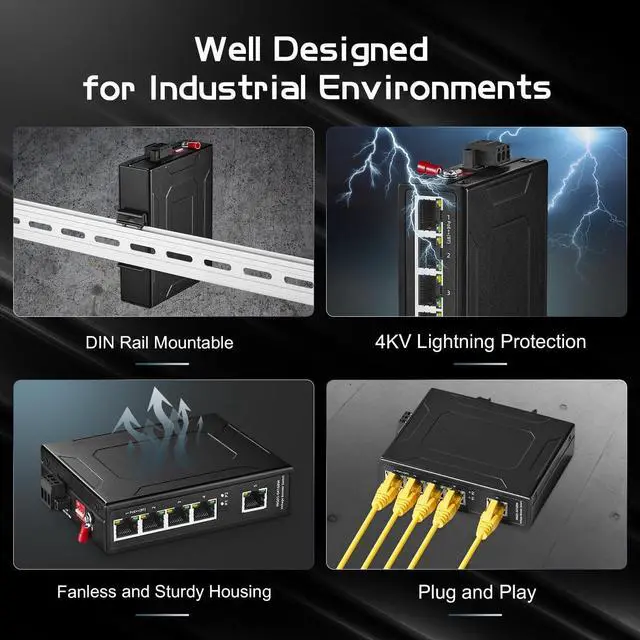

Widely UsedDin-rail and wallmount kit, mini size, portable and easy to install, suitable for professional networks such as industrial control, computer room, warehouse, factory, compact control box. Wide temperature and humidity ranges support operation in a variety of environments. Especially suitable for RVs/cars/trucks/buses (DC12V inputs), VoIP/access control systems (DC24V inputs), solar powered systems (DC12V/DC18V/DC36V inputs), 12volt battery.
