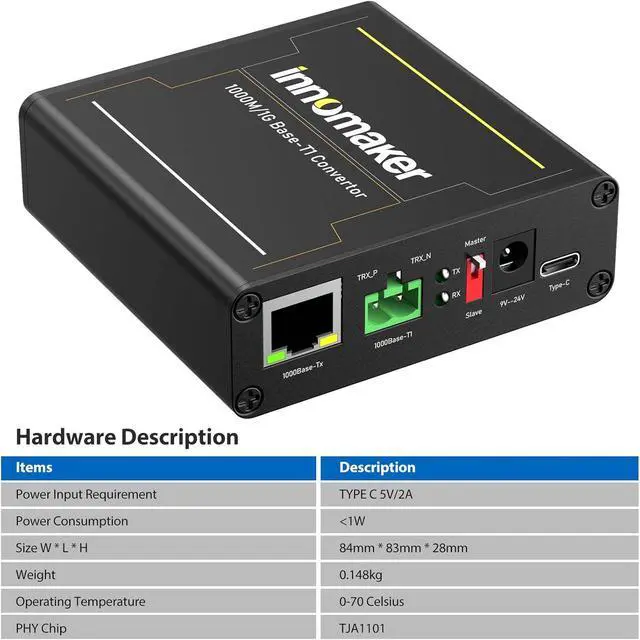

1000BASE Ethernet Media Converter, 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX, Automotive IEEE 1000BASE-T1 Compliant with OLED Screen
- Establishes a direct point-to-point conversion between automotive ECU's using 1000BASE-T1(1000 Mbit/s Fullduplex,) and any standard Fast Ethernet (1000 Mbit/s, 1000BASE-TX) device with an standard ethernet RJ45 connector. Only supports 1000BASE communication, not compatible with 100BASE.
- By using the AEC-Q100 qualified TI DP83TG720SWRHATQ1 IEEE 802.3bp and Open Alliance compliant automotive Ethernet physical layer transceiver, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.
- Comes with 1x TE MATEnet and 1x MOLEX adapter. Do not provide the over unshielded twisted pair (UTP) cables.

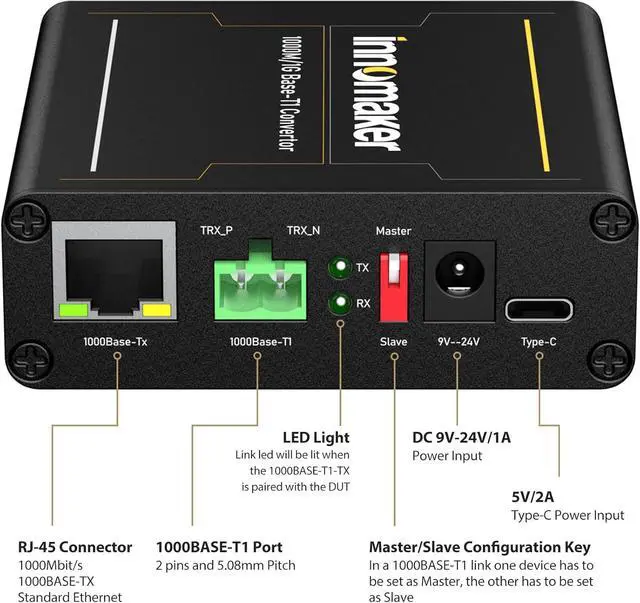

- Features with 1000BASE-T1 Master / Slave configuration and an OLED screen. Support Cable open and short fault detection.
- Plug and Play, No need to install the drivers.Data pass-through is conducted without disrupting any network protocols.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Establishes a direct point-to-point conversion between automotive ECU's using 1000BASE-T1(1000 Mbit/s Fullduplex,) and any standard Fast Ethernet (1000 Mbit/s, 1000BASE-TX) device with an standard ethernet RJ45 connector. Only supports 1000BASE communication, not compatible with 100BASE.
By using the AEC-Q100 qualified TI DP83TG720SWRHATQ1 IEEE 802.3bp and Open Alliance compliant automotive Ethernet physical layer transceiver, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.
Comes with 1x TE MATEnet and 1x MOLEX adapter. Do not provide the over unshielded twisted pair (UTP) cables.
Features with 1000BASE-T1 Master / Slave configuration and an OLED screen. Support Cable open and short fault detection.
Plug and Play, No need to install the drivers.Data pass-through is conducted without disrupting any network protocols.
By using the AEC-Q100 qualified TI DP83TG720SWRHATQ1 IEEE 802.3bp and Open Alliance compliant automotive Ethernet physical layer transceiver, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.
Comes with 1x TE MATEnet and 1x MOLEX adapter. Do not provide the over unshielded twisted pair (UTP) cables.
Features with 1000BASE-T1 Master / Slave configuration and an OLED screen. Support Cable open and short fault detection.
Plug and Play, No need to install the drivers.Data pass-through is conducted without disrupting any network protocols.
