Industrial 5 Ports Gigabit 24V Passive PoE Switch Support DC12V-24V Input to 24V PoE Output, 4 x 24V/18W PoE Ports@72W, IP40, Compact PoE Power for Solar Power/RV Truck/VoIP Systems
- - The passive 5-Port Ethernet PoE switch supports 12-24V DC input and increases voltage to 24V PoE output.
- - Provide 4 x 24V/18W PoE Ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 72W (DC12V-24V input) .
- Compact IP40 rugged metal enclosure; Wide working temperature (-40 to 176 ); Support DIN-Rail & Wall Mount installation.
- - Support 2 channel DC12V-24V redundant power inputs and auto failover, ensure high reliability networking system. Compatible with Mode B(4/5(+), 7/8(-))POE outputs only.
- Passive POE supply in solar power system (DC12V/DC18V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

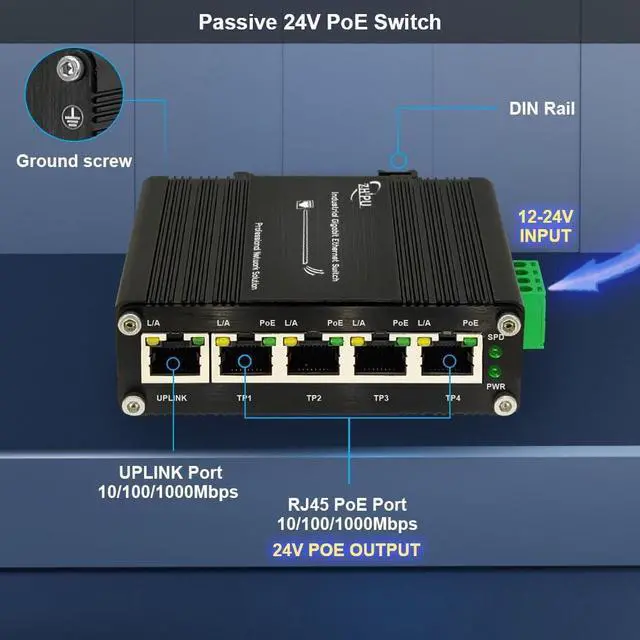

- The passive 5-Port Ethernet PoE switch supports 12-24V DC input and increases voltage to 24V PoE output.
- Provide 4 x 24V/18W PoE Ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 72W (DC12V-24V input) .

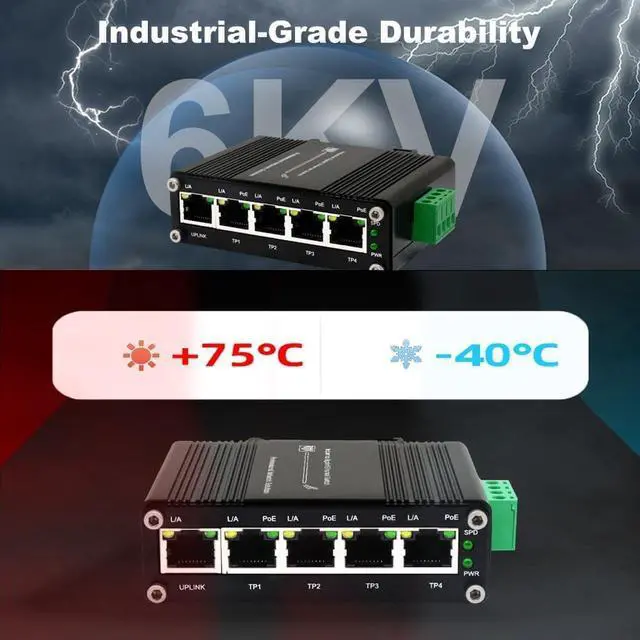

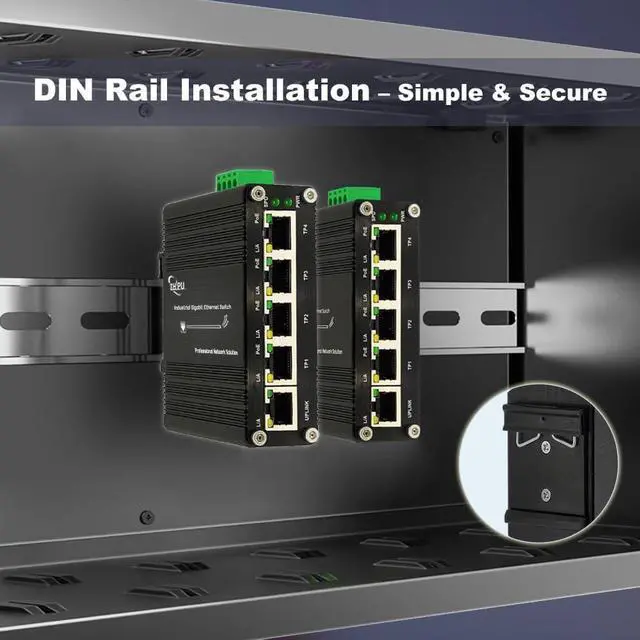

Compact IP40 rugged metal enclosure; Wide working temperature (-40 to 176 ); Support DIN-Rail & Wall Mount installation.

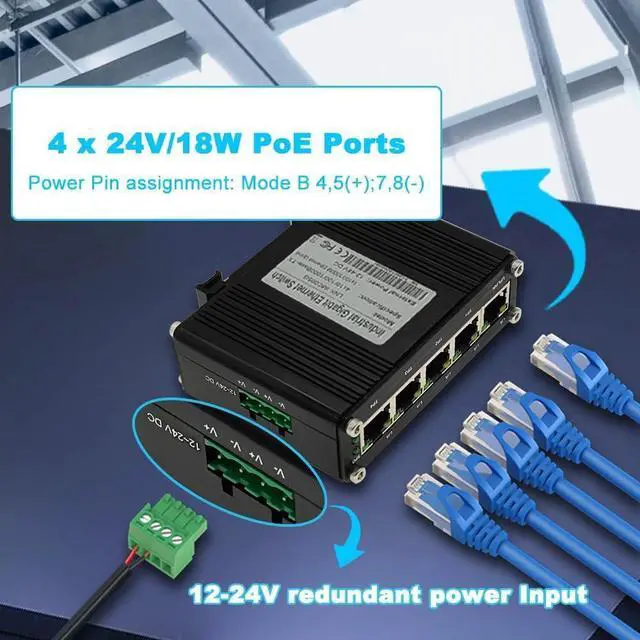

- Support 2 channel DC12V-24V redundant power inputs and auto failover, ensure high reliability networking system. Compatible with Mode B(4/5(+), 7/8(-))POE outputs only.

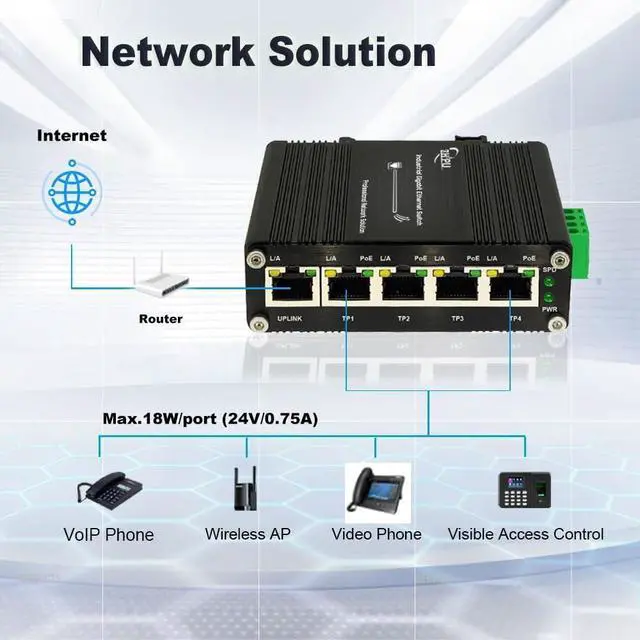

Passive POE supply in solar power system (DC12V/DC18V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
- Provide 4 x 24V/18W PoE Ports and 1 Gigabit uplink; All ports 10/100/1000Mbps self-adaptive full duplex; Total POE budget 72W (DC12V-24V input) .
Compact IP40 rugged metal enclosure; Wide working temperature (-40 to 176 ); Support DIN-Rail & Wall Mount installation.
- Support 2 channel DC12V-24V redundant power inputs and auto failover, ensure high reliability networking system. Compatible with Mode B(4/5(+), 7/8(-))POE outputs only.
Passive POE supply in solar power system (DC12V/DC18V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
