$106.99
Meet Your Seller

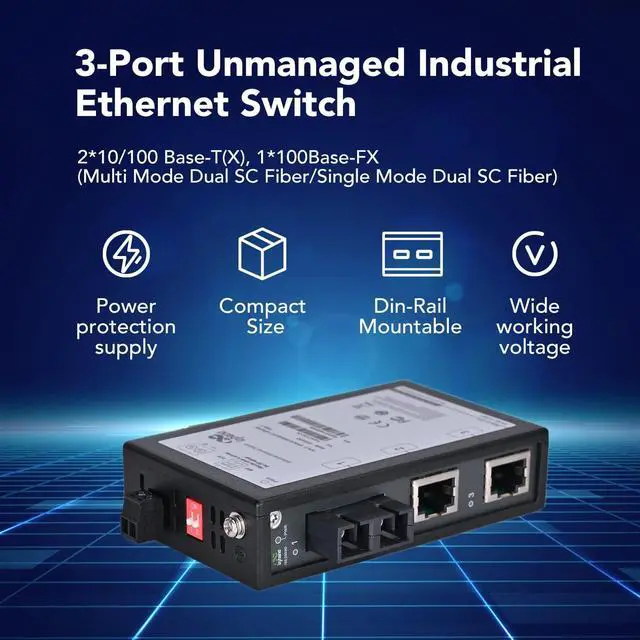

InHand Networks 3-Port Unmanaged Industrial Ethernet Switch, Media Converter,2*10/100 Base-T(X), 1*100Base-FX, Single Mode Dual SC Fiber, Working Temperature -40° 75°C, IP30, 20KM, UL Certification
- Industrial Ethernet Switch: This network switch include 2 fast Ethernet ports (2 * 10/100 Base-T(X) adaptive RJ45 ports) and 1*100Base-FX (1 * single mode dual-fiber 20km 1310 transmit-receive), support 10/100/ rate, switching capacity up to 16Gbps, Transmission Distance can reach to 20 KM.

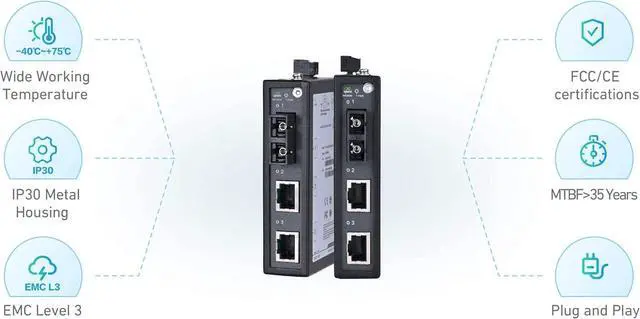

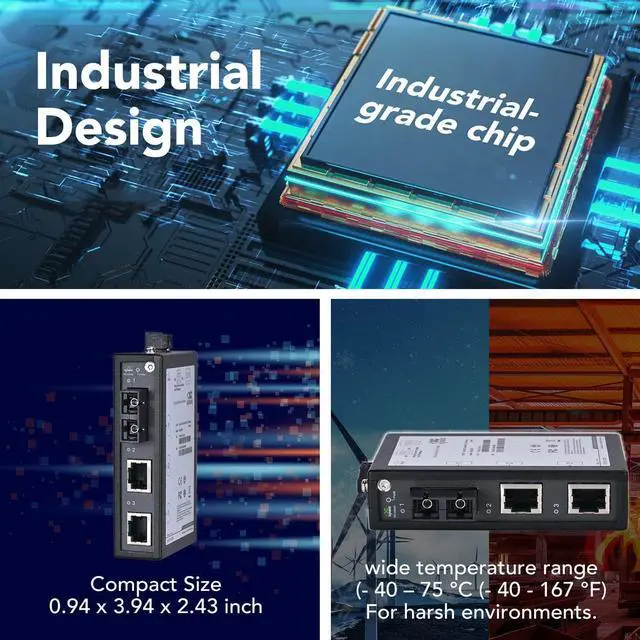

- Fully industrial design: wide temperature and wide voltage, metal housing with IP30 ,designed to withstand a high degree of vibration, shock, operating with a wide temperature range (- 40 75 °C (- 40 - 167 °F) for harsh environments,input voltage 24VDC, industrial circuit protection, MTBF>35 years, EMC level 3.
- Support standard DIN-rail and wall mounting, compact-size for easy fitting in racks and cabinets.

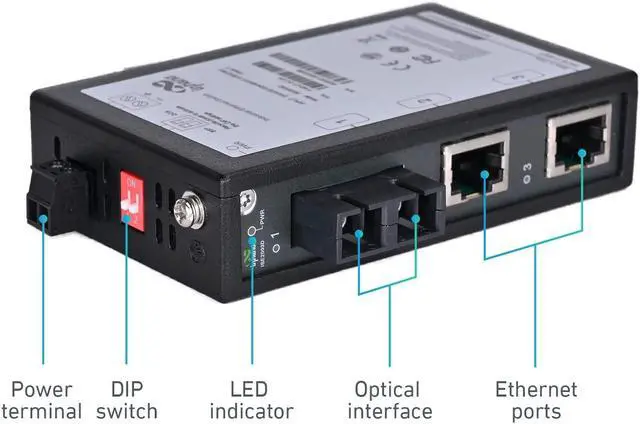

- The QoS (Quality of Service) function and BSP(Broadcast Storm Protection) can be enabled or disabled through dip switch.
- Redundant power: redundant dual input power design,4KV surge protection, reverse connection protection
- Plug and play, suitable for various networks, such as home of
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The ISE-P Series Switch is designed to meet power, size, weight andenvironmental tolerance requirements for industrial applications. It combines high-standard wide temperature and voltage design, enterprise-level wire-speed forwarding performance, a sturdy housing, industrial circuit protections and other industrial-grade features in one. Plug and play to meet the needsof harsh industrial environments.
ISE Series Rail Type Unmanaged Industrial Ethernet Switch consists of ISE2000 100M seriesISE5000 Gigabit series.
compact-sized for easy fitting in racks and cabinets;
Plug and play, enables fast deployment.
HousingDie-casting aluminum alloyProtection LevelIP30Weight Cooling 0.23kgHousingFanless coolingInput Voltage9.6~60 VDC & 18~30 VAC, Redundant dual inputInterface Terminal2-pin pluggable screw terminal blockPower Consumption5WOverload Protection supplyReverse Connection ProtectionsupplyStorage -40 ~ +85 Operating -40 ~ +75 °C ISE-P Series Switch Unmanaged Industrial Switch Compact Size Technical Specifications
ISE Series Rail Type Unmanaged Industrial Ethernet Switch consists of ISE2000 100M seriesISE5000 Gigabit series.
compact-sized for easy fitting in racks and cabinets;
Plug and play, enables fast deployment.
HousingDie-casting aluminum alloyProtection LevelIP30Weight Cooling 0.23kgHousingFanless coolingInput Voltage9.6~60 VDC & 18~30 VAC, Redundant dual inputInterface Terminal2-pin pluggable screw terminal blockPower Consumption5WOverload Protection supplyReverse Connection ProtectionsupplyStorage -40 ~ +85 Operating -40 ~ +75 °C ISE-P Series Switch Unmanaged Industrial Switch Compact Size Technical Specifications
