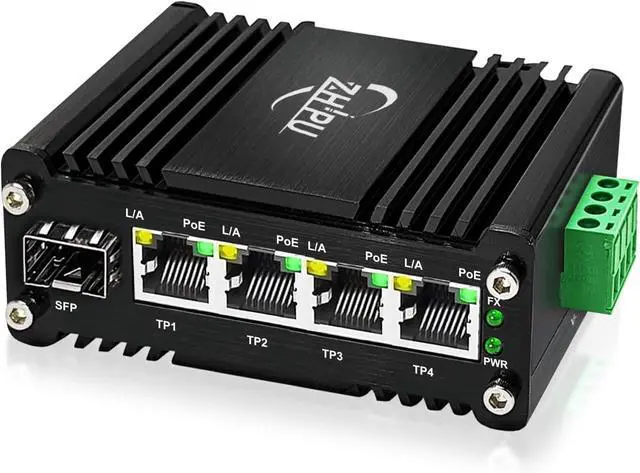

Mini Industrial 4 Ports Gigabit PoE Switch with DC1248V Redundant Power Input, 12V PoE Switch with SFP, IEEE802.3af/at @120W, Compact PoE Power for VoIP Systems/Solar Power/RV Truck
- Support DC1248V input and IEEE802.3af/at PoE output with built-in voltage booster. All PoE ports are compliant to IEEE802.3af/at. Total PoE budget 120W (DC48V input), 90W (DC24V input) or 60W (DC12V input).
- Providing 4x 10/100/1000Base-T Ethernet PoE ports and 1x 1000Base-X SFP slot (SFP module not included).
- Compact IP40 rugged metal enclosure; Wide working temperature -40°C to 80°C (-40°F to 176°F); Support DIN-Rail & Wall Mount.
- Utilizing hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices.

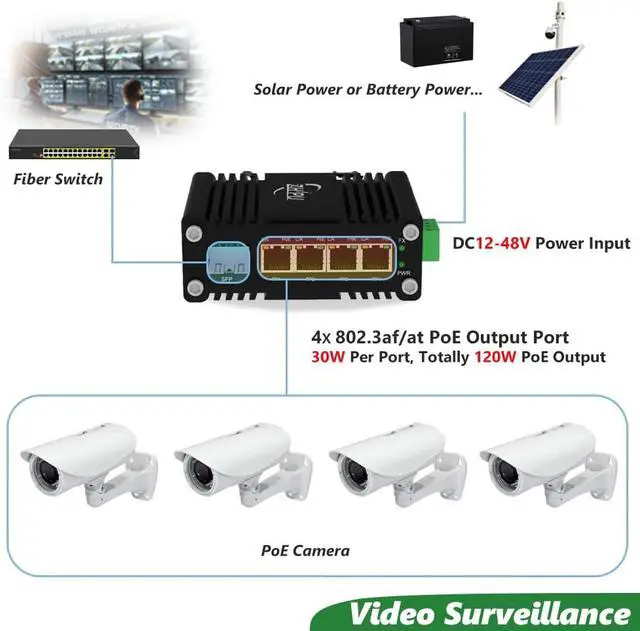

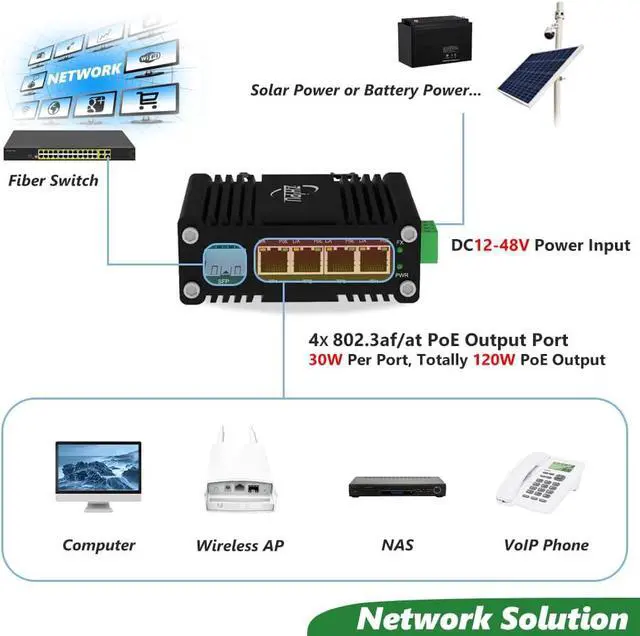

- Standard PoE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

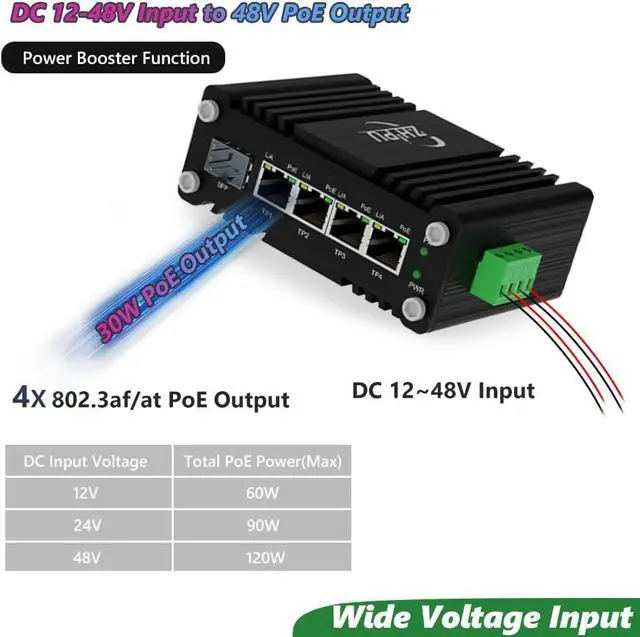

Support DC1248V input and IEEE802.3af/at PoE output with built-in voltage booster. All PoE ports are compliant to IEEE802.3af/at. Total PoE budget 120W (DC48V input), 90W (DC24V input) or 60W (DC12V input).

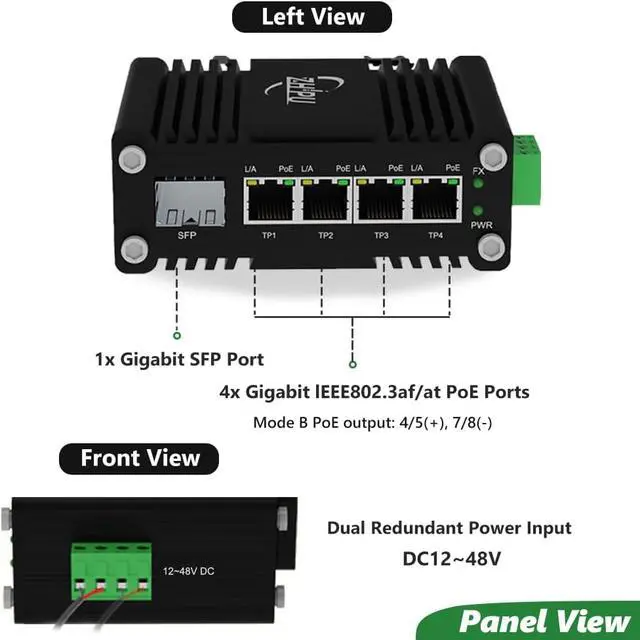

Providing 4x 10/100/1000Base-T Ethernet PoE ports and 1x 1000Base-X SFP slot (SFP module not included).
Compact IP40 rugged metal enclosure; Wide working temperature -40°C to 80°C (-40°F to 176°F); Support DIN-Rail & Wall Mount.
Utilizing hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices.
Standard PoE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
Support 2 channel DC1248V redundant power inputs and auto failover, ensure high reliability networking system.
Providing 4x 10/100/1000Base-T Ethernet PoE ports and 1x 1000Base-X SFP slot (SFP module not included).
Compact IP40 rugged metal enclosure; Wide working temperature -40°C to 80°C (-40°F to 176°F); Support DIN-Rail & Wall Mount.
Utilizing hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices.
Standard PoE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
Support 2 channel DC1248V redundant power inputs and auto failover, ensure high reliability networking system.
