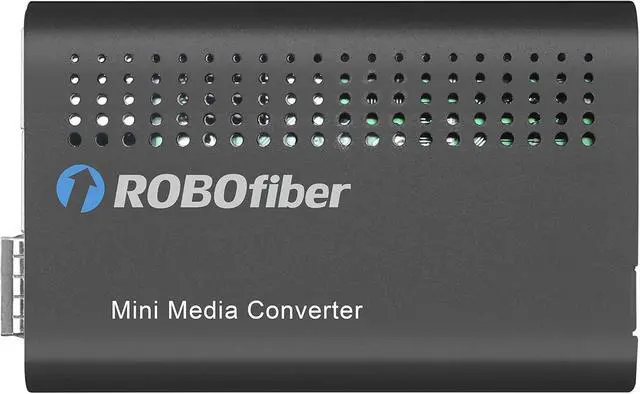

LFC-1002-SFP Two RJ45 Ports Gigabit Ethernet to 100/1000BaseX SFP Slot Fiber Media Converter, LFP and DIP sw Settings

2x 10/100/1000Base-T to 100/1000Base-X Converter, auto-negotiation and auto MDI/MDIX, forwarding 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed) and 9K bytes in converter mode (fiber & copper port at the same speed)

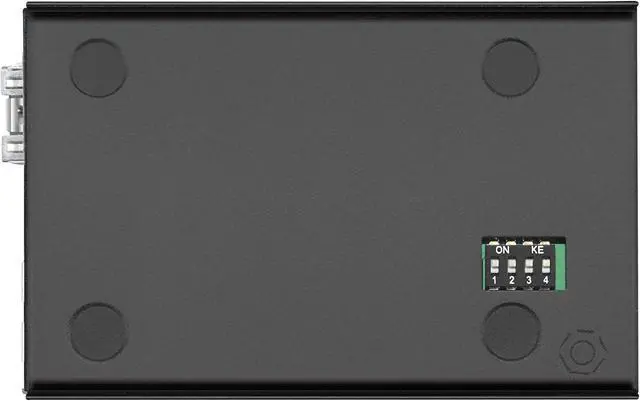

DIP switch function for: fiber speed (100/1000M), RJ45 port based VLAN enable / disable, Jumbo packet 9K enable / disable; supports Q in Q double tagged frame transparent and IEEE 802.1Q Tag VLAN pass thru; aggregates into LFC-CH12 series chassis available with various power supplies

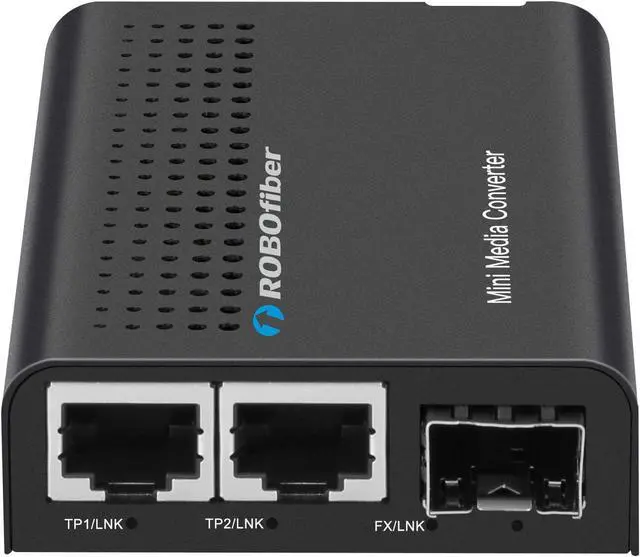

Copper interface: 2x RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and IEEE 802.3ab 1000Base-T compliant, supports 10/100/1000Base-T/TX, Full, Half duplex n-way (Auto-Negotiation) or Full, Half duplex, 10/100/1000 speed manual selection, copper TP cable 4 pair Cat. 5, 5e or 6 UTP; optical interface: 155M/1.25G SFP slot (100/1000BaseX)
Front LEDs: PWR, Fiber Link, TP Links, Speed; Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug, included in package; Temperature: 0~50°C (Operating); -30~70°C (Storage); Humidity: 10-85% non condensing (Operating); 0-90% (Storage), Consumption: less than 4W
Dimensions(WxDxH): 60mm x 90mm x 20mm, Weight: 180g (without AC adapter), Compliance: FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001, MTBF: 65,000 hours
