LFC-10GT-SFP 10G RJ45 10GBase-T Ethernet to 10GBaseX SFP+ Slot Fiber Media Converter
- 10GBase-T RJ45 to 10GBase-X SFP+ slot converter, forwards 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed) and 9k bytes in converter mode (fiber & copper port at the same speed)
- Supports Q in Q double tagged frame transparent and IEEE 802.1Q Tag VLAN pass thru; aggregates into LFC-CH12 series chassis available with various power supplies
- Copper interface: RJ45 copper IEEE 802.3an (10GBase-T) compliant, transmission packet rate 14880000 per second. Copper TP cable 4 pair Cat. 6, 6a or 7 UTP; Optical interface: 10G SFP+ slot (10GBase-X), LC connector for SFP module (SFP transceiver NOT included)

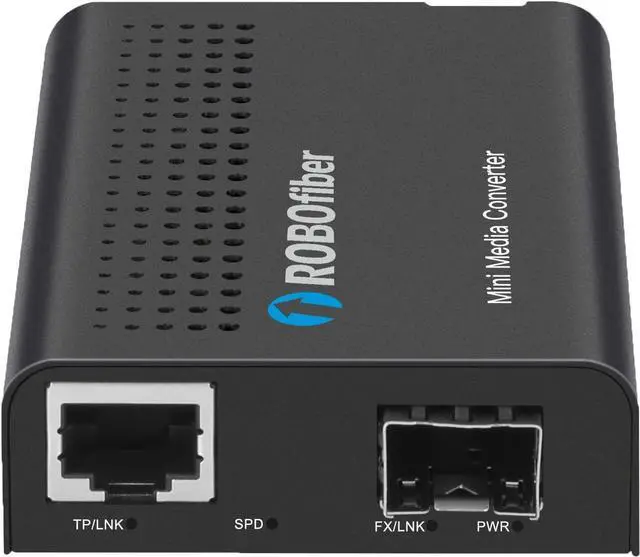

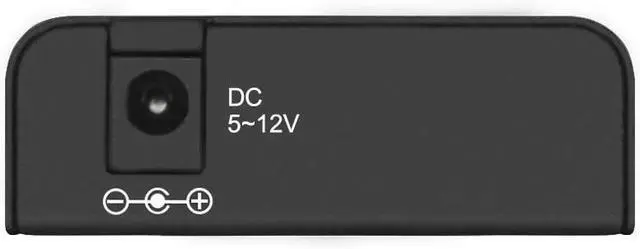

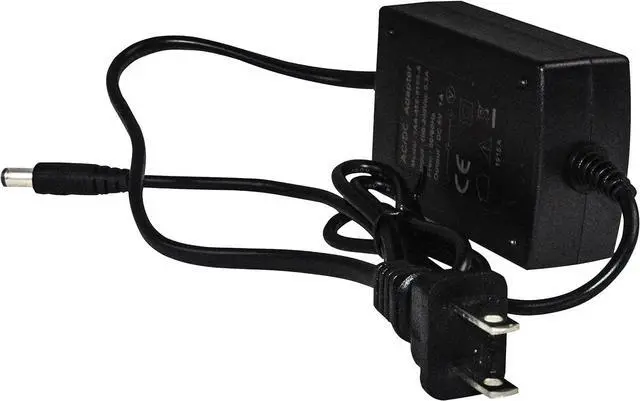

- Front LEDs: PWR, Fiber Link, TP Link, Speed; Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug, included in package; Temperature: 0~50°C (Operating); -30~70°C (Storage); Humidity: 10-85% non condensing (Operating); 0-90% (Storage), Consumption: less than 4W
- Dimensions(WxDxH): 60mm x 90mm x 20mm, Weig
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10GBase-T RJ45 to 10GBase-X SFP+ slot converter, forwards 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed) and 9k bytes in converter mode (fiber & copper port at the same speed)
Supports Q in Q double tagged frame transparent and IEEE 802.1Q Tag VLAN pass thru; aggregates into LFC-CH12 series chassis available with various power supplies
Copper interface: RJ45 copper IEEE 802.3an (10GBase-T) compliant, transmission packet rate 14880000 per second. Copper TP cable 4 pair Cat. 6, 6a or 7 UTP; Optical interface: 10G SFP+ slot (10GBase-X), LC connector for SFP module (SFP transceiver NOT included)
Front LEDs: PWR, Fiber Link, TP Link, Speed; Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug, included in package; Temperature: 0~50°C (Operating); -30~70°C (Storage); Humidity: 10-85% non condensing (Operating); 0-90% (Storage), Consumption: less than 4W
Dimensions(WxDxH): 60mm x 90mm x 20mm, Weight: 180g (without AC adapter), Compliance: FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001, MTBF: 65,000 hours
Supports Q in Q double tagged frame transparent and IEEE 802.1Q Tag VLAN pass thru; aggregates into LFC-CH12 series chassis available with various power supplies
Copper interface: RJ45 copper IEEE 802.3an (10GBase-T) compliant, transmission packet rate 14880000 per second. Copper TP cable 4 pair Cat. 6, 6a or 7 UTP; Optical interface: 10G SFP+ slot (10GBase-X), LC connector for SFP module (SFP transceiver NOT included)
Front LEDs: PWR, Fiber Link, TP Link, Speed; Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug, included in package; Temperature: 0~50°C (Operating); -30~70°C (Storage); Humidity: 10-85% non condensing (Operating); 0-90% (Storage), Consumption: less than 4W
Dimensions(WxDxH): 60mm x 90mm x 20mm, Weight: 180g (without AC adapter), Compliance: FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001, MTBF: 65,000 hours
