Industrial 5-Port Gigabit PoE Switch, Support DC12V-48V to DC48V PoE, 4×PoE Ports IEEE802.3af/at 30W Each (120W Total), Rugged Metal Housing, DIN-Rail Mount,for Solar Power/RV Truck/VoIP Systems

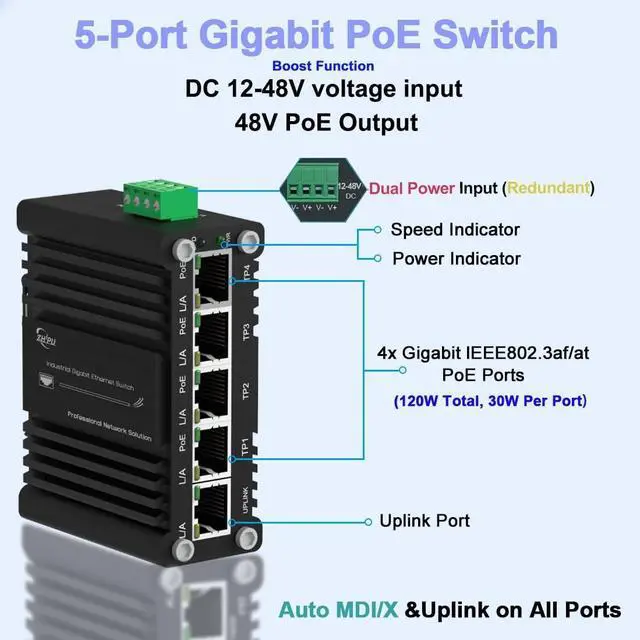

This is a fully gigabit industrial PoE switch with 5 Ethernet adaptive ports. 1-4 ports support IEEE 802.3af/at active PoE+ and single port PoE output power of up to 30W. Support IEEE802.3x full duplex flow control and Backpressure half duplex flow control. Support non blocking line speed forwarding
Unmanaged models, plug and play, no configuration required, simple and convenient to use. Users can easily understand the device's working status through the power indicator (PWR), speed rate indicator (SPD), network port status indicator (L/A), and PoE working indicator (PoE).
The operating temperature of this switch is -40~+75 (-40~167) and the lightning protection level of the port is 6KV. Designed with low power consumption, no fan and no noise. The IP40 brushed aluminum alloy metal shell provides excellent heat dissipation, ensuring stable product operation.

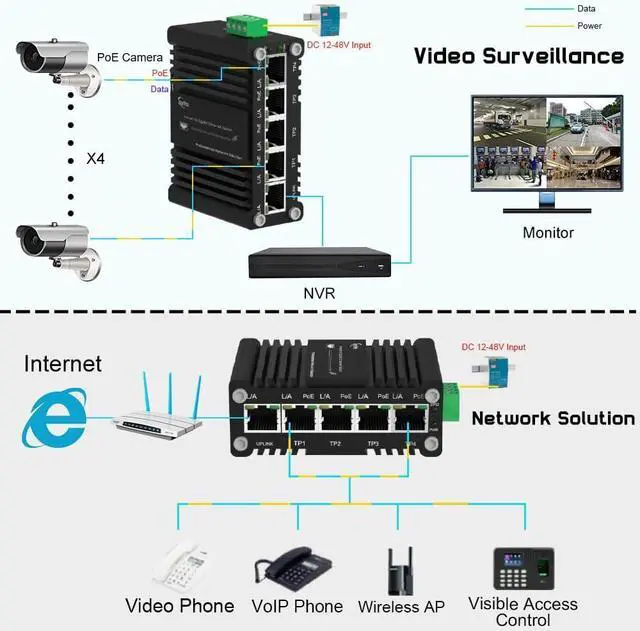

As a PoE power supply device, TP1-TP4 ports can automatically detect and identify power receiving devices that meet the 802.3af/at standards and provide power to them. Power can be provided to PoE terminal devices such as wireless APs, PoE cameras and voip phones through Ethernet cables.

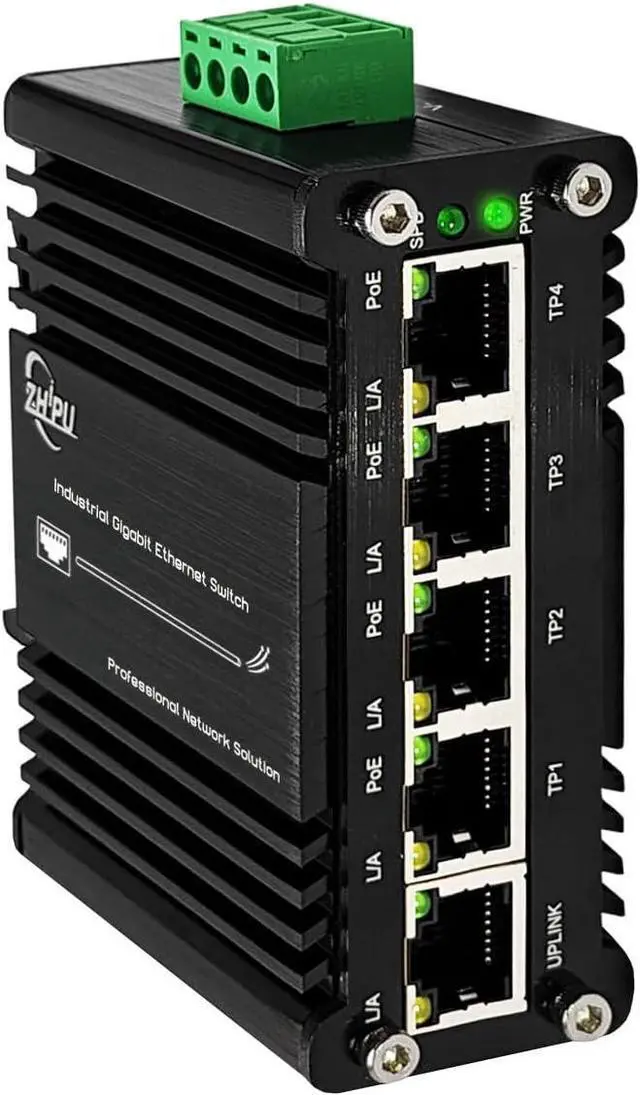

Industrial 5 ports PoE Ethernet Switch Gigabit Unmanaged Mini Switch 30W
The mini gigabit PoE switch supports gigabit Ethernet PoE ports and gigabit uplink port, which facilitates flexible networking for users and meets various networking needs in various scenarios.

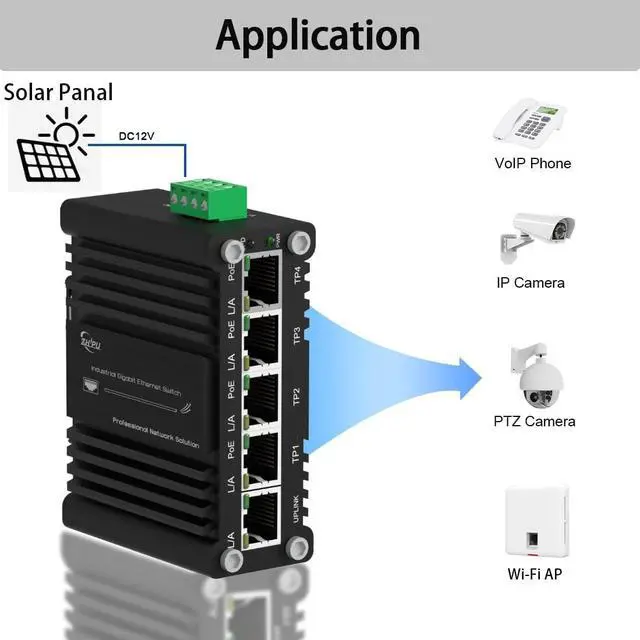

It is suitable for industrial scenarios such as intelligent transportation, rail transit, power industry, mining, petroleum, maritime transportation, metallurgy, and green energy construction to form an economically efficient, stable, and reliable communication network.
Forwarding modeStore and forward/Full line speedPacket forwarding rate0.01488Mpps (10Mbps), 0.1488Mpps (100Mbps), 1.488Mpps (1000Mbps)Backplane bandwidth10Gbp s/non-blockingPacket forwarding [email protected] buffer1MJumbo frame9K BytesMAC address table2KPower supply pin4/5(+), 7/8(-)Mode B 4pinPoE total outputUp to 120w PoE budget (48VDC), 90w(24VDC), 60w(12VDC)Input voltage12~48VDC (4-pin Phoenix terminal), power supply needs to be purchased separatelyPower consumption<125Wnon-PoE<5W Voltage overloadAutomatic resetUTP transmission100BASE-TX: Cat5 UTP or above (100 meter); 1000BASE-T: Cat5e UTP or above (100 meter)Lightning protection4KV 8/20usStandard protocolIEEE802.3 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x Full-Duplex Flow Control; IEEE802.3az Energy Efficient Ethernet (EEE); IEEE802.3af Power over Ethernet; IEEE802.3at Power over Ethernet WIDELY APPLICATIONS Specifications
