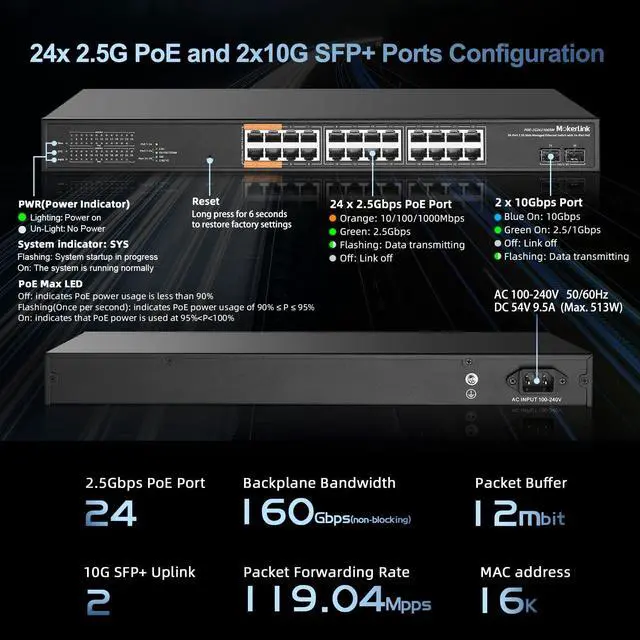

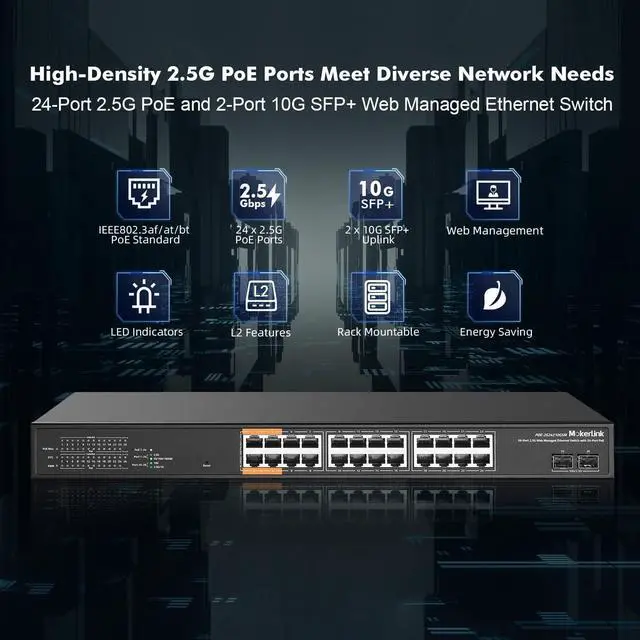

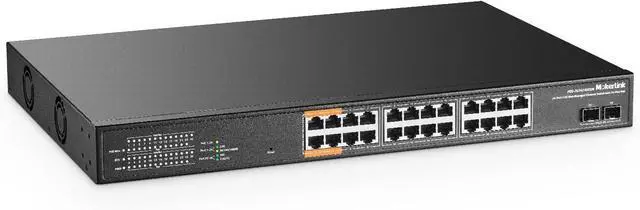

MokerLink 24 Port 2.5 Gigabit PoE Web Managed Switch with 2x10G SFP, 24 Port PoE IEEE802.3af/at/bt, 513W, L2 Managed Rack Mount Network Switch

POE-2G24210GSM is a Web Managed PoE Switch with 24x2.5GbE PoE+ and 2x10GbE SFP+ ports. 24 ethernet ports provide either 10M, 100M, 1G and 2.5Gconnectivity, as well as 2 SFP+ Fiber port with 2.5G or 10G connectivity. The PoE Port support IEEE802.3bt/at/af, Max 90w for one PoE port.
24× 2.5Gbps ports smash the 2.5G barrier and unlock the fullpotential of WiFi 7/6 APs and NAS server. Supports cat5e and abovecables, 2.5x faster network bandwidth.
2× 10Gbps open SFP+ slots enable high-bandwidth,long-distance connectivity and non-blocking switching capacity. Adaptive2.5G, 10G sfp modules that can connect to core servers and switches

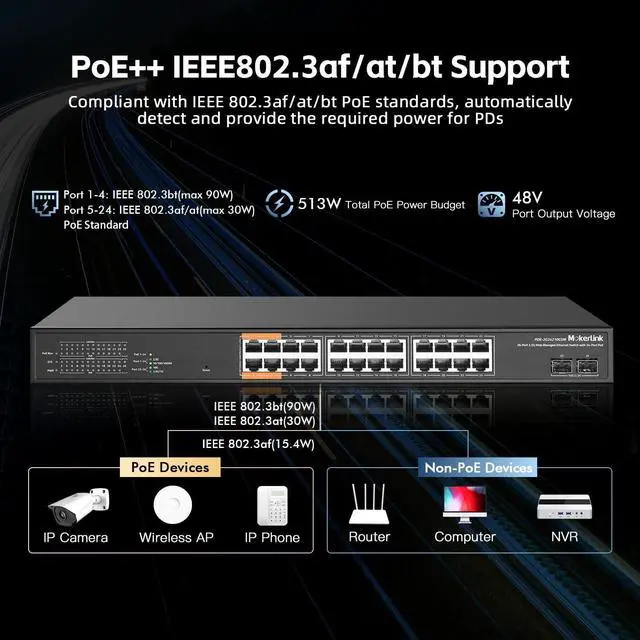

Port 1-4 compatible with IEEE802.3af/at/bt standard(Max. 90W), Port 5-24 compatible with IEEE802.3af/at standard(Max. 30W). PoE switch determines anddelivers the exact power supply to PoE devices. SupportPoE QoS priority.
Flexible deployment options for rack-mount or desktop inyour office and home, meet the network environment requirement.
1Flexible Management2802.1Q Tag-Based VLAN3QoS (Quality of Service)4Loop Detection5 ModelPOE-2G24210GSM(24-Port 2.5G and 2-Port 10G SFP+ Web Managed PoE Switch)Interface24 * 2.5G PoE port + 2 * 10G SFP+ portPort StandardIEEE 802.3: Ethernet Media Access Control (MAC) Protocol, IEEE 802.3i: 10BASE-T Ethernet, IEEE 802.3u: 100BASE-TX Fast Ethernet, IEEE 802.3ab: 1000BASE-T Gigabit Ethernet, IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic), IEEE 802.3x: Flow Control, IEEE 802.3az (Efficient and Energy saving Ethernet), IEEE 802.3ae (10 Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3 bz (2.5G/5G Ethernet standard)Switching Capacity160GbpsPacket Forwarding Rate119.04MppsPacket Buffer12MbitJumbo FrameSupportPoEIEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3bt (90W), Port 1-4 PoE power output <90W,Port 5-24 PoE power output <30W, PoE Power Budget: 513WPower SupplyAC 100-240V 50/60HzDC 54V 9.5A , Mainboard Power Consumption 35.2WStructure InformationProduct Dimensions :440*280*44mm Packaging Dimensions :500*365*85mm Product Net Weight: 4.21KG Product Gross Weight: 5.35KGEnvironmentOperating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing MountingDesktop / Rack-mount, Metal HousingLED IndicatorPWR Green LED: On: Powered on, Off: Powered off; SYS Green LED: Flashing: System startup in progress, On: The system is running normally; 1-24 Link/Act: Green LED On:2.5G Link normal, Yellow LED On:1G Link normal, Off: Link blocked, Flashing: Data transmitting; PoE Yellow LED On: PoE powered off, Off: PoE powered off; ResetLong press for 6 seconds to restore factory settings; 25-26 Blue LED On:10G Link normal, Green LED On:2.5G/1G Link normal, Off: Link blocked, Flashing: Data transmitting;PoE Max LEDOff: indicates PoE power usage is less than 90%, Flashing (Once per second): indicates PoE power usage of 90% P 95%, On: indicates that PoE power is used at 95% < P< 100%Fan Quantity2SMART FEATURESL2 Function: VLAN, QoS, IEEE 802.3ad LACP Trunk-Static Trunk, IGMP Snooping, Port Mirroring, Broadcast Storm Control 24x 2.5G Ports for WiFi 7/6 or NAS 2x 10G SFP+ Slots for Servers or Core Switches Smart PoE++(IEEE802.3af/at/bt) Mounting flexibility Technical Parameter
