Binardat 20 Port 2.5G Web Managed Switch, 16x2.5G Ethernet, 4x10 Gigabit SFP Ports, Web/CLI L3 Managed, Metal Multi-Gigabit Desktop/Rackmount Network Switch

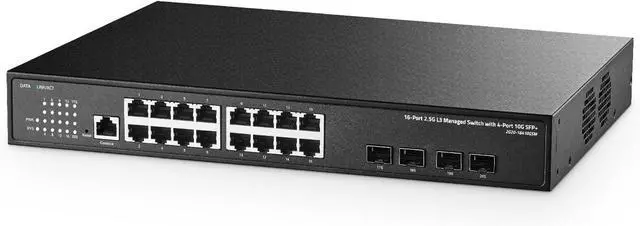

The 2G20-16410GSM is a rack-mount L3 managed switch with 16x 2.5GbE RJ45 ports and 4x 10GbE SFP+ uplink ports, It can connecting 1G/2.5GE/10G devices with different interfaces at an affordable price. Suitable for SMB and SOHO users.

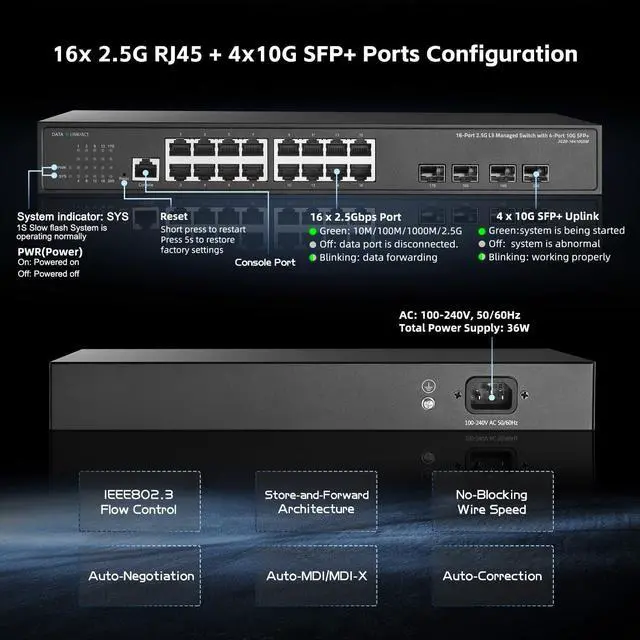

The switch includes 16x 2.5GbE RJ45 ports (backward compatible with 2.5G/1G/100Mbps)for high-speed networks, such as wifi7/6 AP, servers.
4× 10 Gbps open SFP+ slots enable high-bandwidth,long-distance connectivity and non-blocking switching capacity. Adaptive1G, 10G sfp modules that can connect to servers and core switches.

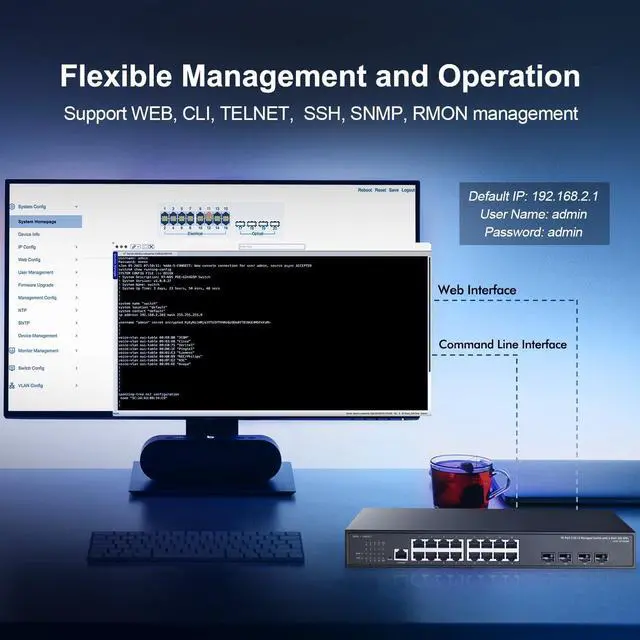

Innovative design supports CLI and easy-to-use Web GUI,easy to use andprovides an overview dashboard, port management and setting guide,making network management intuitive.
Flexible mount options for desktop or rack-mount inyour office and home, meet various network environment requirement.
It supports the IEEE 802.3az Energy-Efficient Ethernet standard.Switchesautomatically adjust power consumption according to the linkstatus andcable length. With low-noise fan and metal housing designeliminates a common point offailure, It can be placed virtuallyanywhere.
With a dedicated intelligent microchip and lighting protection, It can avoid damaging the ethernet ports andpower port.
Virtual Networks helps separate traffic within a business such as isolated resources betweenbetween employees and public guest users.
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
The Layer 3 switch can route between VLANs, make routing decisions based on the source and destination IP addresses.
Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.
Filters packets based on rules to offer firewall-like security protection.
The loop detection feature can helps you identify and removeloopson your network to avoid slow down or stop normal traffic on yournetwork
Model2G20-16410GSMInterface16x100M/1000M/2.5Gbps RJ45 Ports + 4x1G/10Gbps SFP+ SlotsStandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3ad, IEEE802.3bz, IEEE802.3aeNetwork Media100BASE-X:UTP category 5,5e cable (100m), 1000BASE-X:UTP category 5e,6 cable (100m), 2.5GBASE-X:UTP category 6,6a cable (100m), 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF, 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m-300m), 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m-10000m)LED IndicatorPWR(Green), Link/Act (Green)MAC Address Table16KJumbo Frame12KBytePacket Buffer12MbitTransfer ModeStore-and-ForwardSwitching Capacity160GbpsPacker Forward Speed119.04MppsLightningProtectionlevelDifferential mode ±2KV,Common mode ±4KVInput Power SupplyAC: 100-200V, 50/60Hz, Total Power Supply: 36WStructure Information Product Dimensions: 330mm*230mm*44mm,Product Weight: 2KGEnvironmentOperating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensingManagement FeaturesL3 and L2 Features 16x2.5GE Connectivity for wifi7/6 and NAS 4x 10G Uplink Slots for Servers and Core Switches Flexible Management Options Mounting flexibility Energy Saving Lighting Protection Layer3 and Layer2 Management Features Virtual Networks (VLAN) Link Aggregation (LACP) Quality of Service (QoS) IGMP snooping Static Route Support STP/RSTP Support ACL Support Loop Detection Support Technical Specifications
