Industrial Gigabit 30W PoE Injector 12~48V DC Input Boost to 48V PoE Output, IEEE802.3af/at PoE+ Adapter Power Over Ethernet 10/100/1000Mbps
- -7 :Supports 9-57V wide voltage DC input for power redundancy, power can up to 30W max, PoE injector can be used for RV Truck/Solar Power/VoIP ect.
- ./ : 9-58V to PoE 48V support IEEE802.3af PoE(15.4W) and IEEE802.3at PoE(30W), meet the power supply requirements of most devices.
- : 12-48V 2 channel redundant power input. Improve the stability and performance of the entire system.
- - & :The gigabit PoE injector comes with 35mm Din-rail clip and wall mount accessories.
- : 6000V surge protection capability, being able to operate under the temperature range from - 40°F to 167°F. Small size 3.74*2.76*1.42in(95*70*36mm), suitable for monitoring confined spaces.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

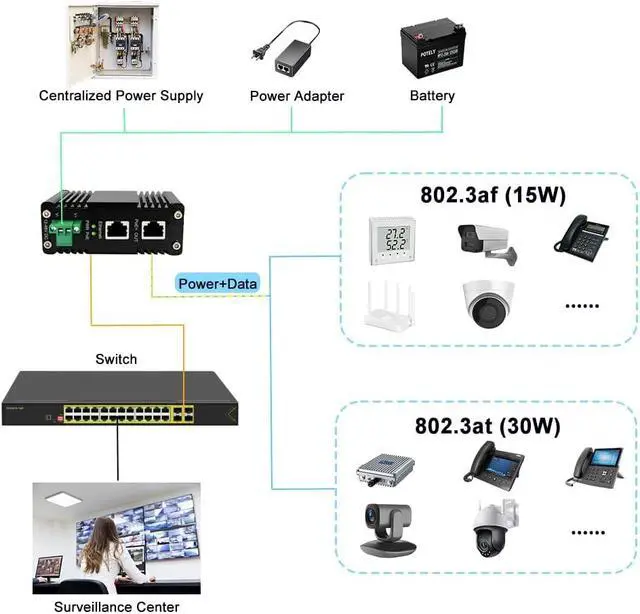

The 30W/95W Gigabit PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
-- 12~48VDC Power Input;
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet
Output Port(Data + Power);
-- Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment;
-- Support 10/100/1000Base-TX;
-- Power Pin Assignment: 4/5(+), 7/8(-);

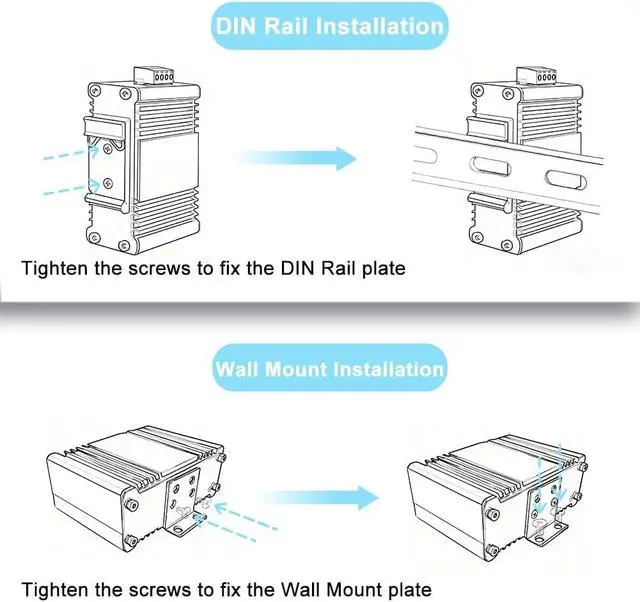

-- Support35mm DIN-Rail installation;
-- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature;
-- Dimensions (WxDxH): 95*70*36 mm;
-- Weight: 0.25Kg (0.55Ib);
-- Casing: Aluminum Case;
Support 4K/8K camera transmission. Its widely used in wireless AP / CCTV security transmission / VoIP IP phone system/ Robust fiber ring network etc.
Product Description Features Application
-- 12~48VDC Power Input;
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet
Output Port(Data + Power);
-- Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment;
-- Support 10/100/1000Base-TX;
-- Power Pin Assignment: 4/5(+), 7/8(-);
-- Support35mm DIN-Rail installation;
-- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature;
-- Dimensions (WxDxH): 95*70*36 mm;
-- Weight: 0.25Kg (0.55Ib);
-- Casing: Aluminum Case;
Support 4K/8K camera transmission. Its widely used in wireless AP / CCTV security transmission / VoIP IP phone system/ Robust fiber ring network etc.
